Product Overview

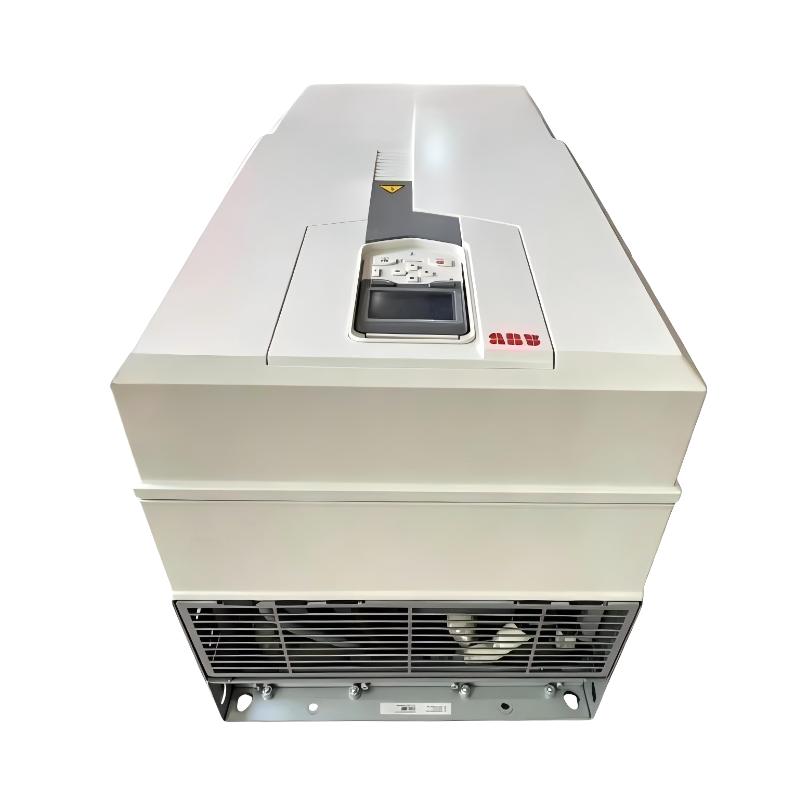

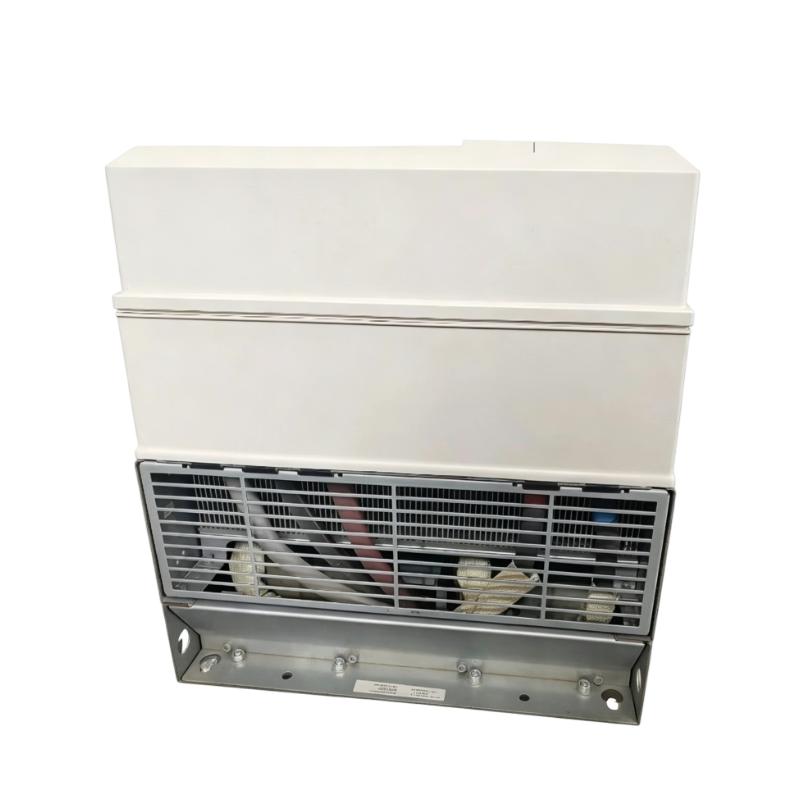

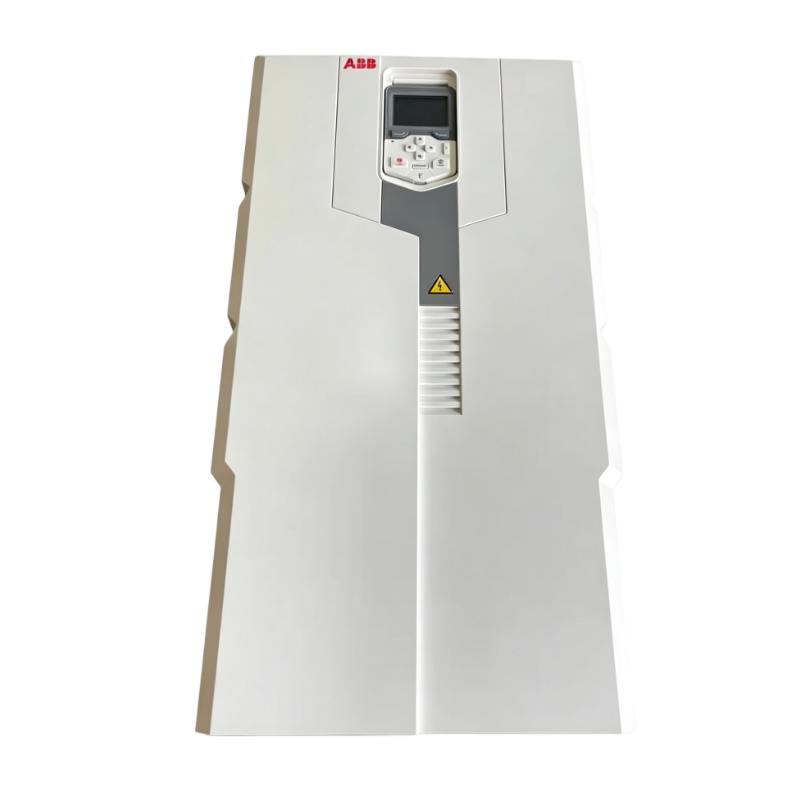

The ABB ACS580-01-363A-4 (3AUA0000080509) Frequency Converter is a high-power industrial variable frequency drive designed for reliable AC motor control in demanding automation, manufacturing, and process industry applications.
As part of the ABB ACS580 series, this frequency converter provides efficient motor speed control, stable torque regulation, and improved energy management for large industrial motor systems. It is designed for applications that require continuous operation, high reliability, and precise control performance.
The ACS580-01-363A-4 features a rated output current of 363 A and is suitable for 200 kW class motor applications. It is widely used in industrial equipment such as pumps, fans, compressors, conveyors, mixers, and heavy-duty machinery where accurate speed adjustment and reliable operation are essential.
With dimensions of 955 x 380 x 418 mm and a weight of 97 kg, this frequency converter is designed for large industrial installations requiring high output capacity and robust mechanical construction.

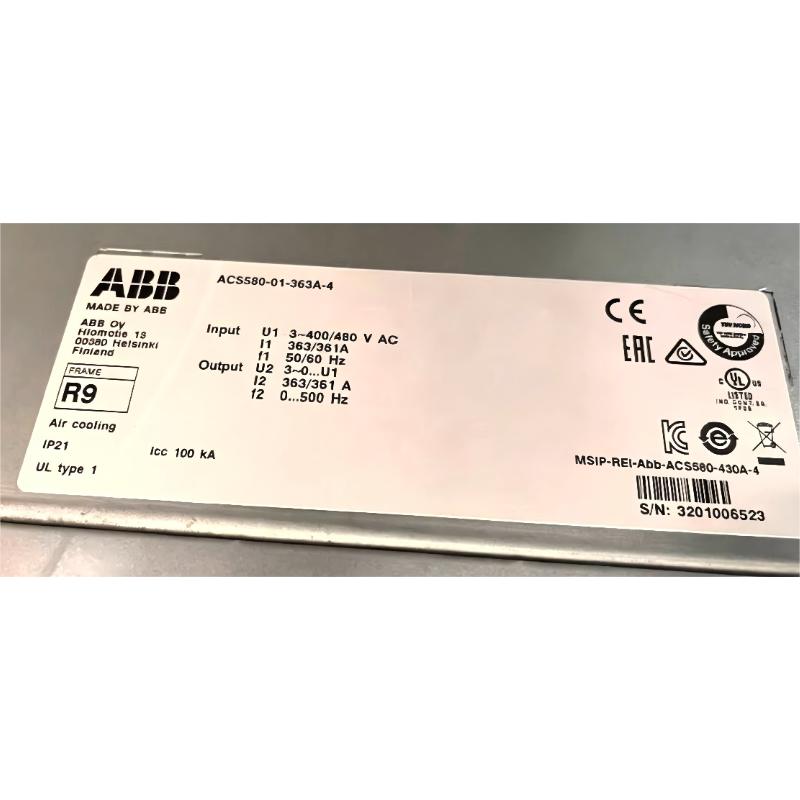

Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-363A-4 |
| Part Number | 3AUA0000080509 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Rated Output Current | 363 A |
| Power Class | 200 kW |
| Input Voltage | 380–480 V AC |
| Phase | Three Phase |
| Mounting Type | Wall-mounted |
| Protection Class | IP21 |
| Dimensions | 955 x 380 x 418 mm |
| Weight | 97 kg |
| Application | Industrial Motor Control |
Product Features
High-Performance Motor Control
The ABB ACS580-01-363A-4 provides powerful motor control capability for large industrial drive systems.
Main features:
- High output current capacity
- Stable speed regulation
- Reliable torque control
- Smooth acceleration and deceleration
- Suitable for continuous-duty operation
The drive ensures stable motor performance even under demanding load conditions.
Energy Saving Variable Speed Operation
The frequency converter improves energy efficiency by adjusting motor speed according to actual system requirements.
Advantages include:
- Reduced energy consumption
- Improved process efficiency
- Lower mechanical stress
- Optimized equipment operation
- Reduced operating costs
Variable speed control is particularly effective for pump and fan systems where motor demand changes during operation.
Easy Commissioning and Configuration
The ACS580-01-363A-4 is designed to simplify installation and commissioning.
Key functions:
- Flexible parameter adjustment
- Motor data configuration
- Fault monitoring
- Protection functions
- Simple troubleshooting process
These functions help reduce installation time and improve system reliability.
Reliable Industrial Design
The frequency converter is built for harsh industrial environments.
Design advantages:
- Strong mechanical structure
- Efficient cooling system
- Stable electrical performance
- Durable internal components
- Long operational service life
The robust design allows reliable operation in factories, production lines, and process automation systems.
Working Principle
A frequency converter controls AC motor speed by converting fixed-frequency input power into adjustable-frequency output power.
The operating process:
- Three-phase AC power enters the converter.
- The rectifier converts AC power into DC power.
- The DC link stabilizes electrical energy.
- The inverter produces controlled AC output.
- Adjustable voltage and frequency are supplied to the motor.
- Motor speed and torque are controlled according to application requirements.
This technology improves motor efficiency and provides accurate control of industrial processes.
Industrial Applications
Pump Control Systems
The ABB ACS580-01-363A-4 is suitable for large industrial pumping applications.
Typical uses:
- Water treatment systems
- Industrial process pumps
- Cooling circulation systems
- Fluid transportation equipment
Benefits:
- Improved flow control
- Reduced energy consumption
- Smooth startup operation
- Reduced mechanical wear
Fan and Ventilation Systems
The frequency converter is widely used in large ventilation applications.
Applications:
- Industrial fans
- Cooling systems
- Air handling equipment
- Exhaust systems
Advantages:
- Adjustable airflow control
- Improved energy efficiency
- Stable operation
- Reduced motor stress
Compressor Applications
The ACS580-01-363A-4 provides reliable speed control for compressor systems.
Applications:
- Industrial air compressors
- Process compressors
- Production equipment
Benefits:
- Smooth motor operation
- Reduced startup impact
- Improved equipment protection
- Stable process control
Conveyor and Heavy Machinery
The drive supports heavy industrial automation equipment.
Applications:
- Material handling systems
- Manufacturing conveyors
- Processing machines
- Production equipment
Advantages:
- Precise speed adjustment
- Smooth mechanical movement
- Improved production stability
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-363A-4, verify:
- Correct frequency converter model
- Compatible motor specifications
- Proper supply voltage
- Suitable installation environment
- Adequate ventilation space
- Reliable grounding connection
Installation Steps
Step 1: Select Installation Location
Choose a suitable installation area:
- Clean and dry environment
- Good ventilation conditions
- Protected from excessive dust
- Away from direct heat sources
Step 2: Mount the Frequency Converter
- Install the drive vertically.
- Fix the converter securely on a strong mounting surface.
- Confirm mechanical stability.
Step 3: Electrical Wiring
Connect:
- Main power input
- Motor output terminals
- Grounding cable
- Control wiring
- Communication cables
Check all connections carefully before startup.
Step 4: Parameter Configuration
Configure:
- Motor rated voltage
- Motor rated current
- Motor frequency
- Acceleration time
- Deceleration time
- Control mode
Correct configuration ensures optimized motor performance.
Step 5: Commissioning Test
Perform:
- Power inspection
- Motor rotation check
- Parameter verification
- Load testing
- Fault monitoring test
Confirm normal operation before putting the system into service.
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible Causes
- Incorrect power connection
- Missing start command
- Incorrect parameter settings
- Active protection function
Solutions
- Check input power wiring
- Verify control signals
- Review parameters
- Reset faults
Overcurrent Fault
Possible Causes
- Motor overload
- Short circuit
- Incorrect motor parameters
- Mechanical blockage
Solutions
- Inspect motor condition
- Check output cables
- Verify motor data
- Reduce excessive load
Overvoltage Fault
Possible Causes
- Excessive regenerative energy
- Short deceleration time
- Incorrect braking settings
Solutions
- Increase deceleration time
- Adjust braking parameters
- Analyze load characteristics
Overheating Fault
Possible Causes
- Poor ventilation
- Cooling fan failure
- Blocked airflow
- Continuous overload operation
Solutions
- Clean cooling passages
- Check cooling fan
- Improve ventilation
- Reduce overload conditions
Communication Failure
Possible Causes
- Incorrect communication parameters
- Damaged cables
- Network configuration problems
Solutions
- Check communication settings
- Inspect cables
- Verify automation system configuration
Maintenance Recommendations
To maintain reliable operation:
- Clean cooling channels regularly
- Inspect electrical terminals
- Check cooling fan operation
- Monitor operating temperature
- Review fault history
- Verify parameter settings
Regular maintenance helps extend the service life of the frequency converter and improves system stability.
Key Advantages
High Current Capability
The 363 A output rating supports large industrial motor applications.
Energy Efficiency Improvement
Variable speed control reduces unnecessary energy consumption.
Reliable Industrial Performance
Designed for continuous operation in demanding environments.
Wide Application Compatibility
Suitable for pumps, fans, compressors, conveyors, and heavy machinery.
Easy Automation Integration
Supports modern industrial control system requirements.
Technical FAQs
What is ABB ACS580-01-363A-4?
The ABB ACS580-01-363A-4 is a high-power frequency converter designed for industrial AC motor control.
What is the part number?
The part number is 3AUA0000080509.
What is the rated output current?
The rated output current is 363 A.
What is the power rating?
The drive is designed for 200 kW class motor applications.
What are the dimensions?
The dimensions are 955 x 380 x 418 mm.
What is the weight?
The weight is 97 kg.
Conclusion
The ABB ACS580-01-363A-4 3AUA0000080509 Frequency Converter is a high-capacity industrial drive designed for large motor control applications.
With its 363 A output capability, 200 kW class performance, reliable construction, and flexible control functions, it provides stable and efficient operation for demanding industrial automation systems.
This frequency converter helps improve energy efficiency, optimize motor performance, reduce mechanical stress, and support reliable long-term operation in modern industrial environments.
