Product Overview

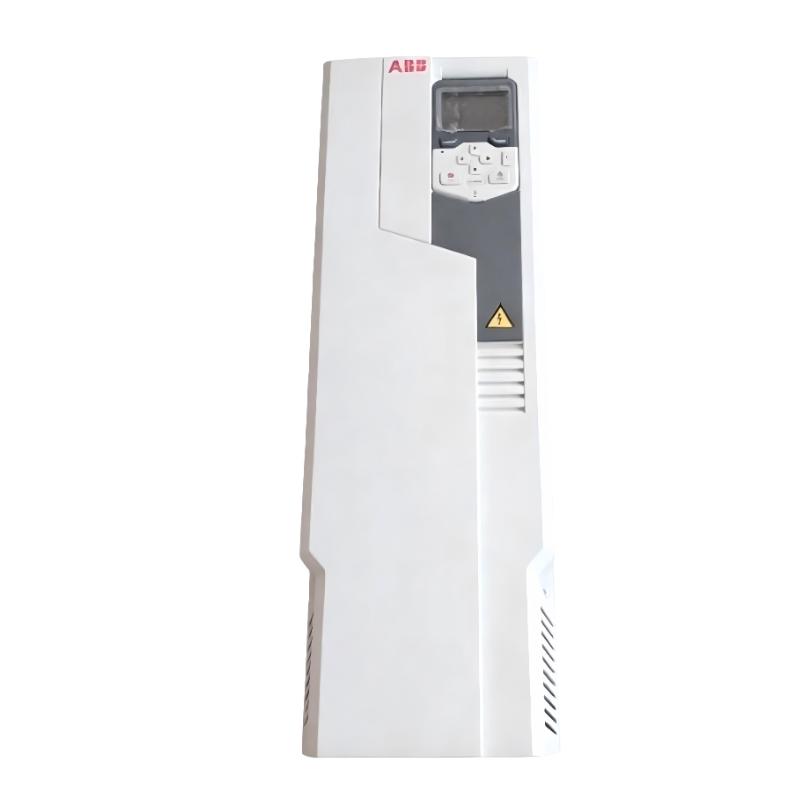

The ABB ACS580-01-088A-4 Frequency Converter with product code 3ABD00045435-D is a high-performance industrial AC drive designed for reliable motor speed control, energy-efficient operation, and simplified automation system integration.
The ABB ACS580 series is a general-purpose frequency converter platform designed for industrial applications that require stable motor operation, accurate speed adjustment, and easy commissioning. The ACS580-01-088A-4 provides dependable control for medium-power motors used in pumps, fans, conveyors, compressors, mixers, extruders, and other industrial machinery.
With an output current capability of 88 A and a rated power of approximately 45 kW, the ABB ACS580-01-088A-4 delivers strong motor control performance for applications requiring continuous operation and reliable process control.
The ABB ACS580-01-088A-4 3ABD00045435-D Frequency Converter features a robust wall-mounted industrial design with dimensions of 732 × 203 × 295 mm and a weight of 30 kg, making it suitable for industrial control cabinets, manufacturing equipment, and automation systems requiring stable and long-term operation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-088A-4 |
| Product Code | 3ABD00045435-D |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Rated Current | 88 A |
| Rated Power | 45 kW |
| Voltage Class | 400 V |
| Input Voltage | 380–480 V AC |
| Input Type | Three Phase AC |
| Frequency | 50/60 Hz |
| Frame Size | R5 |
| Installation Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Protection Class | IP21 |
| Dimensions | 732 × 203 × 295 mm |
| Weight | 30 kg |
| Application | Industrial Motor Control |
Product Features
High-Capacity Industrial Motor Control
The ABB ACS580-01-088A-4 provides reliable variable-speed control for medium-power industrial motors.
Main advantages:
- High output current capability
- Stable motor speed regulation
- Accurate torque control
- Smooth acceleration and deceleration
- Improved production reliability
The drive is designed for applications requiring consistent motor performance under different operating conditions.
Robust Industrial Construction
The ACS580-01-088A-4 is built for demanding industrial environments.
Key design advantages:
- Strong mechanical structure
- Efficient cooling system
- Reliable electrical performance
- Suitable for continuous operation
- Flexible cabinet installation
Its industrial-grade design helps ensure stable operation in factories and process automation environments.
Simplified Commissioning
The ABB ACS580 series provides a user-friendly setup experience for engineers and technicians.
Commissioning advantages:
- Easy parameter configuration
- Fast motor startup
- Integrated diagnostic functions
- Simple operation adjustment
- Reduced commissioning time
The simplified configuration process helps improve installation efficiency and reduce system downtime.
Energy Optimization Capability
The ABB ACS580-01-088A-4 improves energy efficiency through variable-speed motor control.
Energy-saving benefits:
- Reduced power consumption
- Improved motor efficiency
- Lower operating costs
- Optimized process performance
By adjusting motor speed according to actual load requirements, the frequency converter helps avoid unnecessary energy waste.
Working Principle
The ABB ACS580-01-088A-4 frequency converter controls AC motor operation by converting fixed-frequency input power into adjustable-frequency output power.
The operation process includes:
- Three-phase AC power enters the drive.
- The rectifier converts AC voltage into DC voltage.
- The DC intermediate circuit stabilizes electrical energy.
- The inverter converts DC power into variable-frequency AC output.
- The motor receives controlled voltage and frequency signals.
Through precise frequency and voltage regulation, the drive controls motor speed, torque, and energy consumption.
Industrial Applications
Pump Systems
The ABB ACS580-01-088A-4 is suitable for medium-power industrial pump applications.
Typical applications:
- Water treatment pumps
- Cooling circulation systems
- Process pumps
- Industrial fluid handling systems
Benefits:
- Improved flow regulation
- Reduced energy consumption
- Smooth motor startup
- Extended equipment lifetime
Fan and Ventilation Systems
The frequency converter provides efficient control for large industrial fan systems.
Applications include:
- Factory ventilation
- Cooling systems
- Air handling equipment
- Exhaust systems
Advantages:
- Flexible airflow adjustment
- Reduced operating costs
- Stable ventilation performance
Conveyor Systems
The ACS580-01-088A-4 provides reliable speed control for industrial conveyors.
Typical applications:
- Material handling systems
- Production conveyors
- Packaging lines
- Manufacturing equipment
Benefits:
- Smooth acceleration
- Accurate speed control
- Reduced mechanical stress
Compressor Applications
The drive is suitable for industrial compressor control.
Applications:
- Air compressors
- Process compressors
- Industrial pressure systems
Advantages:
- Stable motor operation
- Improved energy utilization
- Better process control
Industrial Machinery
The ACS580-01-088A-4 can be integrated into various automation systems.
Applications:
- Extruders
- Mixers
- Processing machines
- Production equipment
Benefits:
- Reliable operation
- Flexible configuration
- Improved machine performance
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-088A-4, check:
- Correct three-phase power supply
- Compatible motor specifications
- Proper installation environment
- Sufficient ventilation space
- Reliable grounding connection
Installation Steps
- Mount the frequency converter vertically inside the control cabinet.
- Ensure enough clearance for cooling airflow.
- Connect incoming power cables.
- Connect motor output cables.
- Connect control and communication wiring.
- Configure motor parameters.
- Perform commissioning tests.
Installation Precautions
During installation:
- Avoid excessive humidity
- Prevent dust accumulation
- Maintain proper airflow
- Use suitable electrical cables
- Check all terminal connections
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible causes:
- Incorrect start command
- Missing enable signal
- Incorrect parameter configuration
- Motor connection problems
Solutions:
- Check control signals
- Verify parameter settings
- Inspect motor wiring
- Reset active alarms
Overcurrent Fault
Possible causes:
- Motor overload
- Short circuit in motor cables
- Incorrect motor parameters
- Mechanical blockage
Solutions:
- Check motor load
- Inspect output wiring
- Verify motor data
- Check mechanical system conditions
Overvoltage Fault
Possible causes:
- Short deceleration time
- Excessive regenerative energy
- Input voltage instability
Solutions:
- Increase deceleration time
- Check supply voltage
- Adjust drive parameters
Overheating Fault
Possible causes:
- Poor cabinet ventilation
- Cooling blockage
- High ambient temperature
- Excessive operating load
Solutions:
- Improve airflow
- Clean cooling channels
- Check installation conditions
- Reduce load demand
Communication Failure
Possible causes:
- Incorrect communication settings
- Damaged cables
- PLC communication errors
Solutions:
- Verify communication parameters
- Inspect wiring
- Check PLC and HMI configuration
System Integration
| Component | Function |
|---|---|
| PLC System | Automatic motor control |
| DCS System | Process monitoring |
| HMI | Operator interface |
| Industrial Network | Data communication |
| Motor Protection System | Equipment protection |
Key Advantages
Powerful Drive Capability
The 88 A output current design provides reliable control for medium-power industrial motors.
Stable Industrial Operation
Designed for continuous operation in demanding automation environments.
Energy Efficient Performance
Variable-speed control improves system efficiency and reduces unnecessary power consumption.
Flexible Integration
Compatible with industrial automation systems including PLC, DCS, and HMI platforms.
Easy Maintenance
Integrated diagnostic functions help reduce troubleshooting time and improve equipment availability.
Technical FAQs
What is ABB ACS580-01-088A-4 used for?
The ABB ACS580-01-088A-4 is a frequency converter designed for industrial AC motor control applications.
What is the rated current of ABB ACS580-01-088A-4?
The rated current is 88 A.
What is the rated power of ABB ACS580-01-088A-4?
The rated power is approximately 45 kW.
What is the product code of ABB ACS580-01-088A-4?
The product code is 3ABD00045435-D.
What are the dimensions of ABB ACS580-01-088A-4?
The dimensions are 732 × 203 × 295 mm.
What is the weight of ABB ACS580-01-088A-4?
The approximate weight is 30 kg.
Conclusion
The ABB ACS580-01-088A-4 3ABD00045435-D Frequency Converter is a powerful and reliable industrial AC drive designed for medium-power motor control applications.
With its high-capacity motor control capability, robust industrial design, energy-efficient operation, and simplified commissioning features, it provides an effective solution for modern automation and drive systems.
For industrial automation engineers, system integrators, and maintenance professionals, the ABB ACS580-01-088A-4 delivers dependable performance for pumps, fans, conveyors, compressors, extruders, mixers, and other industrial motor-driven equipment.
