Product Overview

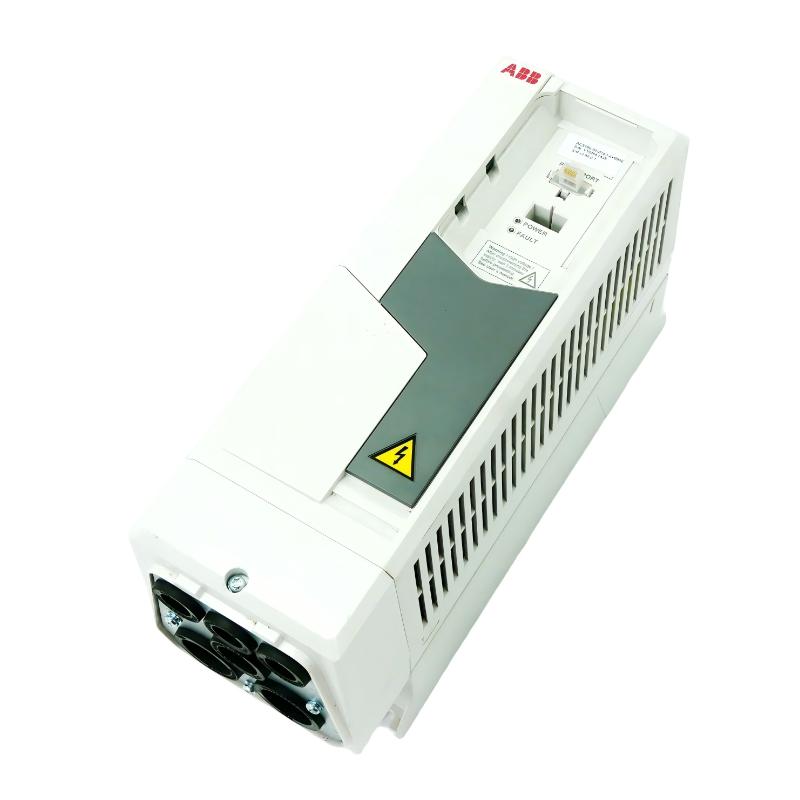

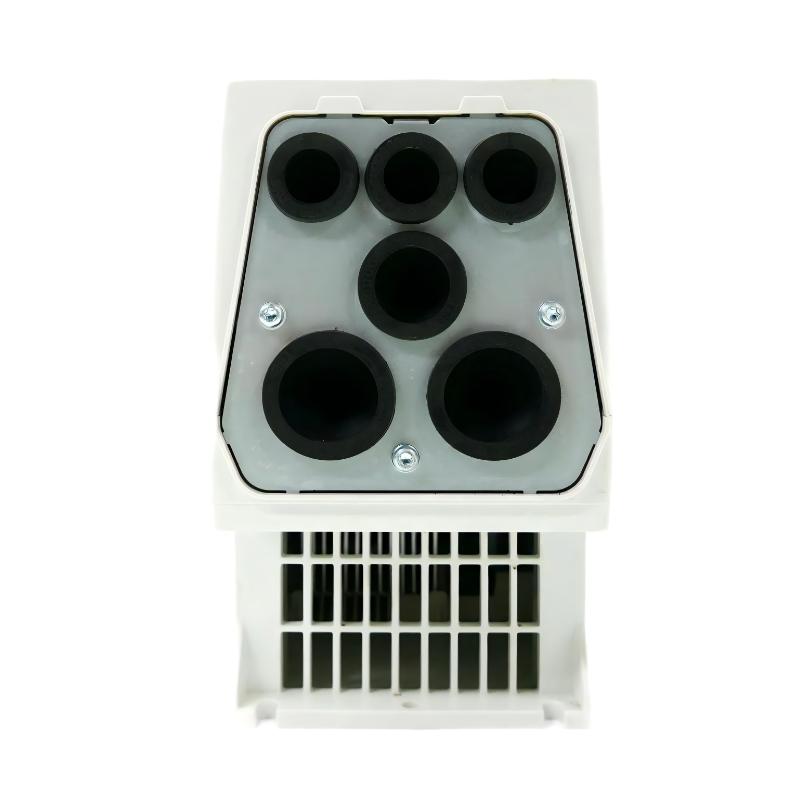

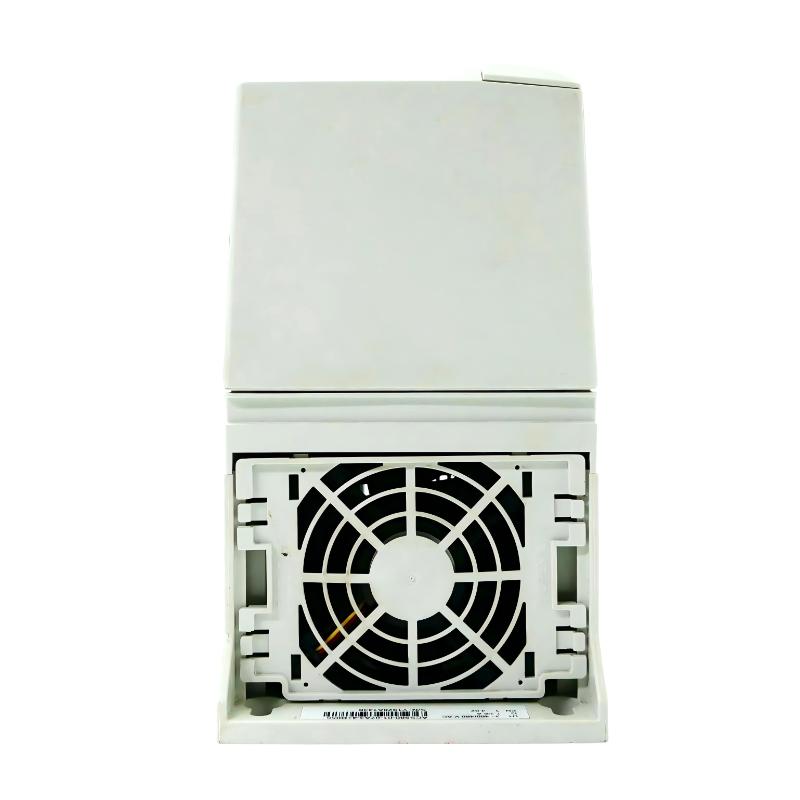

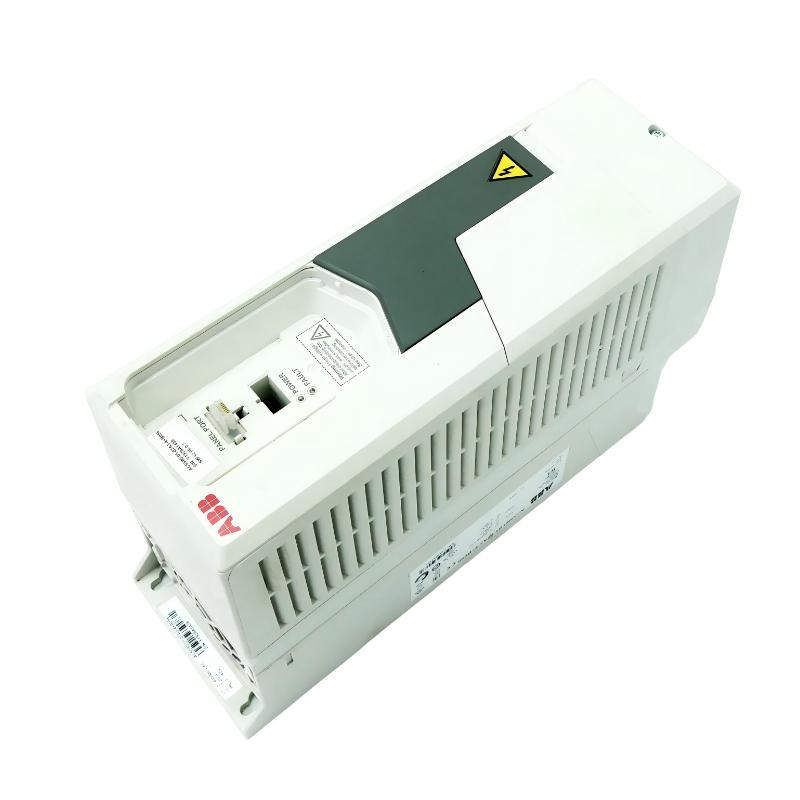

The ABB ACS580-01-07A3-4 Frequency Converter with product code 3AXD50000038951 is a compact industrial AC drive designed for reliable motor control, energy-efficient operation, and flexible integration into automation systems.
The ABB ACS580 series is a general-purpose frequency converter platform developed for industrial applications requiring stable motor speed regulation, accurate torque control, and simplified commissioning. The ACS580-01-07A3-4 provides dependable performance for small and medium motor-driven equipment, including pumps, fans, conveyors, mixers, compressors, and various industrial machines.
By adjusting output frequency and voltage, the ABB ACS580-01-07A3-4 enables precise control of motor speed and torque according to different operating conditions. This helps improve system efficiency, reduce mechanical stress, lower energy consumption, and extend equipment service life.
The ABB ACS580-01-07A3-4 3AXD50000038951 Frequency Converter features a compact industrial design with dimensions of 373 × 125 × 223 mm and a weight of 4.6 kg, making it suitable for space-limited control cabinets, OEM machinery, and industrial automation equipment.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-07A3-4 |
| Product Code | 3AXD50000038951 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Rated Current | 7.2 A |
| Rated Power | 3 kW |
| Voltage Class | 400 V |
| Input Voltage | 380–480 V AC |
| Input Type | Three Phase AC |
| Frequency | 50/60 Hz |
| Installation Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Protection Class | IP21 |
| Dimensions | 373 × 125 × 223 mm |
| Weight | 4.6 kg |
| Application | Industrial Motor Control |
Product Features
Compact Industrial Design
The ABB ACS580-01-07A3-4 provides efficient motor control performance in a compact housing design.
Main advantages:
- Space-saving installation
- Flexible cabinet integration
- Reliable motor operation
- Efficient heat dissipation
- Suitable for OEM equipment
The compact structure allows installation in automation systems where available panel space is limited.
Reliable Motor Control Performance
The ABB ACS580-01-07A3-4 provides accurate control of AC motors through advanced variable-frequency technology.
Key benefits:
- Stable speed regulation
- Smooth acceleration and deceleration
- Reliable torque control
- Reduced mechanical impact
- Improved machine performance
The drive helps maintain consistent motor operation even when process loads change.
Easy Commissioning and Maintenance
The ACS580 series simplifies installation and maintenance procedures for automation engineers.
Key features:
- Simple parameter configuration
- Fast commissioning process
- Integrated diagnostic functions
- Easy fault identification
- Reduced maintenance workload
The user-friendly design helps shorten startup time and improve system availability.
Energy Efficient Operation
The ABB ACS580-01-07A3-4 improves energy efficiency by controlling motor speed according to actual process requirements.
Energy-saving advantages:
- Reduced unnecessary power consumption
- Improved motor efficiency
- Lower operating costs
- Optimized machine operation
Variable-speed control allows industrial equipment to operate more efficiently compared with traditional fixed-speed systems.
Working Principle
The ABB ACS580-01-07A3-4 frequency converter controls motor operation by converting fixed-frequency AC input power into adjustable-frequency AC output power.
The operating process includes:
- AC power enters the frequency converter.
- The rectifier converts AC voltage into DC voltage.
- The DC intermediate circuit stabilizes electrical energy.
- The inverter generates variable-frequency AC output.
- The motor receives controlled voltage and frequency signals.
By adjusting output frequency and voltage, the drive controls motor speed, torque, and operating efficiency.
Industrial Applications
Pump Control Systems
The ABB ACS580-01-07A3-4 is suitable for industrial pump applications.
Typical applications:
- Water circulation systems
- Cooling pumps
- Process pumps
- Fluid transportation equipment
Benefits:
- Improved flow adjustment
- Reduced energy consumption
- Smooth motor startup
- Extended equipment lifetime
Fan and Ventilation Systems
The frequency converter provides efficient speed control for industrial fan equipment.
Applications include:
- Cooling fans
- Factory ventilation systems
- Air circulation equipment
- Exhaust systems
Advantages:
- Flexible airflow control
- Improved energy efficiency
- Stable system performance
Conveyor Applications
The ACS580-01-07A3-4 provides reliable motor control for conveyor systems.
Typical applications:
- Packaging conveyors
- Production lines
- Material handling equipment
Benefits:
- Smooth acceleration
- Accurate speed control
- Reduced mechanical wear
OEM Machinery
Due to its compact design, the ABB ACS580-01-07A3-4 is widely used in OEM automation equipment.
Applications include:
- Automated machines
- Processing equipment
- Small production systems
- Industrial auxiliary equipment
Advantages:
- Easy integration
- Compact installation
- Reliable operation
Installation Guide
Installation Preparation
Before installation, confirm:
- Correct three-phase power supply
- Compatible motor specifications
- Suitable installation environment
- Proper ventilation conditions
- Reliable grounding connection
Installation Steps
- Mount the frequency converter vertically inside the control cabinet.
- Ensure enough space for cooling airflow.
- Connect input power cables.
- Connect motor output cables.
- Connect control terminals.
- Configure motor parameters.
- Perform commissioning tests.
Installation Precautions
During installation:
- Avoid excessive moisture
- Prevent dust accumulation
- Maintain proper ventilation
- Use suitable electrical cables
- Ensure all terminals are securely connected
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible causes:
- Incorrect start command
- Missing enable signal
- Incorrect parameter settings
- Motor wiring problems
Solutions:
- Check control signals
- Verify parameters
- Inspect motor connections
- Reset active alarms
Overcurrent Fault
Possible causes:
- Motor overload
- Output cable short circuit
- Incorrect motor data
- Mechanical blockage
Solutions:
- Check motor load
- Inspect output wiring
- Verify motor parameters
- Check mechanical equipment
Overvoltage Fault
Possible causes:
- Short deceleration time
- Excessive regenerative energy
- Unstable supply voltage
Solutions:
- Increase deceleration time
- Check input power condition
- Adjust drive parameters
Overheating Fault
Possible causes:
- Poor ventilation
- Cooling obstruction
- High ambient temperature
- Excessive load
Solutions:
- Improve airflow
- Clean cooling channels
- Check installation environment
- Reduce operating load
Communication Failure
Possible causes:
- Incorrect communication settings
- Damaged communication cables
- PLC configuration errors
Solutions:
- Check communication parameters
- Inspect communication wiring
- Verify PLC and HMI settings
System Integration
| Component | Function |
|---|---|
| PLC System | Automatic motor control |
| DCS System | Process monitoring |
| HMI | Operator interface |
| Industrial Network | Data communication |
| Motor Protection System | Equipment protection |
Key Advantages
Compact Installation
The 373 × 125 × 223 mm design allows installation in compact automation cabinets.
Reliable Performance
Provides stable speed and torque control for industrial motor applications.
Energy Optimization
Improves system efficiency through variable-speed operation.
Easy Maintenance
Diagnostic functions simplify troubleshooting and reduce downtime.
Wide Application Range
Suitable for pumps, fans, conveyors, mixers, compressors, and OEM machinery.
Technical FAQs
What is ABB ACS580-01-07A3-4 used for?
The ABB ACS580-01-07A3-4 is a frequency converter designed for industrial AC motor control applications.
What is the rated power of ABB ACS580-01-07A3-4?
The rated power is 3 kW.
What is the rated current of ABB ACS580-01-07A3-4?
The rated current is 7.2 A.
What is the product code of ABB ACS580-01-07A3-4?
The product code is 3AXD50000038951.
What are the dimensions of ABB ACS580-01-07A3-4?
The dimensions are 373 × 125 × 223 mm.
What is the weight of ABB ACS580-01-07A3-4?
The approximate weight is 4.6 kg.
Conclusion
The ABB ACS580-01-07A3-4 3AXD50000038951 Frequency Converter is a compact and reliable industrial AC drive designed for efficient motor control and automation applications.
With its compact structure, stable control performance, energy-saving operation, and simplified commissioning process, it provides an effective solution for modern industrial drive systems.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS580-01-07A3-4 delivers dependable performance for pumps, fans, conveyors, OEM machines, and other industrial motor-driven equipment.
