Product Overview

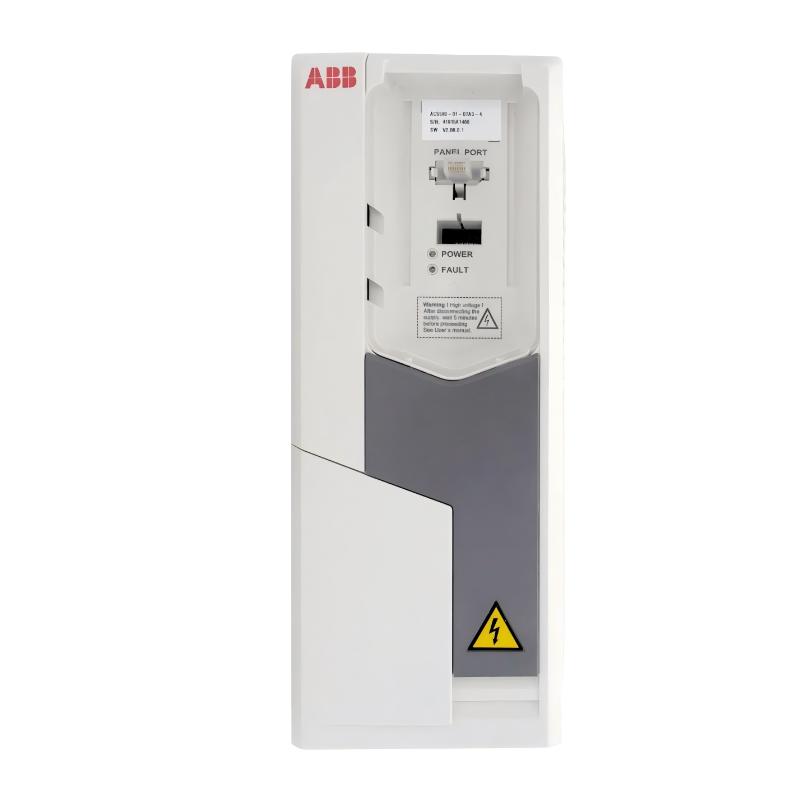

The ABB ACS580-01-07A3-4 Frequency Converter with product code 3ABD50000038951 is a compact industrial AC drive designed for reliable motor speed control, energy-efficient operation, and simplified integration into automation systems.
The ABB ACS580 series is a general-purpose frequency converter family developed for industrial applications requiring stable motor performance, accurate speed adjustment, and easy commissioning. The ACS580-01-07A3-4 provides dependable control for small and medium industrial motors used in pumps, fans, conveyors, mixers, compressors, and other variable-speed applications.
By controlling output frequency and voltage, the ABB ACS580-01-07A3-4 allows motors to operate according to actual process requirements. This helps reduce energy consumption, improve machine performance, minimize mechanical stress, and extend equipment service life.
The ABB ACS580-01-07A3-4 3ABD50000038951 Frequency Converter features a compact wall-mounted design with dimensions of 303 × 125 × 223 mm and a weight of 6.5 kg, making it suitable for space-limited control cabinets, OEM machines, and industrial automation equipment.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-07A3-4 |
| Product Code | 3ABD50000038951 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Rated Current | 7.2 A |
| Rated Power | 3 kW |
| Voltage Class | 400 V |
| Input Voltage Range | 380–480 V |
| Input Type | Three Phase AC |
| Frequency | 50/60 Hz |
| Frame Size | R1 |
| Installation Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Protection Class | IP21 |
| Dimensions | 303 × 125 × 223 mm |
| Weight | 6.5 kg |
| Application | Industrial Motor Control |
Product Features
Compact Motor Control Solution
The ABB ACS580-01-07A3-4 provides efficient motor control in a compact package.
Main advantages:
- Stable motor speed regulation
- Smooth acceleration and deceleration
- Reliable torque control
- Reduced mechanical stress
- Flexible installation options
Its compact structure makes it suitable for automation equipment where installation space is limited.
Reliable Industrial Performance
The ACS580-01-07A3-4 is designed for industrial environments requiring dependable operation.
Key benefits:
- Robust enclosure design
- Stable electrical performance
- Efficient heat dissipation
- Long-term operating reliability
- Easy integration into control systems
The drive can support continuous operation in manufacturing equipment and industrial automation applications.
Simple Commissioning and Maintenance
The ABB ACS580 series simplifies setup and maintenance for engineers and technicians.
Features include:
- Easy parameter configuration
- Fast commissioning process
- Integrated diagnostic functions
- Simple fault identification
- Reduced maintenance workload
This helps improve installation efficiency and reduce system downtime.
Energy-Saving Operation
The ABB ACS580-01-07A3-4 improves energy efficiency by adjusting motor speed according to actual operating requirements.
Energy-saving advantages:
- Reduced unnecessary power consumption
- Improved motor efficiency
- Lower operating costs
- Optimized machine performance
Variable speed control allows equipment to operate more efficiently compared with fixed-speed operation.
Working Principle
The ABB ACS580-01-07A3-4 frequency converter controls AC motors by converting fixed-frequency electrical power into adjustable-frequency output power.
The operating process includes:
- AC power enters the frequency converter.
- The rectifier converts AC power into DC power.
- The DC circuit stabilizes the electrical energy.
- The inverter generates variable-frequency AC output.
- The motor receives controlled voltage and frequency signals.
Through frequency adjustment, the drive controls motor speed and torque to meet different application requirements.
Industrial Applications
Pump Applications
The ABB ACS580-01-07A3-4 is suitable for small and medium industrial pumping systems.
Typical applications:
- Water circulation pumps
- Cooling pumps
- Process pumps
- Fluid handling systems
Benefits:
- Improved flow control
- Reduced energy consumption
- Smooth startup operation
- Extended pump lifetime
Fan and Ventilation Systems
The frequency converter provides efficient speed control for ventilation equipment.
Applications include:
- Cooling fans
- Industrial ventilation systems
- Air circulation equipment
- Exhaust systems
Advantages:
- Adjustable airflow control
- Improved energy efficiency
- Stable operation
Conveyor Equipment
The ACS580-01-07A3-4 provides reliable speed control for small conveyor systems.
Applications:
- Packaging conveyors
- Production equipment
- Material handling systems
Benefits:
- Smooth acceleration
- Accurate speed adjustment
- Reduced mechanical wear
Industrial Machinery
The drive is suitable for various automated machines.
Applications:
- Mixers
- Small compressors
- Processing equipment
- Manufacturing machines
Advantages:
- Flexible motor control
- Stable operation
- Easy system integration
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-07A3-4, confirm:
- Correct three-phase power supply
- Compatible motor specifications
- Suitable installation environment
- Proper ventilation conditions
- Reliable grounding connection
Installation Steps
- Install the frequency converter vertically inside the control cabinet.
- Ensure sufficient clearance for cooling airflow.
- Connect incoming power cables.
- Connect motor output cables.
- Connect control wiring.
- Configure motor parameters.
- Perform commissioning tests.
Installation Precautions
During installation:
- Avoid excessive humidity
- Prevent dust accumulation
- Maintain proper ventilation
- Use correct cable specifications
- Ensure secure terminal connections
Fault Diagnosis and Troubleshooting
Frequency Converter Cannot Start
Possible causes:
- Incorrect start command
- Missing enable signal
- Incorrect parameter settings
- Motor wiring problems
Solutions:
- Check control signals
- Verify parameters
- Inspect motor connections
- Reset alarms
Overcurrent Fault
Possible causes:
- Motor overload
- Output short circuit
- Incorrect motor data
- Mechanical blockage
Solutions:
- Check motor load
- Inspect output cables
- Verify motor parameters
- Reduce mechanical resistance
Overvoltage Fault
Possible causes:
- Fast deceleration
- Unstable power supply
- Excessive regenerative energy
Solutions:
- Increase deceleration time
- Check input voltage
- Adjust drive parameters
Overheating Fault
Possible causes:
- Poor ventilation
- Cooling obstruction
- High ambient temperature
- Excessive load operation
Solutions:
- Improve airflow
- Clean cooling areas
- Check installation environment
- Reduce operating load
Communication Failure
Possible causes:
- Incorrect communication settings
- Damaged communication cables
- Network configuration problems
Solutions:
- Check communication parameters
- Inspect cables
- Verify PLC and HMI settings
System Integration
| Component | Function |
|---|---|
| PLC System | Automatic motor control |
| DCS System | Process monitoring |
| HMI | Operator interface |
| Industrial Network | Data communication |
| Motor Protection System | Equipment protection |
Key Advantages
Compact Installation Design
The 303 × 125 × 223 mm structure allows flexible installation in compact automation cabinets.
Reliable Motor Control
Provides accurate speed and torque regulation for industrial motor applications.
Energy Optimization
Improves system efficiency by adjusting motor operation according to process requirements.
Easy Maintenance
Diagnostic functions simplify troubleshooting and reduce downtime.
Wide Application Range
Suitable for pumps, fans, conveyors, mixers, compressors, and industrial machines.
Technical FAQs
What is ABB ACS580-01-07A3-4 used for?
The ABB ACS580-01-07A3-4 is a frequency converter designed for industrial three-phase AC motor control applications.
What is the rated current of ABB ACS580-01-07A3-4?
The rated current is 7.2 A.
What is the rated power of ABB ACS580-01-07A3-4?
The rated power is 3 kW.
What is the product code of ABB ACS580-01-07A3-4?
The product code is 3ABD50000038951.
What are the dimensions of ABB ACS580-01-07A3-4?
The dimensions are 303 × 125 × 223 mm.
What is the weight of ABB ACS580-01-07A3-4?
The approximate weight is 6.5 kg.
Conclusion
The ABB ACS580-01-07A3-4 3ABD50000038951 Frequency Converter is a compact and reliable industrial AC drive designed for efficient motor control and automation applications.
With its compact structure, stable performance, energy-saving operation, and simple commissioning process, it provides an effective solution for industrial equipment requiring reliable variable-speed motor control.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS580-01-07A3-4 delivers dependable performance for pumps, fans, conveyors, mixers, compressors, and other industrial motor-driven systems.
