Product Overview

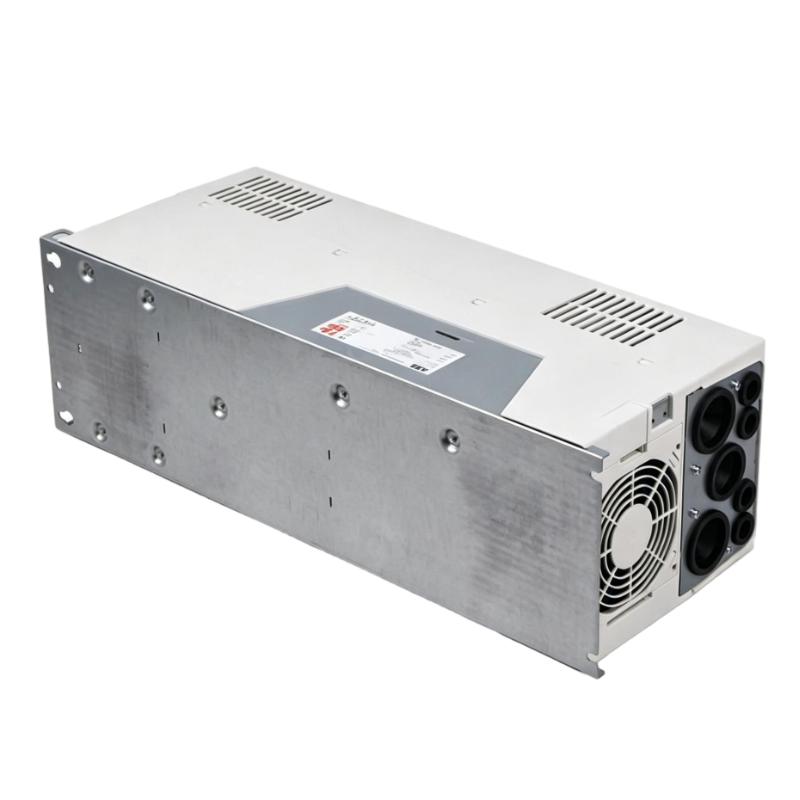

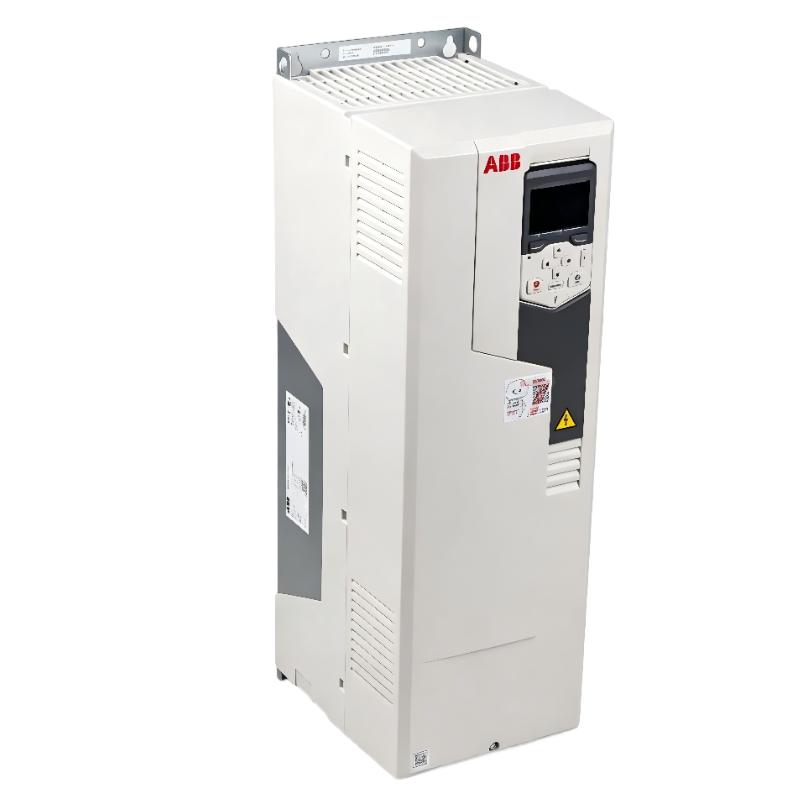

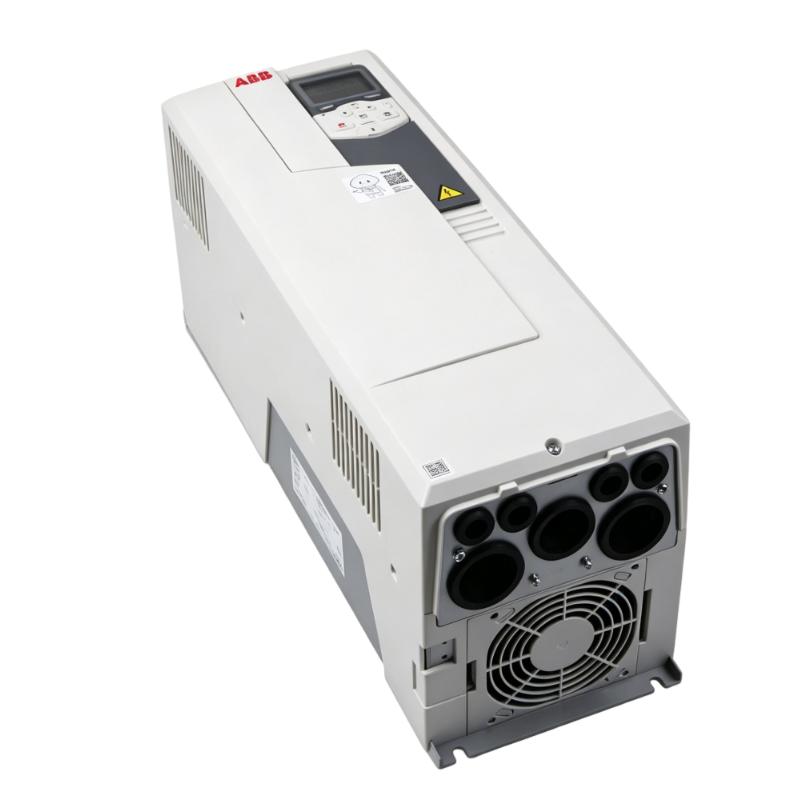

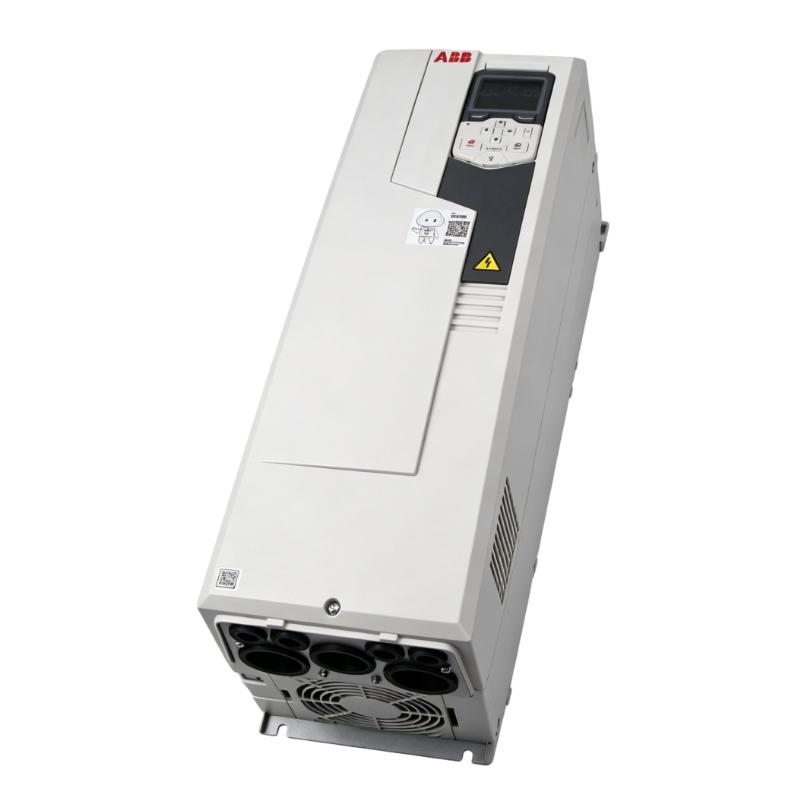

The ABB ACS580-01-073A-4 Frequency Converter with product code 3AUA0000080499 is a reliable industrial AC drive designed for efficient motor control, energy optimization, and flexible integration into modern automation systems.
The ABB ACS580 series is a general-purpose frequency converter family developed for industrial applications that require stable speed control, accurate torque regulation, and simplified commissioning. The ACS580-01-073A-4 provides dependable performance for medium-power motor systems used in pumps, fans, conveyors, compressors, mixers, and various industrial machines.
By adjusting motor output frequency and voltage, the ABB ACS580-01-073A-4 enables precise control of motor speed and torque according to process requirements. This helps reduce energy consumption, improve operational efficiency, minimize mechanical stress, and extend equipment service life.
The ABB ACS580-01-073A-4 3AUA0000080499 Frequency Converter features an industrial wall-mounted design with dimensions of 636 × 203 × 257 mm and a weight of 20 kg, making it suitable for industrial control cabinets, automation systems, and motor control applications requiring stable long-term operation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-073A-4 |
| Product Code | 3AUA0000080499 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Rated Current | 73 A |
| Rated Power | 37 kW |
| Voltage Class | 400 V |
| Input Voltage Range | 380–480 V |
| Input Type | Three Phase AC |
| Frequency | 50/60 Hz |
| Installation Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Protection Class | IP21 |
| Dimensions | 636 × 203 × 257 mm |
| Weight | 20 kg |
| Application | Industrial Motor Control |
Product Features
High-Performance Motor Control
The ABB ACS580-01-073A-4 provides accurate and reliable control for medium-power AC motors.
Main advantages:
- Precise motor speed regulation
- Smooth acceleration and deceleration
- Stable torque control
- Reduced mechanical impact
- Improved production consistency
The frequency converter allows motors to operate efficiently under different load conditions, helping maintain stable industrial processes.
Robust Industrial Design
The ACS580-01-073A-4 is designed for demanding industrial environments where reliability and durability are essential.
Key design advantages:
- Strong industrial enclosure
- Efficient cooling structure
- Stable electrical performance
- Suitable for continuous operation
- Flexible cabinet installation
Its rugged design makes it suitable for factories, processing facilities, and automation systems requiring dependable drive performance.
Simplified Commissioning and Maintenance
The ABB ACS580 series helps engineers complete installation and maintenance tasks efficiently.
Key features:
- Simple parameter configuration
- Fast commissioning process
- Built-in diagnostic functions
- Easy fault identification
- Reduced maintenance time
The user-friendly configuration structure helps reduce startup complexity and improve system availability.
Energy-Efficient Operation
The ABB ACS580-01-073A-4 improves energy efficiency by adjusting motor operation according to actual application requirements.
Energy-saving benefits:
- Reduced unnecessary power consumption
- Improved motor efficiency
- Lower operating costs
- Optimized process performance
Variable speed control allows equipment to avoid continuous full-speed operation when lower output is sufficient.
Working Principle
The ABB ACS580-01-073A-4 frequency converter controls AC motor operation by converting fixed-frequency input power into adjustable-frequency output power.
The operating process includes:
- AC power enters the frequency converter.
- The rectifier converts AC voltage into DC voltage.
- The DC intermediate circuit stabilizes electrical energy.
- The inverter converts DC power into variable-frequency AC output.
- The motor receives controlled voltage and frequency signals.
By controlling output frequency and voltage, the drive regulates motor speed, torque, and energy consumption.
Industrial Applications
Pump Control Systems
The ABB ACS580-01-073A-4 is widely used in industrial pumping applications.
Typical applications:
- Water treatment systems
- Cooling circulation pumps
- Process pumps
- Industrial fluid transportation systems
Benefits:
- Improved flow control
- Reduced energy consumption
- Smooth pump operation
- Extended equipment lifetime
Fan and Ventilation Systems
The frequency converter provides efficient speed control for industrial ventilation equipment.
Applications include:
- Factory ventilation systems
- Cooling fans
- Air handling systems
- Exhaust equipment
Advantages:
- Flexible airflow adjustment
- Improved energy efficiency
- Stable system performance
Conveyor and Material Handling Systems
The ACS580-01-073A-4 provides reliable motor control for industrial conveyor systems.
Typical applications:
- Production conveyors
- Packaging equipment
- Material transportation systems
Benefits:
- Smooth startup operation
- Accurate speed adjustment
- Reduced mechanical wear
Compressor Applications
The frequency converter is suitable for industrial compressor systems.
Applications:
- Air compressors
- Process compressors
- Industrial pressure systems
Advantages:
- Stable motor performance
- Improved energy utilization
- Better process control
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-073A-4, check:
- Correct three-phase power supply
- Compatible motor specifications
- Suitable installation environment
- Adequate ventilation space
- Proper grounding connection
Installation Steps
- Install the frequency converter vertically inside the control cabinet.
- Ensure sufficient airflow clearance around the unit.
- Connect input power cables.
- Connect motor output cables.
- Connect control and communication wiring.
- Configure motor parameters.
- Perform commissioning tests.
Installation Precautions
During installation:
- Avoid excessive humidity
- Prevent dust accumulation
- Maintain proper cooling clearance
- Use suitable electrical cables
- Ensure terminal connections are secure
Fault Diagnosis and Troubleshooting
Frequency Converter Cannot Start
Possible causes:
- Incorrect start command
- Missing enable signal
- Incorrect parameter settings
- Motor wiring problems
Solutions:
- Check control wiring
- Verify parameter configuration
- Inspect motor connections
- Reset active alarms
Overcurrent Fault
Possible causes:
- Motor overload
- Short circuit in output cables
- Incorrect motor parameters
- Mechanical blockage
Solutions:
- Check motor load
- Inspect motor cables
- Verify motor settings
- Reduce mechanical resistance
Overvoltage Fault
Possible causes:
- Short deceleration time
- Excessive regenerative energy
- Unstable input voltage
Solutions:
- Increase deceleration time
- Check power supply condition
- Adjust drive parameters
Overheating Fault
Possible causes:
- Poor cabinet ventilation
- Cooling obstruction
- High ambient temperature
- Excessive operating load
Solutions:
- Improve airflow
- Clean cooling channels
- Check installation conditions
- Reduce operating load
Communication Failure
Possible causes:
- Incorrect communication parameters
- Damaged communication cables
- Network configuration problems
Solutions:
- Check communication settings
- Inspect cables
- Verify PLC and HMI configuration
System Integration
| Component | Function |
|---|---|
| PLC System | Automatic motor control |
| DCS System | Process monitoring |
| HMI | Operator interface |
| Industrial Network | Data communication |
| Motor Protection System | Equipment protection |
Key Advantages
Powerful Medium-Power Drive Capability
The 73 A rated current design provides reliable operation for medium-power industrial motors.
Stable Industrial Performance
Provides accurate speed and torque control for automation systems.
Energy Optimization
Improves motor efficiency by matching output performance with process requirements.
Easy Maintenance
Diagnostic functions simplify troubleshooting and reduce downtime.
Flexible Industrial Applications
Suitable for pumps, fans, conveyors, compressors, mixers, and other motor-driven equipment.
Technical FAQs
What is ABB ACS580-01-073A-4 used for?
The ABB ACS580-01-073A-4 is a frequency converter designed for industrial three-phase AC motor control applications.
What is the rated current of ABB ACS580-01-073A-4?
The rated current is 73 A.
What is the rated power of ABB ACS580-01-073A-4?
The rated power is approximately 37 kW.
What is the product code of ABB ACS580-01-073A-4?
The product code is 3AUA0000080499.
What are the dimensions of ABB ACS580-01-073A-4?
The dimensions are 636 × 203 × 257 mm.
What is the weight of ABB ACS580-01-073A-4?
The approximate weight is 20 kg.
Conclusion
The ABB ACS580-01-073A-4 3AUA0000080499 Frequency Converter is a dependable industrial AC drive designed for medium-power motor control applications.
With its reliable control performance, energy-efficient operation, robust industrial structure, and flexible integration capability, it provides an effective solution for modern automation and drive systems.
For industrial automation engineers, system integrators, and maintenance professionals, the ABB ACS580-01-073A-4 delivers stable performance for pumps, fans, conveyors, compressors, and other industrial motor-driven equipment.
