Product Overview

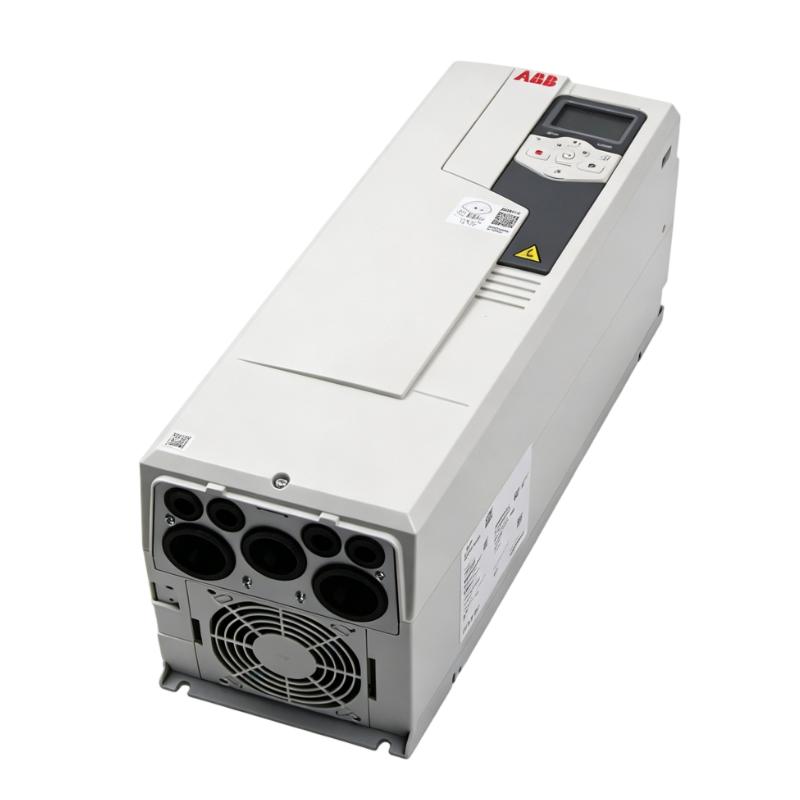

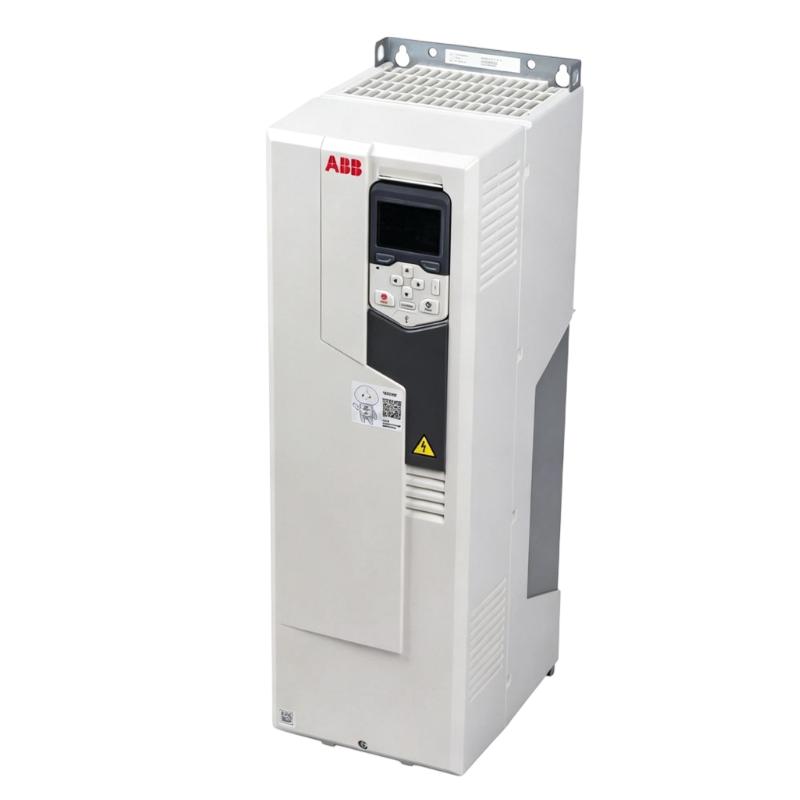

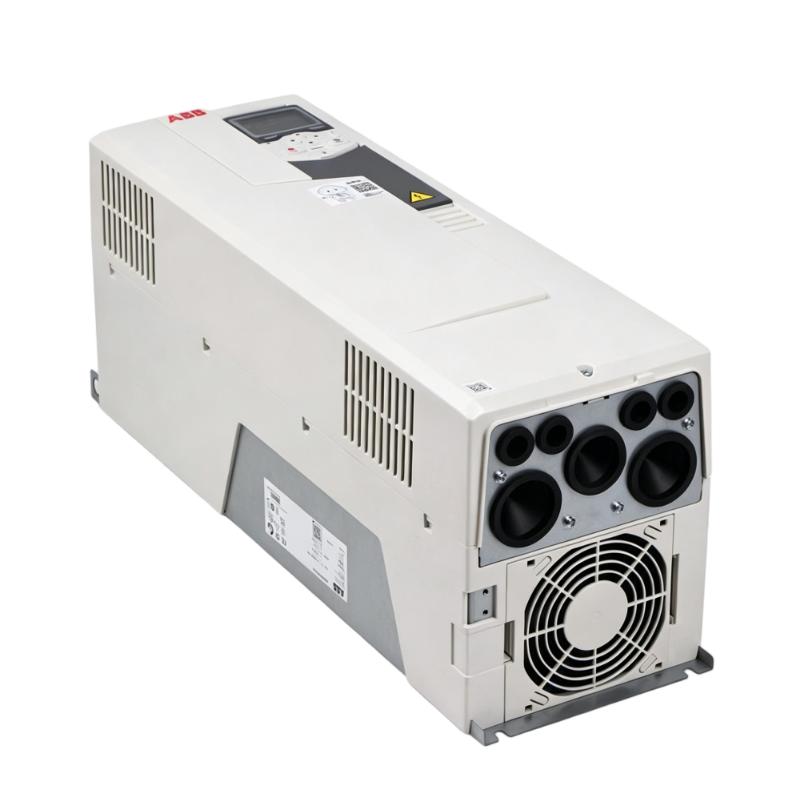

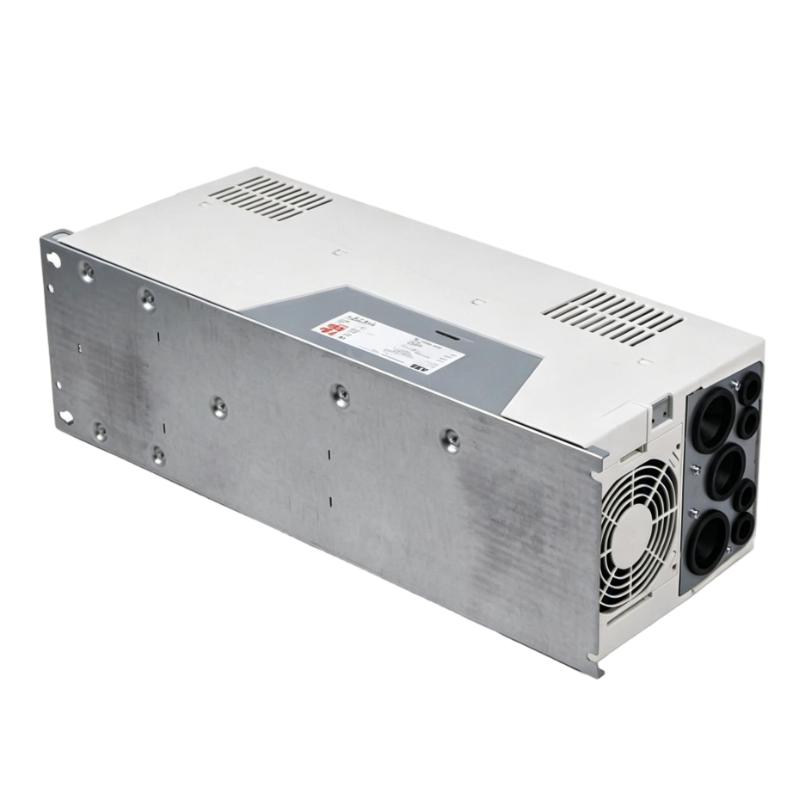

The ABB ACS580-01-073A-4 Frequency Converter with product code 3ABD00045434-D is a high-performance industrial AC drive designed for reliable motor control, efficient energy management, and flexible integration into automation systems.
The ABB ACS580 series provides a general-purpose drive solution for industrial applications requiring stable speed regulation, accurate torque control, and simplified commissioning. The ACS580-01-073A-4 is designed for medium-power motor applications and provides dependable operation in systems such as pumps, fans, conveyors, compressors, mixers, and industrial machinery.
The frequency converter controls motor speed by adjusting output frequency and voltage according to process requirements. This enables improved energy efficiency, reduced mechanical stress, optimized production performance, and enhanced equipment reliability.
The ABB ACS580-01-073A-4 3ABD00045434-D Frequency Converter features an industrial wall-mounted design with dimensions of 600 × 203 × 258 mm and a weight of 19 kg, making it suitable for control cabinets, automation panels, and industrial motor control systems requiring reliable continuous operation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-073A-4 |
| Product Code | 3ABD00045434-D |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Rated Current | 73 A |
| Rated Power | 37 kW |
| Voltage Class | 400 V |
| Input Type | Three Phase AC |
| Frequency | 50/60 Hz |
| Installation Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Frame Size | R4 |
| Dimensions | 600 × 203 × 258 mm |
| Weight | 19 kg |
| Application | Industrial Motor Control |
Product Features
Advanced Motor Control Performance
The ABB ACS580-01-073A-4 provides accurate and stable control for medium-power AC motors.
Main advantages:
- Precise speed regulation
- Smooth acceleration and deceleration
- Reliable torque performance
- Reduced mechanical stress
- Improved process stability
The drive automatically adjusts motor operation according to load requirements, helping improve system efficiency and productivity.
Robust Industrial Structure
The ACS580-01-073A-4 is designed for industrial environments requiring long-term reliable operation.
Key design benefits:
- Strong enclosure structure
- Efficient cooling system
- Stable electrical performance
- Suitable for continuous operation
- Flexible cabinet installation
Its industrial design makes it suitable for manufacturing plants, processing facilities, and automation systems.
Easy Commissioning and Maintenance
The ABB ACS580 series simplifies drive setup and maintenance procedures.
Features include:
- Simple parameter configuration
- Fast startup commissioning
- Built-in diagnostic functions
- Convenient troubleshooting
- Reduced maintenance workload
Engineers can configure and maintain the frequency converter efficiently during installation and operation.
Energy Efficiency Optimization
The ABB ACS580-01-073A-4 helps optimize motor energy consumption by matching motor speed with actual process requirements.
Energy-saving advantages:
- Reduced unnecessary energy usage
- Improved motor efficiency
- Lower operating costs
- Enhanced system performance
Working Principle
The ABB ACS580-01-073A-4 frequency converter operates by converting fixed-frequency AC input power into adjustable-frequency AC output power.
The working process includes:
- AC power enters the frequency converter.
- The rectifier converts AC power into DC power.
- The DC intermediate circuit stabilizes electrical energy.
- The inverter converts DC power into variable-frequency AC output.
- The motor receives controlled voltage and frequency signals.
By changing output frequency and voltage, the drive regulates motor speed and torque for different industrial operating conditions.
Industrial Applications
Pump Control Systems
The ABB ACS580-01-073A-4 is suitable for industrial pump applications.
Typical applications:
- Water treatment systems
- Cooling circulation pumps
- Process pumps
- Industrial fluid systems
Benefits:
- Improved flow control
- Reduced energy consumption
- Smooth motor startup
- Extended equipment lifetime
Fan and Ventilation Systems
The frequency converter provides efficient speed regulation for industrial fan systems.
Applications include:
- Factory ventilation
- Cooling equipment
- Air handling systems
- Exhaust systems
Advantages:
- Flexible airflow adjustment
- Reduced power consumption
- Stable ventilation performance
Conveyor Systems
The ACS580-01-073A-4 provides reliable motor control for conveyor applications.
Typical equipment:
- Production conveyors
- Packaging machinery
- Material handling systems
Benefits:
- Smooth acceleration
- Accurate speed control
- Reduced mechanical wear
Compressor Applications
The drive is suitable for industrial compressor systems.
Applications include:
- Air compressors
- Process compressors
- Industrial pressure equipment
Advantages:
- Stable operation
- Improved energy efficiency
- Better process control
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-073A-4, verify:
- Correct three-phase power supply
- Compatible motor specifications
- Proper installation environment
- Adequate ventilation space
- Reliable grounding connection
Installation Steps
- Install the frequency converter vertically inside the control cabinet.
- Maintain sufficient airflow clearance.
- Connect input power cables.
- Connect motor output cables.
- Connect control and communication wiring.
- Configure motor parameters.
- Perform commissioning tests.
Installation Precautions
During installation:
- Avoid excessive moisture
- Prevent dust accumulation
- Maintain proper cooling clearance
- Use suitable electrical cables
- Ensure secure terminal connections
Fault Diagnosis and Troubleshooting
Frequency Converter Cannot Start
Possible causes:
- Incorrect start command
- Missing enable signal
- Incorrect parameter settings
- Motor connection problems
Solutions:
- Check control wiring
- Verify configuration parameters
- Inspect motor connections
- Reset active alarms
Overcurrent Fault
Possible causes:
- Motor overload
- Output cable short circuit
- Incorrect motor parameters
- Mechanical blockage
Solutions:
- Check motor load conditions
- Inspect output wiring
- Verify motor data
- Reduce mechanical resistance
Overvoltage Fault
Possible causes:
- Rapid deceleration
- Excessive regenerative energy
- Unstable input voltage
Solutions:
- Increase deceleration time
- Check power supply quality
- Adjust drive parameters
Overheating Fault
Possible causes:
- Poor ventilation
- Cooling obstruction
- High ambient temperature
- Excessive operating load
Solutions:
- Improve cabinet airflow
- Clean cooling channels
- Check installation conditions
- Reduce operating load
Communication Failure
Possible causes:
- Incorrect communication settings
- Damaged communication cables
- Network configuration problems
Solutions:
- Check communication parameters
- Inspect communication wiring
- Verify PLC and HMI settings
System Integration
| Component | Function |
|---|---|
| PLC System | Automatic motor control |
| DCS System | Process monitoring |
| HMI | Operator interface |
| Industrial Network | Data communication |
| Motor Protection System | Equipment protection |
Key Advantages
Medium-Power Industrial Capability
The 73 A rated current design provides reliable operation for medium-power motor applications.
Stable Motor Performance
Provides accurate speed and torque control for industrial automation systems.
Energy Optimization
Improves system efficiency by adjusting motor operation according to process demand.
Easy Maintenance
Diagnostic functions simplify troubleshooting and reduce downtime.
Flexible Applications
Suitable for pumps, fans, conveyors, compressors, mixers, and industrial machinery.
Technical FAQs
What is ABB ACS580-01-073A-4 used for?
The ABB ACS580-01-073A-4 is a frequency converter designed for industrial three-phase AC motor control applications.
What is the rated current of ABB ACS580-01-073A-4?
The rated current is 73 A.
What is the rated power of ABB ACS580-01-073A-4?
The rated power is approximately 37 kW.
What is the product code of ABB ACS580-01-073A-4?
The product code is 3ABD00045434-D.
What are the dimensions of ABB ACS580-01-073A-4?
The dimensions are 600 × 203 × 258 mm.
What is the weight of ABB ACS580-01-073A-4?
The approximate weight is 19 kg.
Conclusion
The ABB ACS580-01-073A-4 3ABD00045434-D Frequency Converter is a reliable industrial AC drive designed for medium-power motor control applications.
With its advanced control capability, energy-efficient operation, robust industrial design, and flexible automation integration, this frequency converter provides an effective solution for modern industrial drive systems.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS580-01-073A-4 delivers dependable performance for pumps, fans, conveyors, compressors, and other industrial motor-driven equipment.
