Product Overview

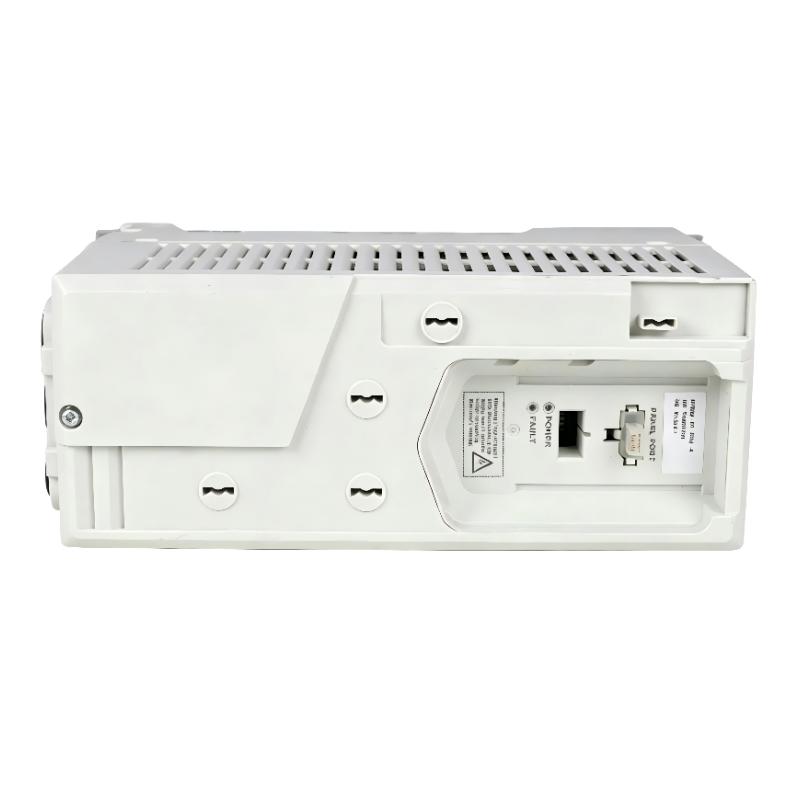

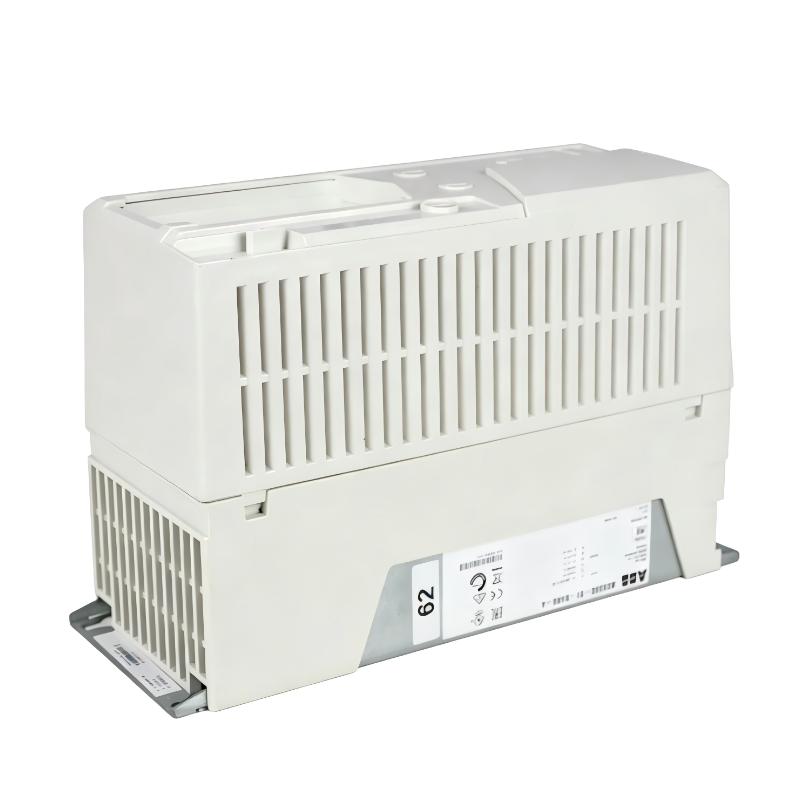

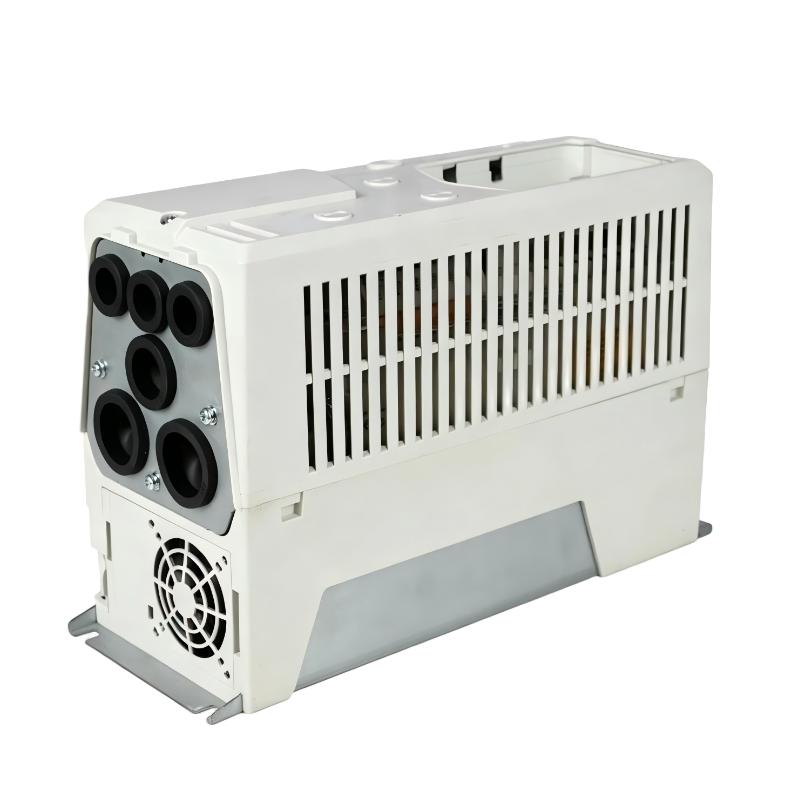

The ABB ACS580-01-05A6-4 Frequency Converter with product code 3AUA0000080489 is a compact and reliable industrial AC drive designed for efficient motor speed control, energy optimization, and flexible integration into automation systems.
As part of the ABB ACS580 general-purpose drive family, the ACS580-01-05A6-4 provides a practical solution for controlling three-phase AC motors in industrial applications. It is designed for equipment that requires stable speed regulation, accurate torque control, and dependable operation, including pumps, fans, conveyors, compressors, mixers, and other motor-driven machinery.
The frequency converter improves industrial process efficiency by adjusting motor speed according to actual operating requirements. By controlling output frequency and voltage, it helps reduce unnecessary energy consumption, minimize mechanical stress, improve equipment performance, and extend motor service life.
The ABB ACS580-01-05A6-4 3AUA0000080489 Frequency Converter features a compact structure with dimensions of 468 × 228 × 345 mm and a weight of 4.8 kg, making it suitable for industrial control cabinets, machine automation systems, and motor control applications where installation space and reliability are important.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-05A6-4 |
| Product Code | 3AUA0000080489 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Rated Power | 2.2 kW |
| Rated Current | 5.6 A |
| Voltage Class | 400 V |
| Input Type | Three Phase AC |
| Frequency | 50/60 Hz |
| Control Method | Variable Frequency Drive Control |
| Installation Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Dimensions | 468 × 228 × 345 mm |
| Weight | 4.8 kg |
| Application | Industrial Motor Control |
Product Features
High-Performance Motor Control
The ABB ACS580-01-05A6-4 provides accurate and stable motor control performance for industrial applications.
Main advantages:
- Smooth motor starting and stopping
- Stable speed regulation
- Accurate torque adjustment
- Reduced mechanical impact
- Improved process control
The drive enables motors to operate according to production requirements, improving system efficiency and operational stability.
Compact Industrial Structure
The ACS580-01-05A6-4 is designed with a compact and practical structure for industrial installation.
Key benefits:
- Space-saving design
- Easy cabinet integration
- Flexible mounting options
- Efficient heat dissipation
- Suitable for machine automation systems
Its compact size allows engineers to install the drive in limited spaces while maintaining reliable operation.
Easy Commissioning and Operation
The ABB ACS580 series simplifies drive setup and daily maintenance.
Features include:
- Simple parameter configuration
- Fast commissioning process
- Integrated diagnostic functions
- Convenient troubleshooting
- Reduced maintenance workload
The user-friendly design helps technicians quickly configure and maintain motor control systems.
Energy Saving Capability
The ABB ACS580-01-05A6-4 improves energy efficiency by adjusting motor operation according to actual system demand.
Energy-saving benefits:
- Reduced motor energy consumption
- Optimized equipment operation
- Lower operating costs
- Improved production efficiency
Working Principle
The ABB ACS580-01-05A6-4 frequency converter operates by converting fixed-frequency AC power into adjustable-frequency AC output power.
The working process includes:
- AC power enters the frequency converter.
- The rectifier converts AC voltage into DC voltage.
- The DC intermediate circuit stabilizes electrical energy.
- The inverter produces variable-frequency AC output.
- The motor receives controlled voltage and frequency signals.
By changing output frequency, the drive regulates motor speed and torque according to different industrial requirements.
Industrial Applications
Pump Control Applications
The ABB ACS580-01-05A6-4 is widely used in industrial pumping systems.
Typical applications:
- Water circulation pumps
- Cooling pumps
- Process pumps
- Fluid transportation systems
Benefits:
- Improved flow control
- Reduced energy consumption
- Smooth pump operation
- Extended equipment lifetime
Fan and Ventilation Systems
The frequency converter provides efficient speed control for industrial fans.
Applications include:
- Factory ventilation systems
- Cooling fans
- HVAC equipment
- Air handling systems
Advantages:
- Adjustable airflow control
- Improved energy efficiency
- Stable fan operation
Conveyor Systems
The ACS580-01-05A6-4 provides reliable motor control for conveyor equipment.
Applications:
- Production conveyors
- Packaging machines
- Material handling systems
Benefits:
- Smooth acceleration
- Precise speed adjustment
- Reduced mechanical wear
Industrial Machinery
The drive is suitable for various automated production equipment.
Typical applications:
- Mixing machines
- Processing equipment
- Manufacturing systems
- Small production lines
Advantages:
- Stable motor operation
- Flexible speed control
- Improved production consistency
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-05A6-4, confirm:
- Correct power supply voltage
- Compatible motor specifications
- Suitable installation environment
- Adequate ventilation conditions
- Proper grounding connection
Installation Steps
- Install the frequency converter vertically inside the control cabinet.
- Maintain sufficient ventilation space around the unit.
- Connect input power cables.
- Connect motor output cables.
- Connect control terminals.
- Configure motor parameters.
- Perform commissioning tests.
Installation Precautions
During installation:
- Avoid excessive moisture
- Prevent dust accumulation
- Maintain cooling clearance
- Use correct cable specifications
- Ensure secure electrical connections
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible causes:
- Incorrect start command
- Missing enable signal
- Incorrect parameter settings
- Motor wiring problems
Solutions:
- Check control signals
- Verify drive parameters
- Inspect motor connections
- Reset active faults
Overcurrent Fault
Possible causes:
- Motor overload
- Output short circuit
- Incorrect motor data
- Mechanical blockage
Solutions:
- Check motor condition
- Inspect output wiring
- Verify motor parameters
- Reduce mechanical load
Overvoltage Fault
Possible causes:
- Rapid deceleration
- Power supply instability
- Excessive regenerative energy
Solutions:
- Increase deceleration time
- Check input voltage
- Adjust drive parameters
Overheating Fault
Possible causes:
- Poor ventilation
- High ambient temperature
- Excessive load operation
- Cooling obstruction
Solutions:
- Improve cabinet airflow
- Clean ventilation areas
- Check cooling conditions
- Reduce operating load
Communication Failure
Possible causes:
- Incorrect communication settings
- Damaged cables
- Network configuration problems
Solutions:
- Check communication parameters
- Inspect cables
- Verify PLC and HMI settings
System Integration
| Component | Function |
|---|---|
| PLC System | Automatic motor control |
| DCS System | Process monitoring |
| HMI | Operator interface |
| Industrial Network | Data communication |
| Motor Protection System | Equipment protection |
Key Advantages
Reliable Industrial Performance
Provides stable motor control for industrial automation systems.
Efficient Energy Management
Optimizes motor operation and reduces unnecessary power consumption.
Compact Installation
The 468 × 228 × 345 mm structure supports flexible cabinet installation.
Easy Maintenance
Diagnostic functions simplify troubleshooting and reduce downtime.
Wide Application Range
Suitable for pumps, fans, conveyors, compressors, and other industrial motor-driven equipment.
Technical FAQs
What is ABB ACS580-01-05A6-4 used for?
The ABB ACS580-01-05A6-4 is a frequency converter designed for industrial AC motor speed control applications.
What is the rated power of ABB ACS580-01-05A6-4?
The rated power is 2.2 kW.
What is the rated current?
The rated current is 5.6 A.
What are the dimensions of ABB ACS580-01-05A6-4?
The dimensions are 468 × 228 × 345 mm.
What is the weight of ABB ACS580-01-05A6-4?
The approximate weight is 4.8 kg.
Conclusion
The ABB ACS580-01-05A6-4 3AUA0000080489 Frequency Converter is a compact and dependable industrial AC drive designed for efficient motor control, energy optimization, and reliable automation operation.
With its flexible installation design, stable performance, simple commissioning process, and wide application capability, this frequency converter provides an effective solution for modern industrial motor control systems.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS580-01-05A6-4 delivers reliable performance for pumps, fans, conveyors, compressors, and other industrial equipment.
