- ABB
- ACS580-01-04A1-4 3AXD50000038939
- Frequency Converter
- Sweden (SE)
- 373 x 125 x 223 mm
- 4.6 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 5
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

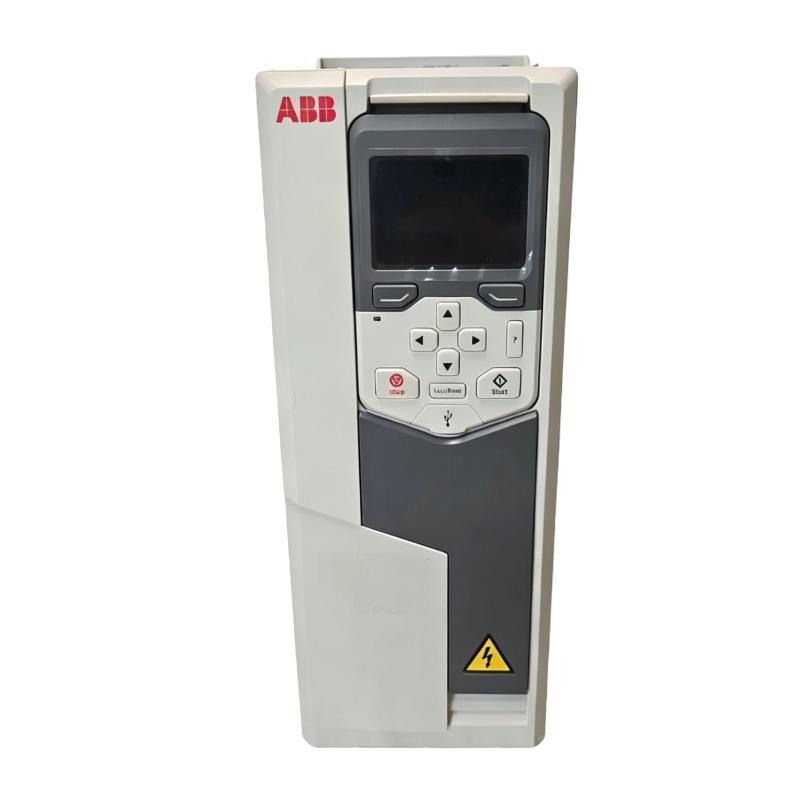

The ABB ACS580-01-04A1-4 Frequency Converter with product code 3AXD50000038939 is a compact and reliable AC drive designed for efficient motor control, energy optimization, and flexible integration into industrial automation systems.
The ABB ACS580 series frequency converter provides a practical solution for controlling three-phase AC motors in industrial environments. It is suitable for applications requiring stable motor speed regulation, accurate torque control, and dependable operation, including pumps, fans, conveyors, compressors, mixers, and various machine automation systems.
The ACS580-01-04A1-4 improves motor performance by adjusting output frequency and voltage according to actual process requirements. This allows motors to operate more efficiently, reducing unnecessary energy consumption, minimizing mechanical stress, and improving the reliability of industrial equipment.

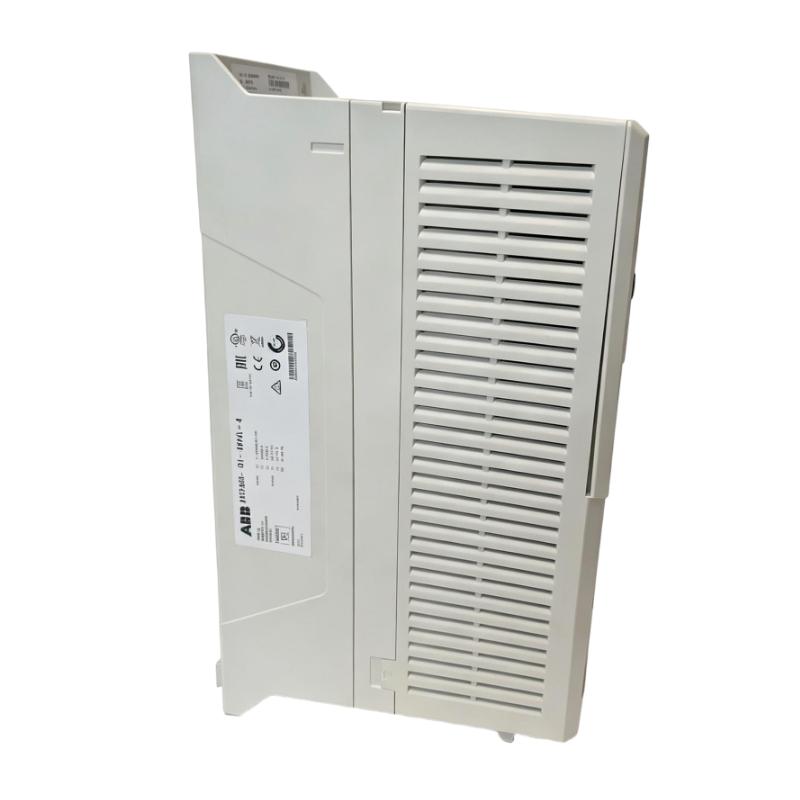

The ABB ACS580-01-04A1-4 3AXD50000038939 Frequency Converter features a compact design with dimensions of 373 × 125 × 223 mm and a weight of 4.6 kg, making it suitable for installation in space-limited control cabinets and automation panels.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-04A1-4 |
| Product Code | 3AXD50000038939 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Rated Power | 1.5 kW |
| Rated Current | 4 A |
| Voltage Class | 400 V |
| Input Type | Three Phase AC |
| Frequency | 50/60 Hz |
| Control Method | Variable Frequency Drive Control |
| Installation Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Dimensions | 373 × 125 × 223 mm |
| Weight | 4.6 kg |
| Application | Industrial Motor Control |
Product Features
Compact and Space-Saving Structure
The ABB ACS580-01-04A1-4 is designed for applications requiring efficient use of installation space.
Main advantages:
- Compact mechanical structure
- Easy installation in control cabinets
- Reduced panel space requirements
- Flexible mounting capability
- Efficient cooling performance
The small footprint makes this frequency converter suitable for compact industrial machines and distributed automation equipment.
Reliable Motor Speed and Torque Control
The frequency converter provides accurate control of AC motor operation.
Key benefits:
- Smooth motor acceleration
- Stable speed regulation
- Accurate torque control
- Reduced mechanical impact
- Improved process stability
The drive helps maintain consistent motor performance under changing load conditions.
Easy Commissioning and Maintenance
The ACS580 series simplifies installation, configuration, and maintenance processes.
Features include:
- Simple parameter adjustment
- Fast commissioning procedures
- Integrated diagnostic functions
- Easy troubleshooting
- Reduced maintenance requirements
The straightforward operation design helps engineers complete system setup efficiently.
Energy Efficiency Improvement
The ABB ACS580-01-04A1-4 improves system efficiency by controlling motor operation according to actual demand.
Energy-saving advantages:
- Reduced power consumption
- Optimized motor performance
- Lower operating costs
- Improved equipment efficiency
Working Principle
The ABB ACS580-01-04A1-4 frequency converter controls motor operation through variable frequency conversion technology.
The working process includes:
- AC input power enters the frequency converter.
- The rectifier converts AC power into DC power.
- The DC intermediate circuit stabilizes the electrical energy.
- The inverter converts DC power into adjustable-frequency AC output.
- The motor receives controlled voltage and frequency signals.
By changing the output frequency, the drive regulates motor speed and torque according to industrial application requirements.
Industrial Applications
Pump Control Systems
The ABB ACS580-01-04A1-4 is suitable for small industrial pumping applications.
Typical applications:
- Water circulation systems
- Cooling pumps
- Process pumps
- Fluid handling equipment
Benefits:
- Improved flow adjustment
- Reduced energy usage
- Smooth pump operation
- Increased equipment reliability
Fan and Ventilation Systems
The frequency converter provides efficient speed control for fan applications.
Applications include:
- Industrial ventilation
- Cooling fans
- HVAC systems
- Air circulation equipment
Advantages:
- Adjustable airflow control
- Reduced energy consumption
- Stable fan operation
Conveyor Systems
The ACS580-01-04A1-4 provides reliable speed regulation for small conveyor equipment.
Applications:
- Packaging machinery
- Production lines
- Material handling systems
Benefits:
- Smooth startup operation
- Accurate speed control
- Reduced mechanical stress
Machine Automation Equipment
The drive is suitable for various automated machines requiring precise motor control.
Typical applications:
- Processing equipment
- Small production machinery
- Automated systems
Advantages:
- Stable motor performance
- Flexible speed adjustment
- Improved production consistency
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-04A1-4, confirm:
- Correct supply voltage
- Compatible motor specifications
- Proper installation location
- Adequate ventilation space
- Reliable grounding connection
Installation Steps
- Install the frequency converter vertically inside the control cabinet.
- Ensure sufficient airflow around the unit.
- Connect input power cables correctly.
- Connect motor output terminals.
- Connect control wiring.
- Configure motor parameters.
- Perform commissioning tests.
Installation Precautions
During installation:
- Avoid excessive moisture exposure
- Prevent dust accumulation
- Maintain cooling clearance
- Use suitable electrical cables
- Ensure secure terminal connections
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible causes:
- Incorrect start command
- Missing enable signal
- Incorrect parameter settings
- Motor connection problems
Solutions:
- Check control wiring
- Verify drive parameters
- Inspect motor connections
- Reset active faults
Overcurrent Fault
Possible causes:
- Motor overload
- Short circuit
- Incorrect motor parameters
- Mechanical blockage
Solutions:
- Check motor condition
- Inspect output wiring
- Verify motor data
- Reduce mechanical load
Overvoltage Fault
Possible causes:
- Excessive deceleration
- Unstable power supply
- Regenerative energy increase
Solutions:
- Increase deceleration time
- Check supply voltage
- Adjust drive settings
Overheating Fault
Possible causes:
- Poor ventilation
- High ambient temperature
- Excessive load operation
- Cooling obstruction
Solutions:
- Improve cabinet airflow
- Clean ventilation areas
- Check cooling conditions
- Reduce operating load
Communication Failure
Possible causes:
- Incorrect communication settings
- Damaged cables
- Network configuration problems
Solutions:
- Check communication parameters
- Inspect wiring
- Verify PLC/HMI settings
System Integration
| Component | Function |
|---|---|
| PLC System | Automatic motor control |
| DCS System | Process monitoring |
| HMI | Operator interface |
| Industrial Network | Data communication |
| Motor Protection System | Equipment protection |
Key Advantages
Compact Installation Design
The 373 × 125 × 223 mm structure allows efficient installation in small automation cabinets.
Reliable Motor Control
Provides stable speed and torque regulation for industrial AC motors.
Energy Optimization
Improves efficiency by matching motor operation with actual process requirements.
Easy Maintenance
Diagnostic functions simplify troubleshooting and reduce downtime.
Flexible Industrial Applications
Suitable for pumps, fans, conveyors, and small automated machines.
Technical FAQs
What is ABB ACS580-01-04A1-4 used for?
The ABB ACS580-01-04A1-4 is a frequency converter designed for industrial AC motor speed control applications.
What is the rated power of ABB ACS580-01-04A1-4?
The rated power is 1.5 kW.
What is the rated current?
The rated current is 4 A.
What are the dimensions of ABB ACS580-01-04A1-4?
The dimensions are 373 × 125 × 223 mm.
What is the weight of ABB ACS580-01-04A1-4?
The approximate weight is 4.6 kg.
Conclusion
The ABB ACS580-01-04A1-4 3AXD50000038939 Frequency Converter is a compact and dependable industrial AC drive designed for efficient motor control, energy optimization, and reliable automation performance.
With its space-saving structure, stable operation, simple commissioning process, and flexible application capability, this frequency converter provides an effective solution for industrial motor control systems.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS580-01-04A1-4 delivers reliable performance for pumps, fans, conveyors, and other industrial motor-driven equipment.
