Product Overview
The ABB ACS580-01-046A-4 Frequency Converter with product code 3AXD50000038963 is a reliable industrial AC drive designed for efficient motor control, improved energy management, and stable operation in modern automation systems.
The ABB ACS580 series provides a flexible and easy-to-use solution for controlling three-phase AC motors in industrial applications. It is suitable for equipment that requires precise speed adjustment, reliable torque control, and consistent operational performance, including pumps, fans, compressors, conveyors, mixers, and various production machines.
The ACS580-01-046A-4 improves industrial system efficiency by adjusting motor speed according to actual process requirements. This helps reduce unnecessary power consumption, minimize mechanical stress, improve production stability, and extend the operating life of connected equipment.

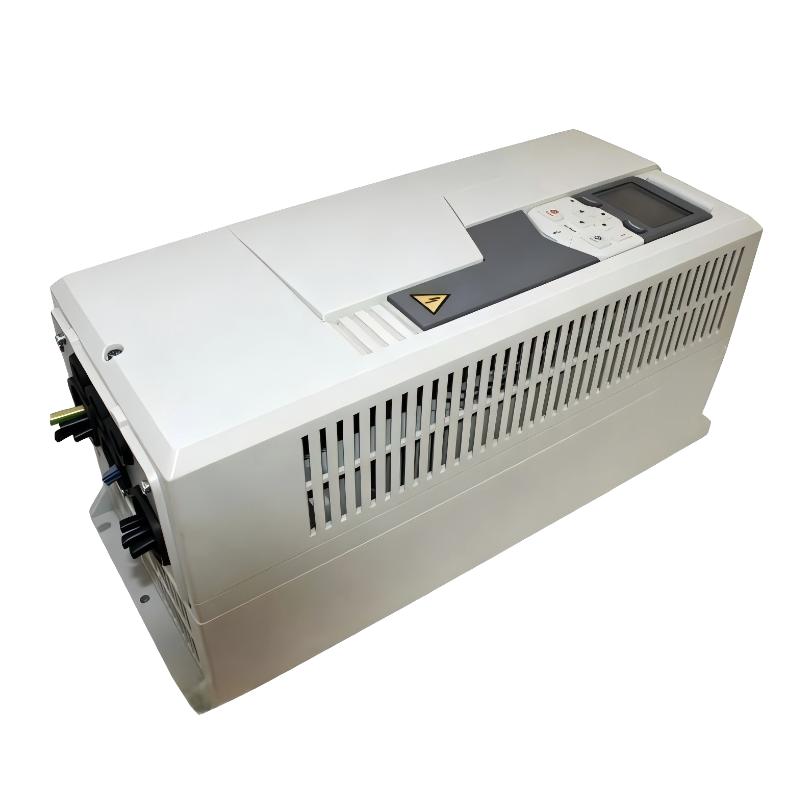

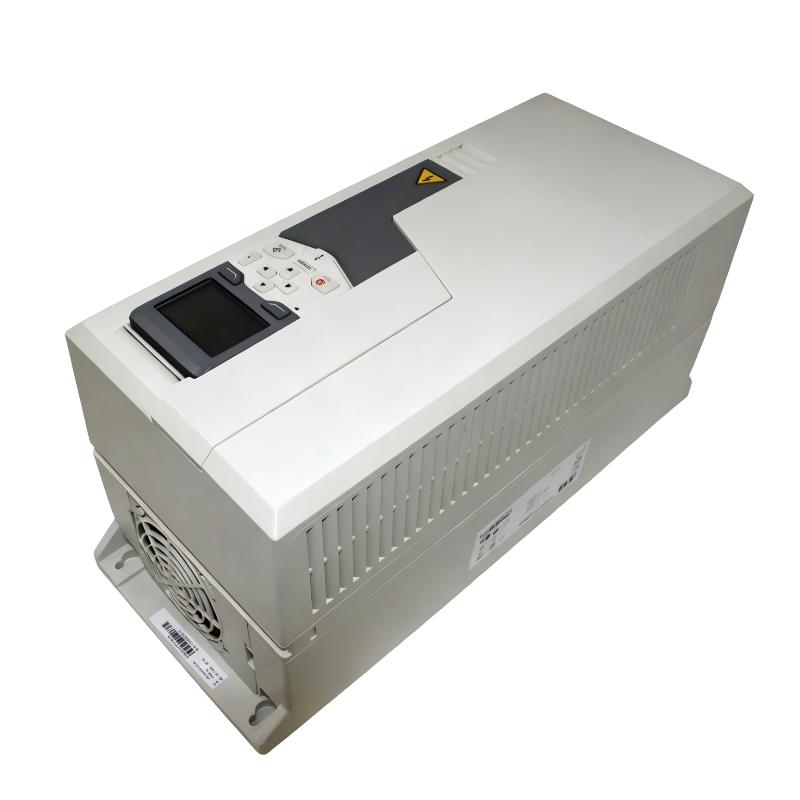

The ABB ACS580-01-046A-4 3AXD50000038963 Frequency Converter features a compact industrial design with dimensions of 490 × 203 × 229 mm and a weight of 11.8 kg, making it suitable for installation in industrial control cabinets, automation panels, and machine control systems requiring efficient space utilization.

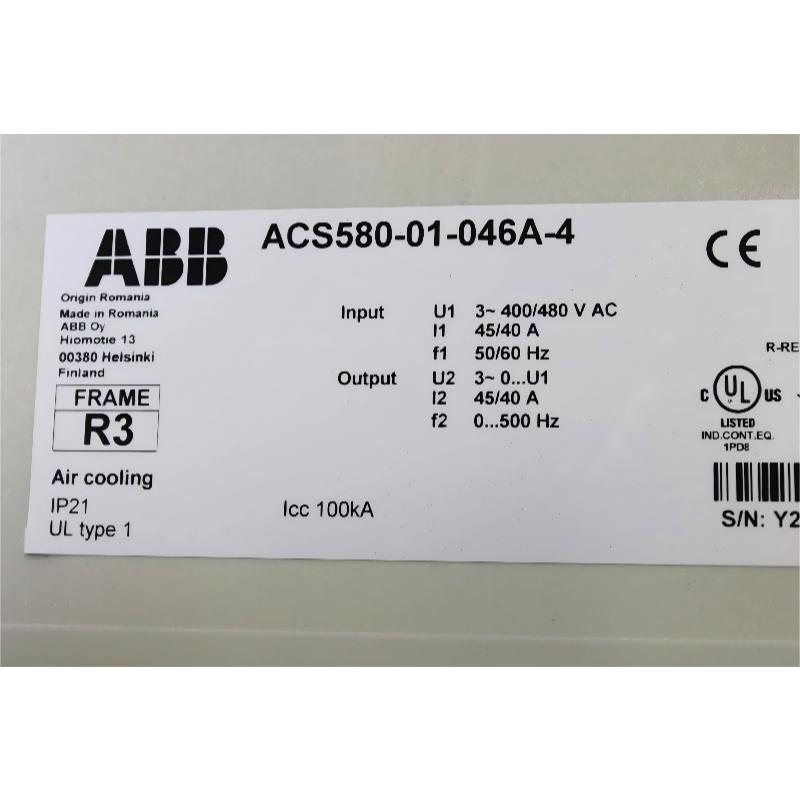

Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-046A-4 |
| Product Code | 3AXD50000038963 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Rated Power | 22 kW |
| Rated Current | 45 A |
| Voltage Class | 400 V |
| Input Type | Three Phase AC |
| Frequency | 50/60 Hz |
| Control Method | Variable Frequency Drive Control |
| Installation Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Dimensions | 490 × 203 × 229 mm |
| Weight | 11.8 kg |
| Application | Industrial Motor Control |
Product Features
Advanced Motor Speed Regulation
The ABB ACS580-01-046A-4 provides accurate motor speed and torque control for industrial applications.
Main advantages include:
- Smooth acceleration and deceleration
- Stable motor operation
- Precise speed adjustment
- Reduced mechanical stress
- Improved process efficiency
The frequency converter allows motors to operate according to actual production requirements, helping improve energy efficiency and equipment reliability.
Compact and Efficient Design
The ACS580-01-046A-4 combines powerful motor control performance with a compact industrial structure.
Design advantages:
- Space-saving installation
- Easy cabinet integration
- Efficient cooling performance
- Flexible mounting capability
- Reduced installation complexity
The compact dimensions make it suitable for applications where control cabinet space is limited.
Simple Commissioning and Maintenance
The ABB ACS580 series is designed to simplify system setup and maintenance.
Key features include:
- Easy parameter configuration
- Fast commissioning process
- Convenient diagnostic functions
- Simple operation procedures
- Reduced maintenance workload
The user-friendly design allows engineers to configure and maintain the drive efficiently.
Energy Optimization Capability
The ABB ACS580-01-046A-4 improves motor efficiency by adjusting operating speed based on system demand.
Energy-saving benefits:
- Reduced power consumption
- Optimized motor performance
- Lower operating costs
- Improved overall system efficiency
Working Principle
The ABB ACS580-01-046A-4 frequency converter controls AC motor operation by converting fixed-frequency electrical input into adjustable-frequency output power.
The operating process includes:
- AC input power enters the converter.
- The rectifier converts AC power into DC power.
- The intermediate DC circuit stabilizes the electrical energy.
- The inverter produces variable-frequency AC output.
- The motor receives controlled voltage and frequency signals.
By adjusting output frequency and voltage, the drive provides accurate control of motor speed and torque.
Industrial Applications
Pump Control Systems
The ABB ACS580-01-046A-4 is widely used in industrial pump applications.
Typical applications:
- Water treatment systems
- Cooling circulation pumps
- Process pumps
- Industrial fluid handling equipment
Benefits:
- Improved flow regulation
- Reduced energy consumption
- Smooth motor operation
- Increased equipment reliability
Fan and Ventilation Systems
The frequency converter is suitable for industrial fan speed control.
Applications include:
- HVAC systems
- Factory ventilation equipment
- Cooling fans
- Air handling systems
Advantages:
- Efficient airflow management
- Reduced operating costs
- Stable ventilation performance
Compressor Applications
The ACS580-01-046A-4 provides reliable motor control for compressor systems.
Typical equipment:
- Industrial air compressors
- Process compressors
- Manufacturing machinery
Benefits:
- Stable pressure control
- Improved energy efficiency
- Reduced motor stress
Conveyor and Production Equipment
The drive provides accurate speed control for industrial conveyor systems.
Applications:
- Manufacturing production lines
- Packaging equipment
- Material handling systems
Advantages:
- Smooth startup operation
- Accurate speed regulation
- Improved production stability
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-046A-4, check:
- Correct input voltage requirements
- Compatible motor specifications
- Proper installation environment
- Adequate ventilation conditions
- Reliable grounding connection
Installation Steps
- Install the frequency converter vertically inside the control cabinet.
- Maintain sufficient cooling clearance around the unit.
- Connect incoming power cables.
- Connect motor output cables.
- Connect control terminals and communication wiring.
- Configure motor parameters.
- Perform commissioning tests.
Installation Precautions
During installation:
- Avoid excessive humidity and dust
- Maintain proper airflow
- Use suitable cable specifications
- Ensure secure electrical connections
- Prevent strong vibration exposure
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible causes:
- Incorrect start command
- Missing enable signal
- Incorrect parameter settings
- Motor wiring problems
Solutions:
- Check control signals
- Verify drive parameters
- Inspect motor connections
- Reset active faults
Overcurrent Fault
Possible causes:
- Motor overload
- Output short circuit
- Incorrect motor settings
- Excessive mechanical resistance
Solutions:
- Check motor condition
- Inspect output cables
- Verify motor parameters
- Reduce mechanical load
Overvoltage Fault
Possible causes:
- Rapid deceleration
- Unstable power supply
- Excessive regenerative energy
Solutions:
- Increase deceleration time
- Check input voltage
- Adjust braking settings
Overheating Fault
Possible causes:
- Poor ventilation
- High ambient temperature
- Excessive operating load
- Cooling problems
Solutions:
- Improve cabinet airflow
- Clean cooling passages
- Check cooling system
- Reduce operating load
Communication Failure
Possible causes:
- Incorrect communication settings
- Damaged cables
- Network configuration errors
Solutions:
- Verify communication parameters
- Inspect wiring
- Check PLC/HMI settings
System Integration
| Component | Function |
|---|---|
| PLC System | Automatic motor control |
| DCS System | Industrial process monitoring |
| HMI | Operator interface |
| Industrial Network | Data communication |
| Motor Protection System | Equipment safety |
Key Advantages
Reliable Industrial Performance
Provides stable motor control for demanding industrial environments.
Efficient Energy Management
Optimizes motor operation and reduces unnecessary energy consumption.
Compact Installation Design
The 490 × 203 × 229 mm structure allows efficient cabinet installation.
Easy Maintenance
Integrated diagnostic functions simplify troubleshooting and reduce downtime.
Flexible Industrial Applications
Suitable for pumps, fans, compressors, conveyors, and other motor-driven equipment.
Technical FAQs
What is ABB ACS580-01-046A-4 used for?
The ABB ACS580-01-046A-4 is a frequency converter designed for industrial AC motor speed control applications.
What is the rated power of ABB ACS580-01-046A-4?
The rated power is 22 kW.
What is the rated current of this frequency converter?
The rated current is 45 A.
What are the dimensions of ABB ACS580-01-046A-4?
The dimensions are 490 × 203 × 229 mm.
What is the weight of ABB ACS580-01-046A-4?
The approximate weight is 11.8 kg.
Conclusion
The ABB ACS580-01-046A-4 3AXD50000038963 Frequency Converter is a dependable industrial AC drive designed for efficient motor control, energy optimization, and reliable automation operation.
With its compact structure, advanced variable frequency technology, simple commissioning process, and flexible application capability, this frequency converter provides an effective solution for modern industrial motor control systems.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS580-01-046A-4 delivers stable and reliable performance for pumps, fans, compressors, conveyors, and other industrial equipment.
