Product Overview

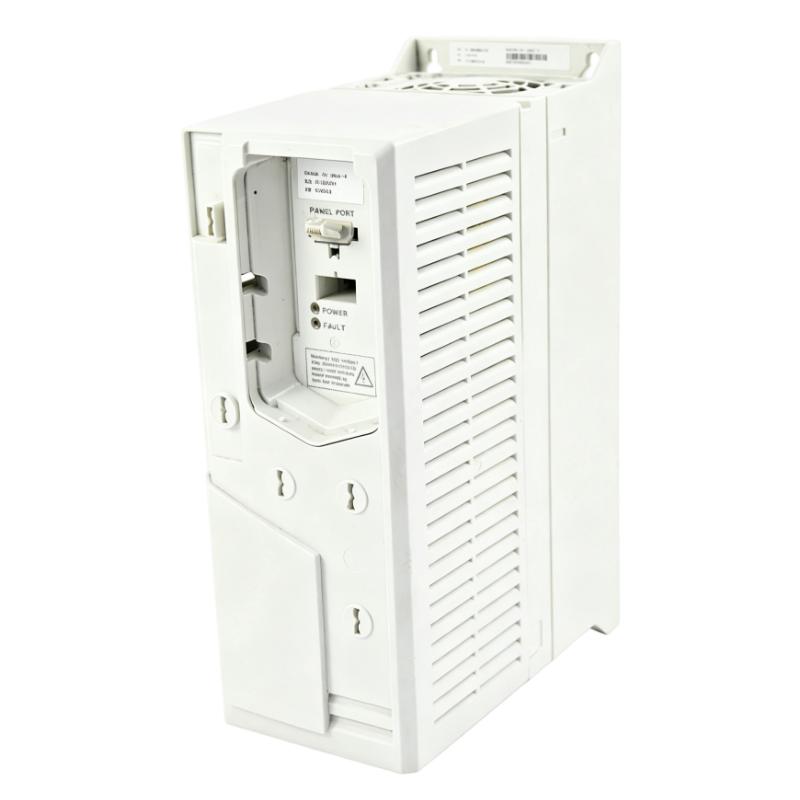

The ABB ACS580-01-03A4-4 Frequency Converter with product code 3ABD50000038938 is a compact general-purpose AC drive designed for reliable motor speed control, energy optimization, and efficient operation in industrial automation systems.
The ABB ACS580 series frequency converter provides a flexible motor control solution for a wide range of industrial applications. It is designed for controlling equipment such as pumps, fans, conveyors, compressors, mixers, and other motor-driven machinery that requires stable speed regulation and accurate process control.
The ACS580-01-03A4-4 helps improve industrial system efficiency by adjusting motor speed according to actual operating requirements. Through variable frequency technology, it reduces unnecessary energy consumption, minimizes mechanical stress, and improves the overall reliability of motor-driven equipment.

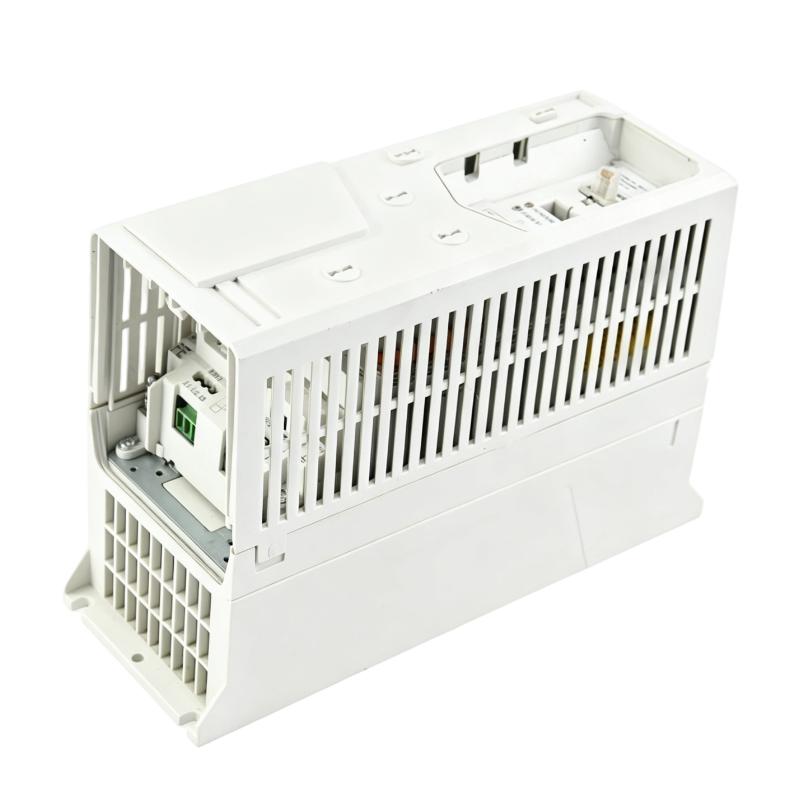

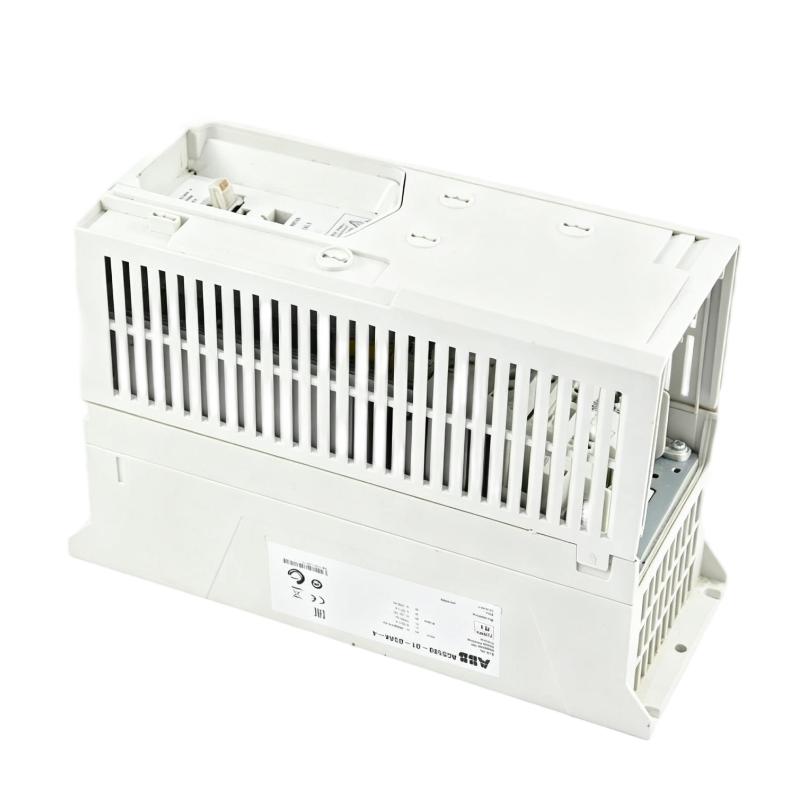

The ABB ACS580-01-03A4-4 3ABD50000038938 Frequency Converter features a compact structure with dimensions of 303 × 125 × 210 mm and a weight of 4.5 kg, making it ideal for space-saving installations in industrial control cabinets and automation panels.
Technical Specifications

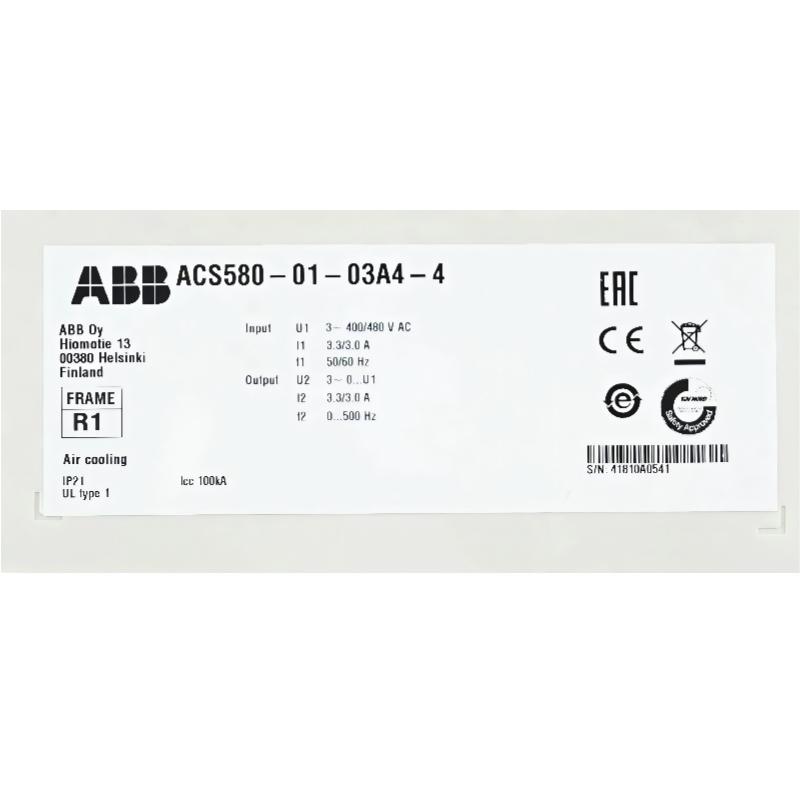

| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-03A4-4 |
| Product Code | 3ABD50000038938 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Rated Power | 1.1 kW |
| Rated Current | 3.3 A |
| Voltage Class | 400 V |
| Input Type | Three Phase AC |
| Frequency | 50/60 Hz |
| Control Method | Variable Frequency Drive Control |
| Installation Type | Wall Mounted |
| Protection Class | IP21 |
| Dimensions | 303 × 125 × 210 mm |
| Weight | 4.5 kg |
| Application | Industrial Motor Control |
Product Features
Compact Industrial Design
The ABB ACS580-01-03A4-4 is designed with a compact structure suitable for applications where installation space is limited.
Main advantages:
- Small installation footprint
- Easy cabinet integration
- Efficient cooling design
- Flexible mounting options
- Reduced panel space requirements
The compact design makes it suitable for small machinery and distributed automation systems.
Reliable Motor Speed Regulation
The frequency converter provides accurate control of AC motor speed and torque.
Key benefits:
- Smooth motor starting
- Stable speed adjustment
- Reduced mechanical impact
- Improved process consistency
- Enhanced equipment performance
The drive allows motors to operate according to actual production requirements, improving operational efficiency.
Easy Commissioning and Operation
The ACS580 series simplifies installation and daily operation.
Features include:
- Simple parameter configuration
- Fast commissioning process
- Convenient troubleshooting functions
- User-friendly settings
- Reduced maintenance time
The straightforward operation structure helps engineers configure systems quickly.
Efficient Energy Management
By controlling motor speed according to load demand, the ABB ACS580-01-03A4-4 helps reduce unnecessary energy consumption.
Energy-saving advantages:
- Reduced motor power usage
- Improved system efficiency
- Lower operating costs
- Optimized machine performance
Working Principle
The ABB ACS580-01-03A4-4 frequency converter controls motor operation by converting fixed-frequency AC input power into adjustable-frequency AC output power.
The working process includes:
- AC power enters the converter input stage.
- The rectifier converts AC power into DC power.
- The DC intermediate circuit stabilizes electrical energy.
- The inverter converts DC power into variable-frequency AC output.
- The motor receives controlled voltage and frequency signals.
This process enables precise adjustment of motor speed and torque for different industrial applications.
Industrial Applications
Pump Control Systems
The ABB ACS580-01-03A4-4 is suitable for small and medium industrial pumping systems.
Applications:
- Water circulation pumps
- Cooling pumps
- Process pumps
- Fluid handling equipment
Benefits:
- Improved flow control
- Reduced energy consumption
- Smooth pump operation
- Extended equipment lifetime
Fan and HVAC Applications
The frequency converter is suitable for controlling ventilation and fan systems.
Typical applications:
- Industrial ventilation
- Cooling fans
- Air circulation systems
- HVAC equipment
Advantages:
- Adjustable airflow control
- Reduced operating costs
- Stable fan performance
Conveyor Systems
The ACS580-01-03A4-4 provides reliable speed control for small conveyor applications.
Applications:
- Production equipment
- Packaging systems
- Material handling machines
Benefits:
- Smooth acceleration
- Accurate speed control
- Improved production stability
Mixing and Processing Equipment
The drive can be used for motor control in processing machinery.
Applications:
- Industrial mixers
- Small processing machines
- Production equipment
Advantages:
- Stable motor operation
- Accurate speed adjustment
- Improved process quality
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-03A4-4, confirm:
- Correct voltage supply
- Compatible motor specifications
- Suitable installation environment
- Proper ventilation space
- Reliable grounding connection
Installation Steps
- Mount the frequency converter vertically inside the control cabinet.
- Ensure sufficient airflow around the unit.
- Connect incoming power cables.
- Connect motor output terminals.
- Connect control wiring.
- Configure motor parameters.
- Perform commissioning tests.
Installation Precautions
During installation:
- Avoid excessive moisture
- Keep away from conductive dust
- Maintain cooling clearance
- Use suitable electrical cables
- Ensure secure terminal connections
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible causes:
- No start command
- Incorrect parameter settings
- Missing enable signal
- Motor wiring problems
Solutions:
- Check control signals
- Verify parameters
- Inspect motor connections
- Reset drive faults
Overcurrent Fault
Possible causes:
- Motor overload
- Short circuit
- Incorrect motor data
- Mechanical blockage
Solutions:
- Check motor condition
- Inspect output wiring
- Verify motor parameters
- Reduce mechanical load
Overvoltage Fault
Possible causes:
- Excessive braking energy
- Rapid deceleration
- Unstable input voltage
Solutions:
- Increase deceleration time
- Check power supply
- Adjust application settings
Overheating Problem
Possible causes:
- Poor ventilation
- High ambient temperature
- Excessive load
- Cooling obstruction
Solutions:
- Improve airflow
- Clean ventilation areas
- Check installation conditions
- Reduce operating load
Communication Failure
Possible causes:
- Incorrect communication settings
- Wiring problems
- Network configuration errors
Solutions:
- Check communication parameters
- Inspect cables
- Verify PLC/HMI settings
System Integration
| Component | Function |
|---|---|
| PLC System | Automatic motor control |
| DCS System | Process monitoring |
| HMI | Operator interface |
| Industrial Network | Data communication |
| Motor Protection System | Equipment protection |
Key Advantages
Space-Saving Installation
The compact 303 × 125 × 210 mm design allows easy installation in small control cabinets.
Reliable Motor Control
Provides stable speed and torque regulation for industrial equipment.
Energy Efficiency Improvement
Optimizes motor operation and reduces unnecessary power consumption.
Simple Maintenance
Easy configuration and diagnostic functions help reduce downtime.
Flexible Applications
Suitable for pumps, fans, conveyors, mixers, and small industrial machines.
Technical FAQs
What is ABB ACS580-01-03A4-4 used for?
The ABB ACS580-01-03A4-4 is a frequency converter designed for controlling industrial AC motors in automation applications.
What is the rated power of ABB ACS580-01-03A4-4?
The rated power is 1.1 kW.
What is the rated current?
The rated current is 3.3 A.
What are the dimensions of ABB ACS580-01-03A4-4?
The dimensions are 303 × 125 × 210 mm.
What is the weight of ABB ACS580-01-03A4-4?
The approximate weight is 4.5 kg.
Conclusion
The ABB ACS580-01-03A4-4 3ABD50000038938 Frequency Converter is a compact and reliable industrial AC drive designed for efficient motor control, energy optimization, and flexible automation integration.
With its small installation size, stable performance, easy commissioning process, and reliable control functions, this frequency converter provides an effective solution for small industrial machines and automation systems.
For industrial automation engineers, system integrators, and maintenance professionals, the ABB ACS580-01-03A4-4 delivers dependable motor control performance for modern industrial applications.
