- ABB

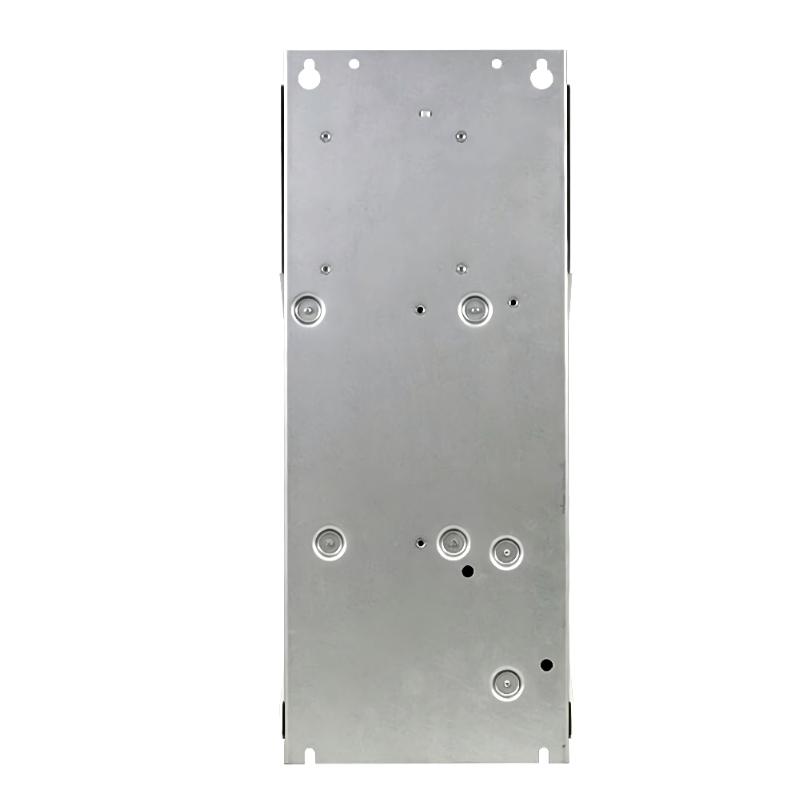

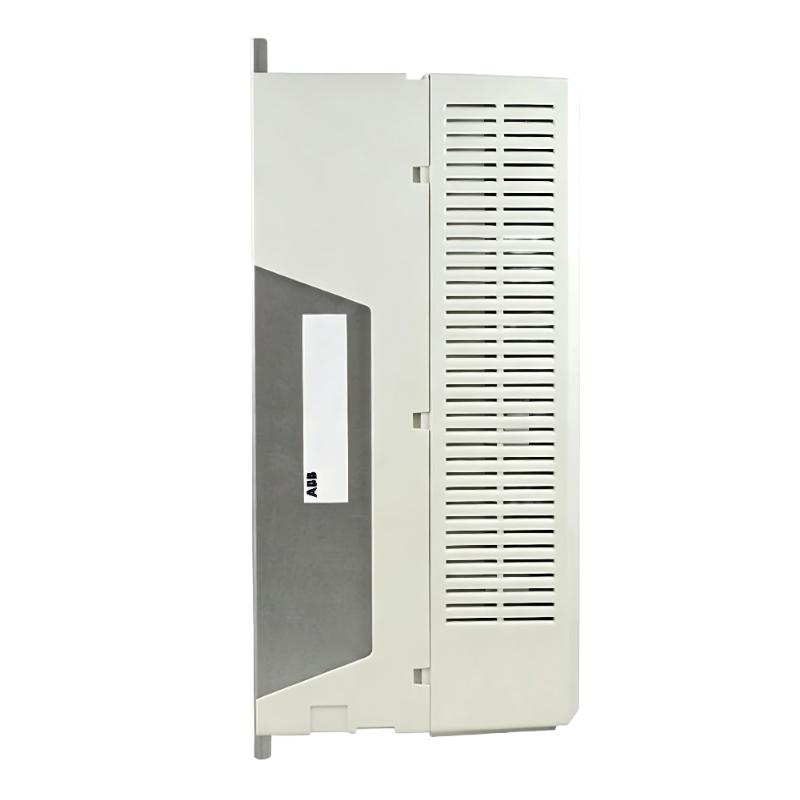

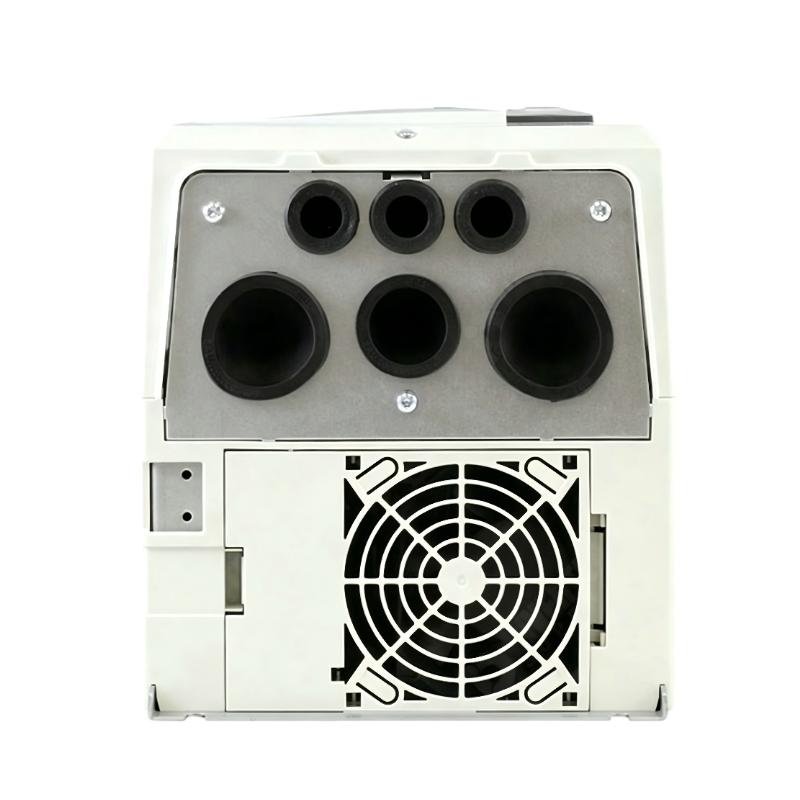

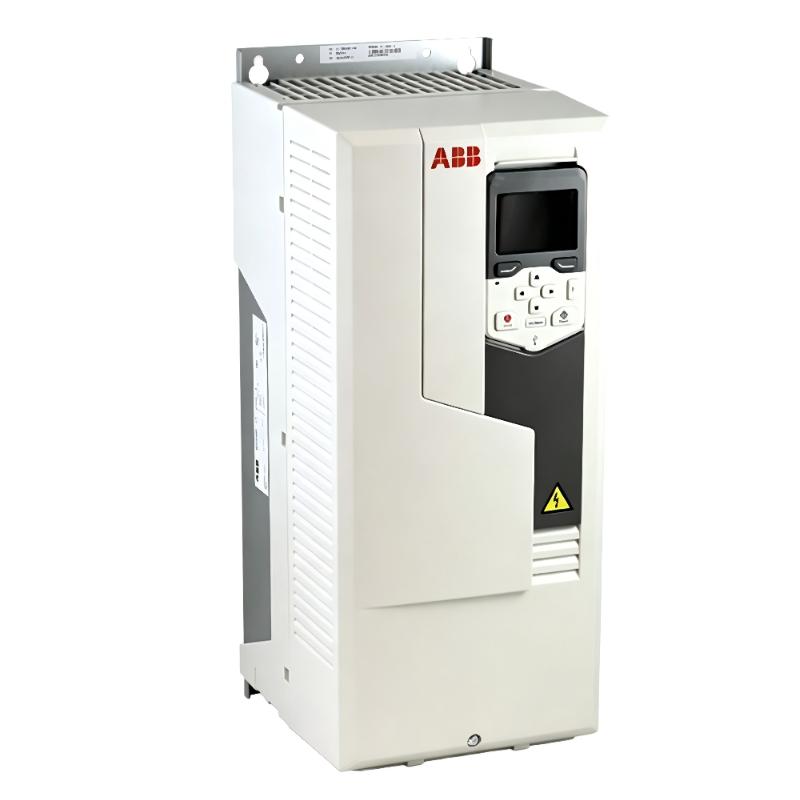

- ACS580-01-033A-4 3AXD50000038961
- Frequency Converter
- Sweden (SE)
- 490 x 203 x 229 mm
- 11.8 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
The ABB ACS580-01-033A-4 Frequency Converter with product code 3AXD50000038961 is a high-performance industrial AC drive designed for efficient motor control, energy optimization, and reliable automation system operation.
The ABB ACS580 series frequency converter provides a flexible solution for controlling three-phase AC motors in various industrial applications. It is widely used in equipment such as pumps, fans, compressors, conveyors, mixers, and production machinery where accurate speed regulation and stable operation are required.
By controlling motor frequency and output voltage, the ACS580-01-033A-4 enables smooth motor starting, precise speed adjustment, improved process control, and reduced mechanical stress on connected equipment.
The ABB ACS580-01-033A-4 3AXD50000038961 features a compact design with dimensions of 490 × 203 × 229 mm and a weight of 11.8 kg, making it suitable for installation in industrial control cabinets and automation systems with limited space requirements.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-033A-4 |
| Product Code | 3AXD50000038961 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Power Rating | 15 kW |
| Rated Current | 32 A |
| Voltage Class | 400 V Class |
| Input Phase | Three Phase |
| Frequency | 50/60 Hz |
| Control Method | Variable Frequency Drive Control |
| Installation Type | Wall Mounted |
| Dimensions | 490 × 203 × 229 mm |
| Weight | 11.8 kg |
| Application | Industrial Motor Control |
Product Features
Efficient Motor Speed Control
The ABB ACS580-01-033A-4 provides precise motor speed and torque control for industrial applications.
Main features include:
- Adjustable motor speed control
- Smooth acceleration and deceleration
- Reduced energy consumption
- Improved process stability
- Lower mechanical stress on equipment
The frequency converter allows motors to operate according to actual load requirements, improving overall system efficiency.
Easy Setup and Commissioning
The ACS580 series is designed to simplify installation and commissioning.
Key advantages include:
- Simple parameter configuration
- Quick startup process
- Easy motor adaptation
- Convenient troubleshooting functions
- Reduced engineering workload
The user-friendly design helps technicians complete commissioning efficiently.
Reliable Industrial Performance
The ABB ACS580-01-033A-4 is built for continuous operation in industrial environments.
Product advantages:
- Stable electrical performance
- Reliable thermal management
- Durable hardware structure
- Long service life
- Suitable for demanding automation applications
The drive provides consistent performance for critical motor-driven equipment.
Working Principle
The ABB ACS580-01-033A-4 frequency converter controls motor operation by converting fixed-frequency AC power into adjustable-frequency AC output.
The operating process includes:
- Incoming AC power is converted into DC power through the rectifier stage.
- The DC circuit stabilizes and manages the electrical energy.
- The inverter section converts DC power into variable-frequency AC output.
- The motor receives controlled voltage and frequency signals.
- Motor speed and torque are adjusted according to application requirements.
This control method improves motor efficiency and provides accurate speed regulation.
Industrial Applications
Pump Control Applications
The ABB ACS580-01-033A-4 is widely used in industrial pump systems.
Typical applications:
- Water treatment pumps
- Cooling circulation pumps
- Process pumps
- Industrial fluid systems
Benefits:
- Improved flow regulation
- Reduced energy usage
- Reduced pump wear
- Increased system reliability
Fan and Ventilation Systems
The frequency converter is suitable for industrial fan control.
Applications include:
- HVAC equipment
- Ventilation systems
- Cooling fans
- Air handling units
Advantages:
- Efficient airflow control
- Reduced operating costs
- Stable fan performance
Conveyor System Control
The ACS580-01-033A-4 provides reliable control for conveyor motors.
Applications:
- Manufacturing production lines
- Material handling systems
- Packaging equipment
Benefits:
- Smooth motor operation
- Accurate speed adjustment
- Improved production efficiency
Compressor Applications
The frequency converter is suitable for compressor motor control.
Typical applications:
- Air compressors
- Industrial compressors
- Process machinery
Advantages:
- Stable pressure control
- Improved energy efficiency
- Reduced motor stress
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-033A-4, confirm:
- Correct power supply requirements
- Compatible motor specifications
- Proper installation location
- Sufficient ventilation space
- Reliable grounding connection
Installation Steps
- Mount the frequency converter vertically.
- Ensure sufficient cooling clearance around the unit.
- Connect input power cables.
- Connect motor output cables.
- Connect control terminals.
- Configure motor parameters.
- Perform startup testing.
Installation Precautions
During installation:
- Keep the drive away from excessive moisture
- Avoid high-temperature environments
- Maintain proper airflow
- Use correct cable specifications
- Ensure secure electrical connections
Fault Diagnosis and Troubleshooting
Frequency Converter Cannot Start
Possible causes:
- Incorrect control command
- Missing start signal
- Incorrect parameter settings
- Motor connection problems
Solutions:
- Check control wiring
- Verify parameter configuration
- Inspect motor connections
- Reset faults
Overcurrent Alarm
Possible causes:
- Motor overload
- Short circuit
- Incorrect motor data
- Mechanical blockage
Solutions:
- Check motor condition
- Inspect output wiring
- Verify motor parameters
- Reduce mechanical load
Overvoltage Fault
Possible causes:
- Rapid motor deceleration
- Unstable power supply
- Excessive regenerative energy
Solutions:
- Adjust acceleration/deceleration settings
- Check incoming voltage
- Review braking requirements
Overheating Problem
Possible causes:
- Poor ventilation
- Excessive load
- Cooling failure
- High ambient temperature
Solutions:
- Improve cabinet ventilation
- Clean cooling areas
- Check cooling components
- Reduce operating load
Communication Fault
Possible causes:
- Incorrect communication settings
- Damaged cables
- Network configuration errors
Solutions:
- Check communication parameters
- Inspect communication wiring
- Verify PLC/DCS settings
System Integration
| Component | Function |
|---|---|
| PLC System | Automatic motor control |
| DCS System | Process monitoring |
| HMI | Operator control interface |
| Industrial Network | Data exchange |
| Motor Protection System | Equipment protection |
Key Advantages
Energy Efficiency Improvement
The ABB ACS580-01-033A-4 helps reduce energy consumption by optimizing motor speed according to process requirements.
Stable Motor Performance
Provides accurate speed and torque regulation for industrial machinery.
Easy Maintenance
Integrated diagnostic functions simplify troubleshooting and maintenance.
Flexible Industrial Applications
Suitable for pumps, fans, compressors, conveyors, and other motor-driven equipment.
Compact Installation
The 490 × 203 × 229 mm design allows efficient installation inside industrial control cabinets.
Technical FAQs
What is ABB ACS580-01-033A-4 used for?
The ABB ACS580-01-033A-4 is a frequency converter designed for industrial AC motor speed control and automation applications.
What is the power rating of ABB ACS580-01-033A-4?
The power rating is 15 kW.
What is the rated current of this frequency converter?
The rated current is 32 A.
What are the dimensions of this model?
The dimensions are 490 × 203 × 229 mm.
What is the weight of ABB ACS580-01-033A-4?
The approximate weight is 11.8 kg.
Conclusion
The ABB ACS580-01-033A-4 3AXD50000038961 Frequency Converter is a reliable industrial drive designed for efficient motor control, stable operation, and improved energy performance.
With advanced variable frequency technology, simple commissioning features, and a compact design, this frequency converter provides an effective solution for industrial automation systems requiring precise motor management.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS580-01-033A-4 delivers dependable performance for modern industrial motor control applications.
