Product Overview

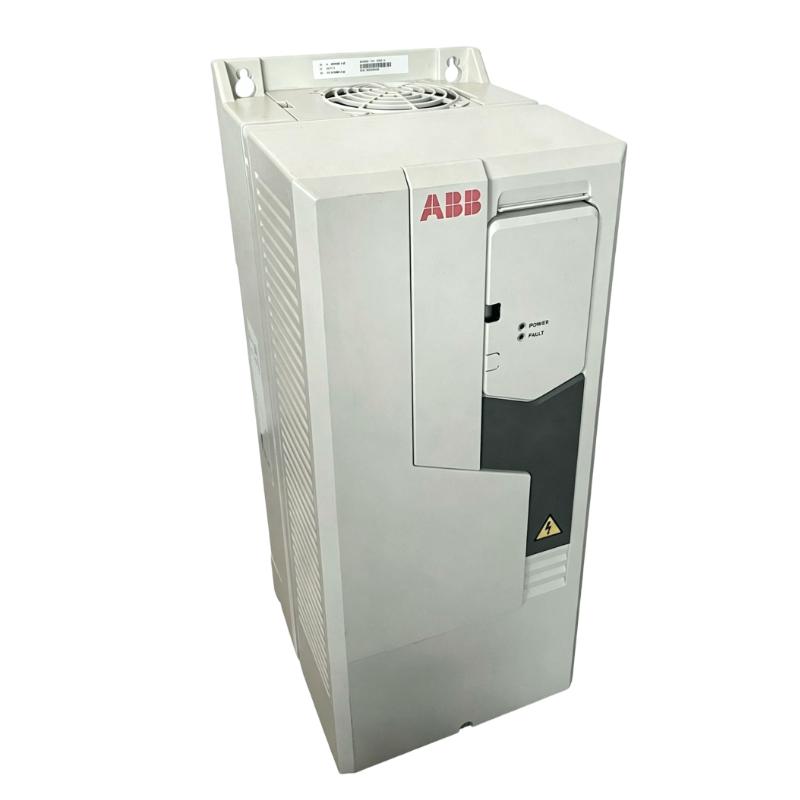

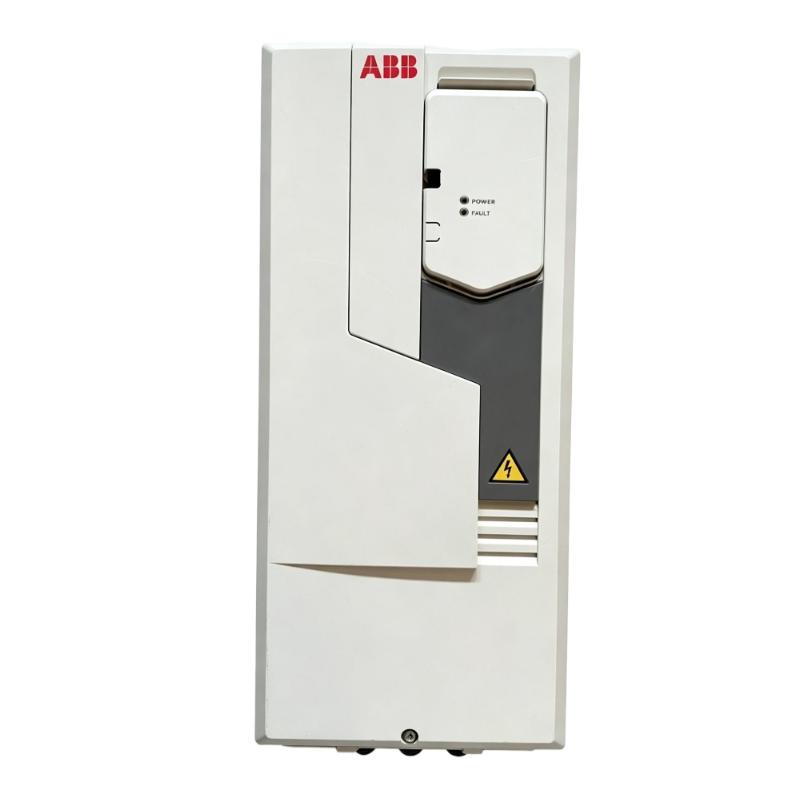

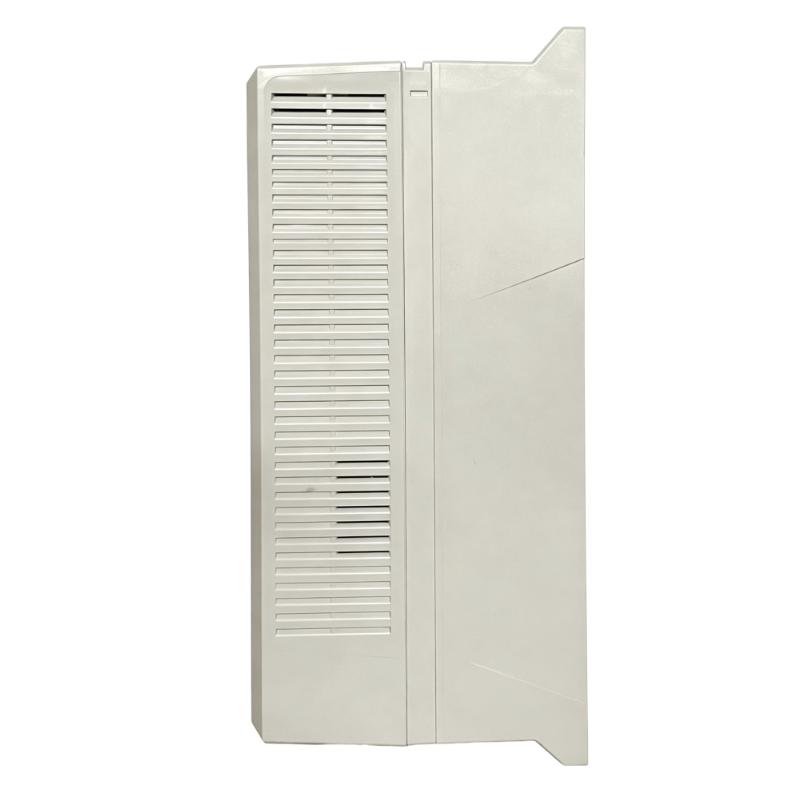

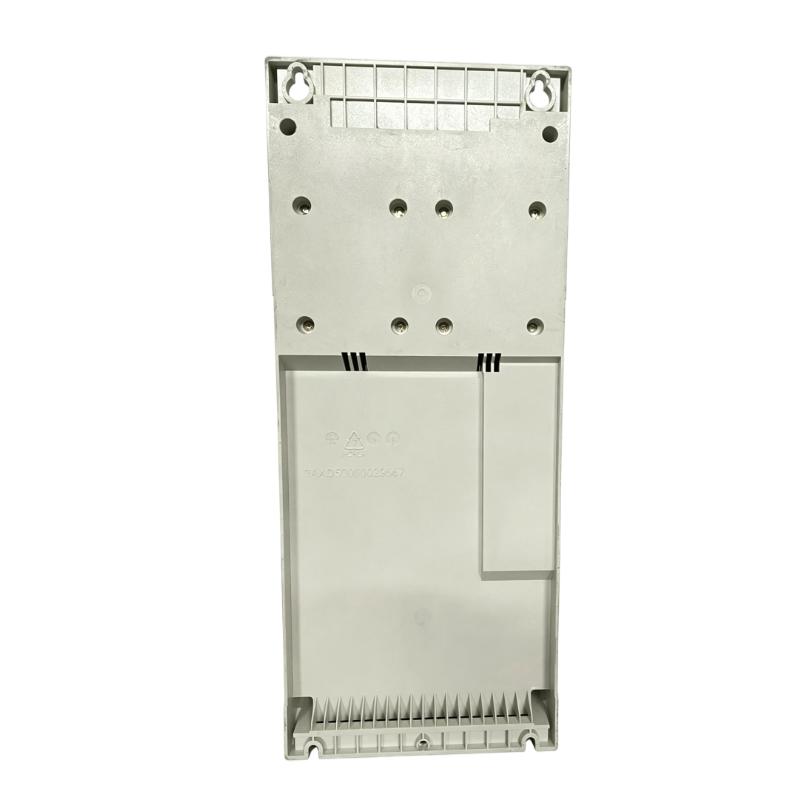

The ABB ACS580-01-033A-4 Frequency Converter with product code 3ABD50000038961 is a reliable general-purpose AC drive designed for industrial motor speed control, energy optimization, and automation system integration.
The ABB ACS580 series frequency converter provides efficient motor control solutions for a wide range of industrial applications, including pumps, fans, compressors, conveyors, mixers, and other machinery requiring accurate speed regulation.
The ACS580-01-033A-4 is designed with built-in essential control functions, simplified commissioning procedures, and a robust hardware structure to support reliable operation in demanding industrial environments.
By adjusting motor frequency and voltage output, the frequency converter enables smooth acceleration, precise speed control, reduced mechanical stress, and improved energy efficiency.
The ABB ACS580-01-033A-4 features dimensions of 454 × 203 × 228 mm and a weight of 14.9 kg, making it suitable for installation inside industrial control cabinets and automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-033A-4 |
| Product Code | 3ABD50000038961 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Power Rating | 15 kW |
| Rated Current | 32 A |
| Input Voltage | 400 V Class |
| Phase Type | Three Phase |
| Frequency Range | 50/60 Hz |
| Installation Type | Wall Mounted |
| Protection Class | IP21 |
| Dimensions | 454 × 203 × 228 mm |
| Weight | 14.9 kg |
| Application | Industrial Motor Control |
Product Features
Efficient Variable Speed Control
The ABB ACS580-01-033A-4 provides accurate motor speed regulation by controlling output frequency and voltage.
Main advantages include:
- Smooth motor operation
- Improved process control
- Reduced energy consumption
- Lower mechanical stress
- Extended motor service life
The drive allows motors to operate according to actual process requirements instead of running continuously at full speed.
Easy Commissioning and Configuration
The ACS580 series is designed to simplify installation and startup procedures.
Key features include:
- Simple parameter configuration
- User-friendly control interface
- Fast commissioning process
- Built-in application functions
- Easy maintenance operation
Engineers can configure the drive according to different motor applications without complicated programming procedures.
Reliable Industrial Design
The ABB ACS580-01-033A-4 is built for continuous industrial operation.
Product advantages:
- Strong electrical performance
- Stable thermal management
- Durable enclosure structure
- Reliable long-term operation
- Suitable for industrial automation environments
The compact design allows efficient installation while maintaining reliable performance.
Working Principle
The ABB ACS580-01-033A-4 frequency converter works by converting fixed-frequency AC power into adjustable-frequency AC output power.
The operating process includes:
- The incoming AC power is converted into DC voltage.
- The intermediate DC circuit stabilizes the power supply.
- The inverter section converts DC power into variable-frequency AC output.
- The motor speed and torque are controlled according to system requirements.
Through variable frequency control, the drive improves motor efficiency and provides accurate control of industrial processes.
Industrial Applications
Pump Control Applications
The ABB ACS580-01-033A-4 is widely used in industrial pumping systems.
Typical applications:
- Water treatment pumps
- Process pumps
- Cooling system pumps
- Circulation pumps
Benefits:
- Improved flow control
- Reduced energy consumption
- Lower mechanical impact
- Increased equipment reliability
Fan and Ventilation Systems
The frequency converter is suitable for industrial fan speed control.
Applications include:
- HVAC systems
- Ventilation equipment
- Cooling fans
- Air handling systems
Advantages:
- Efficient speed adjustment
- Reduced operating costs
- Stable airflow control
Conveyor Systems
The ACS580-01-033A-4 provides reliable speed control for industrial conveyors.
Applications:
- Production line conveyors
- Material handling systems
- Packaging equipment
Benefits:
- Smooth acceleration
- Accurate speed adjustment
- Improved production efficiency
Compressor Control
The drive can be used for compressor motor regulation.
Typical applications:
- Air compressors
- Industrial compressors
- Process equipment
Advantages:
- Stable motor operation
- Energy-saving performance
- Improved process control
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-033A-4, check the following:
- Confirm power supply compatibility
- Verify motor specifications
- Check installation environment
- Ensure proper ventilation
- Prepare suitable cables and grounding
Installation Steps
- Install the frequency converter vertically in the control cabinet.
- Ensure sufficient cooling space around the drive.
- Connect the incoming power supply cables.
- Connect motor output cables correctly.
- Connect control signals and communication wiring.
- Configure motor parameters.
- Perform commissioning tests.
Installation Precautions
During installation:
- Avoid excessive humidity and dust exposure
- Maintain proper ventilation clearance
- Use correct cable specifications
- Ensure reliable grounding
- Prevent vibration impact on the drive
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible causes:
- Incorrect start command
- Missing enable signal
- Incorrect parameter settings
- Motor wiring problems
Solutions:
- Check control signals
- Verify parameter configuration
- Inspect motor connections
- Reset drive faults
Overcurrent Fault
Possible causes:
- Motor overload
- Short circuit
- Incorrect motor parameters
- Excessive mechanical load
Solutions:
- Check motor condition
- Inspect output cables
- Verify motor data
- Reduce mechanical load
Overvoltage Fault
Possible causes:
- Rapid deceleration
- Unstable input voltage
- Excessive regenerative energy
Solutions:
- Adjust acceleration/deceleration time
- Check power supply stability
- Review braking requirements
Overheating Fault
Possible causes:
- Poor ventilation
- High ambient temperature
- Cooling fan problems
- Excessive operating load
Solutions:
- Improve cabinet airflow
- Clean cooling channels
- Check cooling components
- Reduce operating stress
Communication Failure
Possible causes:
- Incorrect communication parameters
- Wiring problems
- Network configuration errors
Solutions:
- Check communication settings
- Inspect cables
- Verify PLC/DCS configuration
System Integration
| Component | Function |
|---|---|
| PLC | Automatic motor control |
| DCS | Process monitoring |
| HMI | Operator interface |
| Industrial Network | Data communication |
| Motor Protection System | Equipment safety |
Key Advantages
Energy Saving Operation
Optimizes motor speed according to actual load requirements.
Reliable Motor Control
Provides stable speed and torque management.
Simple Maintenance
Easy parameter setup and diagnostic functions reduce maintenance time.
Flexible Applications
Suitable for pumps, fans, conveyors, compressors, and industrial machinery.
Compact Industrial Design
The 454 × 203 × 228 mm structure allows efficient cabinet installation.
Technical FAQs
What is ABB ACS580-01-033A-4 used for?
The ABB ACS580-01-033A-4 is a frequency converter designed for controlling industrial AC motors in various automation applications.
What is the power rating of ACS580-01-033A-4?
The power rating is 15 kW.
What is the rated current?
The rated current is 32 A.
What are the dimensions of this frequency converter?
The dimensions are 454 × 203 × 228 mm.
What is the weight of ABB ACS580-01-033A-4?
The approximate weight is 14.9 kg.
Conclusion
The ABB ACS580-01-033A-4 3ABD50000038961 Frequency Converter is a high-performance industrial drive designed for efficient motor control, reliable operation, and flexible automation integration.
With advanced variable frequency technology, simple commissioning features, and a compact industrial design, this frequency converter provides an effective solution for improving energy efficiency and optimizing industrial processes.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS580-01-033A-4 delivers dependable motor control performance for modern industrial applications.
