Product Overview

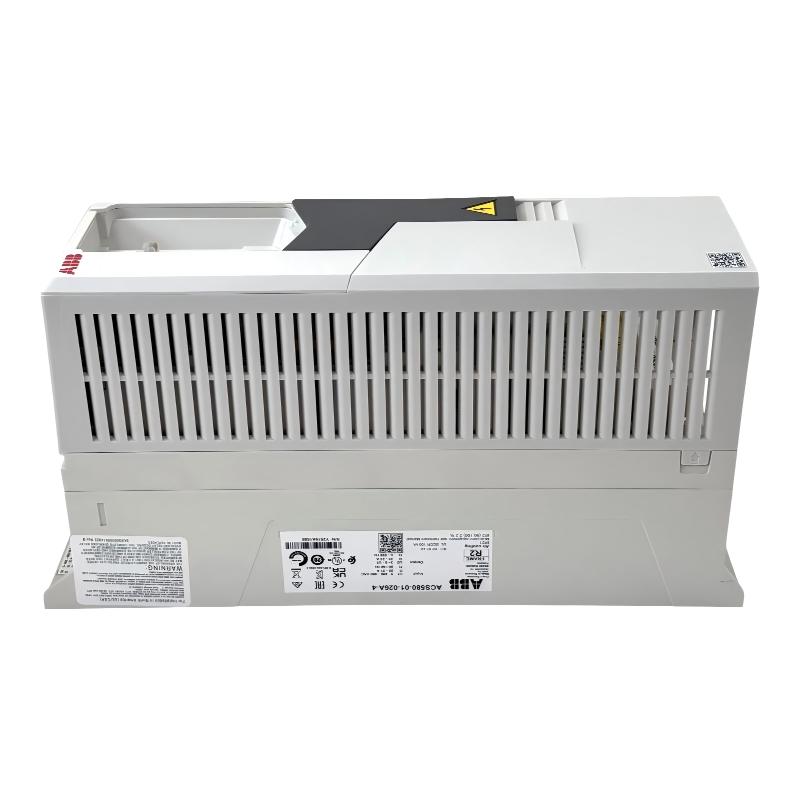

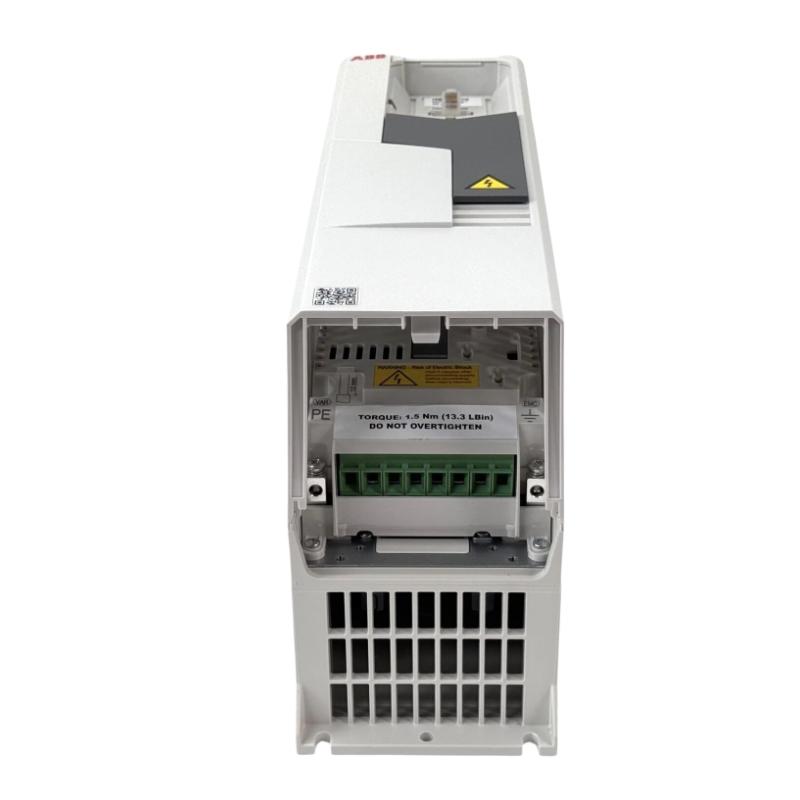

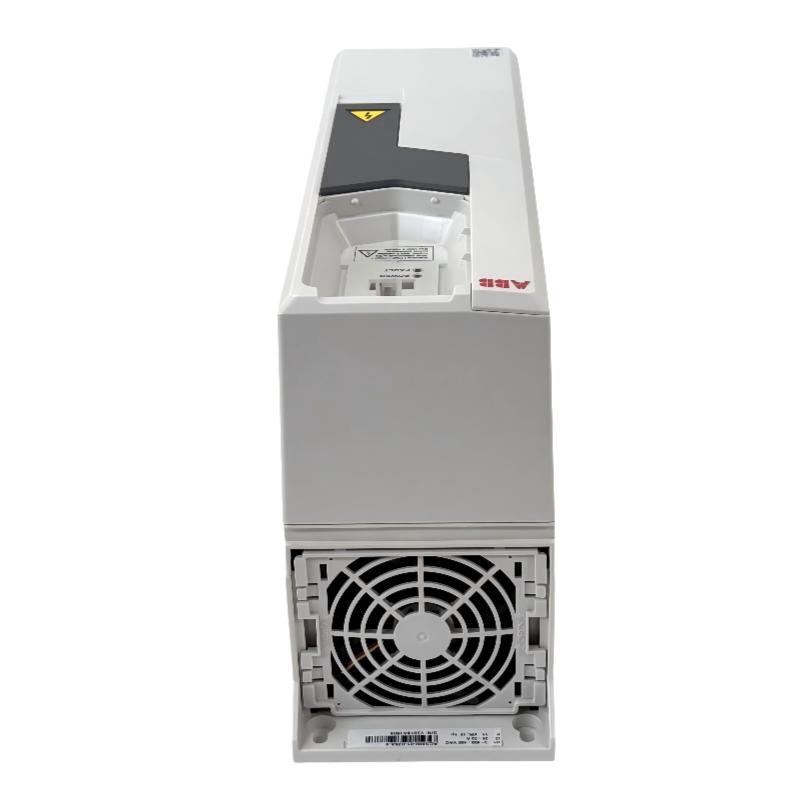

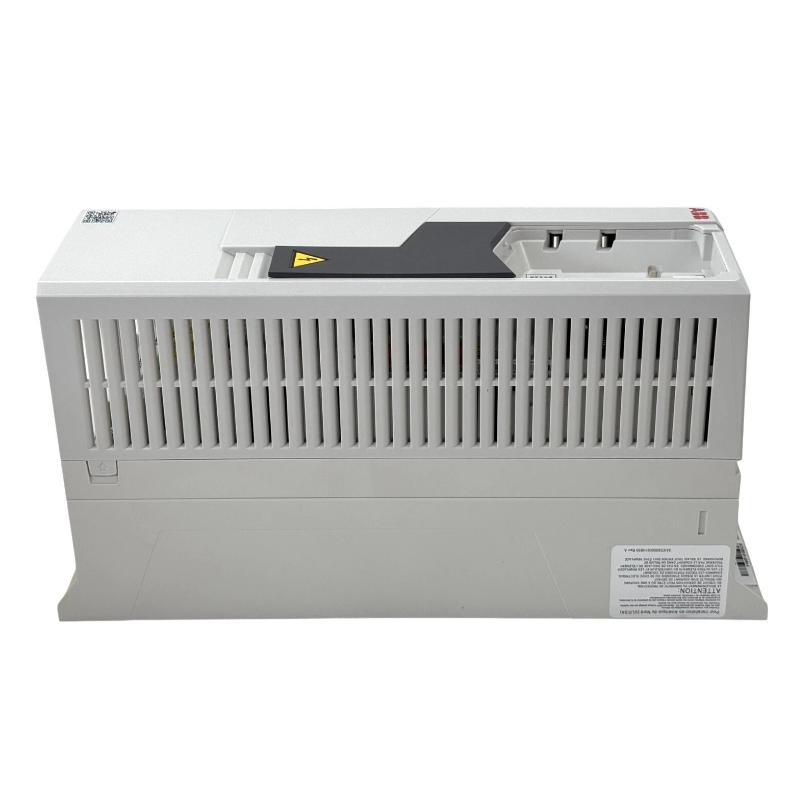

The ABB ACS580-01-026A-4 (3ABD50000038960) Frequency Converter is a reliable general-purpose AC drive designed for efficient motor speed control, stable operation, and flexible integration into industrial automation systems.
As part of the ABB ACS580 series, this frequency converter provides a practical solution for controlling three-phase AC motors in a wide range of industrial applications. It is designed to simplify installation, commissioning, and maintenance while providing reliable performance for different motor-driven equipment.
The ACS580-01-026A-4 is suitable for applications such as pumps, fans, conveyors, compressors, mixers, and other industrial machinery requiring accurate speed regulation and stable motor operation.
With dimensions of 473 × 125 × 229 mm and a weight of approximately 6.6 kg, this frequency converter offers a compact installation design suitable for industrial control cabinets and automation systems where space efficiency is important.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-026A-4 |
| Part Number | 3ABD50000038960 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Input Voltage | 380–480 V AC |
| Power Supply | Three Phase |
| Rated Output Current | 25 A |
| Motor Power Class | 11 kW |
| Mounting Type | Wall Mounted |
| Protection Class | IP21 |
| Dimensions | 473 × 125 × 229 mm |
| Weight | 6.6 kg |
| Application | Industrial Motor Speed Control |
Product Features
Reliable Motor Control Performance
The ABB ACS580-01-026A-4 provides stable and accurate control of industrial AC motors.
Main functions include:
- Smooth motor acceleration and deceleration
- Stable speed regulation
- Improved torque management
- Reduced mechanical stress
- Enhanced equipment reliability
The frequency converter helps maintain consistent motor performance in automated production environments.
Compact and Space-Saving Design
The ACS580-01-026A-4 features a compact structure designed for flexible industrial installation.
Key advantages include:
- Reduced installation space
- Easy integration into control cabinets
- Convenient maintenance access
- Efficient cooling design
Its compact size makes it suitable for machinery manufacturers and automation projects with limited cabinet space.
Flexible Industrial Applications
The ABB ACS580-01-026A-4 can be used in various motor-driven industrial systems.
Typical applications include:
- Pump systems
- Fan and ventilation equipment
- Conveyor machines
- Compressors
- Mixers
- Processing equipment
It supports both variable torque and constant torque applications, providing flexible control solutions for different industries.
Easy Commissioning and Operation
The ACS580 series is designed to simplify setup and daily operation.
Benefits include:
- Simple parameter configuration
- Faster commissioning
- Convenient operation adjustment
- Reduced maintenance workload
This helps engineers improve installation efficiency and minimize downtime.
Working Principle
The ABB ACS580-01-026A-4 Frequency Converter controls motor operation by converting fixed AC power into adjustable output power.
The operating process includes:
- Receiving three-phase AC input power
- Processing electrical energy through internal drive components
- Adjusting output frequency and voltage
- Controlling motor speed and torque according to system requirements
This allows motors to operate smoothly while improving energy efficiency and process stability.
Industrial Applications
Pump Control Systems
The ABB ACS580-01-026A-4 is suitable for industrial pump applications requiring reliable speed control.
Common uses:
- Water circulation systems
- Cooling systems
- Process pumps
- Industrial fluid handling equipment
Advantages:
- Stable flow adjustment
- Reduced mechanical wear
- Improved operating efficiency
- Reliable continuous operation
Fan and Ventilation Systems
The frequency converter provides efficient speed control for industrial fan applications.
Applications:
- Factory ventilation systems
- Cooling fans
- Air handling equipment
- Exhaust systems
Benefits:
- Adjustable airflow control
- Reduced energy consumption
- Improved environmental management
- Stable operation
Conveyor Systems
The ACS580-01-026A-4 provides smooth speed adjustment for conveyor applications.
Applications:
- Manufacturing production lines
- Material handling equipment
- Packaging systems
Advantages:
- Smooth startup performance
- Flexible speed control
- Reduced mechanical impact
- Improved production reliability
Industrial Machinery
The frequency converter can be integrated into various automated machines.
Applications:
- Mixing equipment
- Processing machines
- Production equipment
- Automated manufacturing systems
Benefits:
- Accurate motor control
- Improved machine performance
- Reliable operation
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-026A-4, confirm:
- Power supply compatibility
- Motor specifications
- Installation environment
- Cooling requirements
- Mounting space
Installation Steps
- Install the frequency converter vertically on a stable mounting surface
- Ensure sufficient ventilation clearance
- Connect input power cables correctly
- Connect motor output cables
- Complete control wiring connections
- Configure motor parameters
- Perform commissioning tests
Commissioning Checklist
| Inspection Item | Purpose |
|---|---|
| Power Wiring | Confirm correct electrical connection |
| Motor Connection | Verify motor cable installation |
| Parameter Setup | Match motor characteristics |
| Rotation Test | Confirm motor direction |
| Load Test | Verify stable operation |
Fault Diagnosis and Troubleshooting
Frequency Converter Cannot Start
Possible causes:
- Incorrect start command
- Control signal failure
- Incorrect parameter settings
- Wiring problems
Solutions:
- Check control terminals
- Verify configuration parameters
- Inspect control wiring
- Confirm external commands
Overcurrent Fault
Possible causes:
- Excessive motor load
- Mechanical blockage
- Incorrect acceleration settings
- Motor connection problems
Solutions:
- Check mechanical equipment
- Reduce excessive load
- Adjust acceleration parameters
- Inspect motor cables
Overheating Fault
Possible causes:
- Poor ventilation
- High ambient temperature
- Cooling problems
- Excessive operating load
Solutions:
- Improve airflow conditions
- Clean cooling areas
- Check installation environment
- Reduce operating stress
Motor Speed Fluctuation
Possible causes:
- Incorrect motor parameters
- Improper configuration
- Control signal interference
Solutions:
- Verify motor data
- Adjust drive parameters
- Check control connections
Compatible System Components
| Component | Function |
|---|---|
| AC Motor | Main controlled equipment |
| PLC Controller | Automation control |
| HMI Panel | Operator interface |
| Communication Module | Industrial communication |
| Sensors | Process feedback |
Recommended Related ABB ACS580 Models
| Model | Product Type | Application |
|---|---|---|
| ACS580-01-018A-4 | Frequency Converter | 7.5 kW motor control |
| ACS580-01-025A-4 | Frequency Converter | 11 kW motor applications |
| ACS580-01-026A-4 | Frequency Converter | 11 kW industrial motor control |
| ACS580 Series | Frequency Converter | General automation applications |
Key Advantages
Stable Industrial Performance
Provides reliable motor speed and torque control for industrial equipment.
Compact Installation
Suitable for applications requiring efficient cabinet space utilization.
Easy System Integration
Compatible with industrial automation architectures.
Efficient Motor Management
Helps optimize motor operation and improve production efficiency.
Long-Term Reliability
Designed for continuous industrial operation.
Technical FAQs
What is ABB ACS580-01-026A-4 used for?
The ABB ACS580-01-026A-4 is a frequency converter designed for controlling industrial three-phase AC motors.
What is the rated output current?
The rated output current is 25 A.
What motor power is suitable for this model?
This frequency converter is suitable for approximately 11 kW motor applications.
What are the dimensions of ABB ACS580-01-026A-4?
The dimensions are 473 × 125 × 229 mm.
What is the weight of this frequency converter?
The weight is approximately 6.6 kg.
Conclusion
The ABB ACS580-01-026A-4 (3ABD50000038960) Frequency Converter is a compact and reliable industrial AC drive designed for efficient motor control applications.
With its stable performance, flexible installation design, simple commissioning process, and wide industrial application range, this frequency converter provides an effective solution for pumps, fans, conveyors, compressors, and automated machinery.
For automation engineers, maintenance professionals, and industrial system integrators, the ABB ACS580-01-026A-4 helps improve motor control efficiency, enhance equipment reliability, and support stable industrial operations.
