Product Overview

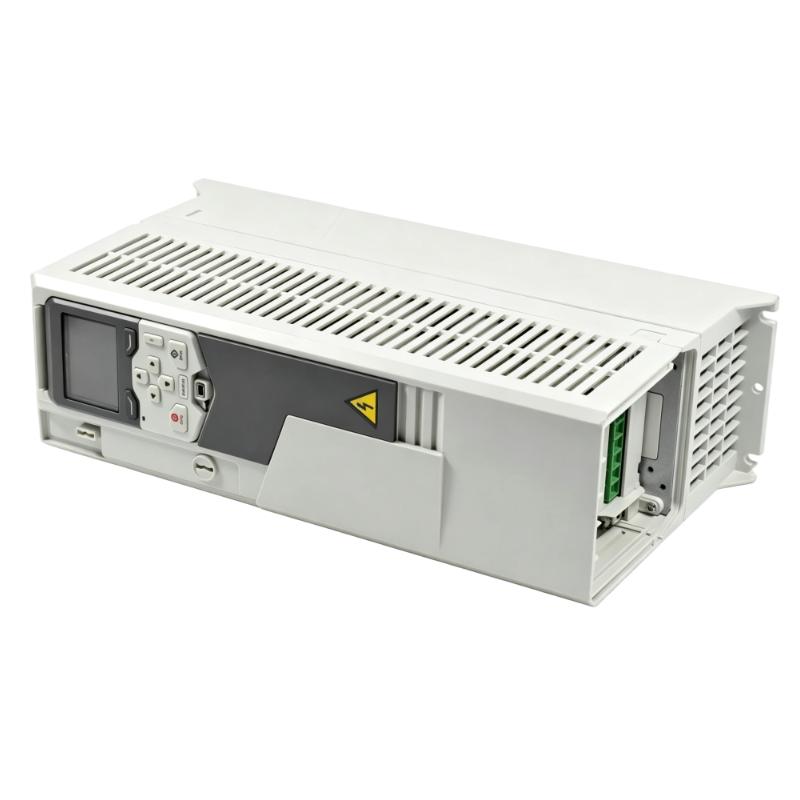

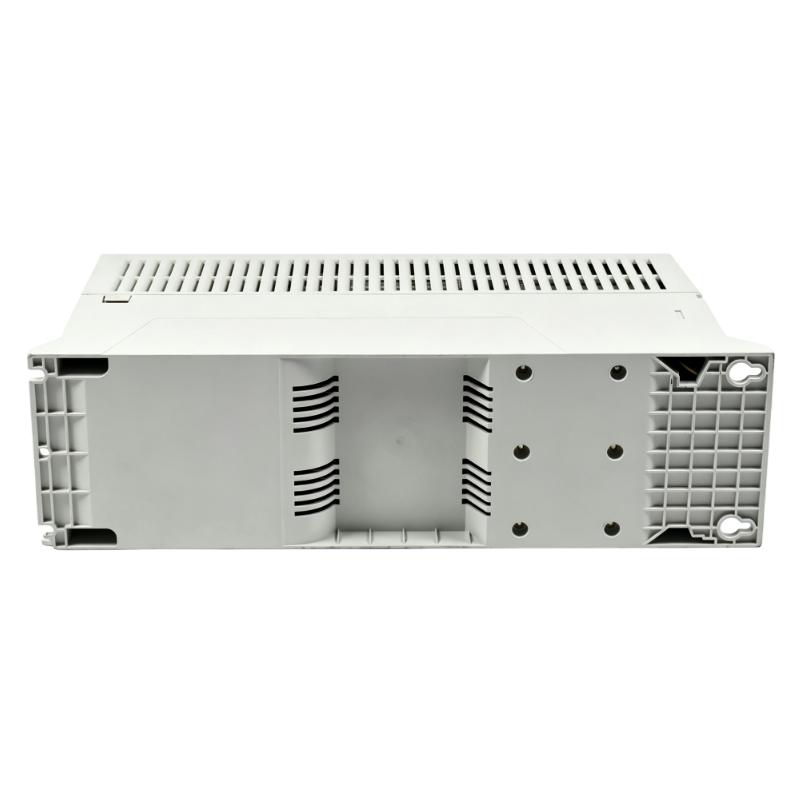

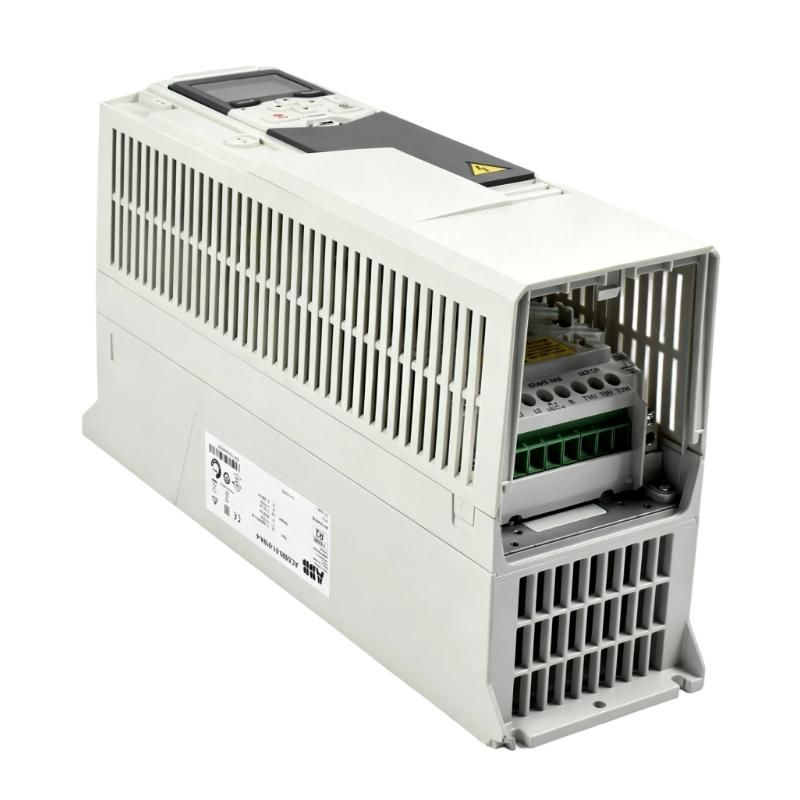

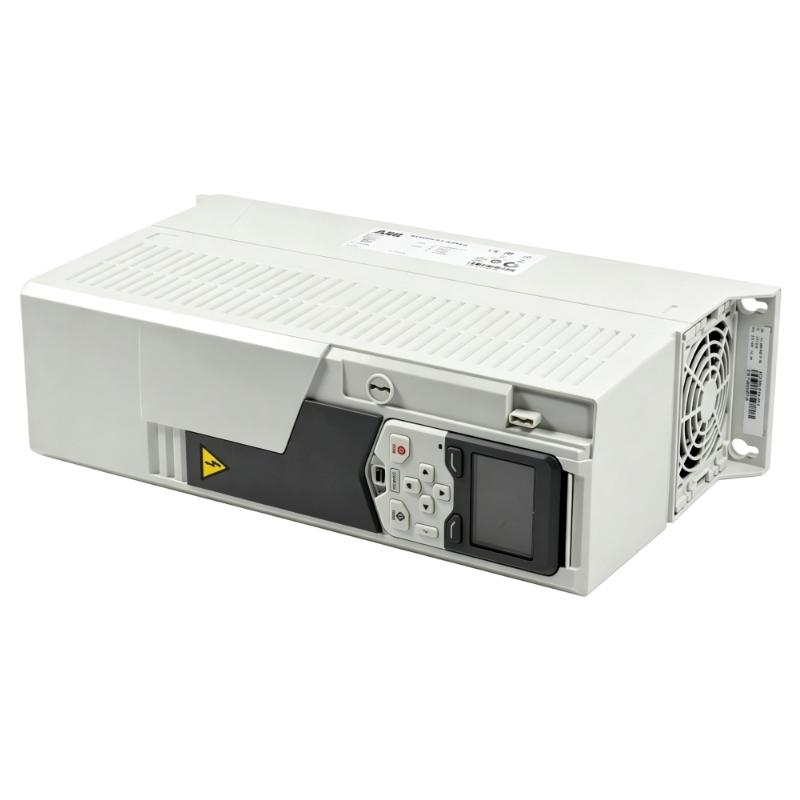

The ABB ACS580-01-018A-4 (3ABD50000038959) Frequency Converter is a compact and reliable industrial AC drive designed for efficient speed control and precise operation of three-phase motors in various automation and process applications.
As part of the ABB ACS580 series, this frequency converter provides a user-friendly solution for industrial motor control, combining stable performance, flexible configuration, and reliable operation. It is designed for applications requiring accurate motor speed adjustment, smooth starting and stopping, and improved energy management.
The ACS580-01-018A-4 is suitable for a wide range of industrial equipment, including pumps, fans, conveyors, compressors, mixers, and other variable torque or constant torque applications. Its compact structure allows easy integration into control cabinets and industrial automation systems.
With dimensions of 394 × 125 × 227 mm and a weight of approximately 9 kg, this frequency converter is designed for space-saving installations while maintaining reliable industrial performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS580-01-018A-4 |
| Part Number | 3ABD50000038959 |
| Product Type | Frequency Converter |
| Series | ACS580 |
| Input Voltage | 380–480 V AC |
| Power Supply | Three Phase |
| Rated Output Current | 17 A |
| Motor Power Class | 7.5 kW |
| Mounting Type | Wall Mounted |
| Protection Class | IP21 |
| Dimensions | 394 × 125 × 227 mm |
| Weight | 9 kg |
| Application | Industrial Motor Speed Control |
Product Features
Compact Industrial Design
The ABB ACS580-01-018A-4 features a compact structure designed for easy installation in industrial control environments.
Advantages include:
- Space-saving installation
- Easy cabinet integration
- Simplified maintenance access
- Reliable cooling performance
Its compact size makes it suitable for automation systems where installation space is limited.
Reliable Motor Control Performance
The ACS580-01-018A-4 provides stable speed and torque control for industrial motors.
Main functions include:
- Smooth motor acceleration
- Controlled deceleration
- Stable speed regulation
- Improved process consistency
- Reduced mechanical stress
It helps maintain reliable operation for various industrial machines.
Flexible Application Capability
The frequency converter is suitable for different industrial applications requiring variable motor speed control.
Typical applications include:
- Pumps
- Fans
- Conveyors
- Compressors
- Mixers
- Industrial machinery
Its flexible design allows integration into different automation environments.
Easy Commissioning and Operation
The ABB ACS580 series is designed to simplify installation and daily operation.
Benefits include:
- Simple parameter configuration
- Fast commissioning process
- Convenient troubleshooting
- Reduced setup time
This makes it suitable for both new installations and replacement projects.
Working Principle
The ABB ACS580-01-018A-4 Frequency Converter controls motor operation by converting fixed-frequency AC power into adjustable output power.
The operation process includes:
- Receiving three-phase AC input power
- Converting electrical energy through internal power circuits
- Adjusting output frequency and voltage
- Controlling motor speed according to application requirements
This allows motors to operate more efficiently with improved control accuracy.
Industrial Applications
Pump Systems
The ABB ACS580-01-018A-4 is suitable for industrial pump control applications.
Common uses:
- Water circulation systems
- Cooling pumps
- Process pumping equipment
- Small industrial fluid systems
Advantages:
- Stable flow control
- Reduced mechanical impact
- Improved operating efficiency
- Extended pump lifetime
Fan and Ventilation Systems
The frequency converter provides efficient speed control for fan applications.
Applications:
- Industrial ventilation
- Air circulation systems
- Cooling equipment
- Exhaust systems
Benefits:
- Adjustable airflow control
- Reduced energy consumption
- Improved system stability
- Better environmental control
Conveyor Equipment
The ACS580-01-018A-4 provides smooth speed regulation for conveyor systems.
Applications:
- Production lines
- Material handling equipment
- Packaging machinery
Advantages:
- Smooth startup operation
- Adjustable running speed
- Reduced mechanical wear
- Improved production reliability
Compressor and Machinery Applications
The drive can be used for controlling small and medium industrial machines.
Applications:
- Air compressors
- Processing equipment
- Automated machinery
Benefits:
- Stable motor performance
- Improved machine control
- Reduced operating stress
Installation Guide
Installation Preparation
Before installing the ABB ACS580-01-018A-4, check:
- Power supply requirements
- Motor specifications
- Installation environment
- Cooling conditions
- Mounting space
Installation Steps
- Install the frequency converter vertically on a stable mounting surface
- Ensure sufficient ventilation clearance
- Connect input power cables
- Connect motor output cables
- Complete control wiring
- Configure motor parameters
- Perform commissioning tests
Commissioning Checklist
| Inspection Item | Purpose |
|---|---|
| Power Wiring | Confirm correct electrical connection |
| Motor Connection | Verify motor cable installation |
| Parameter Setup | Match motor characteristics |
| Rotation Test | Confirm motor direction |
| Load Test | Verify stable operation |
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible causes:
- Incorrect start command
- Control signal failure
- Incorrect parameter settings
- Wiring problems
Solutions:
- Check control terminals
- Verify parameter configuration
- Inspect control signals
- Confirm external commands
Overcurrent Fault
Possible causes:
- Excessive motor load
- Mechanical blockage
- Incorrect acceleration settings
- Motor connection issues
Solutions:
- Check mechanical equipment
- Reduce excessive load
- Adjust acceleration parameters
- Inspect motor wiring
Overheating Problem
Possible causes:
- Poor ventilation
- High ambient temperature
- Cooling problems
- Excessive operating load
Solutions:
- Improve airflow
- Check installation conditions
- Clean cooling areas
- Reduce operating stress
Motor Speed Fluctuation
Possible causes:
- Incorrect motor parameters
- Improper configuration
- Unstable control signals
Solutions:
- Verify motor data
- Adjust drive settings
- Check control connections
Compatible System Components
| Component | Function |
|---|---|
| AC Motor | Main controlled equipment |
| PLC Controller | Automation control system |
| HMI Panel | Operator monitoring |
| Communication Module | Industrial data exchange |
| Sensors | Process feedback control |
Recommended Related ABB ACS580 Models
| Model | Product Type | Application |
|---|---|---|
| ACS580-01-014A-4 | Frequency Converter | Medium motor control |
| ACS580-01-018A-4 | Frequency Converter | 7.5 kW motor applications |
| ACS580-01-026A-4 | Frequency Converter | Industrial automation systems |
| ACS580-01 Series | Frequency Converter | General motor control |
Key Advantages
Compact Installation
Small dimensions allow flexible integration into industrial cabinets.
Reliable Motor Performance
Provides stable speed and torque control.
Easy Maintenance
Simplified setup and troubleshooting reduce maintenance time.
Flexible Industrial Applications
Suitable for pumps, fans, conveyors, and machinery.
Durable Operation
Designed for long-term industrial service.
Technical FAQs
What is ABB ACS580-01-018A-4 used for?
The ABB ACS580-01-018A-4 is a frequency converter designed for controlling industrial three-phase AC motors.
What is the rated output current?
The rated output current is 17 A.
What motor power is suitable for this model?
This frequency converter is suitable for approximately 7.5 kW motor applications.
What are the dimensions of ABB ACS580-01-018A-4?
The dimensions are 394 × 125 × 227 mm.
What is the weight of this frequency converter?
The weight is approximately 9 kg.
Conclusion
The ABB ACS580-01-018A-4 (3ABD50000038959) Frequency Converter is a compact and reliable industrial drive designed for efficient motor control applications.
With its flexible configuration, stable performance, compact design, and wide application range, it provides an effective solution for pumps, fans, conveyors, compressors, and industrial automation equipment.
For automation engineers, maintenance teams, and system integrators, the ABB ACS580-01-018A-4 helps improve motor control accuracy, enhance equipment reliability, and support efficient industrial operations.
