Product Overview

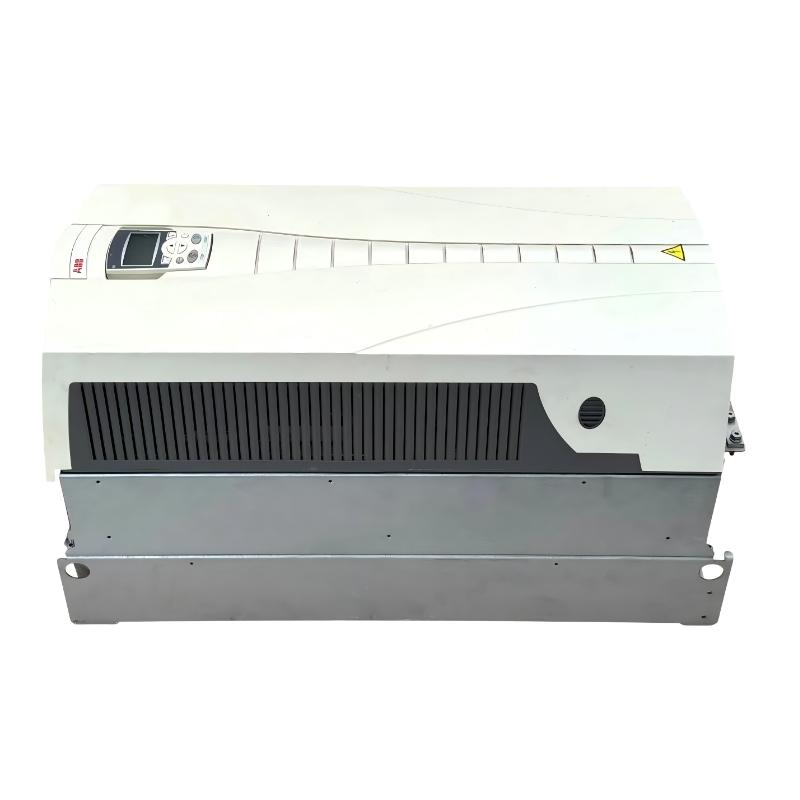

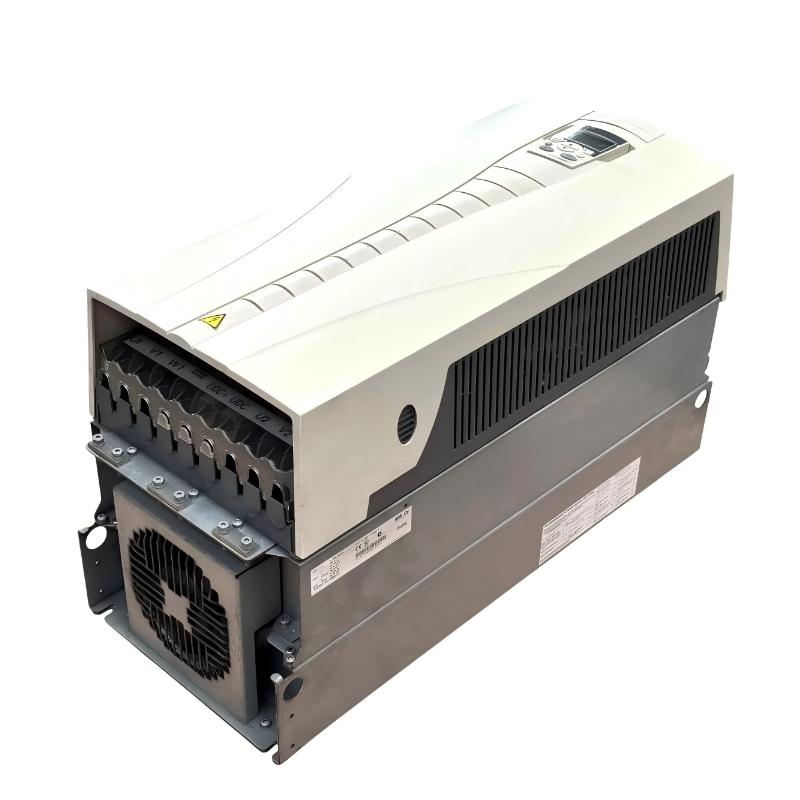

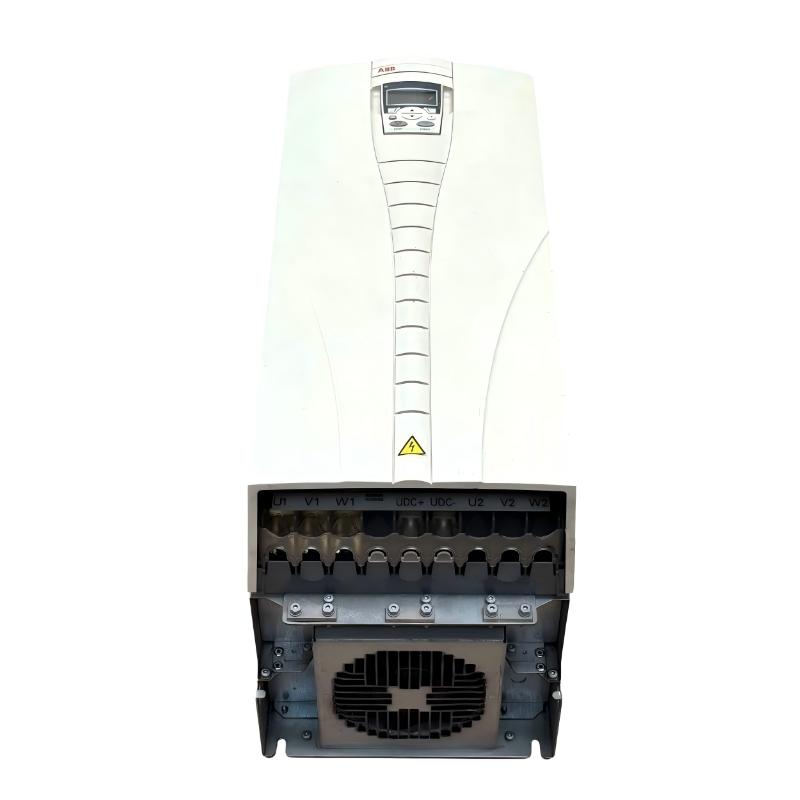

The ABB ACS550-01-180A-4 (3ABD64726838) Frequency Converter is a high-power industrial AC drive designed for advanced motor speed control, reliable operation, and demanding automation applications.
As part of the ABB ACS550 series, this frequency converter is engineered for industrial systems that require stable motor performance, high output capability, and efficient control of large three-phase AC motors. It is widely suitable for applications including pumps, fans, conveyors, compressors, and large mechanical processing equipment.
The ACS550-01-180A-4 provides flexible motor control for industrial environments where continuous operation, precise speed adjustment, and long-term reliability are essential. Its robust design allows it to operate effectively in manufacturing plants, process industries, and automated production systems.
With dimensions of 955 × 350 × 420 mm and a weight of approximately 78 kg, this frequency converter is designed for large industrial installations requiring reliable thermal management, strong mechanical construction, and stable performance.
Technical Specifications

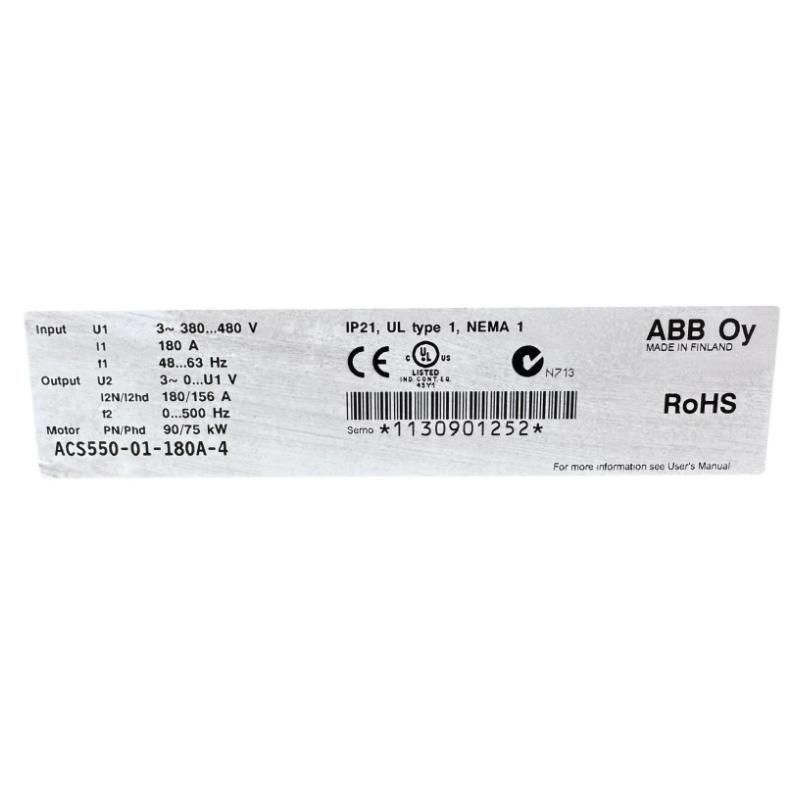

| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS550-01-180A-4 |
| Part Number | 3ABD64726838 |
| Product Type | Frequency Converter |
| Series | ACS550 |
| Input Voltage | 380–480 V AC |
| Power Supply | Three Phase |
| Rated Output Current | 180 A |
| Motor Power Class | 90 kW |
| Mounting Type | Wall Mounted |
| Frame Size | R6 |
| Dimensions | 955 × 350 × 420 mm |
| Weight | 78 kg |
| Application | Industrial Motor Speed Control |
Product Features
High-Capacity Motor Control
The ABB ACS550-01-180A-4 provides powerful speed and torque control for large industrial motors.
The frequency converter supports:
- Smooth motor acceleration and stopping
- Stable speed regulation
- Reliable torque management
- Improved process control
It is suitable for applications where motors must operate continuously under demanding industrial conditions.
Designed for Heavy-Duty Industrial Applications
The ACS550-01-180A-4 is designed for high-power motor-driven equipment requiring dependable operation.
Key advantages include:
- High current output capability
- Stable operation under variable loads
- Strong industrial reliability
- Reduced production interruptions
This makes it suitable for large-scale industrial automation systems.
Efficient Motor Performance Management
The frequency converter helps optimize motor operation by adjusting speed according to actual process requirements.
Benefits include:
- Improved system efficiency
- Reduced mechanical stress
- Better process adjustment
- Extended equipment service life
It helps industrial facilities achieve more efficient and controlled motor operation.
Robust Industrial Structure
With dimensions of 955 × 350 × 420 mm and a weight of 78 kg, the ACS550-01-180A-4 features a strong industrial design.
The structure supports:
- Reliable heat dissipation
- Stable cabinet installation
- Long-term continuous operation
- Industrial environment requirements
Working Principle
The ABB ACS550-01-180A-4 Frequency Converter controls AC motor operation by converting fixed electrical input power into adjustable output power.
The operating process includes:
- Receiving three-phase AC power input
- Processing electrical energy through internal drive circuits
- Adjusting output frequency and voltage
- Controlling motor speed and torque according to application requirements
This allows large motors to achieve smooth operation with improved control flexibility.
Industrial Applications
Large Pump Systems
The ABB ACS550-01-180A-4 is suitable for industrial pump applications requiring stable speed control.
Typical applications:
- Water treatment systems
- Industrial circulation pumps
- Cooling systems
- Process pumping equipment
Advantages:
- Stable flow adjustment
- Reduced mechanical stress
- Improved operating efficiency
- Reliable continuous operation
Industrial Fan and Ventilation Systems
Large fan systems require reliable motor control for efficient airflow management.
Applications:
- Factory ventilation
- Exhaust systems
- Cooling equipment
- Air handling systems
Benefits:
- Flexible airflow control
- Reduced unnecessary operation
- Improved system stability
- Better energy management
Conveyor and Material Handling Systems
The ACS550-01-180A-4 provides reliable speed control for large conveyor applications.
Applications:
- Manufacturing production lines
- Heavy material handling systems
- Industrial processing equipment
Advantages:
- Smooth startup performance
- Adjustable operating speed
- Reduced mechanical impact
- Improved production reliability
Compressor Systems
Industrial compressors require stable motor operation for continuous production.
Applications:
- Air compression systems
- Industrial machinery
- Process equipment
Benefits:
- Stable motor performance
- Reduced equipment stress
- Improved operational reliability
Installation Guide
Installation Preparation
Before installation, verify:
- Power supply compatibility
- Motor specifications
- Installation environment
- Cooling requirements
- Mounting space availability
Installation Steps
- Mount the frequency converter vertically on a stable surface
- Ensure sufficient ventilation clearance
- Connect incoming power cables
- Connect motor output cables
- Complete control wiring
- Configure motor parameters
- Perform commissioning tests
Commissioning Checklist
| Inspection Item | Purpose |
|---|---|
| Power Wiring | Confirm correct electrical connection |
| Motor Wiring | Verify motor phase connection |
| Parameter Settings | Match motor requirements |
| Rotation Test | Confirm motor direction |
| Load Testing | Verify stable operation |
Fault Diagnosis and Troubleshooting
Frequency Converter Cannot Start
Possible causes:
- Incorrect start command
- Control signal failure
- Incorrect parameter configuration
- Wiring problems
Solutions:
- Check control terminals
- Verify drive settings
- Inspect control wiring
- Confirm external signals
Overcurrent Fault
Possible causes:
- Excessive motor load
- Mechanical blockage
- Incorrect acceleration settings
- Motor cable issues
Solutions:
- Check mechanical equipment
- Reduce load conditions
- Adjust acceleration parameters
- Inspect motor connections
Overheating Alarm
Possible causes:
- Insufficient ventilation
- Cooling system problems
- High ambient temperature
- Excessive operating load
Solutions:
- Improve airflow
- Clean cooling areas
- Check installation conditions
- Reduce operating stress
Motor Speed Instability
Possible causes:
- Incorrect motor parameters
- Improper configuration
- Control communication problems
Solutions:
- Verify motor data
- Adjust drive parameters
- Check communication wiring
Compatible System Components
| Component | Function |
|---|---|
| AC Motor | Main controlled equipment |
| PLC Controller | Industrial automation control |
| HMI Panel | Operator monitoring |
| Communication Module | Industrial data exchange |
| Braking Components | Improve stopping performance |
Recommended Related ABB ACS550 Models
| Model | Product Type | Application |
|---|---|---|
| ACS550-01-125A-4 | Frequency Converter | High-power motor control |
| ACS550-01-157A-4 | Frequency Converter | 75 kW motor applications |
| ACS550-01-180A-4 | Frequency Converter | 90 kW industrial motors |
| ACS550-01-195A-4 | Frequency Converter | Large motor systems |
Key Advantages
High Output Capability
Designed for industrial motors requiring higher current capacity and reliable performance.
Stable Industrial Operation
Provides consistent motor control for continuous production environments.
Flexible Automation Integration
Suitable for PLC, HMI, and industrial control applications.
Improved Motor Efficiency
Helps optimize motor operation and reduce unnecessary energy consumption.
Durable Industrial Design
Built for demanding industrial environments requiring long service life.
Technical FAQs
What is ABB ACS550-01-180A-4 used for?
The ABB ACS550-01-180A-4 is a high-power frequency converter designed for industrial AC motor control applications.
What is the rated output current?
The rated output current of this model is 180 A.
What motor power is suitable for this frequency converter?
This model is suitable for approximately 90 kW motor applications.
What are the dimensions of ABB ACS550-01-180A-4?
The dimensions are 955 × 350 × 420 mm.
What is the weight of this frequency converter?
The weight is approximately 78 kg.
Conclusion
The ABB ACS550-01-180A-4 (3ABD64726838) Frequency Converter is a powerful industrial AC drive designed for reliable control of large motor applications.
With its high current capability, robust construction, flexible installation design, and stable operating performance, this frequency converter provides an effective solution for pumps, fans, conveyors, compressors, and industrial automation systems.
For automation engineers, maintenance professionals, and industrial system integrators, the ABB ACS550-01-180A-4 helps improve motor reliability, optimize production processes, and enhance overall industrial equipment performance.
