Product Overview

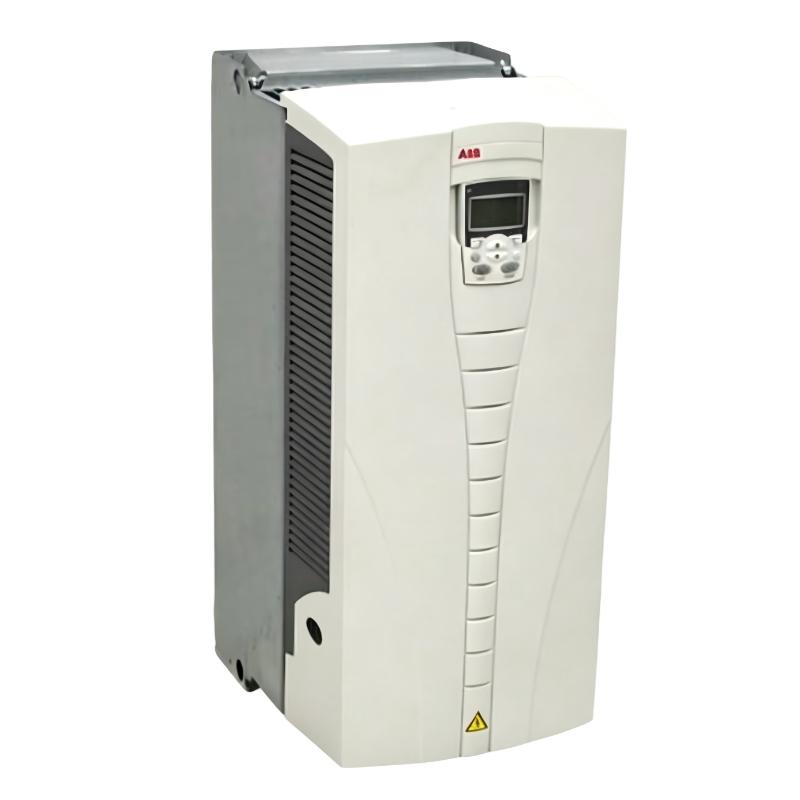

The ABB ACS550-01-157A-4 (3ABD64726820) Frequency Converter is a high-performance industrial AC drive designed for reliable speed control, energy-efficient motor operation, and demanding automation applications.
As a powerful member of the ABB ACS550 series, this frequency converter is developed for industrial systems requiring stable operation, high current capability, and accurate motor control. It is widely suitable for large motor-driven equipment such as pumps, fans, conveyors, compressors, and process machinery.
The ABB ACS550-01-157A-4 provides efficient control of three-phase AC motors by adjusting operating speed according to process requirements. It helps improve equipment performance, reduce mechanical stress, and enhance production stability in industrial environments.

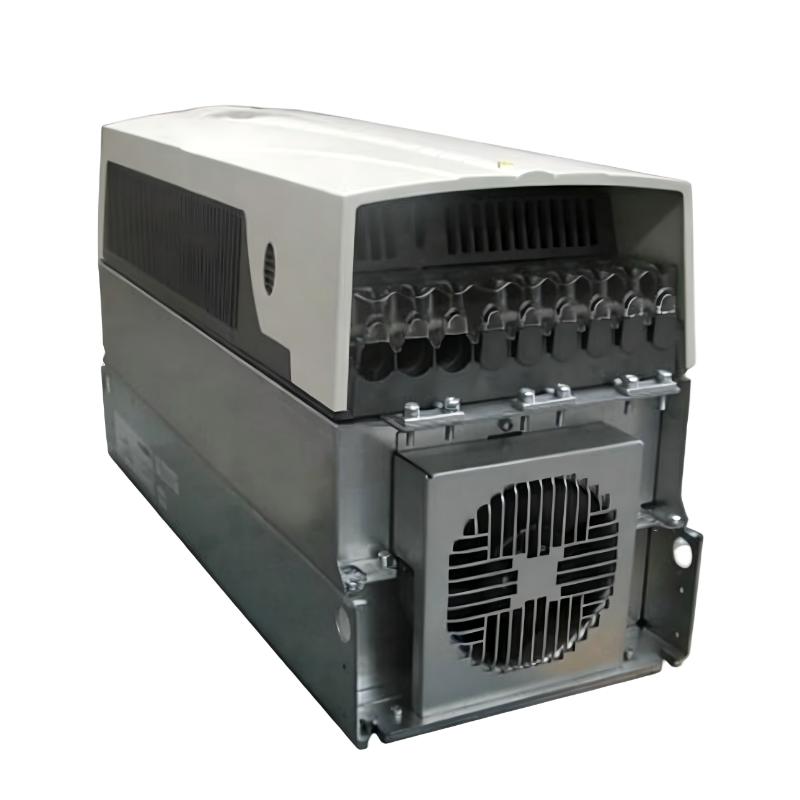

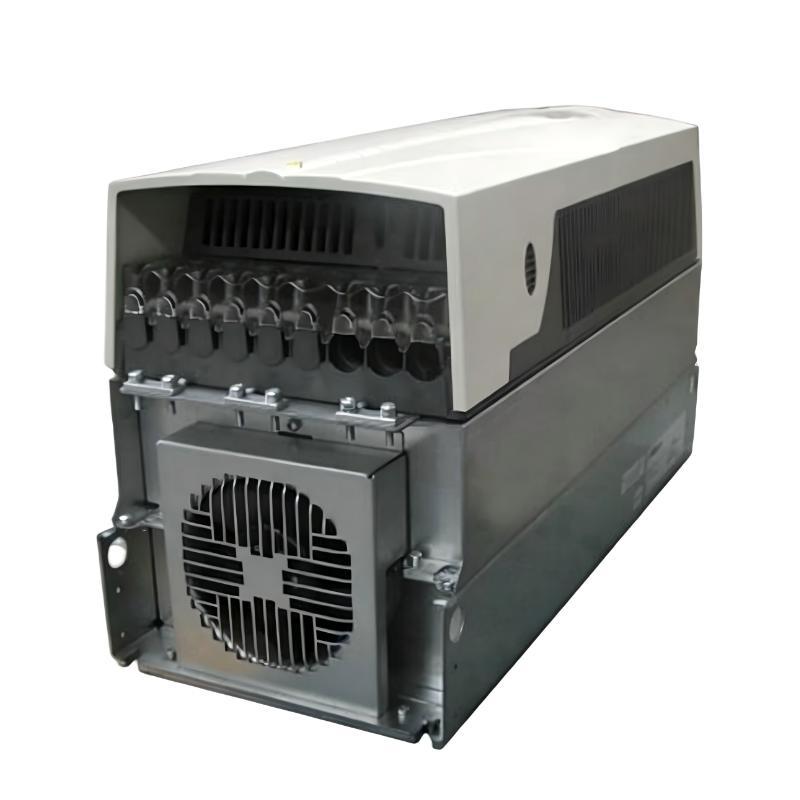

With dimensions of 955 × 350 × 420 mm and a weight of approximately 78 kg, this frequency converter is designed for large industrial installations requiring strong performance, reliable heat dissipation, and long-term operational stability.
Technical Specifications

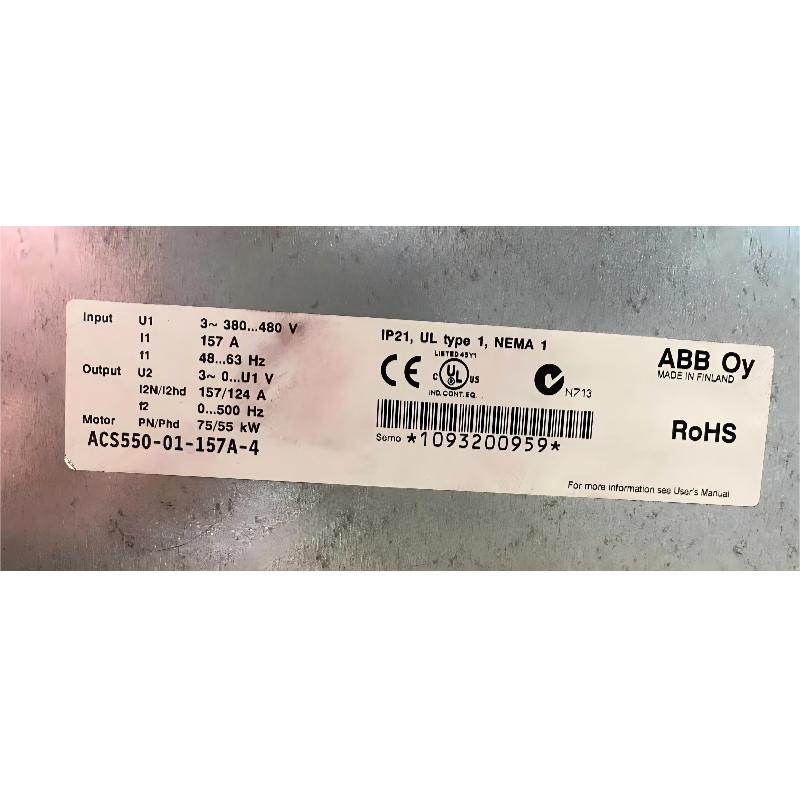

| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS550-01-157A-4 |
| Part Number | 3ABD64726820 |
| Product Type | Frequency Converter |
| Series | ACS550 |
| Input Voltage | 380–480 V AC |
| Power Supply | Three Phase |
| Rated Output Current | 157 A |
| Motor Power Class | 75 kW |
| Mounting Type | Wall Mounted |
| Frame Size | R6 |
| Dimensions | 955 × 350 × 420 mm |
| Weight | 78 kg |
| Application | Industrial Motor Speed Control |
Product Features
High-Power Motor Control Performance
The ABB ACS550-01-157A-4 provides reliable variable frequency control for high-power industrial motors.
The drive helps maintain stable motor operation through:
- Accurate speed adjustment
- Smooth acceleration and deceleration
- Reliable torque control
- Improved process stability
It is suitable for applications where continuous motor operation and high reliability are required.
Designed for Heavy Industrial Applications
The ACS550-01-157A-4 is designed to handle demanding industrial environments.
Its advantages include:
- High current capacity
- Stable operation under variable loads
- Strong overload handling capability
- Long-term operational reliability
This makes it suitable for large industrial equipment used in manufacturing and process industries.
Efficient Motor Operation
By controlling motor speed according to actual production requirements, the ABB ACS550-01-157A-4 helps improve system efficiency.
Benefits include:
- Reduced unnecessary energy consumption
- Lower mechanical wear
- Improved equipment control
- Enhanced production efficiency
Robust Mechanical Structure
With a size of 955 × 350 × 420 mm and a weight of 78 kg, the frequency converter provides a strong industrial structure suitable for demanding installations.
The design supports:
- Reliable heat management
- Stable cabinet installation
- Long service operation
- Industrial environment requirements
Working Principle
The ABB ACS550-01-157A-4 Frequency Converter controls AC motor operation by converting fixed-frequency electrical power into adjustable output power.
The operating process includes:
- Receiving three-phase AC input power
- Processing electrical energy through internal power components
- Adjusting output frequency and voltage
- Controlling motor speed and torque based on system requirements
This allows industrial motors to achieve smooth operation and stable performance under different working conditions.
Industrial Applications
Pump Control Systems
The ABB ACS550-01-157A-4 is widely used in large industrial pump systems.
Typical applications:
- Water treatment equipment
- Industrial circulation pumps
- Cooling systems
- Process pumping equipment
Advantages:
- Stable flow control
- Reduced pump stress
- Improved operating efficiency
- Reliable continuous operation
Industrial Fan Systems
Large ventilation systems require stable motor speed control for efficient operation.
Applications:
- Factory ventilation
- Exhaust systems
- Cooling equipment
- Air handling systems
Benefits:
- Flexible airflow adjustment
- Improved system performance
- Reduced energy waste
- Better environmental control
Conveyor and Material Handling Equipment
The ACS550-01-157A-4 provides reliable speed control for industrial conveyor systems.
Applications:
- Production lines
- Heavy material handling systems
- Manufacturing equipment
Advantages:
- Smooth startup performance
- Adjustable conveyor speed
- Reduced mechanical impact
- Improved production stability
Compressor Applications
Industrial compressors require stable motor operation to maintain production reliability.
Applications:
- Air compression systems
- Industrial processing equipment
- Large mechanical systems
Benefits:
- Stable pressure control
- Reduced motor stress
- Improved equipment reliability
Installation Guide
Installation Preparation
Before installing the ABB ACS550-01-157A-4, check the following:
- Power supply compatibility
- Motor specifications
- Installation environment
- Cooling requirements
- Cabinet mounting conditions
Installation Steps
- Install the frequency converter on a stable vertical surface
- Ensure sufficient ventilation clearance
- Connect incoming power cables
- Connect motor output wiring
- Complete control signal wiring
- Configure motor parameters
- Perform commissioning tests
Commissioning Checklist
| Inspection Item | Purpose |
|---|---|
| Power Wiring | Confirm correct electrical connection |
| Motor Wiring | Verify motor phase connection |
| Parameter Settings | Match motor characteristics |
| Rotation Test | Confirm correct motor direction |
| Load Test | Verify stable operation |
Fault Diagnosis and Troubleshooting
Frequency Converter Cannot Start
Possible causes:
- Incorrect start command
- Control signal failure
- Incorrect parameter configuration
- Wiring problems
Solutions:
- Check control terminals
- Verify drive settings
- Inspect external control signals
- Confirm communication status
Overcurrent Fault
Possible causes:
- Excessive motor load
- Mechanical blockage
- Incorrect acceleration settings
- Motor cable problems
Solutions:
- Check mechanical equipment
- Reduce motor load
- Adjust acceleration parameters
- Inspect motor connections
Overheating Alarm
Possible causes:
- Insufficient ventilation
- Cooling fan problems
- High ambient temperature
- Excessive operating load
Solutions:
- Improve airflow conditions
- Check cooling components
- Clean ventilation areas
- Reduce excessive loading
Motor Speed Fluctuation
Possible causes:
- Incorrect motor parameters
- Unstable control signals
- Improper configuration
Solutions:
- Verify motor data
- Adjust control parameters
- Check signal wiring
Compatible System Components
| Component | Function |
|---|---|
| AC Motor | Main controlled equipment |
| PLC Controller | Industrial automation control |
| HMI Panel | Operator monitoring interface |
| Communication Module | Data exchange and control |
| Braking Components | Improve stopping performance |
Recommended Related ABB ACS550 Models
| Model | Product Type | Application |
|---|---|---|
| ACS550-01-087A-4 | Frequency Converter | Medium motor applications |
| ACS550-01-125A-4 | Frequency Converter | High-power motor control |
| ACS550-01-157A-4 | Frequency Converter | 75 kW industrial motors |
| ACS550-01-180A-4 | Frequency Converter | Large industrial systems |
Key Advantages
High Current Capability
Designed for industrial motors requiring strong output performance.
Reliable Industrial Operation
Provides stable operation for continuous-duty applications.
Flexible Automation Integration
Suitable for PLC, HMI, and industrial control systems.
Efficient Motor Management
Helps optimize motor performance and reduce operating costs.
Durable Industrial Design
Built for long-term operation in demanding environments.
Technical FAQs
What is ABB ACS550-01-157A-4 used for?
The ABB ACS550-01-157A-4 is a high-power frequency converter designed for controlling industrial AC motors in automation systems.
What is the rated output current?
The rated output current of this model is 157 A.
What motor power is suitable for this frequency converter?
It is suitable for approximately 75 kW motor applications.
What are the dimensions of ABB ACS550-01-157A-4?
The dimensions are 955 × 350 × 420 mm.
What is the weight of this frequency converter?
The weight is approximately 78 kg.
Conclusion
The ABB ACS550-01-157A-4 (3ABD64726820) Frequency Converter is a powerful industrial AC drive designed for reliable control of large motor applications.
With its high current capability, robust construction, flexible installation design, and stable operating performance, this frequency converter provides an effective solution for pumps, fans, conveyors, compressors, and industrial automation systems.
For automation engineers, maintenance teams, and industrial integrators, the ABB ACS550-01-157A-4 helps improve motor reliability, optimize production processes, and enhance overall equipment performance.
