Product Overview

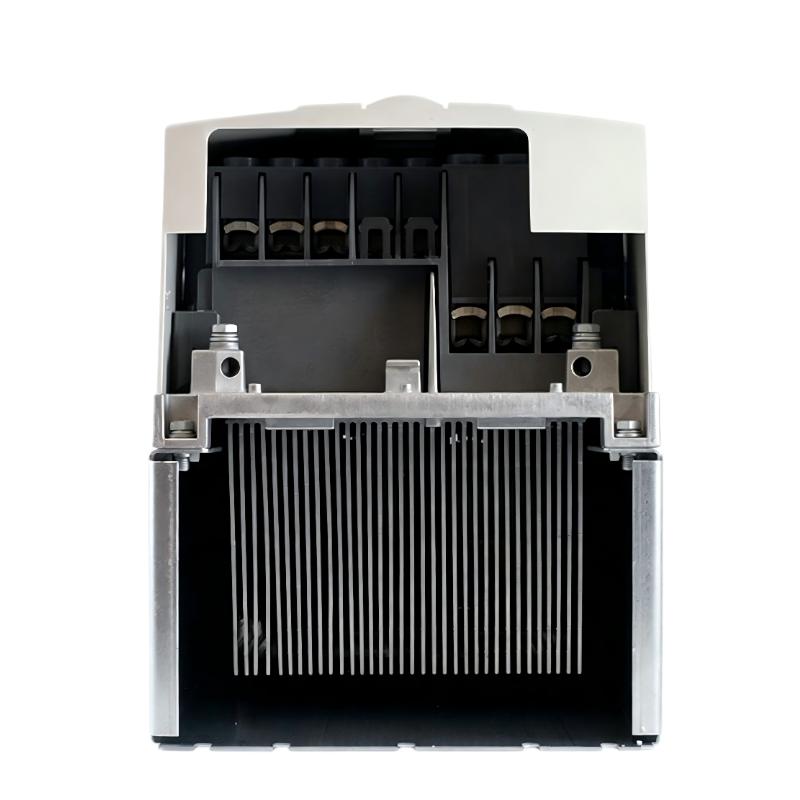

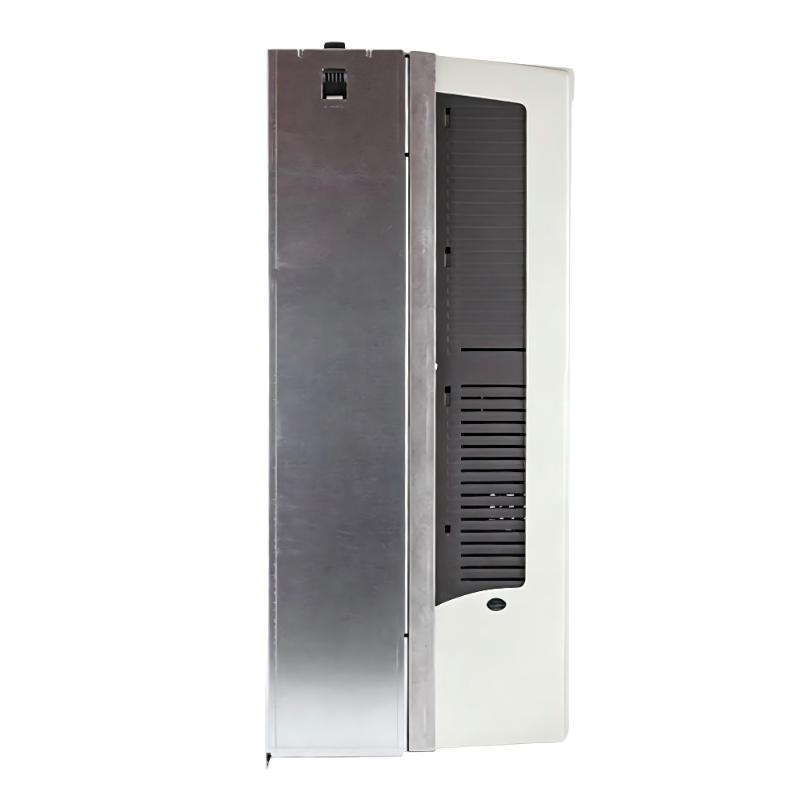

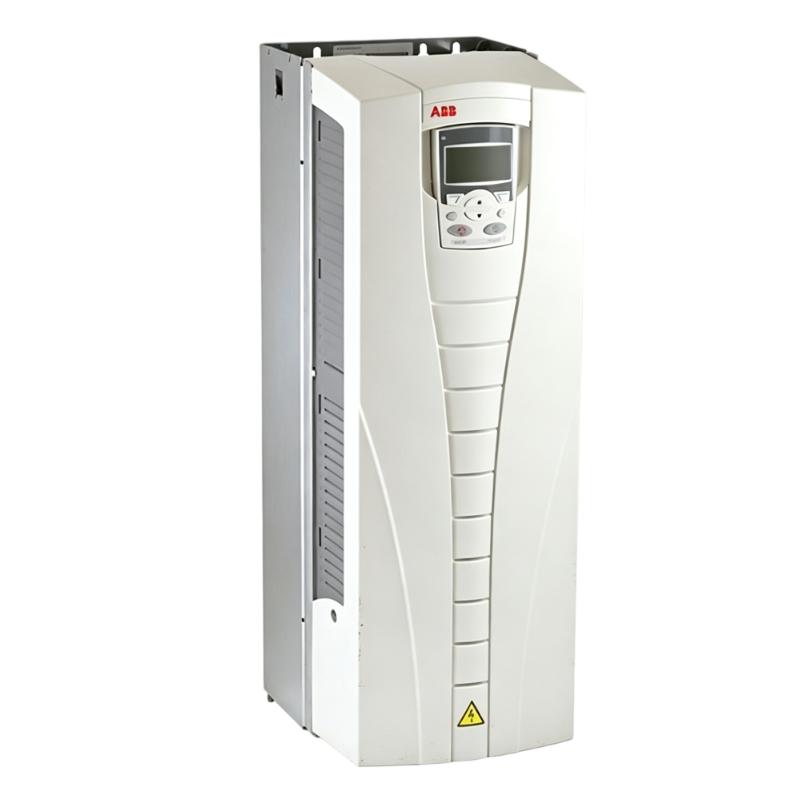

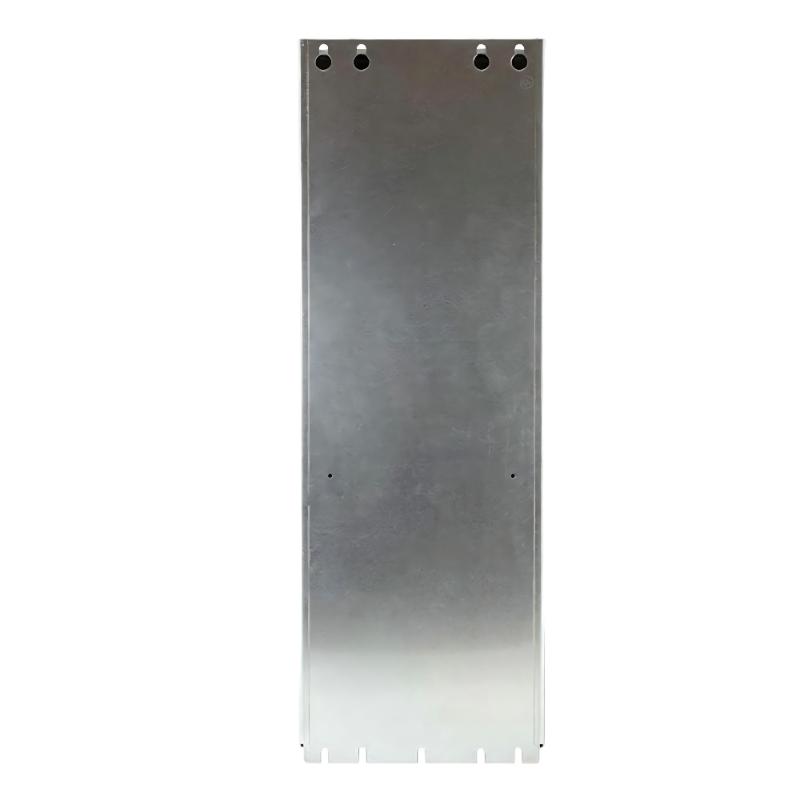

The ABB ACS550-01-087A-4 (3AUA0000013108-D) Frequency Converter is a high-performance industrial AC drive designed for reliable motor speed control, process optimization, and automation system applications.
As part of the ABB ACS550 series, this frequency converter provides stable and efficient control for three-phase AC motors used in demanding industrial environments. It is designed for applications requiring consistent motor performance, accurate speed regulation, and reliable operation under different load conditions.
The ABB ACS550-01-087A-4 is suitable for medium-power industrial motor applications including pumps, fans, conveyors, compressors, and production machinery. It helps improve motor efficiency, reduce mechanical stress, and enhance the reliability of industrial automation systems.
With dimensions of 800 × 310 × 410 mm and a weight of approximately 26 kg, this frequency converter provides a practical solution for industrial control cabinets and automation equipment requiring strong performance and reliable installation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS550-01-087A-4 |
| Part Number | 3AUA0000013108-D |
| Product Type | Frequency Converter |
| Series | ACS550 |
| Input Voltage | 380–480 V AC |
| Power Supply | Three Phase |
| Rated Output Current | 87 A |
| Rated Motor Power | 45 kW |
| Mounting Type | Wall Mounted |
| Frame Size | R4 |
| Dimensions | 800 × 310 × 410 mm |
| Weight | 26 kg |
| Application | Industrial AC Motor Control |
Product Features
High-Efficiency Motor Speed Control
The ABB ACS550-01-087A-4 provides accurate variable speed control for industrial AC motors.
By adjusting motor operating speed according to process requirements, the frequency converter helps achieve:
- Smooth acceleration and deceleration
- Stable motor performance
- Improved process control
- Reduced mechanical stress
This makes it suitable for industrial systems where reliable motor operation is essential.
Powerful Industrial Drive Performance
The ACS550-01-087A-4 is designed for medium-power motor applications requiring continuous operation and dependable performance.
Main advantages:
- Stable operation under different loads
- Reliable motor torque control
- Reduced equipment downtime
- Long-term industrial durability
It provides an effective motor control solution for manufacturing and process industries.
Flexible Application Capability
The ABB ACS550-01-087A-4 supports various industrial applications.
Typical applications include:
- Industrial pump systems
- Large ventilation equipment
- Conveyor systems
- Air compressors
- Production machinery
- Process automation equipment
Its flexible design allows integration into different industrial control systems.
Robust Industrial Structure
With a size of 800 × 310 × 410 mm and a weight of 26 kg, the frequency converter provides a durable structure for industrial installations.
Installation advantages:
- Suitable for industrial control cabinets
- Reliable heat dissipation
- Convenient wiring access
- Easy maintenance operation
The robust construction supports long-term operation in industrial environments.
Working Principle
The ABB ACS550-01-087A-4 Frequency Converter controls AC motor operation by converting fixed electrical input power into adjustable output power.
The operating process includes:
- Receiving three-phase AC input power
- Processing electrical energy through internal drive circuits
- Adjusting output frequency and voltage
- Controlling motor speed and torque according to application requirements
This allows motors to operate smoothly while maintaining stable performance and improving system efficiency.
Industrial Applications
Pump Control Systems
The ABB ACS550-01-087A-4 is widely used in industrial pump applications requiring reliable speed adjustment.
Common applications:
- Water treatment systems
- Industrial circulation pumps
- Cooling systems
- Process fluid equipment
Benefits:
- Improved flow control
- Reduced pump stress
- Stable operation
- Better motor efficiency
Fan and Ventilation Systems
The frequency converter provides reliable control for industrial ventilation equipment.
Applications:
- Factory ventilation systems
- Exhaust fans
- Cooling fans
- Air handling equipment
Advantages:
- Adjustable airflow control
- Reduced unnecessary energy usage
- Improved system stability
- Extended equipment lifetime
Conveyor Equipment
The ACS550-01-087A-4 supports smooth operation of industrial conveyor systems.
Typical applications:
- Manufacturing lines
- Material handling systems
- Packaging equipment
Benefits:
- Smooth startup operation
- Adjustable running speed
- Reduced mechanical impact
- Improved production reliability
Compressor Applications
Industrial compressors require stable motor control for efficient operation.
Applications:
- Air compression systems
- Industrial processing equipment
- Pressure control systems
Advantages:
- Stable motor operation
- Reduced mechanical load
- Improved equipment reliability
Installation Guide
Installation Preparation
Before installing the ABB ACS550-01-087A-4, confirm:
- Correct power supply requirements
- Motor compatibility
- Installation environment conditions
- Cooling space requirements
- Proper mounting location
Installation Steps
- Mount the frequency converter vertically on a stable surface
- Ensure sufficient ventilation around the unit
- Connect incoming power cables
- Connect motor output cables
- Complete control signal wiring
- Configure motor parameters
- Perform startup testing
Commissioning Checklist
| Inspection Item | Purpose |
|---|---|
| Power Connection | Confirm correct electrical supply |
| Motor Wiring | Verify proper motor connection |
| Parameter Configuration | Match motor characteristics |
| Rotation Test | Confirm motor direction |
| Load Testing | Verify stable operation |
Fault Diagnosis and Troubleshooting
Frequency Converter Cannot Start
Possible causes:
- Incorrect start command
- Control wiring failure
- Incorrect parameter configuration
- External control signal problems
Solutions:
- Check control terminals
- Verify drive settings
- Inspect wiring connections
- Confirm operating conditions
Overcurrent Fault
Possible causes:
- Excessive motor load
- Mechanical blockage
- Incorrect acceleration settings
- Motor connection problems
Solutions:
- Inspect mechanical equipment
- Reduce load conditions
- Adjust acceleration parameters
- Check motor cables
Overheating Alarm
Possible causes:
- Poor ventilation
- High ambient temperature
- Excessive operating load
- Cooling system problems
Solutions:
- Improve airflow
- Clean ventilation areas
- Check installation environment
- Reduce operating stress
Motor Speed Instability
Possible causes:
- Incorrect motor parameters
- Improper control settings
- External electrical interference
Solutions:
- Verify motor data
- Adjust control parameters
- Inspect signal wiring
Compatible System Components
| Component | Function |
|---|---|
| AC Motor | Main controlled equipment |
| PLC Controller | Automation control system |
| HMI Panel | Operation and monitoring |
| Communication Module | Industrial data exchange |
| Braking Components | Improve stopping performance |
Recommended Related ABB ACS550 Models
| Model | Product Type | Application |
|---|---|---|
| ACS550-01-059A-4 | Frequency Converter | Medium motor control |
| ACS550-01-072A-4 | Frequency Converter | Industrial motor applications |
| ACS550-01-087A-4 | Frequency Converter | 45 kW motor control |
| ACS550-01-125A-4 | Frequency Converter | Higher power applications |
Key Advantages
Reliable Industrial Performance
Provides stable motor control for continuous industrial operation.
High Load Capability
Designed for medium-power applications requiring reliable performance.
Flexible Automation Integration
Suitable for PLC-based automation systems and industrial control environments.
Efficient Motor Management
Helps optimize motor operation and improve system efficiency.
Durable Construction
Built for demanding industrial applications requiring long service life.
Technical FAQs
What is ABB ACS550-01-087A-4 used for?
The ABB ACS550-01-087A-4 is a frequency converter designed for controlling three-phase AC motors in industrial automation applications.
What is the rated output current of this model?
The rated output current is 87 A.
What motor power is suitable for this frequency converter?
This model is commonly used for 45 kW motor applications.
What are the dimensions of ABB ACS550-01-087A-4?
The dimensions are 800 × 310 × 410 mm.
What is the weight of this frequency converter?
The weight is approximately 26 kg.
Conclusion
The ABB ACS550-01-087A-4 (3AUA0000013108-D) Frequency Converter is a reliable industrial AC drive designed for medium-power motor control applications.
With its strong performance, flexible installation design, and dependable operation, this frequency converter provides an effective solution for pumps, fans, conveyors, compressors, and industrial automation equipment.
For automation engineers, maintenance teams, and industrial system integrators, the ABB ACS550-01-087A-4 helps improve motor reliability, optimize production processes, and enhance overall equipment performance.
