Product Overview

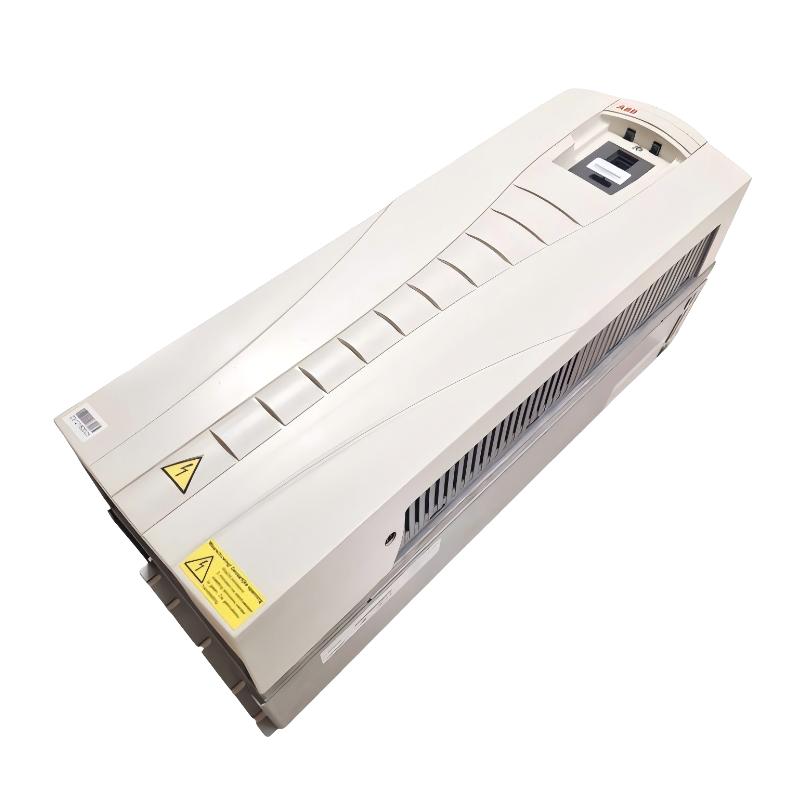

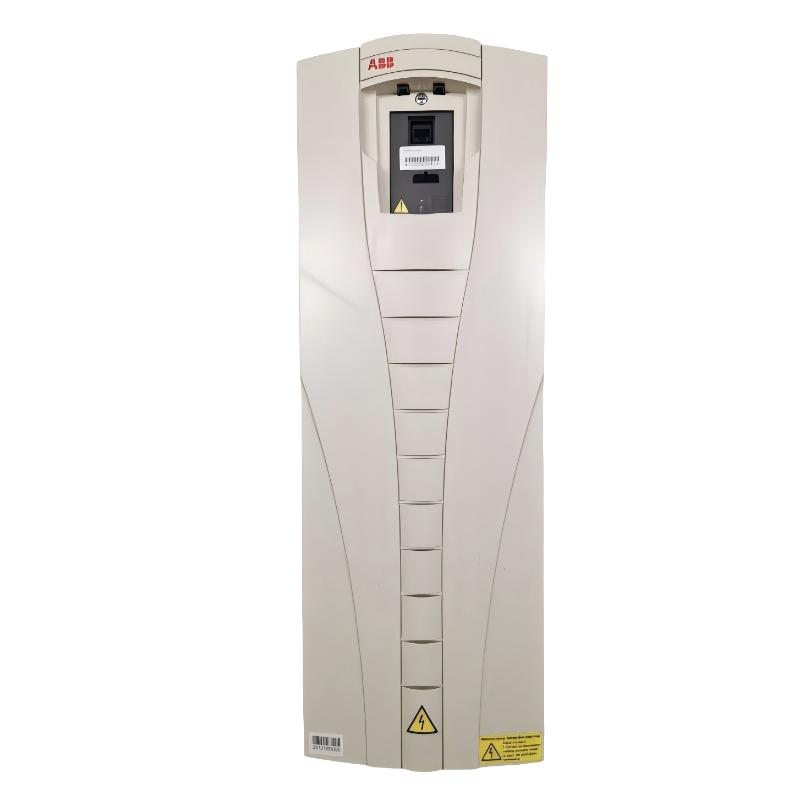

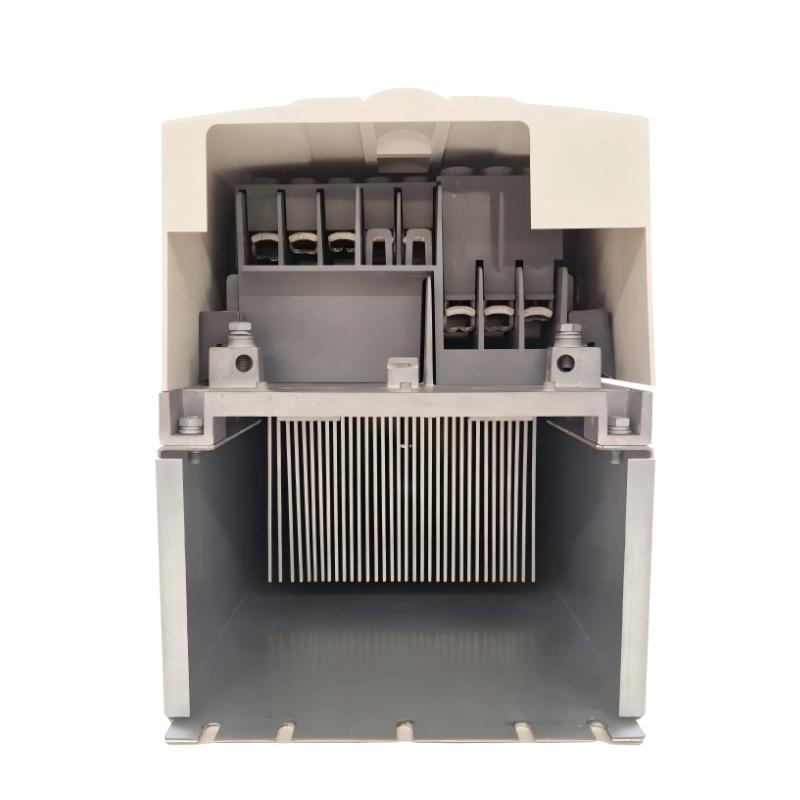

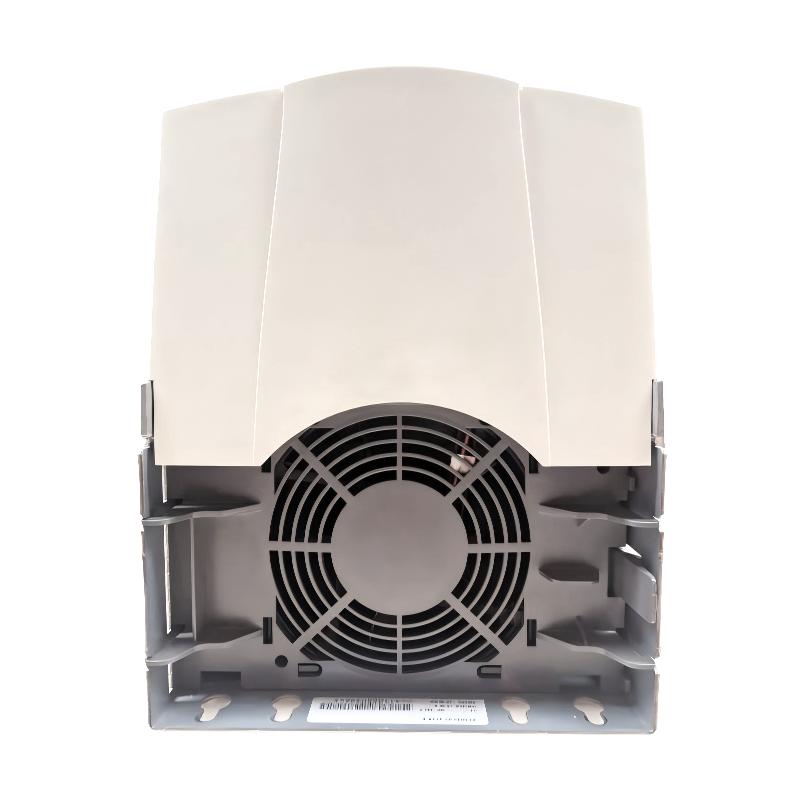

The ABB ACS550-01-087A-4 (3OEM0000013108-D) Frequency Converter is a reliable industrial AC drive designed for efficient motor speed control, automation applications, and demanding industrial operating environments.
Based on the ABB ACS550 general-purpose drive platform, this frequency converter provides stable control for three-phase AC motors used in industrial machinery, pump systems, fan applications, conveyors, compressors, and process equipment. It is designed to support applications that require dependable motor performance, flexible configuration, and long-term operational stability.
The ACS550-01-087A-4 provides excellent motor control capability for medium-power industrial systems. Its robust structure, flexible installation design, and reliable operation make it suitable for manufacturing facilities, process industries, and automation systems where continuous motor operation is required.
This frequency converter features dimensions of 723 × 257 × 306 mm and a weight of approximately 22.5 kg, providing a practical installation solution for industrial control panels and automation equipment.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS550-01-087A-4 |
| Part Number | 3OEM0000013108-D |
| Product Type | Frequency Converter |
| Series | ACS550 |
| Input Voltage | 380–480 V AC |
| Power Supply | Three Phase |
| Rated Output Current | 87 A |
| Motor Power Application | 45 kW Class |
| Mounting Type | Wall Mounted |
| Frame Size | R4 |
| Dimensions | 723 × 257 × 306 mm |
| Weight | 22.5 kg |
| Application | Industrial Motor Speed Control |
Product Features
Reliable Variable Speed Control
The ABB ACS550-01-087A-4 provides accurate motor speed regulation by adjusting output frequency and voltage according to process requirements.
The frequency converter helps industrial equipment achieve:
- Smooth motor startup and stopping
- Stable speed regulation
- Improved production control
- Reduced mechanical impact
This allows motors to operate efficiently under different load conditions.
High Performance Industrial Operation
Designed for medium-power motor applications, the ACS550-01-087A-4 provides reliable operation in industrial environments.
Key advantages include:
- Stable motor control performance
- Reliable operation during continuous duty
- Reduced equipment stress
- Improved system efficiency
The drive is suitable for applications requiring consistent and dependable motor operation.
Compact Industrial Installation
With dimensions of 723 × 257 × 306 mm and a weight of 22.5 kg, the ABB ACS550-01-087A-4 offers a compact solution compared with larger industrial drives.
Installation advantages:
- Efficient cabinet space utilization
- Convenient mounting arrangement
- Easy wiring access
- Simplified maintenance
The compact structure makes it suitable for various industrial automation installations.
Flexible Application Compatibility
The ACS550-01-087A-4 can be integrated into different industrial systems.
Common applications include:
- Pump control systems
- Industrial ventilation equipment
- Conveyor machinery
- Compressor systems
- Manufacturing equipment
- Process automation systems
Its flexible design supports various motor control requirements.
Working Principle
The ABB ACS550-01-087A-4 Frequency Converter controls AC motor operation by converting fixed-frequency electrical input into adjustable output power.
The operating process includes:
- Receiving three-phase AC power input
- Processing electrical energy through internal drive circuits
- Adjusting output frequency and voltage
- Controlling motor speed and torque according to system requirements
This enables smooth motor operation and stable industrial performance.
Industrial Applications
Pump System Control
The ABB ACS550-01-087A-4 is widely used in industrial pump applications.
Typical applications:
- Water treatment systems
- Cooling circulation equipment
- Industrial process pumps
- Fluid handling systems
Benefits:
- Improved flow adjustment
- Reduced pump wear
- Stable operation
- Better energy management
Fan and Ventilation Equipment
The frequency converter provides reliable control for industrial fan systems.
Applications:
- Factory ventilation
- Exhaust systems
- Cooling equipment
- Air handling units
Advantages:
- Flexible airflow control
- Improved operating efficiency
- Reduced unnecessary operation
- Enhanced equipment reliability
Conveyor Systems
The ACS550-01-087A-4 provides smooth speed control for conveyor applications.
Applications:
- Production lines
- Material handling systems
- Packaging machinery
Benefits:
- Smooth acceleration
- Adjustable operating speed
- Reduced mechanical stress
- Improved production stability
Compressor Applications
Industrial compressors require stable motor control to maintain reliable performance.
Applications:
- Air compression systems
- Industrial process equipment
- Pressure control applications
Advantages:
- Stable motor operation
- Reduced mechanical load
- Improved equipment lifetime
Installation Guide
Installation Preparation
Before installing the ABB ACS550-01-087A-4, check:
- Power supply compatibility
- Motor specifications
- Installation environment
- Ventilation requirements
- Mounting space availability
Installation Steps
- Install the frequency converter vertically on a stable surface
- Maintain proper ventilation clearance
- Connect power input wiring
- Connect motor output cables
- Complete control wiring
- Configure motor parameters
- Perform commissioning tests
Commissioning Checklist
| Inspection Item | Purpose |
|---|---|
| Power Connection | Verify correct electrical supply |
| Motor Wiring | Confirm correct motor connection |
| Parameter Settings | Match motor requirements |
| Rotation Test | Check motor direction |
| Load Testing | Confirm stable operation |
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible causes:
- Incorrect start command
- Control signal failure
- Incorrect parameter settings
- Wiring problems
Solutions:
- Check control terminals
- Verify configuration parameters
- Inspect wiring connections
- Confirm operating conditions
Overcurrent Fault
Possible causes:
- Excessive motor load
- Mechanical blockage
- Incorrect acceleration settings
- Motor cable problems
Solutions:
- Inspect mechanical equipment
- Reduce excessive load
- Adjust acceleration settings
- Check motor connections
Overheating Alarm
Possible causes:
- Insufficient ventilation
- High operating temperature
- Dust accumulation
- Excessive load conditions
Solutions:
- Improve airflow
- Clean cooling areas
- Check installation environment
- Reduce operating load
Motor Speed Fluctuation
Possible causes:
- Incorrect motor parameters
- Improper control configuration
- Electrical interference
Solutions:
- Verify motor data
- Adjust drive parameters
- Check control wiring
Compatible System Components
| Component | Function |
|---|---|
| AC Motor | Main controlled equipment |
| PLC Controller | Automation control system |
| HMI Panel | Operation monitoring |
| Communication Module | Industrial communication |
| Braking Components | Improve stopping performance |
Recommended Related ABB ACS550 Models
| Model | Product Type | Application |
|---|---|---|
| ACS550-01-059A-4 | Frequency Converter | Medium motor control |
| ACS550-01-072A-4 | Frequency Converter | Industrial applications |
| ACS550-01-087A-4 | Frequency Converter | 45 kW motor applications |
| ACS550-01-125A-4 | Frequency Converter | Higher power motor systems |
Key Advantages
Stable Industrial Performance
Provides reliable motor control for continuous industrial operation.
Flexible Automation Integration
Suitable for PLC-based automation systems and industrial control applications.
Efficient Motor Management
Helps optimize motor operation and improve production efficiency.
Compact Installation Design
The practical dimensions support flexible installation in industrial systems.
Long Service Reliability
Designed for demanding industrial environments requiring stable operation.
Technical FAQs
What is ABB ACS550-01-087A-4 used for?
The ABB ACS550-01-087A-4 is a frequency converter designed for controlling AC motors in industrial automation applications.
What motor applications are suitable for this model?
It is suitable for medium-power motors used in pumps, fans, conveyors, compressors, and industrial machinery.
What are the dimensions of this frequency converter?
The dimensions are 723 × 257 × 306 mm.
What is the weight of ABB ACS550-01-087A-4?
The weight is approximately 22.5 kg.
What industries use ABB ACS550 frequency converters?
They are commonly used in manufacturing, process industries, water systems, HVAC applications, and industrial automation systems.
Conclusion
The ABB ACS550-01-087A-4 (3OEM0000013108-D) Frequency Converter is a reliable industrial AC drive designed for efficient motor control and automation applications.
With its stable performance, compact industrial structure, and flexible application capability, this frequency converter provides an effective solution for controlling pumps, fans, conveyors, compressors, and other motor-driven equipment.
For automation engineers, maintenance professionals, and industrial system integrators, the ABB ACS550-01-087A-4 helps improve equipment reliability, optimize motor performance, and enhance overall industrial process efficiency.
