Product Overview

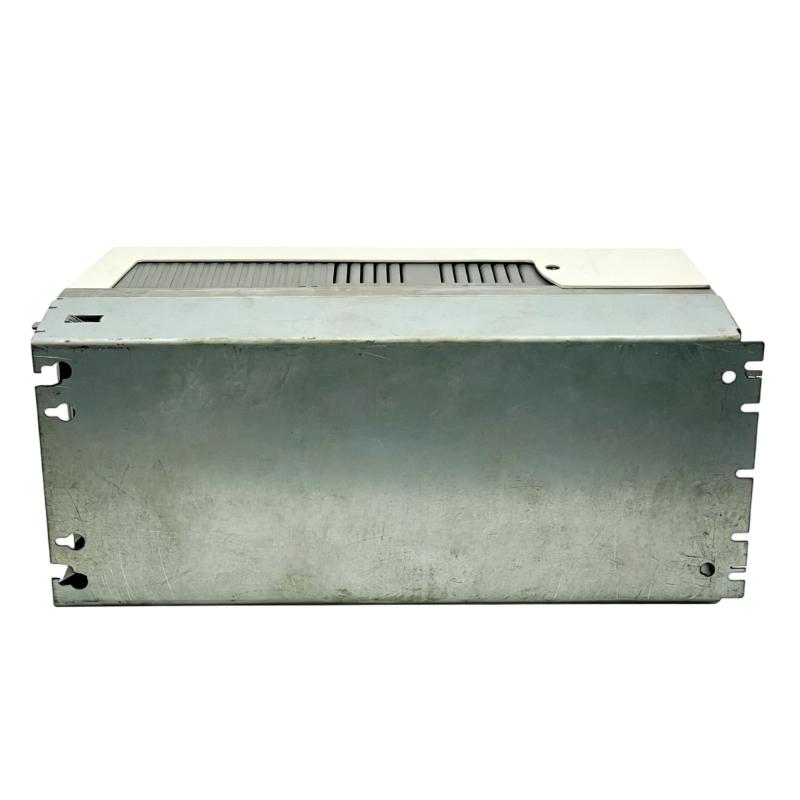

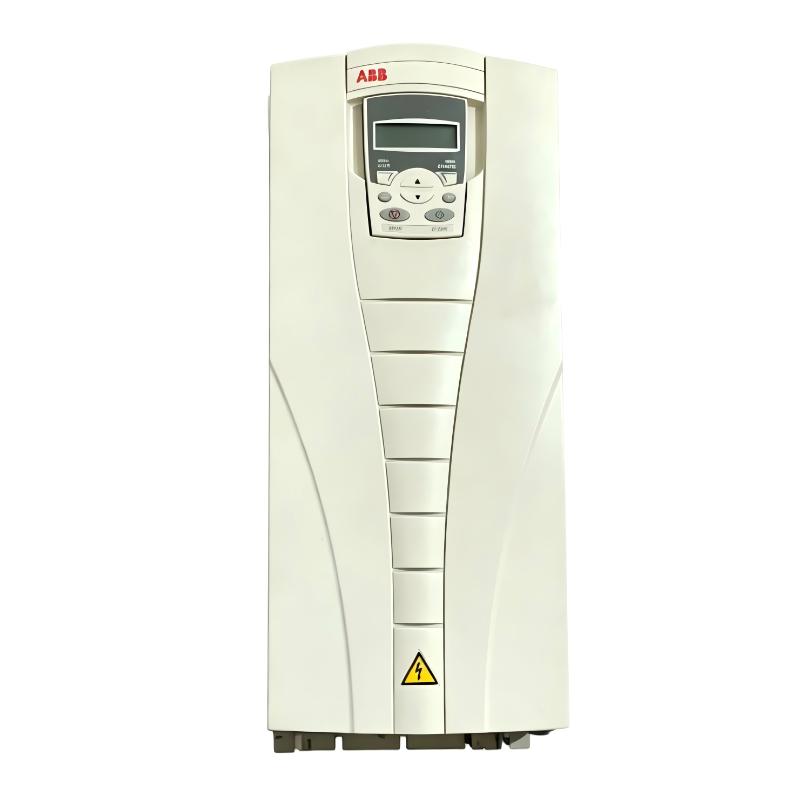

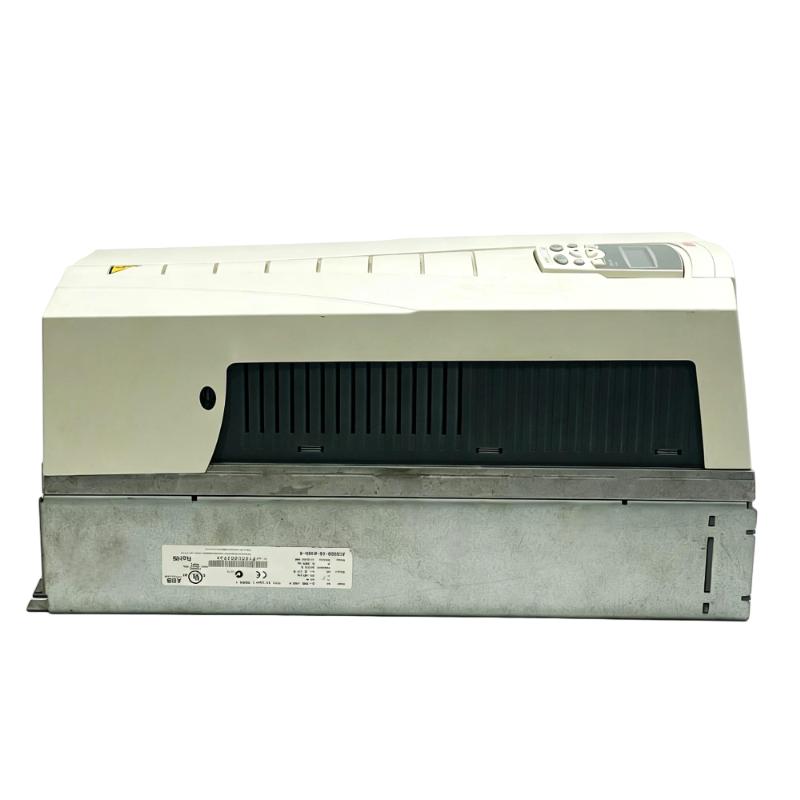

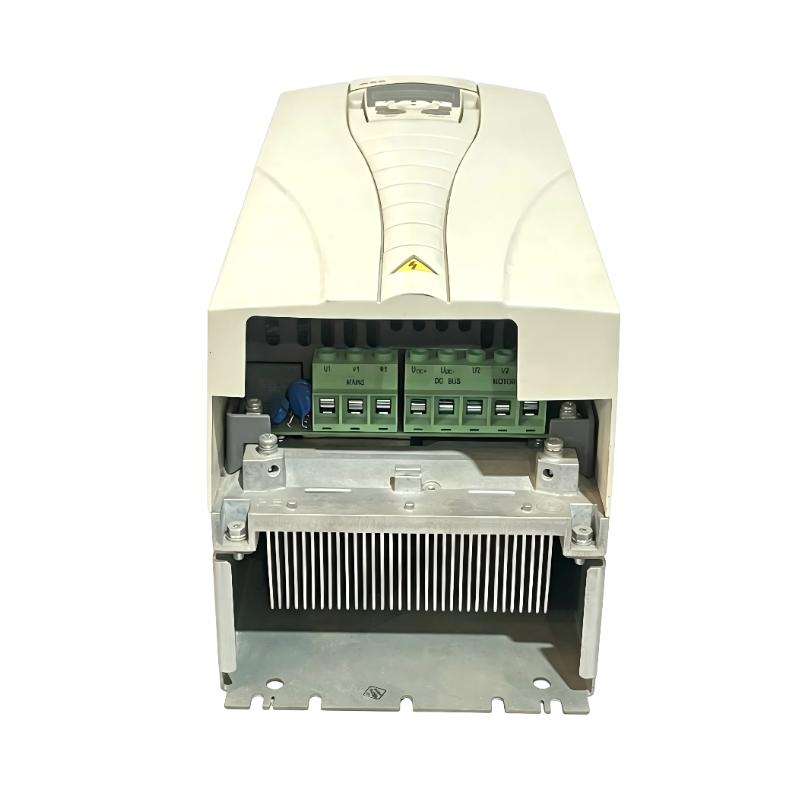

The ABB ACS550-01-045A-4 (3AUA0000012789) Frequency Converter is a reliable industrial AC drive designed for efficient motor speed control, energy optimization, and automation system applications.
Belonging to the ABB ACS550 frequency converter family, this drive provides stable variable speed control for three-phase AC motors used in industrial equipment. It is widely applied in pump systems, fan applications, conveyor machinery, compressors, and various production processes that require accurate motor control and reliable operation.
The ABB ACS550-01-045A-4 is designed for medium-power motor applications and provides excellent performance in industrial environments. With its robust construction, flexible control functions, and compact installation design, it helps improve motor efficiency, reduce mechanical stress, and enhance overall equipment reliability.
This frequency converter features dimensions of 700 × 300 × 415 mm and a weight of approximately 15.02 kg, making it suitable for industrial control cabinets and automation systems where stable performance and efficient installation are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS550-01-045A-4 |
| Part Number | 3AUA0000012789 |
| Product Type | Frequency Converter |
| Series | ACS550 |
| Input Voltage | 380–480 V AC |
| Power Supply | Three Phase |
| Rated Output Current | 45 A |
| Application Type | AC Motor Speed Control |
| Mounting Type | Wall Mounted |
| Dimensions | 700 × 300 × 415 mm |
| Weight | 15.02 kg |
| Installation Environment | Industrial Automation Systems |
Product Features
High Performance Motor Control
The ABB ACS550-01-045A-4 provides precise control of AC motors by adjusting operating speed according to system requirements.
The frequency converter helps industrial equipment achieve:
- Smooth acceleration and deceleration
- Stable motor speed regulation
- Improved process control
- Reduced mechanical stress
By controlling motor operation more efficiently, the drive helps extend equipment service life and improve production stability.
Flexible Industrial Application
The ACS550-01-045A-4 is designed for general-purpose industrial applications.
Typical applications include:
- Water pumps
- Cooling systems
- Industrial fans
- Conveyor systems
- Compressors
- Processing equipment
- Automated machinery
Its flexible design allows engineers to integrate the drive into different industrial control environments.
Compact and Reliable Design
With a compact structure measuring 700 × 300 × 415 mm, the frequency converter provides convenient installation options for industrial control panels.
Main advantages:
- Efficient cabinet installation
- Easy wiring arrangement
- Convenient maintenance access
- Reliable heat management
The industrial design allows stable operation in continuous-duty applications.
Energy Optimization Capability
The ABB ACS550-01-045A-4 helps optimize motor operation by allowing equipment speed to match actual process requirements.
Benefits include:
- Reduced unnecessary energy consumption
- Improved motor efficiency
- Lower mechanical wear
- Better operational control
Working Principle
The ABB ACS550-01-045A-4 Frequency Converter controls motor speed by converting fixed electrical input power into adjustable output power.
The operation process includes:
- Receiving three-phase AC power input
- Processing electrical energy through internal drive components
- Adjusting output frequency and voltage
- Controlling motor speed and torque according to application needs
This control method allows motors to operate smoothly under different load conditions while maintaining reliable performance.
Industrial Applications
Pump Control Systems
The ABB ACS550-01-045A-4 is suitable for industrial pump applications requiring stable speed adjustment.
Common applications:
- Water treatment systems
- Industrial circulation pumps
- Cooling water systems
- Process fluid systems
Advantages:
- Improved flow regulation
- Reduced pump stress
- Stable operation
- Better system efficiency
Fan and Ventilation Systems
The frequency converter provides reliable speed control for industrial ventilation equipment.
Applications:
- Factory ventilation fans
- Exhaust systems
- Air handling equipment
Benefits:
- Adjustable airflow control
- Reduced energy usage
- Improved operating stability
Conveyor Equipment
The ACS550-01-045A-4 supports smooth operation of conveyor systems in industrial production environments.
Applications:
- Manufacturing lines
- Material handling equipment
- Packaging systems
Advantages:
- Smooth startup
- Adjustable speed control
- Reduced mechanical impact
- Improved production efficiency
Compressor Applications
Industrial compressors require stable motor control for efficient operation.
Typical uses:
- Air compressors
- Process compressors
- Industrial pressure systems
Benefits:
- Stable operation
- Reduced motor stress
- Improved equipment reliability
Installation Guide
Installation Preparation
Before installing the ABB ACS550-01-045A-4, check:
- Power supply compatibility
- Motor specifications
- Installation space
- Environmental conditions
- Cooling requirements
Installation Steps
- Install the frequency converter vertically on a stable surface
- Ensure sufficient ventilation around the unit
- Connect input power wiring
- Connect motor output wiring
- Complete control signal connections
- Configure motor parameters
- Perform startup testing
Commissioning Inspection
| Inspection Item | Purpose |
|---|---|
| Power Connection | Confirm correct electrical supply |
| Motor Wiring | Verify proper connection |
| Parameter Settings | Match motor requirements |
| Rotation Check | Confirm correct running direction |
| Load Testing | Verify stable operation |
Fault Diagnosis and Troubleshooting
Frequency Converter Does Not Start
Possible causes:
- Incorrect control signal
- Wiring problem
- Incorrect parameter configuration
- External safety condition not satisfied
Solutions:
- Check control terminals
- Verify settings
- Inspect wiring
- Confirm operating conditions
Overcurrent Fault
Possible causes:
- Excessive motor load
- Mechanical blockage
- Incorrect acceleration settings
- Motor connection problem
Solutions:
- Check mechanical system
- Reduce load conditions
- Adjust acceleration settings
- Inspect motor cables
Overheating Problem
Possible causes:
- Poor ventilation
- High operating load
- Dust accumulation
- Installation environment issues
Solutions:
- Improve airflow
- Clean cooling areas
- Check installation conditions
- Reduce excessive load
Motor Speed Instability
Possible causes:
- Incorrect motor parameters
- Improper control configuration
- External interference
Solutions:
- Verify motor data
- Adjust drive parameters
- Check control wiring
Compatible System Components
| Component | Function |
|---|---|
| AC Motor | Main controlled equipment |
| PLC Controller | Automatic control system |
| HMI Panel | Operation and monitoring |
| Communication Module | Industrial data exchange |
| Braking Components | Improve stopping performance |
Recommended Related ABB ACS550 Models
| Model | Product Type | Application |
|---|---|---|
| ABB ACS550-01-031A-4 | Frequency Converter | Medium motor applications |
| ABB ACS550-01-038A-4 | Frequency Converter | Industrial equipment control |
| ABB ACS550-01-045A-4 | Frequency Converter | Medium-power motor control |
| ABB ACS550-01-059A-4 | Frequency Converter | Higher load applications |
Key Advantages
Reliable Industrial Performance
Provides stable motor control for continuous industrial operation.
Wide Application Compatibility
Suitable for pumps, fans, conveyors, compressors, and production equipment.
Improved Energy Efficiency
Helps optimize motor operation and reduce unnecessary energy usage.
Easy System Integration
Compatible with industrial automation systems and PLC-based control solutions.
Long-Term Reliability
Designed for demanding industrial environments requiring stable performance.
Technical FAQs
What is ABB ACS550-01-045A-4 used for?
The ABB ACS550-01-045A-4 is a frequency converter used for controlling AC motors in industrial automation applications.
What type of equipment can use this drive?
It can be used for pumps, fans, conveyors, compressors, and industrial machinery.
What are the dimensions of this frequency converter?
The dimensions are 700 × 300 × 415 mm.
What is the weight of this model?
The weight is approximately 15.02 kg.
What industries use ABB ACS550 frequency converters?
They are widely used in manufacturing, process industries, water treatment, HVAC systems, and industrial automation.
Conclusion
The ABB ACS550-01-045A-4 (3AUA0000012789) Frequency Converter is a dependable industrial drive designed for efficient motor control, stable operation, and flexible automation applications.
With its reliable performance, compact installation design, and wide industrial compatibility, this frequency converter provides an effective solution for controlling motor-driven equipment in various industries.
For automation engineers, maintenance professionals, and industrial system integrators, the ABB ACS550-01-045A-4 helps improve equipment reliability, optimize motor performance, and enhance production efficiency.
