Product Overview

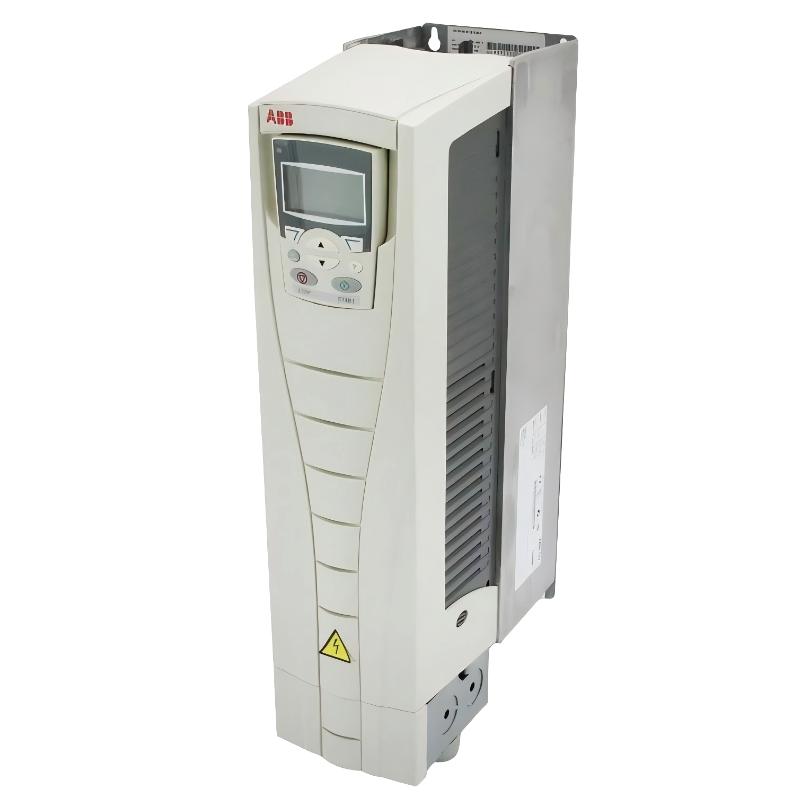

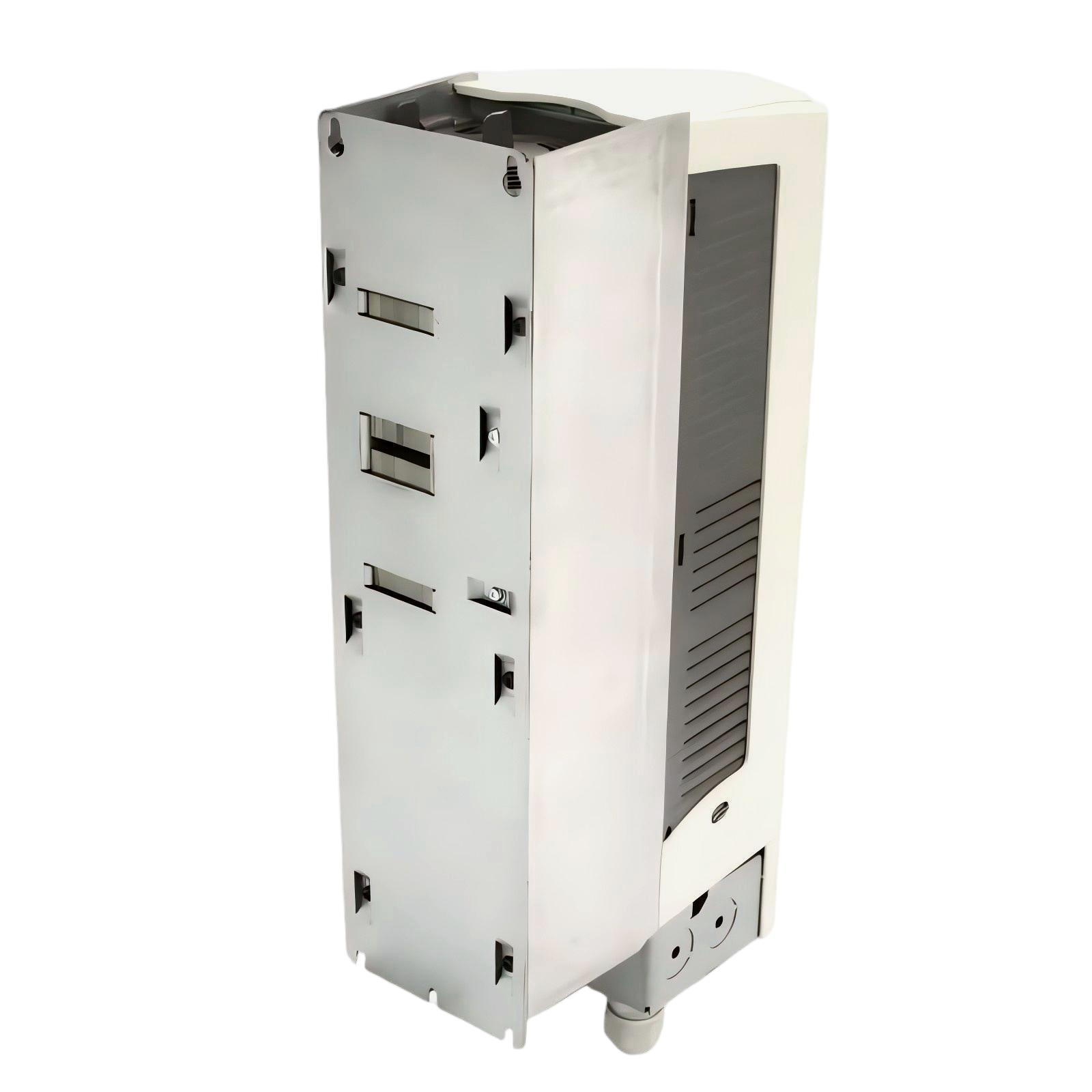

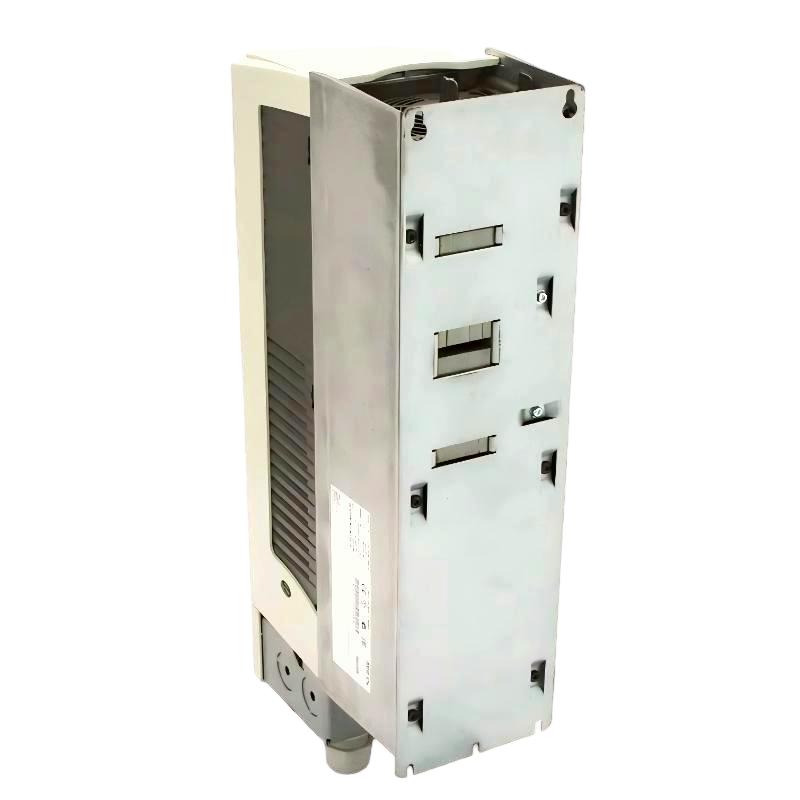

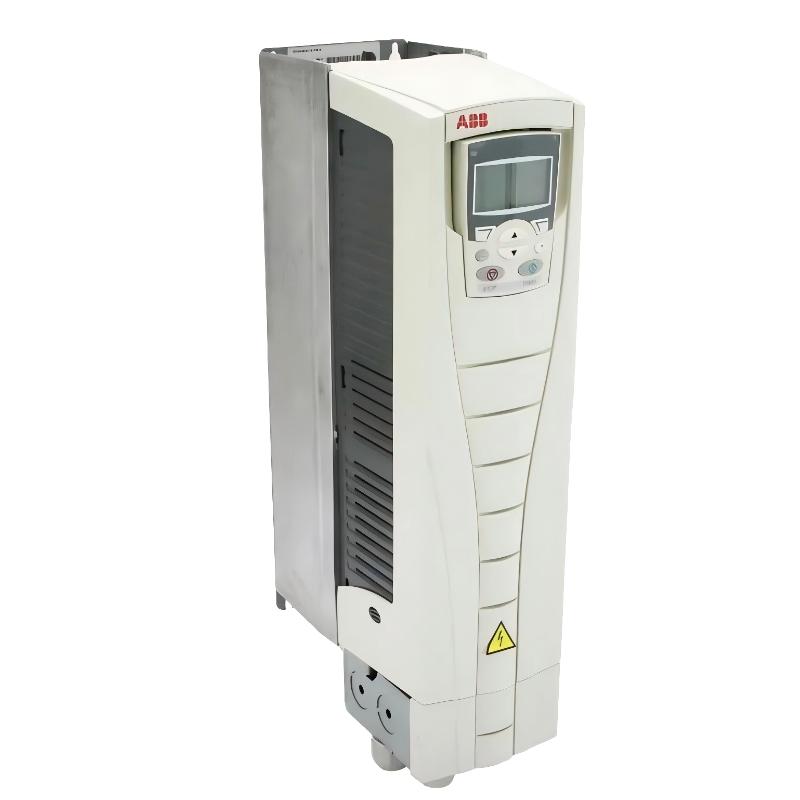

The ABB ACS550-01-015A-4 (3AUA0000002412-D) Frequency Converter is a reliable general-purpose AC drive designed for industrial motor control applications that require stable operation, flexible speed regulation, and efficient energy management.
As part of the ABB ACS550 frequency converter family, this model provides advanced motor control performance for various industrial automation systems. It is designed to control three-phase AC motors in applications where precise speed adjustment, smooth operation, and reliable performance are required.
The ACS550-01-015A-4 supports approximately 7.5 kW motor applications and provides a rated output current of 15.4 A. It is suitable for three-phase 380–480 V AC industrial power systems and features a compact wall-mounted design for easy installation in automation cabinets.
This frequency converter is widely used in pumps, fans, conveyors, HVAC equipment, processing machinery, and other industrial applications requiring efficient variable speed motor control.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS550-01-015A-4 |
| Product ID | 3AUA0000002412-D |
| Product Type | Frequency Converter / AC Drive |
| Series | ABB ACS550 |
| Rated Motor Power | 7.5 kW |
| Rated Output Current | 15.4 A |
| Input Voltage | 380–480 V AC |
| Phase Type | Three-phase |
| Protection Class | IP21 |
| Mounting Type | Wall-mounted |
| Cooling Method | Air cooled |
| Dimensions | 565 × 225 × 365 mm |
| Weight | 9 kg |
| Control Method | Vector Control / Scalar Control |
| Frequency Range | Adjustable Speed Control |
| Application Type | Industrial Motor Control |
| Suitable Loads | Pumps, fans, conveyors, machinery |
| Installation Environment | Industrial Automation Systems |
Working Principle
The ABB ACS550-01-015A-4 Frequency Converter controls AC motor speed by converting fixed-frequency electrical power into adjustable-frequency output power.
The drive changes output frequency and voltage according to motor operating requirements, allowing the motor to run at different speeds while maintaining stable torque performance.
The operating process includes:
- Receiving three-phase AC power input
- Converting electrical energy through the internal power circuit
- Generating variable frequency output power
- Controlling motor speed according to control commands
This operating method provides:
- Smooth motor acceleration
- Stable speed adjustment
- Reduced mechanical stress
- Improved energy utilization
- Better process control
Main Features and Functions
Reliable Industrial Motor Control
The ABB ACS550-01-015A-4 provides dependable motor control performance for industrial automation applications.
With a 15.4 A output current capability, it is suitable for medium-power motors used in production equipment and process systems.
Main advantages:
- Stable motor operation
- Accurate speed regulation
- Reliable control performance
- Flexible installation options
The drive helps maintain consistent production performance in automated industrial environments.
Energy Saving Variable Frequency Operation
The frequency converter improves energy efficiency by adjusting motor speed according to actual operating requirements.
Many industrial systems do not require motors to operate at maximum speed continuously. By controlling motor speed dynamically, the ACS550-01-015A-4 helps reduce unnecessary energy consumption.
Energy-saving benefits include:
- Lower electrical consumption
- Reduced operating costs
- Improved equipment efficiency
- Extended motor service life
It is especially suitable for variable torque applications such as pumps and fans.
Advanced Protection Functions
The ABB ACS550-01-015A-4 includes multiple protection functions to improve system safety and reliability.
Protection features include:
- Overcurrent protection
- Overvoltage protection
- Motor overload protection
- Thermal monitoring
- Fault detection
These functions help protect motors and connected equipment during abnormal operating conditions.
Flexible Automation Integration
The frequency converter can be integrated into different industrial automation systems.
Typical connected devices include:
- PLC controllers
- HMI operation panels
- Industrial communication systems
- Monitoring equipment
This allows engineers to achieve centralized control, easier maintenance, and improved production management.
Application in Industrial Automation Systems
The ABB ACS550-01-015A-4 works as a key motor control component between automation controllers and AC motors.
A typical automation structure includes:
| Component | Function |
|---|---|
| PLC Controller | Sends control instructions |
| Frequency Converter | Controls motor speed and torque |
| AC Motor | Provides mechanical output |
| HMI System | Displays operating parameters |
| Sensors | Provides feedback signals |
| Communication Network | Transfers control information |
By providing accurate motor regulation, the frequency converter improves automation system stability and operational efficiency.
Industrial Applications
Pump Control Systems
The ACS550-01-015A-4 is suitable for various industrial pump applications.
Typical uses:
- Water circulation systems
- Industrial supply pumps
- Cooling systems
- Process equipment
Benefits:
- Stable flow regulation
- Improved pump efficiency
- Reduced energy consumption
- Lower mechanical impact
Fan and HVAC Systems
The frequency converter provides efficient speed control for ventilation equipment.
Applications include:
- Industrial ventilation fans
- Air handling systems
- Cooling equipment
- HVAC applications
Advantages:
- Adjustable airflow control
- Improved energy management
- Stable environmental regulation
Conveyor Applications
The ACS550-01-015A-4 provides smooth operation for conveyor systems.
Typical applications:
- Manufacturing lines
- Packaging systems
- Material handling equipment
- Automated production systems
Advantages:
- Smooth startup
- Stable running speed
- Reduced mechanical wear
Industrial Machinery
This frequency converter can be used for various industrial machines requiring adjustable motor speed.
Applications include:
- Processing equipment
- Production machinery
- Machine tools
- Automated equipment
Installation and Commissioning Guide
Correct installation is important for achieving reliable operation.
Recommended installation steps:
- Install the drive in a suitable electrical cabinet
- Maintain sufficient ventilation space
- Connect input power correctly
- Connect motor cables properly
- Configure motor parameters
- Perform commissioning tests
During commissioning, check the following:
| Inspection Item | Purpose |
|---|---|
| Power Wiring | Verify electrical connection |
| Motor Settings | Ensure correct control parameters |
| Control Signals | Confirm command response |
| Protection Parameters | Improve safety |
| Trial Operation | Verify stable operation |
Compatible System Components
| Component | Function |
|---|---|
| ABB Control Panel | Local operation and configuration |
| PLC Controller | Automatic control |
| HMI Device | Monitoring and adjustment |
| Communication Module | Network integration |
| Sensors | Feedback collection |
| Motor Protection Equipment | Additional protection |
Related Accessories
| Component | Type | Function |
|---|---|---|
| Control Panel | Operator Interface | Drive operation |
| Communication Module | Network Accessory | Industrial communication |
| EMC Filter | Electrical Accessory | Noise reduction |
| Braking Resistor | Drive Accessory | Braking energy control |
Recommended Alternative ABB Frequency Converter Models
| Model | Type | Feature | Application |
|---|---|---|---|
| ACS550-01-012A-4 | Frequency Converter | 5.5 kW motor control | Small industrial systems |
| ACS550-01-015A-4 | Frequency Converter | 7.5 kW / 15.4 A output | General industrial applications |
| ACS550-01-023A-4 | Frequency Converter | Higher output capacity | Medium motor systems |
| ACS510 Series | Frequency Converter | Energy optimized control | Pump and fan applications |
| ACS580 Series | Advanced AC Drive | Modern automation control | Industrial systems |
Key Advantages
Reliable Industrial Performance
The ABB ACS550-01-015A-4 provides stable motor control for industrial automation equipment.
Efficient Energy Management
The drive adjusts motor speed according to actual demand, helping improve system efficiency.
Compact Installation Design
The wall-mounted structure allows flexible installation in industrial control cabinets.
Strong Protection Capability
Integrated protection functions improve equipment reliability.
Wide Application Range
Suitable for pumps, fans, conveyors, HVAC systems, and industrial machinery.
Technical FAQs
What is ABB ACS550-01-015A-4 used for?
The ABB ACS550-01-015A-4 is a general-purpose frequency converter used for controlling three-phase AC motors in industrial applications.
What is the rated motor power?
This model is designed for approximately 7.5 kW motor applications with a 15.4 A output current.
What are the dimensions and weight?
The dimensions are 565 × 225 × 365 mm, and the weight is 9 kg.
What voltage does this frequency converter support?
It supports three-phase 380–480 V AC industrial power systems.
Which industries use this model?
It is commonly used in manufacturing, HVAC systems, pumping applications, conveyor systems, and industrial automation equipment.
Conclusion
The ABB ACS550-01-015A-4 (3AUA0000002412-D) Frequency Converter is a reliable industrial AC drive designed for efficient motor control, flexible automation integration, and stable operation.
With its 7.5 kW motor capability, 15.4 A output current, compact structure, and advanced control functions, it provides an effective solution for a wide range of industrial applications.
The frequency converter is widely used in pump systems, ventilation equipment, conveyors, HVAC installations, and automated production machinery.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS550-01-015A-4 provides a dependable solution for improving motor performance, reducing energy consumption, and enhancing industrial automation reliability.
