Product Overview

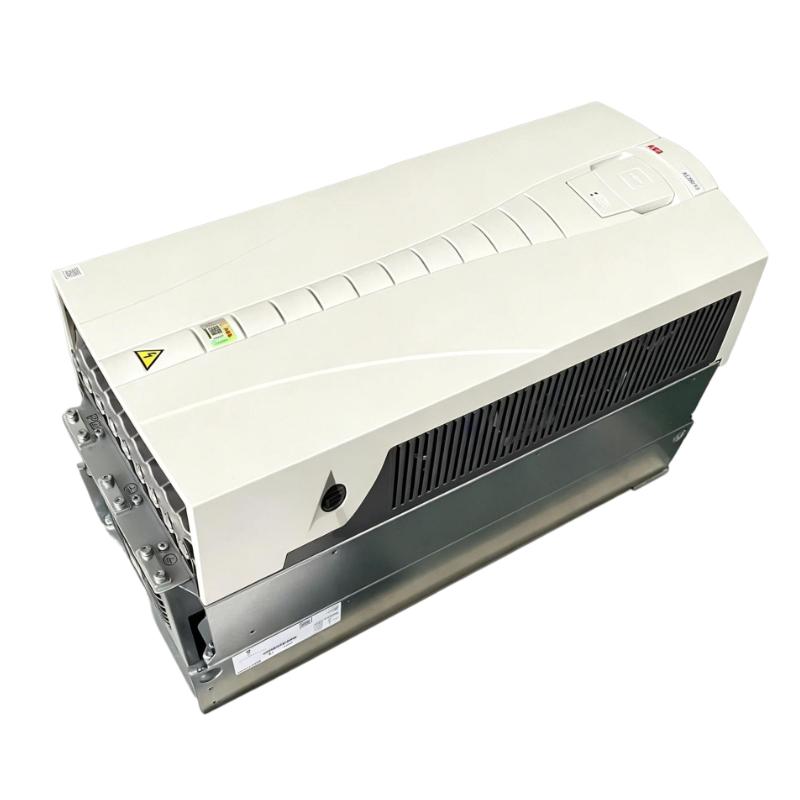

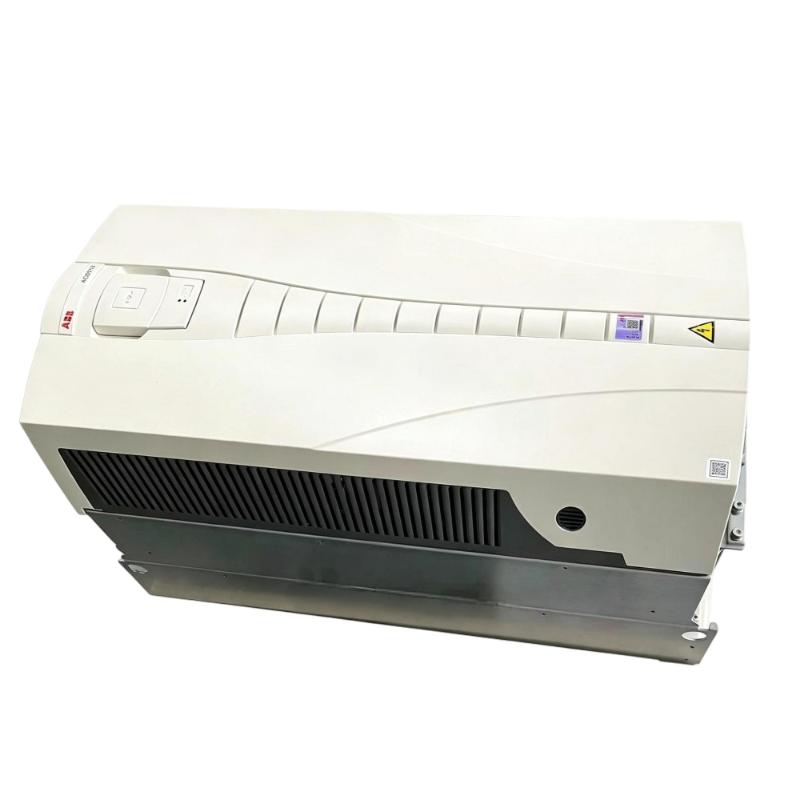

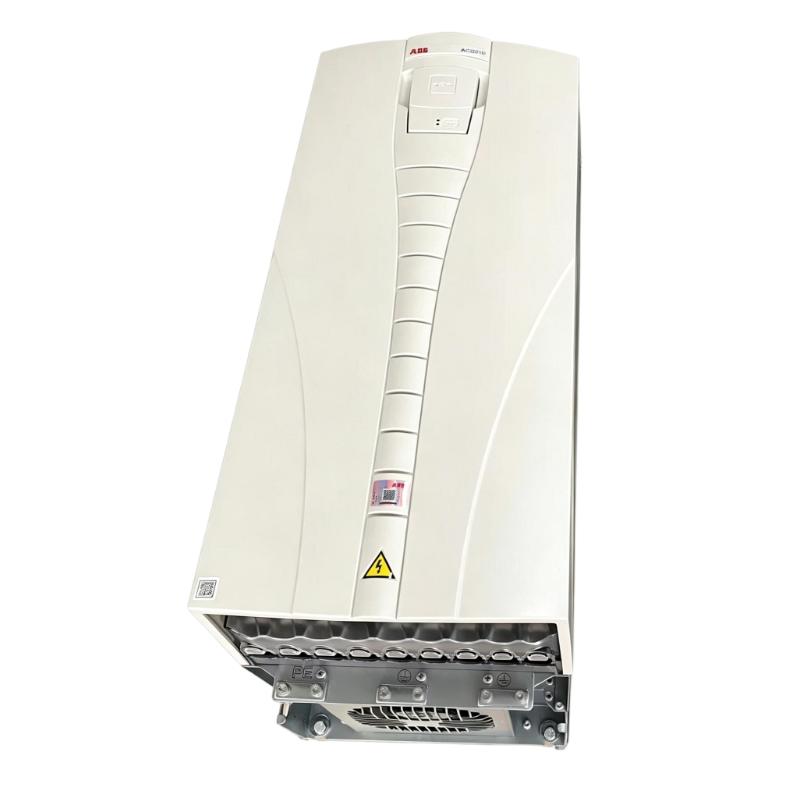

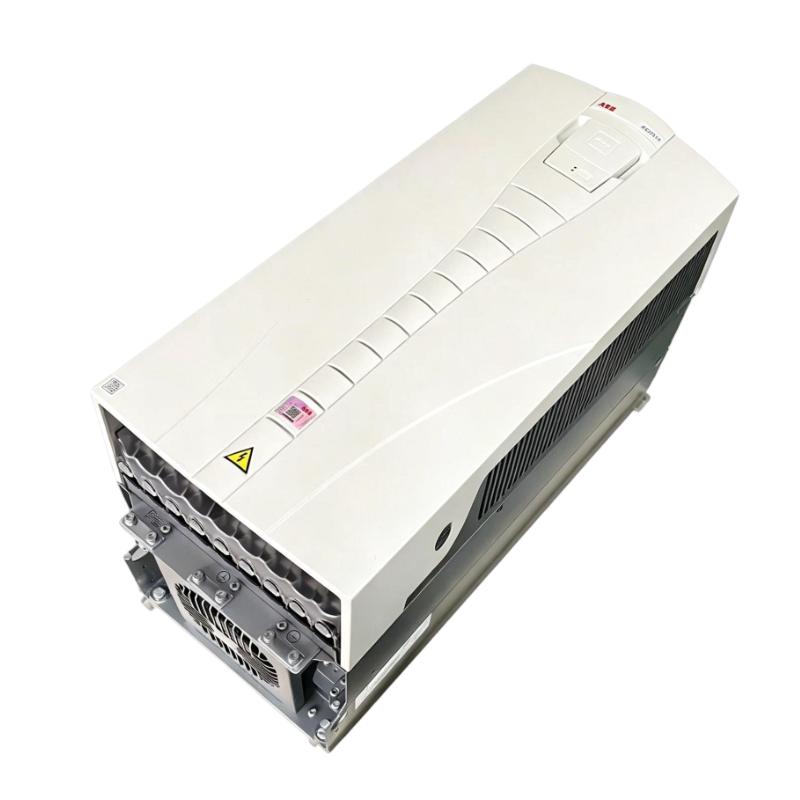

The ABB ACS510-01-246A-4 (3ABD00022031-D) Frequency Converter is a high-power industrial AC drive designed for advanced motor control applications requiring excellent performance, reliable operation, and efficient energy management.
As a powerful member of the ABB ACS510 frequency converter family, this model is developed for industrial systems that require stable control of large motors, continuous operation capability, and optimized energy consumption. It is widely applied in heavy industrial equipment, large pumping systems, ventilation systems, HVAC installations, conveyors, and automated production machinery.
The ACS510-01-246A-4 provides a rated output current of 245 A and supports approximately 132 kW motor applications. It is designed for three-phase 380–480 V AC power systems and features a robust R6 frame structure suitable for high-power industrial installations.
With advanced variable speed control technology, this frequency converter helps improve motor efficiency, reduce mechanical stress, optimize production processes, and enhance the reliability of industrial automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS510-01-246A-4 |
| Product ID | 3ABD00022031-D |
| Product Type | Frequency Converter / AC Drive |
| Series | ABB ACS510 |
| Rated Motor Power | 132 kW |
| Rated Output Current | 245 A |
| Input Voltage | 380–480 V AC |
| Phase Type | Three-phase |
| Protection Class | IP21 |
| Frame Size | R6 |
| Mounting Type | Wall-mounted |
| Cooling Method | Air cooled |
| Dimensions | 955 × 350 × 420 mm |
| Weight | 76 kg |
| Control Method | Vector Control / Scalar Control |
| Application Type | Variable Speed Motor Control |
| Suitable Loads | Pumps, fans, conveyors, compressors, industrial machinery |
| Installation Environment | Industrial Automation Systems |
Working Principle
The ABB ACS510-01-246A-4 Frequency Converter controls high-power AC motors by converting fixed-frequency input power into adjustable-frequency output power.
The drive regulates motor speed and torque by changing output frequency and voltage according to system requirements. This enables large industrial motors to operate efficiently under different load conditions.
The main operating process includes:
- Receiving three-phase AC power input
- Processing electrical energy through the internal power conversion system
- Producing adjustable frequency output power
- Controlling motor speed according to automation commands
This control method provides:
- Smooth motor acceleration and deceleration
- Stable torque performance
- Accurate speed adjustment
- Reduced mechanical impact
- Improved energy efficiency
Main Features and Functions
High-Power Motor Control Performance
The ABB ACS510-01-246A-4 is designed for industrial applications requiring powerful motor control capability and reliable long-term operation.
With a 245 A output current capacity, this frequency converter can control large motors used in demanding industrial environments.
Key advantages:
- High current output capability
- Stable operation under heavy loads
- Reliable continuous performance
- Precise motor speed control
It provides an effective solution for applications where motor reliability directly affects production efficiency.
Energy Saving and Process Optimization
The frequency converter improves energy efficiency by adjusting motor speed according to actual operating requirements.
Large motors often consume significant energy when operating at unnecessary speeds. The ACS510-01-246A-4 helps optimize motor performance by matching output power with process demand.
Energy-saving benefits include:
- Reduced electricity consumption
- Lower operating costs
- Improved equipment efficiency
- Reduced mechanical wear
It is especially suitable for variable torque applications such as pumps and fans.
Advanced Protection Functions
The ABB ACS510-01-246A-4 integrates multiple protection functions to improve system safety and reliability.
Protection features include:
- Overcurrent protection
- Overvoltage protection
- Motor overload protection
- Thermal monitoring
- Fault detection
These functions help prevent equipment damage and reduce unexpected production interruptions.
Industrial Automation Integration
The frequency converter can be easily integrated into modern automation environments.
Compatible control systems include:
- PLC controllers
- HMI systems
- Industrial communication networks
- Remote monitoring platforms
This allows engineers to achieve centralized control, parameter adjustment, and efficient maintenance management.
Application in Industrial Automation Systems
The ABB ACS510-01-246A-4 works as a key control device between automation systems and high-power motors.
Typical system structure:
| Component | Function |
|---|---|
| PLC Controller | Sends automatic operation commands |
| Frequency Converter | Controls motor speed and torque |
| AC Motor | Provides mechanical power output |
| HMI System | Displays operating parameters |
| Sensors | Provides feedback signals |
| Communication Network | Transfers control information |
The frequency converter improves system flexibility and ensures stable industrial operation.
Industrial Applications
Large Pumping Systems
The ACS510-01-246A-4 is widely used in high-power pump applications.
Typical uses:
- Water treatment facilities
- Industrial water supply systems
- Cooling circulation systems
- Process pumping equipment
Advantages:
- Stable flow regulation
- Improved pump efficiency
- Reduced energy consumption
- Extended equipment service life
Industrial Fan and Ventilation Systems
The frequency converter provides reliable speed control for large ventilation equipment.
Applications include:
- Factory ventilation systems
- Large cooling fans
- Air handling units
- Industrial HVAC systems
Benefits:
- Flexible airflow adjustment
- Reduced operating costs
- Improved environmental control
Conveyor and Material Handling Systems
The ACS510-01-246A-4 provides stable control for heavy industrial conveyor systems.
Applications include:
- Manufacturing production lines
- Automated material transport
- Heavy-duty conveyors
- Industrial handling equipment
Advantages:
- Smooth startup operation
- Stable running speed
- Reduced mechanical stress
Compressors and Industrial Machinery
This frequency converter is suitable for large industrial machines requiring precise speed regulation.
Applications include:
- Compressors
- Processing equipment
- Production machinery
- Automated industrial systems
Installation and Commissioning Guide
Proper installation ensures reliable operation and long service life.
Recommended installation procedures:
- Install the drive in a suitable electrical cabinet
- Ensure sufficient ventilation space
- Connect input power correctly
- Connect motor cables properly
- Configure motor parameters
- Complete commissioning testing
During commissioning, engineers should verify:
| Inspection Item | Purpose |
|---|---|
| Power Wiring | Confirm correct electrical connection |
| Motor Parameters | Ensure accurate motor control |
| Control Signals | Verify command response |
| Protection Settings | Improve system safety |
| Trial Operation | Confirm stable performance |
Compatible System Components
| Component | Function |
|---|---|
| ABB Control Panel | Local operation and configuration |
| PLC Controller | Automatic motor control |
| HMI Device | Monitoring and parameter adjustment |
| Communication Module | Industrial network connection |
| Sensors | Feedback signal collection |
| Motor Protection Equipment | Additional protection |
Related Accessories
| Component | Type | Function |
|---|---|---|
| Control Panel | Operator Interface | Drive setup and operation |
| Communication Module | Network Accessory | Industrial communication |
| EMC Filter | Electrical Accessory | Reduces electrical interference |
| Braking Resistor | Drive Accessory | Supports braking applications |
Recommended Alternative ABB Frequency Converter Models
| Model | Type | Feature | Application |
|---|---|---|---|
| ACS510-01-157A-4 | Frequency Converter | 75 kW / 157 A output | Heavy industrial systems |
| ACS510-01-180A-4 | Frequency Converter | 90 kW / 180 A output | Large motor applications |
| ACS510-01-195A-4 | Frequency Converter | 110 kW / 195 A output | High-power motor systems |
| ACS510-01-246A-4 | Frequency Converter | 132 kW / 245 A output | Large industrial drives |
| ACS580 Series | Advanced AC Drive | Advanced automation control | Modern industrial systems |
Key Advantages
Powerful Industrial Performance
The ABB ACS510-01-246A-4 provides high-capacity motor control for demanding industrial applications.
Efficient Energy Management
The drive optimizes motor operation and reduces unnecessary power consumption.
Reliable Heavy-Duty Design
The robust R6 frame structure supports stable operation in industrial environments.
Flexible Automation Compatibility
It can integrate with PLC systems, HMI devices, and industrial communication networks.
Wide Application Range
Suitable for pumps, fans, conveyors, compressors, HVAC systems, and heavy industrial machinery.
Technical FAQs
What is ABB ACS510-01-246A-4 used for?
The ABB ACS510-01-246A-4 is a high-power frequency converter designed for controlling large AC motors in industrial automation applications.
What is the rated motor power?
This model supports approximately 132 kW motor applications with a 245 A output current.
What are the dimensions and weight?
The dimensions are 955 × 350 × 420 mm, and the weight is 76 kg.
What voltage does this frequency converter support?
It supports three-phase 380–480 V AC industrial power systems.
Which industries use this model?
It is commonly used in manufacturing, water treatment, HVAC systems, pumping stations, conveyor systems, compressor applications, and heavy industrial automation projects.
Conclusion
The ABB ACS510-01-246A-4 (3ABD00022031-D) Frequency Converter is a high-performance industrial AC drive designed for large motor control applications requiring reliability, efficiency, and precise speed regulation.
With its 132 kW motor capability, 245 A output current, powerful R6 frame structure, and flexible automation functions, it provides a dependable solution for demanding industrial environments.
The frequency converter is widely used in large pumping systems, ventilation equipment, conveyor applications, compressors, HVAC installations, and heavy industrial production systems.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS510-01-246A-4 provides an effective solution for improving motor performance, reducing energy consumption, and enhancing industrial automation reliability.
