Product Overview

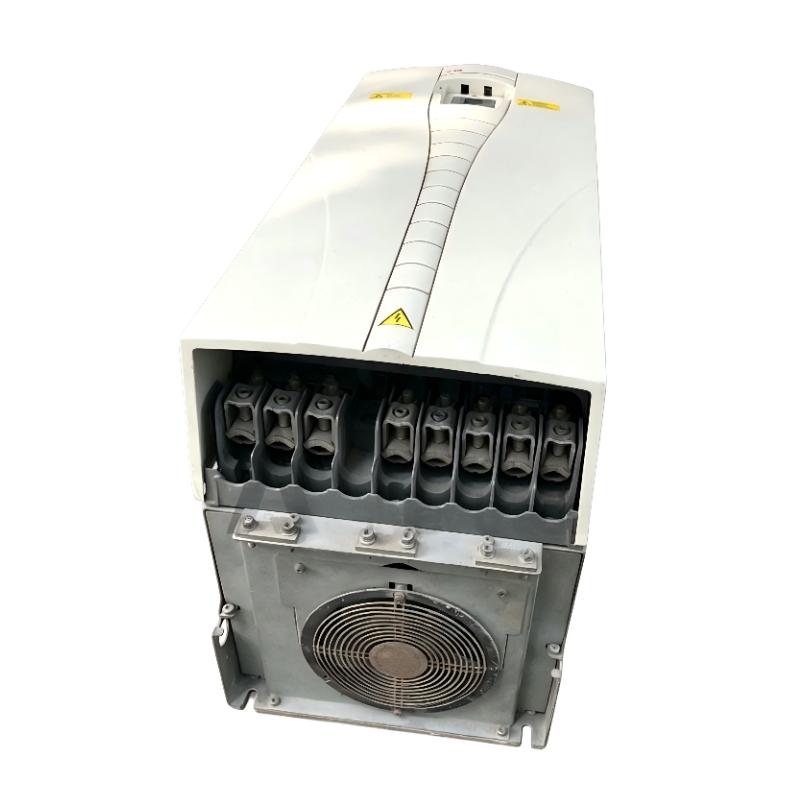

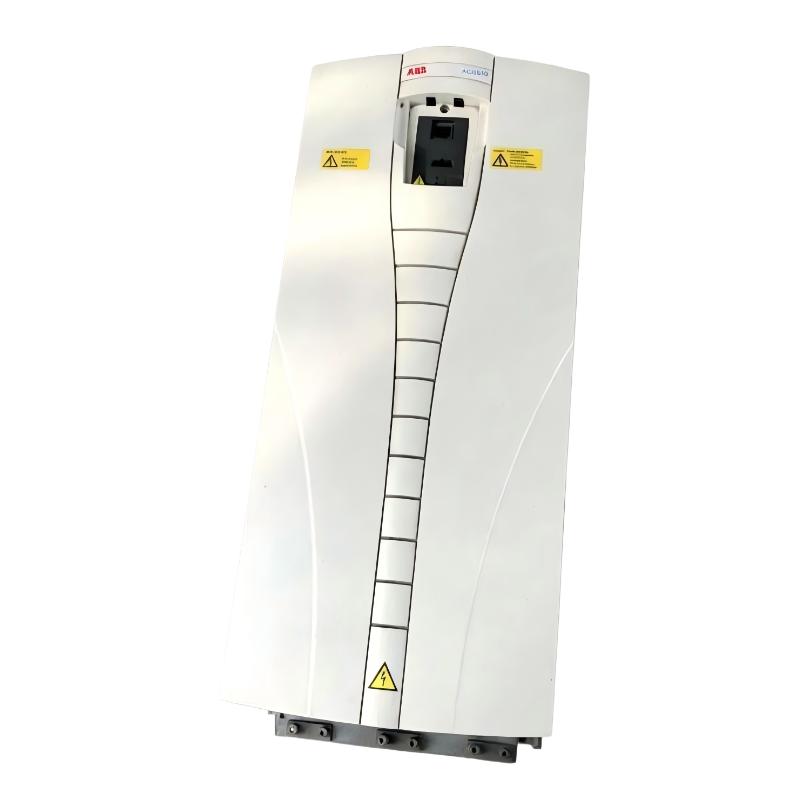

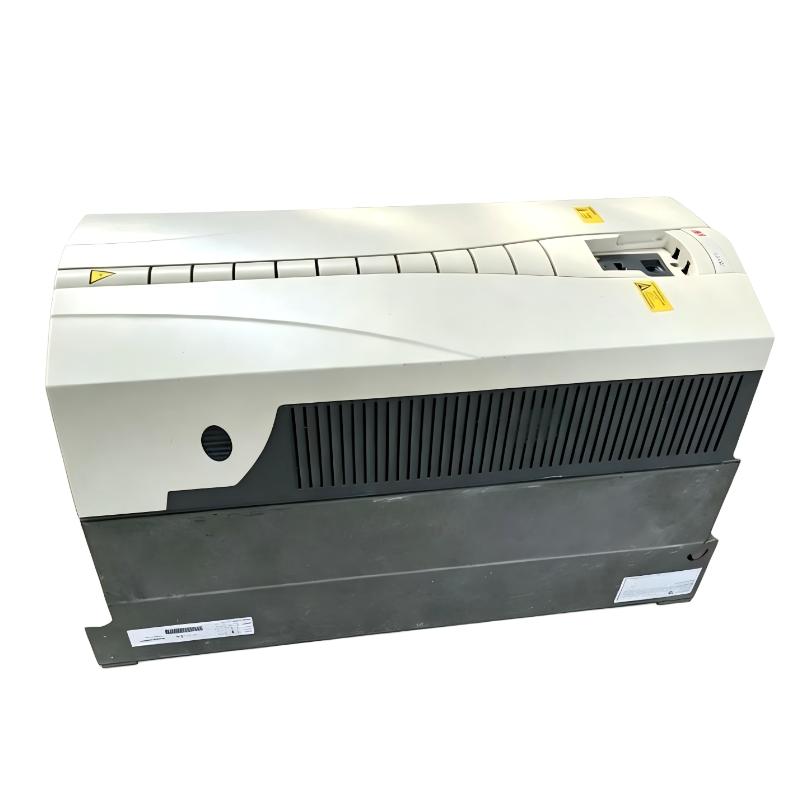

The ABB ACS510-01-157A-4 (3ABD00015756-D) Frequency Converter is a high-power industrial AC drive designed for demanding motor control applications that require reliable operation, efficient energy management, and precise speed regulation.
As part of the ABB ACS510 standard drive family, this model is engineered for industrial environments where powerful motor performance and stable process control are essential. It is widely used in large pump systems, ventilation equipment, HVAC installations, conveyors, water treatment facilities, and heavy industrial machinery.
The ACS510-01-157A-4 provides a rated output current of 157 A and is suitable for approximately 75 kW motor applications. It supports three-phase 380–480 V AC power systems and adopts a robust R6 frame structure for industrial wall-mounted installation.
With advanced motor control technology, this frequency converter helps optimize motor operation, reduce unnecessary energy consumption, improve equipment efficiency, and enhance the reliability of industrial automation systems.

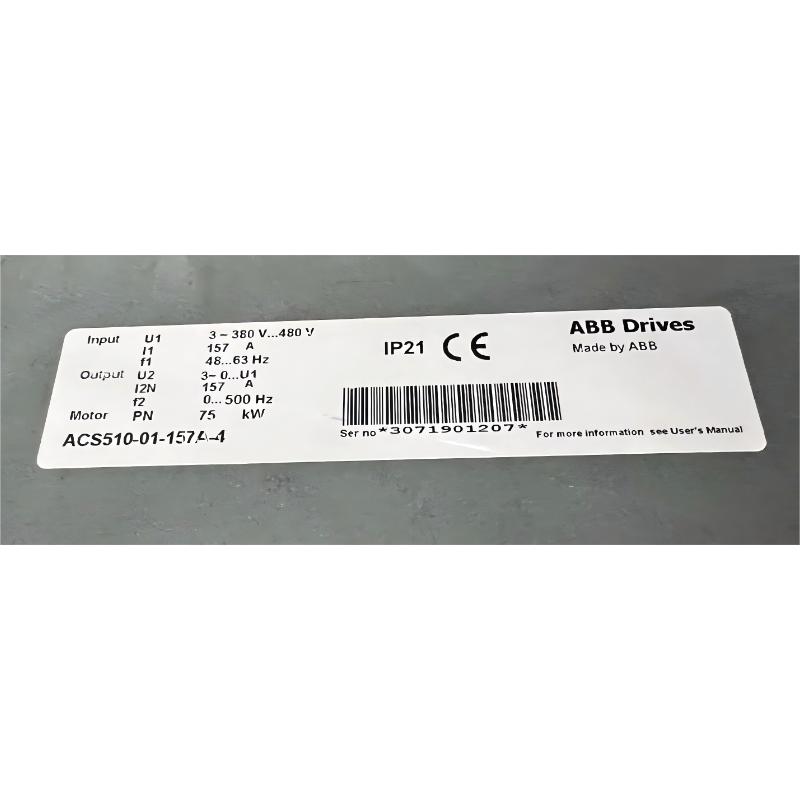

Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS510-01-157A-4 |
| Product ID | 3ABD00015756-D |
| Product Type | Frequency Converter / AC Drive |
| Series | ABB ACS510 |
| Rated Motor Power | 75 kW |
| Rated Output Current | 157 A |
| Input Voltage | 380–480 V AC |
| Phase Type | Three-phase |
| Protection Class | IP21 |
| Frame Size | R6 |
| Mounting Type | Wall-mounted |
| Cooling Method | Air cooled |
| Dimensions | 955 × 350 × 420 mm |
| Weight | 59 kg |
| Control Method | Vector Control / Scalar Control |
| Application Type | Variable Speed Motor Control |
| Suitable Loads | Pumps, fans, conveyors, industrial machinery |
| Installation Environment | Industrial Automation Systems |
Working Principle
The ABB ACS510-01-157A-4 Frequency Converter controls large AC motors by converting fixed-frequency electrical input power into adjustable-frequency output power.
The drive regulates motor speed and torque by controlling output frequency and voltage. This allows industrial motors to operate according to actual process requirements, improving energy efficiency and maintaining stable production performance.
The operating process includes:
- Receiving three-phase AC power input
- Processing electrical energy through the internal power conversion system
- Producing adjustable frequency output power
- Controlling motor operation according to automation commands
This control method provides:
- Smooth acceleration and deceleration
- Stable torque output
- Accurate speed regulation
- Reduced mechanical stress
- Improved system efficiency
Main Features and Functions
High-Power Industrial Motor Control
The ABB ACS510-01-157A-4 is designed for large industrial motor applications requiring strong load capability and continuous operation.
With a 157 A output current capacity, the frequency converter provides reliable control for high-power motors used in demanding environments.
Main advantages:
- High motor capacity
- Stable performance under heavy loads
- Accurate speed adjustment
- Reliable long-term operation
It is suitable for applications where motor performance directly affects production efficiency.
Energy Optimization for Industrial Systems
The frequency converter improves energy efficiency by adjusting motor speed according to actual process requirements.
In many industrial applications, motors operate under changing loads. The ACS510-01-157A-4 allows motors to run at optimized speeds instead of maintaining unnecessary maximum output.
Energy-saving advantages include:
- Reduced power consumption
- Lower operating costs
- Improved process efficiency
- Reduced mechanical wear
This makes it ideal for variable torque applications such as pumps and fans.
Advanced Motor Protection Functions
The ABB ACS510-01-157A-4 includes multiple protection features designed to improve equipment safety and reliability.
Protection functions include:
- Overcurrent protection
- Overvoltage protection
- Motor overload monitoring
- Thermal protection
- Fault monitoring
These functions help protect motors and industrial equipment during abnormal operating conditions.
Flexible Automation System Integration
The frequency converter can be integrated into modern industrial automation systems.
Compatible control systems include:
- PLC controllers
- HMI systems
- Industrial communication networks
- Remote monitoring systems
This allows engineers to achieve centralized motor control, easier troubleshooting, and improved system management.
Application in Industrial Automation Systems
The ABB ACS510-01-157A-4 serves as a key control component between automation systems and high-power motors.
Typical industrial control structure:
| Component | Function |
|---|---|
| PLC Controller | Sends automatic operation commands |
| Frequency Converter | Controls motor speed and torque |
| AC Motor | Provides mechanical output power |
| HMI System | Operator monitoring and adjustment |
| Sensors | Provides process feedback |
| Communication Network | Transfers control information |
By providing accurate motor control, the frequency converter improves production stability and automation efficiency.
Industrial Applications
Large Pump Systems
The ACS510-01-157A-4 is widely used in high-power pumping applications.
Typical applications:
- Water treatment systems
- Industrial water supply
- Cooling circulation systems
- Process pumping equipment
Advantages:
- Stable pressure control
- Improved pump efficiency
- Reduced energy consumption
- Extended equipment service life
Industrial Fan and HVAC Systems
The frequency converter provides reliable speed control for large ventilation equipment.
Applications include:
- Factory ventilation systems
- Large cooling fans
- Air handling equipment
- Industrial HVAC systems
Benefits:
- Adjustable airflow control
- Improved energy efficiency
- Better environmental management
Conveyor and Material Handling Systems
The ACS510-01-157A-4 provides stable control for heavy industrial conveyor systems.
Typical applications:
- Manufacturing production lines
- Material transportation systems
- Mining-related equipment
- Large automated handling systems
Advantages:
- Smooth starting operation
- Stable speed control
- Reduced mechanical impact
Heavy Industrial Machinery
This frequency converter is suitable for industrial machines requiring powerful motor regulation.
Applications include:
- Manufacturing equipment
- Processing machinery
- Large mechanical systems
- Automated production equipment
Installation and Commissioning Guide
Correct installation is essential for reliable operation of the frequency converter.
Recommended installation procedures:
- Install the drive in a suitable electrical cabinet
- Ensure adequate ventilation space
- Connect power cables correctly
- Connect motor cables properly
- Configure motor parameters
- Complete commissioning tests
During commissioning, engineers should verify:
| Inspection Item | Purpose |
|---|---|
| Power Wiring | Confirm correct electrical connection |
| Motor Parameters | Ensure accurate motor control |
| Control Signals | Verify command response |
| Protection Settings | Improve system safety |
| Trial Operation | Confirm stable performance |
Compatible System Components
| Component | Function |
|---|---|
| ABB Control Panel | Local operation and configuration |
| PLC Controller | Automatic control |
| HMI Device | Monitoring and parameter adjustment |
| Communication Module | Industrial network connection |
| Sensors | Feedback signal collection |
| Motor Protection Equipment | Additional protection |
Related Accessories
| Component | Type | Function |
|---|---|---|
| Control Panel | Operator Interface | Drive operation and configuration |
| Communication Module | Network Accessory | Industrial communication |
| EMC Filter | Electrical Accessory | Reduces electrical interference |
| Braking Resistor | Drive Accessory | Supports braking applications |
Recommended Alternative ABB Frequency Converter Models
| Model | Type | Feature | Application |
|---|---|---|---|
| ACS510-01-088A-4 | Frequency Converter | 45 kW / 88 A output | Medium industrial motors |
| ACS510-01-125A-4 | Frequency Converter | 55 kW / 125 A output | Heavy-duty applications |
| ACS510-01-157A-4 | Frequency Converter | 75 kW / 157 A output | Large motor systems |
| ACS510-01-180A-4 | Frequency Converter | Higher current capacity | Industrial drive systems |
| ACS580 Series | Advanced AC Drive | Enhanced control functions | Modern automation systems |
Key Advantages
High-Power Performance
The ABB ACS510-01-157A-4 provides reliable control for large industrial motors and demanding applications.
Efficient Energy Management
The drive optimizes motor operation and helps reduce unnecessary energy consumption.
Robust Industrial Design
The R6 frame structure supports stable operation in industrial environments.
Flexible Automation Integration
It can connect with PLC systems, HMI devices, and industrial communication networks.
Wide Industrial Application Range
Suitable for pumps, fans, conveyors, HVAC equipment, and heavy industrial machinery.
Technical FAQs
What is ABB ACS510-01-157A-4 used for?
The ABB ACS510-01-157A-4 is an industrial frequency converter designed for controlling high-power AC motors and improving system efficiency.
What is the rated motor power?
This model is suitable for approximately 75 kW motor applications with a 157 A output current.
What are the dimensions and weight?
The dimensions are 955 × 350 × 420 mm, and the weight is 59 kg.
What voltage does this frequency converter support?
It supports three-phase 380–480 V AC industrial power systems.
Which industries use this model?
It is commonly used in manufacturing, water treatment, HVAC systems, pumping stations, conveyor systems, and heavy industrial automation projects.
Conclusion
The ABB ACS510-01-157A-4 (3ABD00015756-D) Frequency Converter is a powerful industrial AC drive designed for high-performance motor control, energy optimization, and reliable automation integration.
With its 75 kW motor capacity, 157 A output capability, robust R6 frame structure, and flexible control functions, it provides an effective solution for large industrial motor applications.
The frequency converter is widely used in pump systems, fan applications, conveyor equipment, HVAC installations, and heavy industrial production systems.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS510-01-157A-4 provides a dependable solution for improving motor performance, reducing energy consumption, and enhancing industrial automation reliability.
