Product Overview

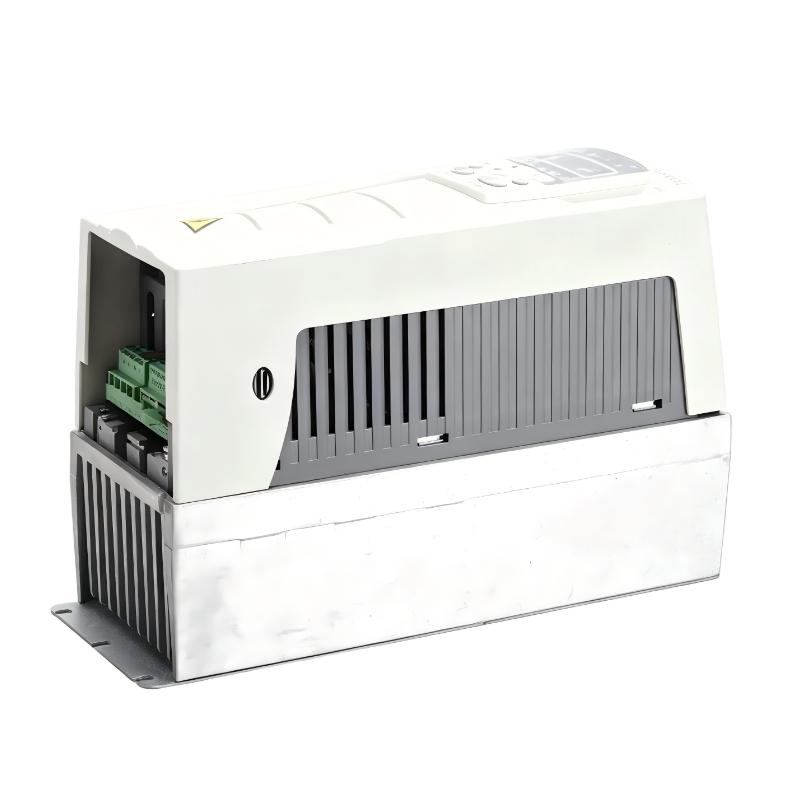

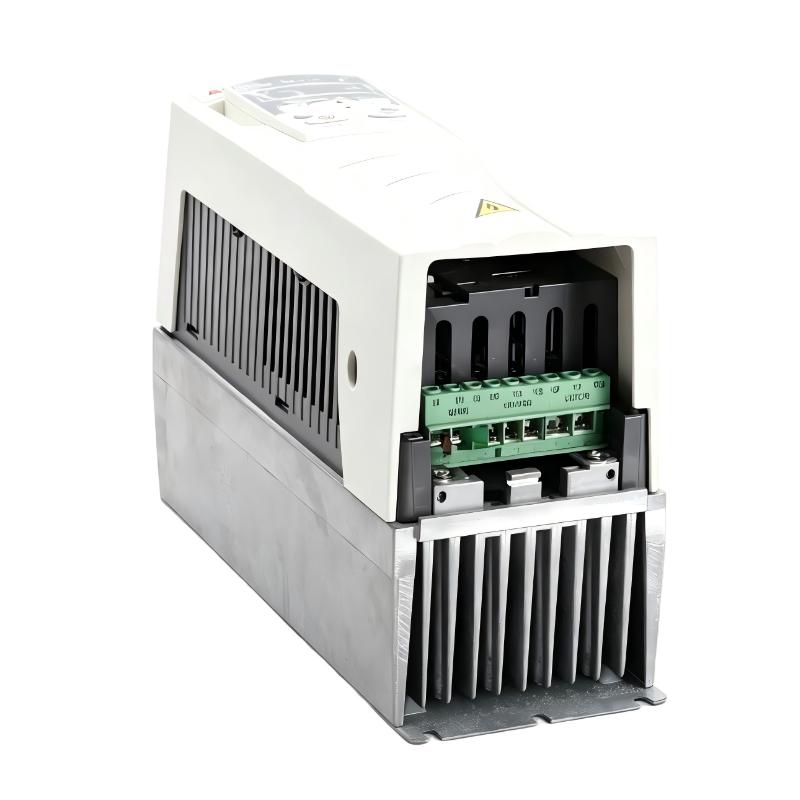

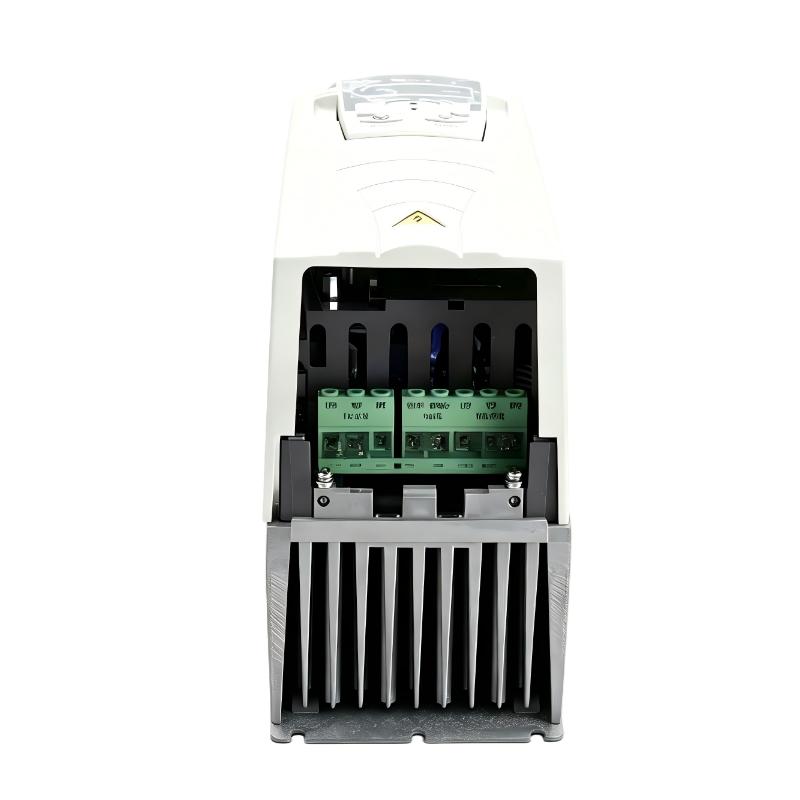

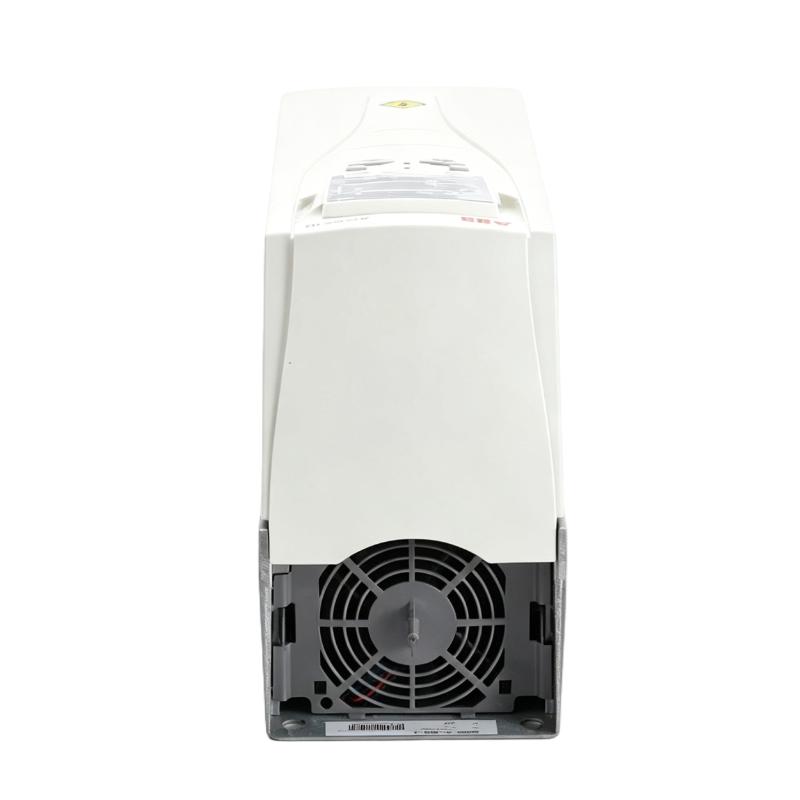

The ABB ACS510-01-09A4-4 (3ABD00015745-D) Frequency Converter is a compact and reliable industrial AC drive designed for efficient motor speed control, energy optimization, and stable operation in industrial automation systems.
As part of the ABB ACS510 frequency converter family, this model is designed for applications requiring accurate motor regulation, easy integration, and dependable performance. It is widely used in industrial equipment such as pumps, fans, HVAC systems, conveyors, water circulation systems, and general automation machinery.
The ACS510-01-09A4-4 provides a rated output current of 9.4 A and is suitable for approximately 4 kW motor applications. It supports three-phase 380–480 V AC power systems and features an R1 frame structure with a compact design suitable for wall-mounted installation.
By adjusting motor speed according to actual operating requirements, the frequency converter helps reduce energy consumption, improve equipment efficiency, and extend the service life of motors and mechanical components.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS510-01-09A4-4 |
| Product ID | 3ABD00015745-D |
| Product Type | Frequency Converter / AC Drive |
| Series | ABB ACS510 |
| Rated Motor Power | 4 kW |
| Rated Output Current | 9.4 A |
| Input Voltage | 380–480 V AC |
| Phase Type | Three-phase |
| Protection Class | IP21 |
| Frame Size | R1 |
| Mounting Type | Wall-mounted |
| Cooling Method | Air cooled |
| Dimensions | 465 × 225 × 365 mm |
| Weight | 6.1 kg |
| Control Method | Vector Control / Scalar Control |
| Application Type | Variable Speed Motor Control |
| Suitable Loads | Pumps, fans, conveyors, industrial equipment |
| Installation Environment | Industrial Automation Systems |
Working Principle
The ABB ACS510-01-09A4-4 Frequency Converter operates by converting fixed-frequency AC input power into adjustable-frequency output power for controlling AC motors.
The drive regulates motor speed and torque by changing output frequency and voltage. This allows motors to operate according to actual production requirements instead of continuously running at full speed.
The main operating process includes:
- Receiving three-phase AC power input
- Converting electrical energy through the internal power conversion circuit
- Generating adjustable frequency output power
- Controlling motor speed according to external commands
This operating method provides:
- Smooth motor startup and stopping
- Stable speed regulation
- Reduced mechanical stress
- Improved energy efficiency
- Better process control performance
Main Features and Functions
Compact Industrial Motor Control
The ABB ACS510-01-09A4-4 is designed for small and medium industrial motor applications where reliable speed control is required.
The compact R1 frame design provides:
- Space-saving installation
- Easy cabinet integration
- Simple commissioning
- Reliable operation
It is suitable for automation systems where installation space and operational stability are important factors.
Energy Efficient Operation
The frequency converter improves system efficiency by controlling motor speed according to actual load demand.
Instead of operating motors continuously at maximum speed, the ACS510-01-09A4-4 adjusts motor performance based on process requirements.
Energy-saving benefits include:
- Reduced power consumption
- Lower operating costs
- Improved equipment efficiency
- Reduced mechanical wear
This makes it suitable for variable load applications such as pumps and fans.
Motor Protection Functions
The ABB ACS510-01-09A4-4 includes protection features designed to improve system safety and reliability.
Protection functions include:
- Overcurrent protection
- Overvoltage protection
- Motor overload monitoring
- Thermal protection
- Fault detection
These functions help protect motors and connected equipment during abnormal operating conditions.
Flexible Automation Integration
The frequency converter can be integrated into modern industrial control systems.
Compatible automation equipment includes:
- PLC controllers
- HMI systems
- Industrial communication networks
- Monitoring devices
This enables centralized control, easier maintenance, and improved production management.
Application in Industrial Automation Systems
The ABB ACS510-01-09A4-4 acts as an important control component between automation systems and AC motors.
A typical control structure includes:
| Component | Function |
|---|---|
| PLC Controller | Provides automatic control commands |
| Frequency Converter | Controls motor speed and torque |
| AC Motor | Generates mechanical movement |
| HMI System | Operator monitoring and adjustment |
| Sensors | Provides feedback signals |
| Communication System | Transfers control information |
By improving motor control accuracy, the frequency converter helps maintain stable industrial processes.
Industrial Applications
Pump Control Systems
The ACS510-01-09A4-4 is widely used in industrial pump applications.
Typical uses:
- Water circulation systems
- Industrial water supply
- Cooling systems
- Process pumping equipment
Advantages:
- Stable flow regulation
- Improved pump efficiency
- Reduced operating stress
- Extended equipment lifetime
Fan and HVAC Applications
The frequency converter provides efficient speed control for ventilation and air handling systems.
Applications include:
- Factory ventilation
- Cooling fans
- Air circulation equipment
- HVAC systems
Benefits:
- Flexible airflow adjustment
- Reduced energy usage
- Improved environmental control
Conveyor Systems
The ACS510-01-09A4-4 provides smooth motor control for industrial conveyor equipment.
Applications:
- Packaging machinery
- Production lines
- Material handling systems
- Automated transportation equipment
Advantages:
- Smooth acceleration
- Stable running speed
- Reduced mechanical impact
Industrial Machinery
This frequency converter is suitable for various industrial machines requiring adjustable motor speed.
Typical applications:
- Processing equipment
- Assembly machines
- Manufacturing systems
- Automated production equipment
Installation and Commissioning Guide
Correct installation is essential for reliable frequency converter operation.
Recommended installation steps:
- Install the drive in a suitable electrical cabinet
- Maintain proper ventilation space
- Connect input power correctly
- Connect motor cables properly
- Configure motor parameters
- Complete commissioning tests
During commissioning, engineers should check:
| Inspection Item | Purpose |
|---|---|
| Power Wiring | Confirm correct electrical connection |
| Motor Parameters | Ensure accurate motor control |
| Control Signals | Verify command response |
| Protection Settings | Improve system safety |
| Trial Operation | Confirm stable performance |
Compatible System Components
| Component | Function |
|---|---|
| ABB Control Panel | Local operation and configuration |
| PLC Controller | Automatic control |
| HMI Device | Monitoring and adjustment |
| Communication Module | Industrial network connection |
| Sensors | Feedback signal collection |
| Motor Protection Equipment | Additional protection |
Related Accessories
| Component | Type | Function |
|---|---|---|
| Control Panel | Operator Interface | Parameter adjustment and operation |
| Communication Module | Network Accessory | Industrial communication |
| EMC Filter | Electrical Accessory | Reduces electrical interference |
| Braking Resistor | Drive Accessory | Supports braking applications |
Recommended Alternative ABB Frequency Converter Models
| Model | Type | Feature | Application |
|---|---|---|---|
| ACS510-01-05A6-4 | Frequency Converter | 2.2 kW motor control | Small motor applications |
| ACS510-01-07A2-4 | Frequency Converter | 3 kW / 7.2 A output | Pumps and fans |
| ACS510-01-09A4-4 | Frequency Converter | 4 kW / 9.4 A output | General industrial applications |
| ACS510-01-012A-4 | Frequency Converter | Higher current capacity | Medium motor systems |
| ACS580 Series | Advanced AC Drive | Advanced automation functions | Modern industrial systems |
Key Advantages
Compact Installation Design
The ABB ACS510-01-09A4-4 provides powerful motor control performance while maintaining a compact structure.
Reliable Industrial Performance
The drive is designed for stable operation in industrial automation environments.
Improved Energy Efficiency
It helps optimize motor operation and reduce unnecessary energy consumption.
Easy System Integration
It can work with PLC systems, HMI devices, and industrial communication networks.
Wide Application Range
Suitable for pumps, fans, conveyors, HVAC systems, and general industrial machinery.
Technical FAQs
What is ABB ACS510-01-09A4-4 used for?
The ABB ACS510-01-09A4-4 is an industrial frequency converter used for AC motor speed control and energy optimization.
What is the rated motor power?
This model is suitable for approximately 4 kW motor applications with a 9.4 A output current.
What are the dimensions and weight?
The dimensions are 465 × 225 × 365 mm, and the weight is 6.1 kg.
What voltage does this frequency converter support?
It supports three-phase 380–480 V AC industrial power systems.
Which industries use this model?
It is commonly used in manufacturing, HVAC systems, water treatment, pumping systems, conveyor equipment, and industrial automation applications.
Conclusion
The ABB ACS510-01-09A4-4 (3ABD00015745-D) Frequency Converter is a compact and reliable industrial AC drive designed for efficient motor control, energy optimization, and automation system integration.
With its 4 kW motor capacity, 9.4 A output current, R1 frame structure, and flexible control functions, it provides an effective solution for small and medium industrial motor applications.
The frequency converter is widely used in pump systems, fan applications, conveyor equipment, HVAC installations, and automated production systems.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS510-01-09A4-4 provides a dependable solution for improving motor performance, reducing energy consumption, and enhancing industrial automation reliability.
