Product Overview

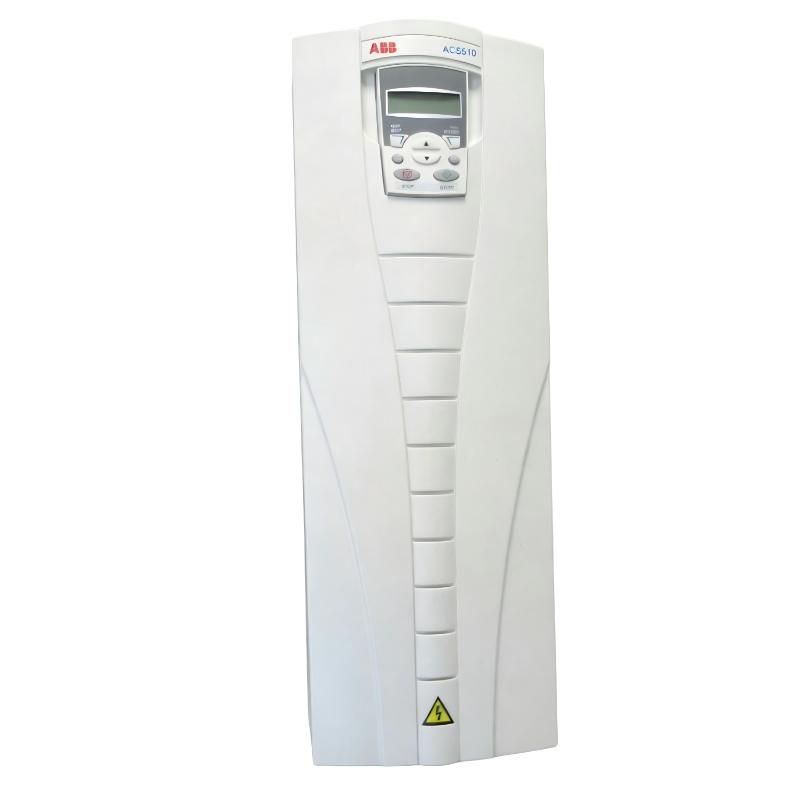

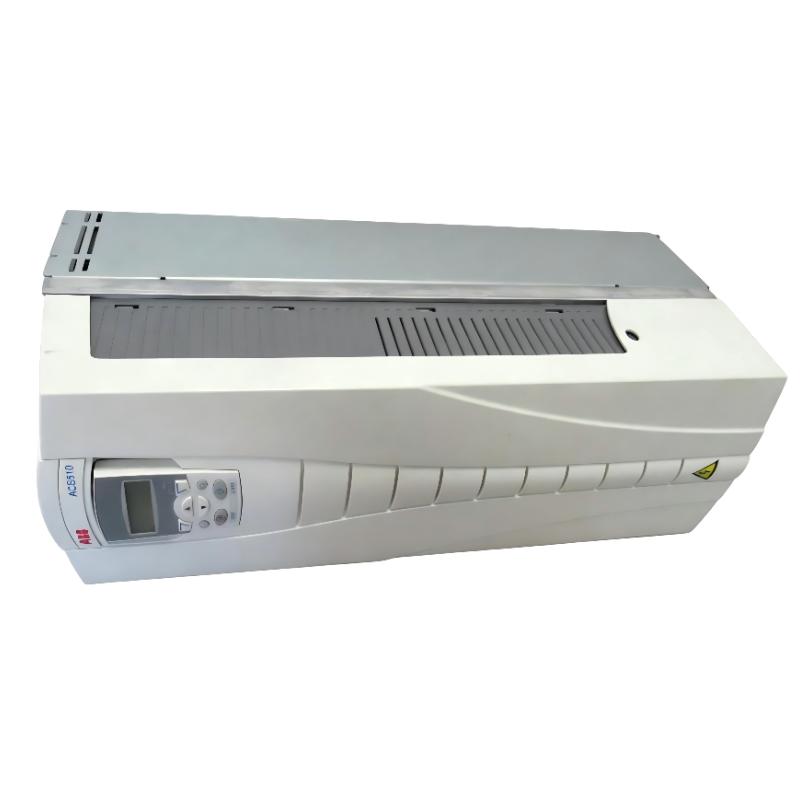

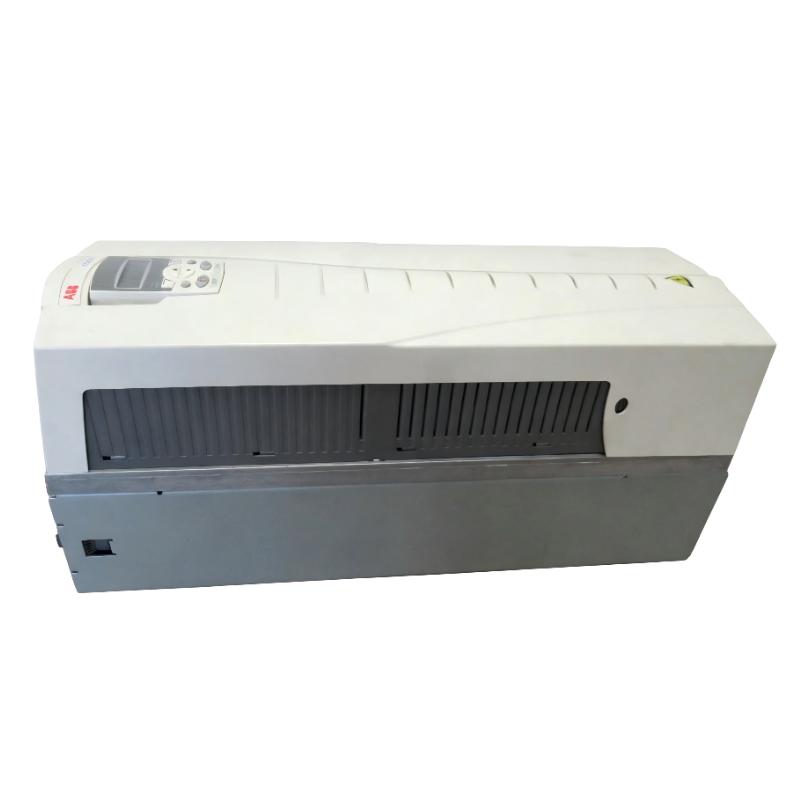

The ABB ACS510-01-088A-4 (3ABD00021616-D) Frequency Converter is a high-performance industrial AC drive designed for powerful motor control, energy-efficient operation, and reliable performance in demanding automation environments.
As part of the ABB ACS510 frequency converter family, this model is designed for industrial applications that require stable variable speed control, strong load handling capability, and long-term operational reliability. It is widely used in pump systems, fan applications, HVAC equipment, water treatment systems, conveyors, and industrial production machinery.
The ACS510-01-088A-4 provides an output current of 88 A and is suitable for approximately 45 kW motor applications. It supports three-phase 380–480 V AC industrial power systems and uses a robust R4 frame structure designed for wall-mounted installation.
With advanced motor control technology, this frequency converter helps optimize motor performance, reduce unnecessary energy consumption, and improve the reliability of industrial automation systems.

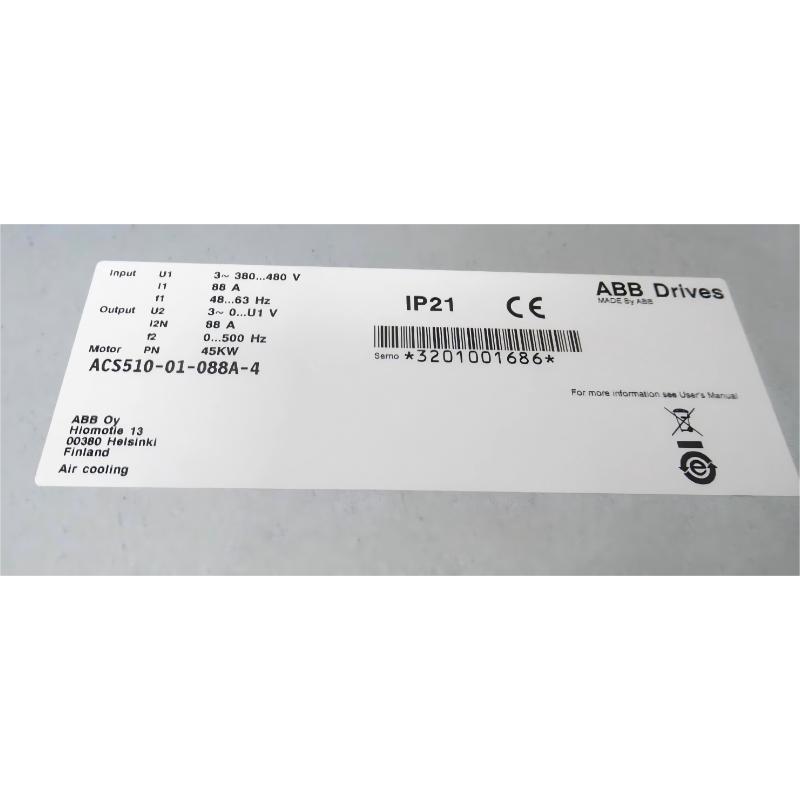

Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS510-01-088A-4 |
| Product ID | 3ABD00021616-D |
| Product Type | Frequency Converter / AC Drive |
| Series | ABB ACS510 |
| Rated Motor Power | 45 kW |
| Rated Output Current | 88 A |
| Input Voltage | 380–480 V AC |
| Phase Type | Three-phase |
| Protection Class | IP21 |
| Frame Size | R4 |
| Mounting Type | Wall-mounted |
| Cooling Method | Air cooled |
| Dimensions | 800 × 310 × 410 mm |
| Weight | 26 kg |
| Control Method | Vector Control / Scalar Control |
| Application Type | Variable Speed Motor Control |
| Suitable Loads | Pumps, fans, conveyors, industrial machinery |
| Installation Environment | Industrial Automation Systems |
Working Principle
The ABB ACS510-01-088A-4 Frequency Converter controls AC motor operation by converting fixed-frequency electrical power into adjustable-frequency output power.
The drive regulates motor speed and torque by controlling output frequency and voltage. This allows industrial motors to operate according to actual process requirements, improving system efficiency and reducing unnecessary mechanical operation.
The main operating process includes:
- Receiving three-phase AC power input
- Converting electrical energy through the internal power conversion system
- Producing adjustable frequency output power
- Controlling motor speed according to automation commands
This control method provides:
- Smooth acceleration and deceleration
- Stable motor speed regulation
- Reduced mechanical stress
- Improved energy efficiency
- Enhanced process stability
Main Features and Functions
High Capacity Motor Control
The ABB ACS510-01-088A-4 is designed for medium and large industrial motor applications that require reliable and continuous operation.
With its 88 A output capability, the frequency converter provides strong motor control performance for demanding industrial loads.
Main advantages:
- High load handling capability
- Stable torque performance
- Accurate speed adjustment
- Reliable continuous operation
It is suitable for applications where motor performance and operational stability are critical.
Energy Optimization Function
The frequency converter improves energy efficiency by adjusting motor speed according to actual system demand.
In many industrial applications, motors do not always require maximum operating speed. The ACS510-01-088A-4 allows equipment to operate efficiently by matching motor output with production requirements.
Energy-saving benefits include:
- Reduced electricity consumption
- Lower operating costs
- Improved equipment efficiency
- Reduced mechanical wear
Motor Protection Capability
The ABB ACS510-01-088A-4 provides multiple protection functions to improve system safety and equipment reliability.
Protection functions include:
- Overcurrent protection
- Overvoltage protection
- Motor overload monitoring
- Thermal protection
- Fault monitoring
These functions help prevent equipment damage caused by abnormal operating conditions.
Industrial Automation Integration
The frequency converter can be integrated into modern automation control systems.
It can work together with:
- PLC controllers
- HMI systems
- Industrial communication networks
- Remote monitoring systems
This allows engineers to achieve centralized motor control, parameter adjustment, and efficient system management.
Application in Industrial Automation Systems
The ABB ACS510-01-088A-4 serves as a connection between automation controllers and industrial motors.
Typical automation system structure:
| Component | Function |
|---|---|
| PLC Controller | Sends automatic control commands |
| Frequency Converter | Controls motor speed and torque |
| AC Motor | Provides mechanical power |
| HMI System | Displays operating information |
| Sensors | Provides process feedback |
| Communication Network | Transfers control signals |
By improving motor control accuracy, the frequency converter helps maintain stable industrial production processes.
Industrial Applications
Pump Control Systems
The ABB ACS510-01-088A-4 is widely used in industrial pumping applications.
Typical applications:
- Water treatment systems
- Industrial water supply
- Cooling circulation systems
- Process pumping equipment
Advantages:
- Stable pressure control
- Improved pump efficiency
- Reduced mechanical stress
- Extended equipment lifetime
Fan and HVAC Applications
The frequency converter provides efficient speed control for large fan systems.
Common applications:
- Factory ventilation systems
- Industrial air handling equipment
- Cooling fans
- HVAC installations
Benefits:
- Flexible airflow control
- Reduced energy consumption
- Improved environmental management
Conveyor Systems
The ACS510-01-088A-4 provides reliable control for industrial conveyor equipment.
Applications include:
- Manufacturing production lines
- Material handling systems
- Packaging equipment
- Automated transportation systems
Advantages:
- Smooth starting and stopping
- Stable speed control
- Reduced mechanical impact
Industrial Machinery
This frequency converter is suitable for various industrial machines requiring powerful motor control.
Typical applications:
- Processing equipment
- Production machinery
- Automated manufacturing systems
- Heavy-duty drive applications
Installation and Commissioning Guide
Correct installation ensures reliable operation and long service life.
Recommended installation procedures:
- Install the drive in a suitable electrical cabinet
- Maintain proper ventilation conditions
- Connect input power correctly
- Connect motor cables properly
- Configure motor parameters
- Perform commissioning tests
During commissioning, engineers should verify:
| Inspection Item | Purpose |
|---|---|
| Power Wiring | Confirm correct electrical connection |
| Motor Parameters | Ensure accurate motor control |
| Control Signals | Verify command response |
| Protection Settings | Improve system safety |
| Trial Operation | Confirm stable operation |
Compatible System Components
| Component | Function |
|---|---|
| ABB Control Panel | Local operation and parameter configuration |
| PLC Controller | Automatic motor control |
| HMI Device | Monitoring and adjustment |
| Communication Module | Industrial network connection |
| Sensors | Feedback signal collection |
| Motor Protection Equipment | Additional safety protection |
Related Accessories
| Component | Type | Function |
|---|---|---|
| Control Panel | Operator Interface | Drive operation and configuration |
| Communication Module | Network Accessory | Industrial communication |
| EMC Filter | Electrical Accessory | Reduces interference |
| Braking Resistor | Drive Accessory | Supports braking applications |
Recommended Alternative ABB Frequency Converter Models
| Model | Type | Feature | Application |
|---|---|---|---|
| ACS510-01-060A-4 | Frequency Converter | 30 kW / 60 A output | Pump and fan systems |
| ACS510-01-072A-4 | Frequency Converter | 37 kW / 72 A output | Medium industrial motors |
| ACS510-01-088A-4 | Frequency Converter | 45 kW / 88 A output | Large motor applications |
| ACS510-01-125A-4 | Frequency Converter | Higher current capacity | Heavy industrial loads |
| ACS580 Series | Advanced AC Drive | Advanced automation control | Modern industrial systems |
Key Advantages
Powerful Motor Control Performance
The ABB ACS510-01-088A-4 provides reliable control for larger industrial motors and demanding applications.
Efficient Energy Management
The drive optimizes motor operation and helps reduce unnecessary energy consumption.
Strong Industrial Reliability
The robust design supports continuous operation in industrial environments.
Flexible Automation Integration
It can connect with PLC systems, HMI devices, and industrial communication systems.
Wide Industrial Application Range
Suitable for pumps, fans, conveyors, HVAC systems, and manufacturing equipment.
Technical FAQs
What is ABB ACS510-01-088A-4 used for?
The ABB ACS510-01-088A-4 is an industrial frequency converter used for controlling AC motors and improving energy efficiency.
What is the rated motor power?
This model is suitable for approximately 45 kW motor applications with an 88 A output current.
What are the dimensions and weight?
The dimensions are 800 × 310 × 410 mm, and the weight is 26 kg.
What voltage does this frequency converter support?
It supports three-phase 380–480 V AC industrial power systems.
Which industries use this frequency converter?
It is commonly used in manufacturing, water treatment, HVAC systems, pumping applications, conveyor systems, and industrial automation projects.
Conclusion
The ABB ACS510-01-088A-4 (3ABD00021616-D) Frequency Converter is a powerful industrial AC drive designed for efficient motor control, energy optimization, and reliable automation integration.
With its 45 kW motor capacity, 88 A output capability, robust R4 frame structure, and flexible control functions, it provides an effective solution for medium and large industrial motor applications.
The frequency converter is widely used in pump systems, fan applications, conveyor equipment, HVAC installations, and industrial production processes.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS510-01-088A-4 provides a dependable solution for improving motor performance, reducing energy consumption, and enhancing industrial automation reliability.
