Product Overview

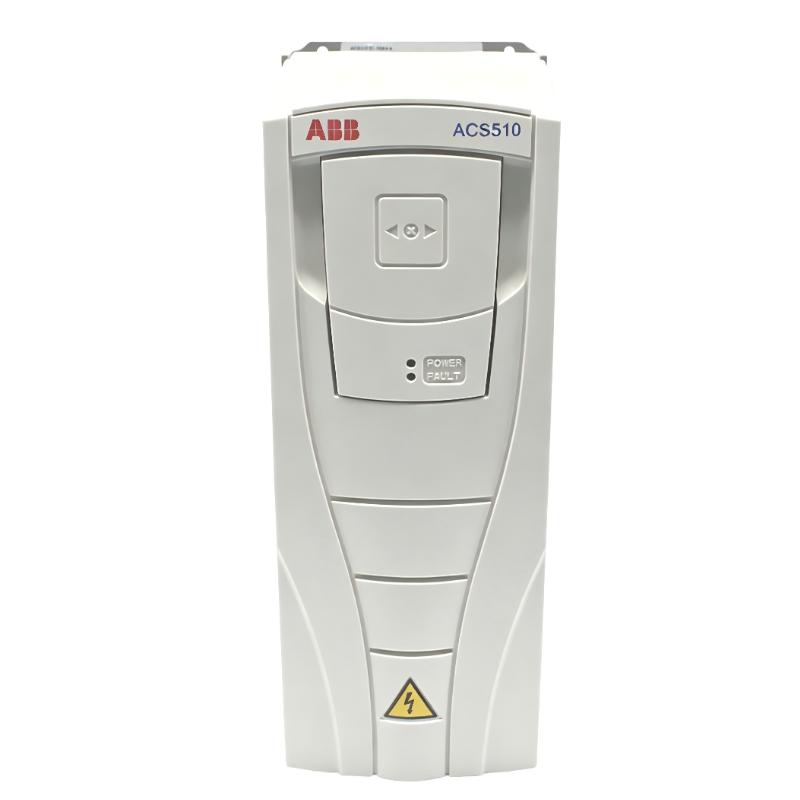

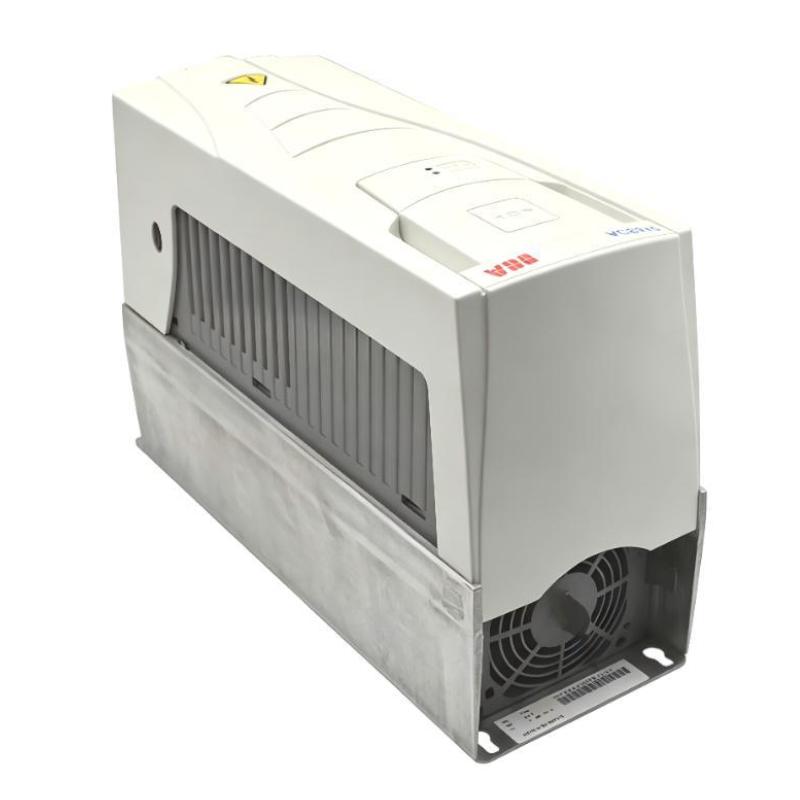

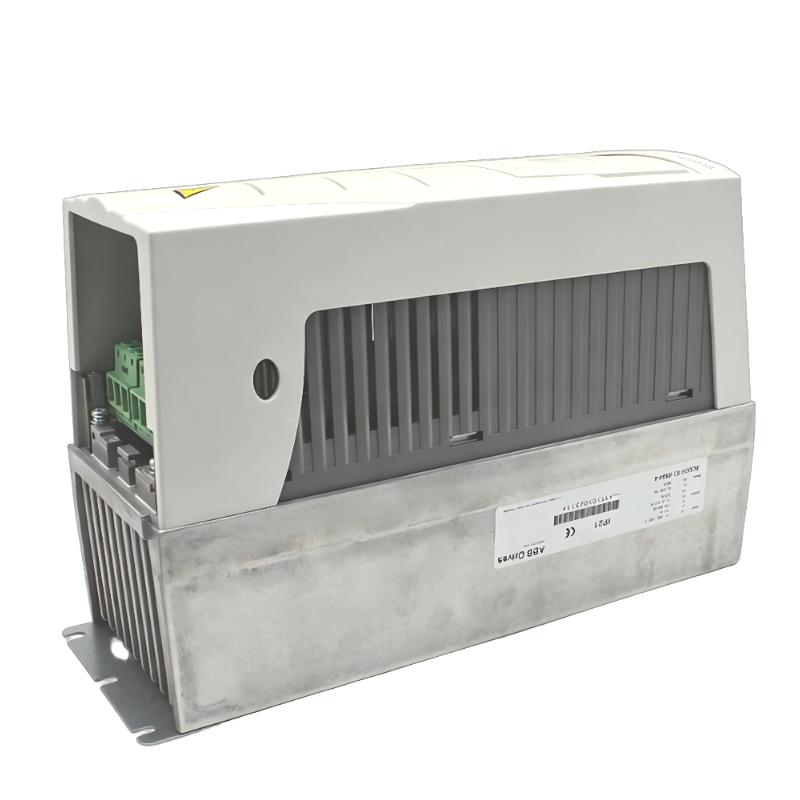

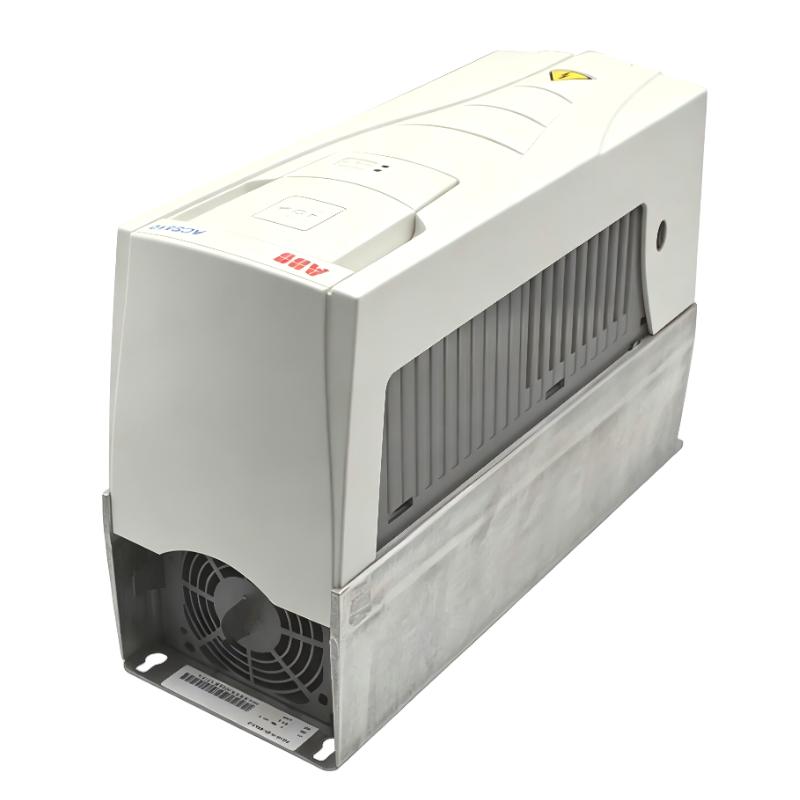

The ABB ACS510-01-072A-4 (3ABD00015753-D) Frequency Converter is a high-performance industrial AC drive designed for efficient motor control, reliable operation, and energy optimization in industrial automation systems.
As part of the ABB ACS510 frequency converter family, this model is developed for applications that require stable speed regulation, strong motor control capability, and long-term operational reliability. It is widely used in industrial systems such as pumps, fans, HVAC equipment, conveyors, water treatment systems, and manufacturing machinery.
The ACS510-01-072A-4 provides a rated output current of 72 A and is suitable for approximately 37 kW motor applications. It supports three-phase 380–480 V AC power systems and features a compact industrial design suitable for wall-mounted installation in automation control cabinets.
By adjusting motor speed according to actual process requirements, the frequency converter helps improve energy efficiency, reduce mechanical stress, and maintain stable production performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS510-01-072A-4 |
| Product ID | 3ABD00015753-D |
| Product Type | Frequency Converter / AC Drive |
| Series | ABB ACS510 |
| Rated Motor Power | 37 kW |
| Rated Output Current | 72 A |
| Input Voltage | 380–480 V AC |
| Phase Type | Three-phase |
| Protection Class | IP21 |
| Frame Size | R4 |
| Mounting Type | Wall-mounted |
| Cooling Method | Air cooled |
| Dimensions | 723 × 257 × 306 mm |
| Weight | 22.5 kg |
| Control Method | Vector Control / Scalar Control |
| Application | Variable Speed Motor Control |
| Installation Environment | Industrial Automation Systems |
Working Principle
The ABB ACS510-01-072A-4 Frequency Converter controls AC motors by converting fixed-frequency input power into adjustable-frequency output power.
The drive regulates motor speed and torque by changing output frequency and voltage. This allows motors to operate according to production requirements, improving efficiency compared with traditional fixed-speed motor operation.
The operating process includes:
- Receiving three-phase AC power input
- Processing electrical energy through the internal power conversion system
- Producing adjustable frequency output
- Controlling motor operation according to external commands
This control method provides:
- Smooth motor acceleration and deceleration
- Stable speed adjustment
- Reduced mechanical impact
- Improved energy utilization
- Better production consistency
Main Features and Functions
High Capacity Motor Control
The ABB ACS510-01-072A-4 is designed for medium and large industrial motor applications.
Its 72 A output capability allows it to control motors used in demanding industrial environments.
Main advantages:
- Reliable speed regulation
- Stable torque output
- Improved motor performance
- Suitable for continuous operation
The drive provides accurate control for systems where motor speed and load conditions frequently change.
Energy Efficient Operation
The frequency converter improves energy efficiency by allowing motors to operate according to actual system requirements.
Typical applications include:
- Industrial pumps
- Large ventilation fans
- Cooling systems
- Water circulation equipment
Energy-saving benefits:
- Reduced unnecessary power consumption
- Improved system efficiency
- Lower operational costs
- Reduced equipment wear
Motor Protection Functions
The ABB ACS510-01-072A-4 includes protection functions designed to improve system reliability.
Protection functions include:
- Overcurrent protection
- Overvoltage protection
- Motor overload monitoring
- Thermal protection
- Fault monitoring
These functions help prevent damage caused by abnormal operating conditions and improve equipment safety.
Automation Integration Capability
The frequency converter can be integrated into industrial automation systems.
It can communicate and operate together with:
- PLC controllers
- HMI systems
- Industrial monitoring systems
- Automation networks
This allows engineers to achieve centralized motor control and easier system management.
Application in Industrial Automation Systems
The ABB ACS510-01-072A-4 works as an important control component between automation systems and industrial motors.
Typical control structure:
| Equipment | Function |
|---|---|
| PLC Controller | Sends automatic control instructions |
| Frequency Converter | Controls motor speed and torque |
| AC Motor | Provides mechanical power |
| HMI System | Operator monitoring and adjustment |
| Sensors | Provides feedback information |
| Communication System | Transfers control data |
The frequency converter improves automation flexibility and supports stable industrial processes.
Industrial Applications
Pump Systems
The ABB ACS510-01-072A-4 is widely applied in industrial pump control systems.
Typical applications:
- Water treatment plants
- Industrial water supply systems
- Cooling circulation systems
- Process pumping equipment
Advantages:
- Stable flow control
- Reduced pump operating stress
- Improved energy efficiency
- Extended equipment service life
Fan and HVAC Systems
The frequency converter provides efficient speed control for large fan applications.
Common uses:
- Factory ventilation systems
- Air circulation equipment
- Cooling fans
- HVAC installations
Benefits:
- Flexible airflow adjustment
- Reduced energy consumption
- Improved environmental control
Conveyor Systems
The ACS510-01-072A-4 provides reliable motor control for industrial conveyor equipment.
Applications:
- Manufacturing production lines
- Material transportation systems
- Packaging machines
- Automated handling systems
Advantages:
- Smooth startup
- Stable operation
- Reduced mechanical impact
Industrial Machinery
This frequency converter is suitable for various industrial machines requiring adjustable motor speed.
Applications include:
- Processing equipment
- Manufacturing machines
- Production systems
- Heavy-duty drive applications
Installation and Commissioning Guide
Proper installation is essential for reliable operation.
Recommended installation procedures:
- Install the drive inside a suitable electrical cabinet
- Ensure adequate ventilation space
- Connect power cables correctly
- Connect motor wiring properly
- Configure motor parameters
- Perform commissioning tests
During commissioning, engineers should check:
| Inspection Item | Purpose |
|---|---|
| Power Wiring | Confirm correct electrical connection |
| Motor Parameters | Ensure accurate control |
| Control Signals | Verify command operation |
| Protection Settings | Improve system safety |
| Trial Operation | Confirm stable running |
Compatible System Components
| Component | Function |
|---|---|
| ABB Control Panel | Parameter setting and local operation |
| PLC Controller | Automatic control |
| HMI Device | Monitoring and adjustment |
| Communication Module | Industrial network connection |
| Sensors | Signal feedback |
| Motor Protection Device | Additional protection |
Related Accessories
| Component | Type | Function |
|---|---|---|
| Control Panel | Operator Interface | Drive configuration |
| Communication Module | Network Accessory | Data communication |
| EMC Filter | Electrical Accessory | Noise reduction |
| Braking Resistor | Drive Accessory | Braking energy control |
Recommended Alternative ABB Frequency Converter Models
| Model | Type | Feature | Application |
|---|---|---|---|
| ACS510-01-046A-4 | Frequency Converter | 22 kW motor control | Medium applications |
| ACS510-01-060A-4 | Frequency Converter | 30 kW / 60 A output | Pump and fan systems |
| ACS510-01-072A-4 | Frequency Converter | 37 kW / 72 A output | Large industrial motors |
| ACS510-01-088A-4 | Frequency Converter | Higher output capacity | Heavy-duty applications |
| ACS580 Series | Advanced AC Drive | Advanced automation functions | Modern industrial systems |
Key Advantages
Reliable Industrial Performance
The ABB ACS510-01-072A-4 provides stable and dependable operation for industrial motor applications.
Strong Motor Control Capability
The 72 A output capacity allows effective control of larger motors used in demanding environments.
Improved Energy Efficiency
The drive helps reduce energy waste by optimizing motor speed according to process requirements.
Flexible Automation Integration
It can easily integrate with PLC systems, HMI devices, and industrial control networks.
Long Service Life
The industrial design supports continuous operation in manufacturing and process environments.
Technical FAQs
What is ABB ACS510-01-072A-4 used for?
The ABB ACS510-01-072A-4 is an industrial frequency converter used for AC motor speed control and energy optimization.
What is the rated motor power?
This model is designed for approximately 37 kW motor applications with a 72 A output current.
What are the dimensions and weight?
The dimensions are 723 × 257 × 306 mm, and the weight is 22.5 kg.
What voltage does this frequency converter support?
It supports three-phase 380–480 V AC industrial power systems.
Which industries use this model?
It is commonly used in manufacturing, water treatment, HVAC, pumping systems, conveyor systems, and industrial automation applications.
Conclusion
The ABB ACS510-01-072A-4 (3ABD00015753-D) Frequency Converter is a reliable industrial AC drive designed for efficient motor control, energy optimization, and automation integration.
With its 37 kW motor capacity, 72 A output current, robust industrial structure, and flexible control functions, it provides an effective solution for medium and large motor applications.
The frequency converter is widely used in pumps, fans, conveyors, HVAC systems, and industrial production equipment.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS510-01-072A-4 provides a dependable solution for improving motor performance, reducing energy consumption, and enhancing industrial automation reliability.
