Product Overview

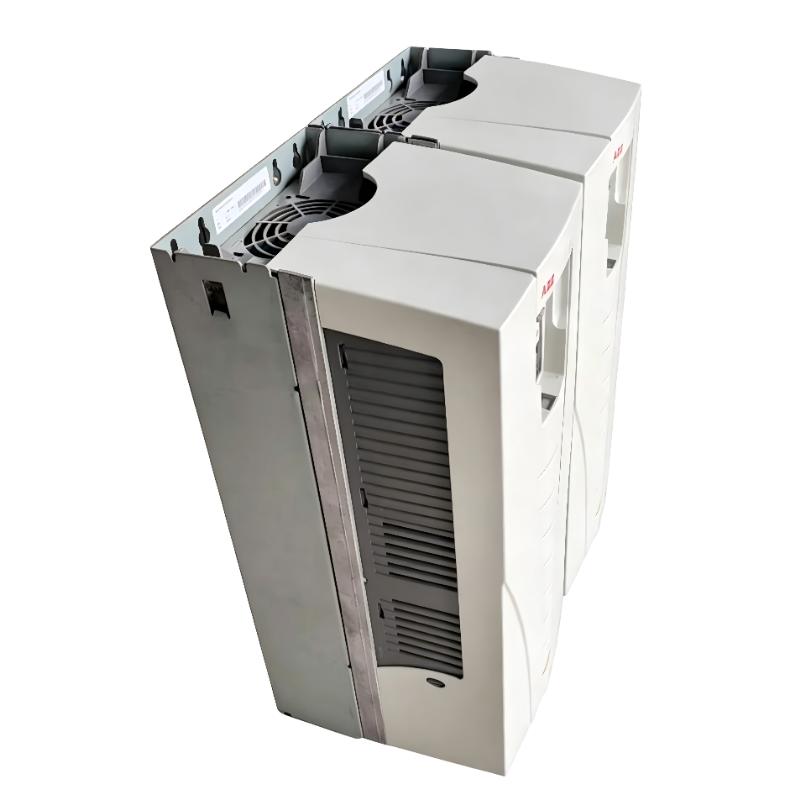

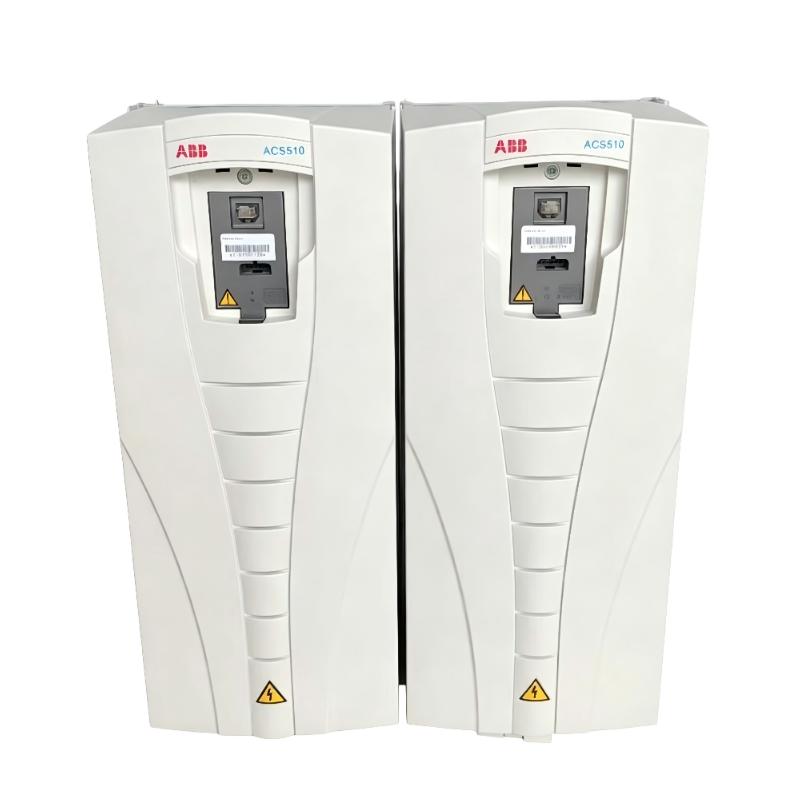

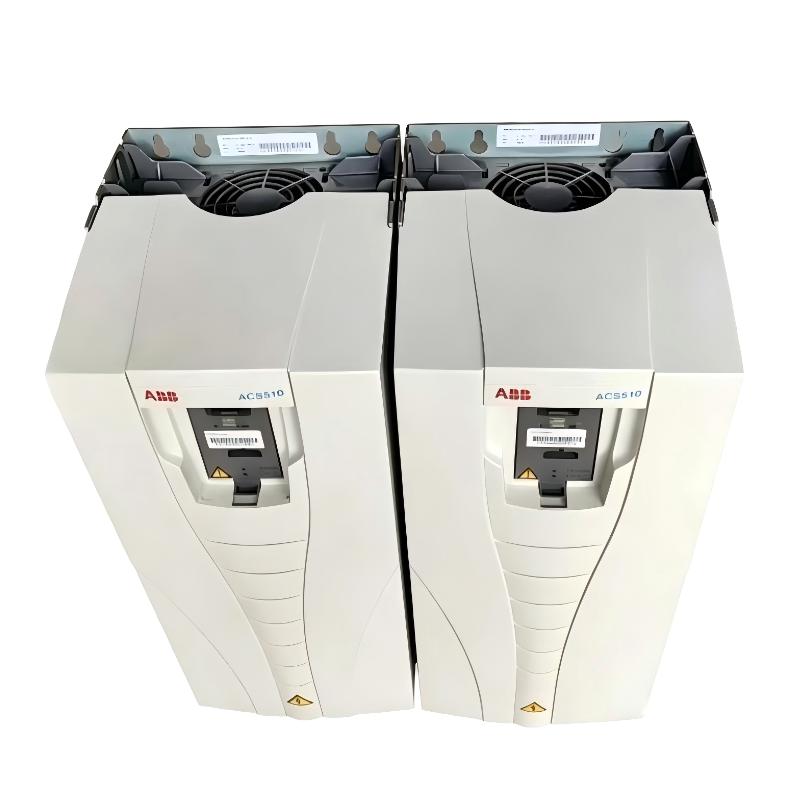

The ABB ACS510-01-038A-4 (3ABD00015750-D) Frequency Converter is an industrial AC drive designed for reliable motor speed control, energy optimization, and efficient operation in industrial automation systems.
As part of the ABB ACS510 frequency converter family, this model is developed for applications requiring stable variable speed control, flexible installation, and continuous industrial performance. It is mainly used for controlling three-phase AC motors in applications such as pumps, fans, HVAC systems, conveyors, and process machinery.
The ACS510-01-038A-4 provides a rated output current of 38 A and is suitable for approximately 18.5 kW motor applications. It supports three-phase 380–480 V AC power systems and adopts an industrial wall-mounted design for integration into electrical cabinets and automation control systems.
By adjusting motor speed according to actual process requirements, this frequency converter helps reduce energy consumption, improve equipment efficiency, and minimize mechanical stress on motors and connected machines.

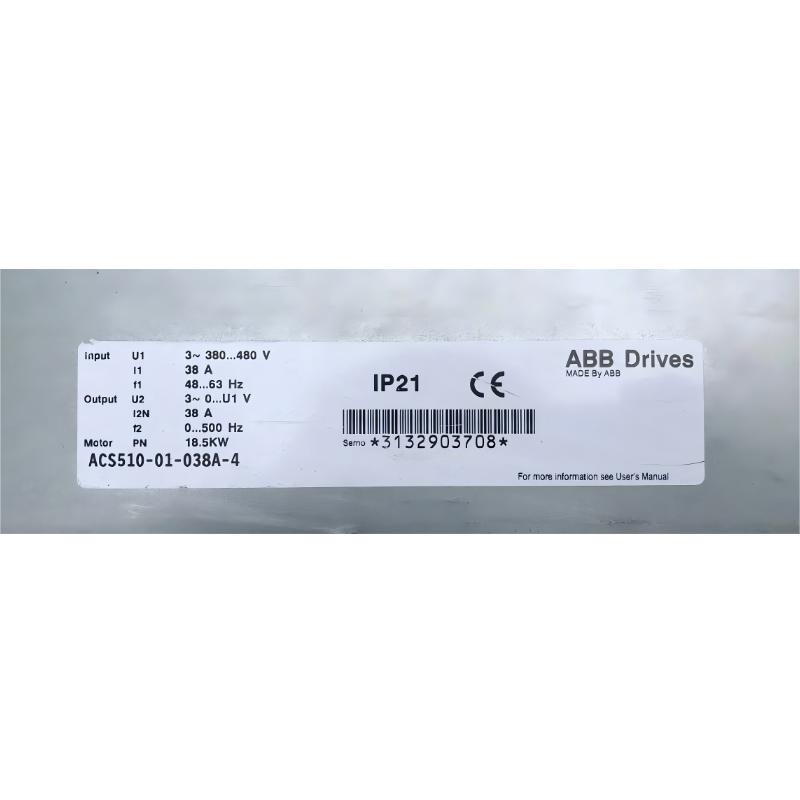

Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS510-01-038A-4 |
| Product ID | 3ABD00015750-D |
| Product Type | Frequency Converter / AC Drive |
| Series | ABB ACS510 |
| Rated Motor Power | 18.5 kW |
| Rated Output Current | 38 A |
| Input Voltage | 380–480 V AC |
| Phase Type | Three-phase |
| Protection Class | IP21 |
| Frame Size | R3 |
| Mounting Type | Wall-mounted |
| Cooling Method | Air cooled |
| Dimensions | 675 × 284 × 384 mm |
| Weight | 19.2 kg |
| Control Method | Vector control / Scalar control |
| Application Type | Variable speed motor control |
| Suitable Loads | Pumps, fans, conveyors, industrial machinery |
| Installation Environment | Industrial automation systems |
Function and Working Principle
The ABB ACS510-01-038A-4 Frequency Converter controls AC motor operation by converting fixed-frequency input power into adjustable-frequency output power.
The drive changes the output frequency and voltage supplied to the motor, allowing precise control of motor speed and torque. This enables industrial equipment to operate according to actual production requirements instead of maintaining constant full-speed operation.
The basic operating process includes:
- Receiving three-phase AC power input
- Converting electrical power through the internal converter circuit
- Generating adjustable AC output power
- Controlling motor speed according to system commands
This operating principle provides:
- Smooth motor starting
- Stable speed regulation
- Reduced mechanical stress
- Improved energy efficiency
- Enhanced process control
Main Functions
Variable Speed Motor Control
The ACS510-01-038A-4 provides accurate motor speed adjustment for industrial applications.
Main advantages include:
- Flexible operating speed control
- Smooth acceleration and deceleration
- Improved production stability
- Reduced equipment wear
This function allows motors to operate according to changing production requirements.
Energy Saving Operation
The frequency converter improves energy efficiency by matching motor speed with actual system demand.
Typical energy-saving applications include:
- Water pumps
- Industrial fans
- Cooling systems
- Ventilation equipment
Benefits include:
- Lower electricity consumption
- Reduced operating costs
- Improved system efficiency
- Longer equipment service life
Motor Protection Functions
The ABB ACS510-01-038A-4 provides protection features to improve system reliability.
Protection functions include:
- Overcurrent protection
- Overvoltage protection
- Motor overload protection
- Temperature monitoring
- Fault diagnosis
These functions help protect motors and equipment during abnormal operating conditions.
Automation System Integration
The frequency converter can be integrated into industrial automation architectures.
It works together with:
- PLC controllers
- HMI systems
- Industrial communication networks
- Monitoring systems
This allows centralized control and efficient equipment management.
Role in Industrial Automation Systems
The ABB ACS510-01-038A-4 serves as a key control device between automation systems and AC motors.
It receives commands from PLC systems or control devices and converts them into precise motor control actions.
Typical industrial control structure:
| Component | Function |
|---|---|
| PLC Controller | Sends motor control commands |
| Frequency Converter | Regulates motor speed and torque |
| AC Motor | Provides mechanical power |
| HMI Panel | Operator monitoring and adjustment |
| Sensors | Provides feedback information |
| Communication Network | Transfers control data |
The frequency converter improves automation flexibility and helps maintain stable industrial processes.
Industrial Applications
Pump Control Applications
The ABB ACS510-01-038A-4 is widely used in industrial pump systems.
Typical applications:
- Water treatment facilities
- Industrial water supply
- Cooling circulation systems
- Process pumping equipment
Advantages:
- Stable flow control
- Reduced pump stress
- Improved energy utilization
Fan and HVAC Systems
The frequency converter is suitable for large fan and ventilation applications.
Common uses:
- Factory ventilation
- Air handling systems
- Cooling equipment
- HVAC installations
Benefits:
- Adjustable airflow control
- Reduced energy consumption
- Improved environmental management
Conveyor Systems
The ACS510-01-038A-4 provides reliable motor control for industrial conveyors.
Applications include:
- Material handling systems
- Production lines
- Packaging equipment
- Industrial transportation systems
Advantages:
- Smooth starting performance
- Stable conveyor speed
- Reduced mechanical impact
Manufacturing Equipment
The frequency converter can be applied in different industrial machines.
Applications include:
- Processing machinery
- Automated production equipment
- Industrial drive systems
- Manufacturing lines
Installation and System Integration
Proper installation ensures reliable operation and long-term performance.
Recommended installation procedures:
- Install the drive in a suitable electrical cabinet
- Maintain sufficient ventilation space
- Connect input power correctly
- Connect motor wiring properly
- Configure motor parameters
- Complete commissioning tests
During commissioning, engineers usually check:
| Configuration Item | Purpose |
|---|---|
| Power Connection | Verify correct electrical supply |
| Motor Parameters | Ensure accurate motor control |
| Control Signals | Confirm command response |
| Protection Settings | Improve system safety |
| Test Operation | Verify normal performance |
Compatible System Components
| Component | Function |
|---|---|
| ABB Control Panel | Local operation and parameter setting |
| PLC System | Automatic control commands |
| HMI Device | Operator interface |
| Communication Module | Industrial network connection |
| Sensors | Process feedback |
| Motor Protection Equipment | Additional protection |
Related ABB Accessories and Modules
| Model / Component | Type | Function |
|---|---|---|
| ACS-CP-A | Control Panel | Basic drive operation |
| ACS-CP-C | Advanced Control Panel | Parameter configuration |
| RS485 Communication Module | Communication Module | Industrial communication |
| RFI Filter | EMC Accessory | Reduces interference |
| Braking Resistor | Drive Accessory | Supports braking applications |
Recommended Alternative ABB Frequency Converter Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| ACS510-01-025A-4 | Frequency Converter | 11 kW / 25 A output | Pump and fan systems |
| ACS510-01-031A-4 | Frequency Converter | 15 kW / 31 A output | Medium industrial loads |
| ACS510-01-038A-4 | Frequency Converter | 18.5 kW / 38 A output | Industrial motor control |
| ACS510-01-046A-4 | Frequency Converter | Higher current capacity | Larger motor applications |
| ACS580 Series | Advanced AC Drive | Modern automation platform | Complex industrial systems |
Key Advantages
Reliable Industrial Performance
The ABB ACS510-01-038A-4 provides stable motor control for continuous industrial operation.
Efficient Energy Management
The drive reduces unnecessary energy consumption by adjusting motor speed according to actual requirements.
Flexible Application Range
Suitable for pumps, fans, conveyors, HVAC systems, and industrial machinery.
Easy Automation Integration
The frequency converter can be connected with PLC systems, HMI devices, and industrial communication networks.
Improved Equipment Reliability
Stable motor operation helps reduce mechanical stress and increase system lifetime.
Technical FAQs
What is the ABB ACS510-01-038A-4 used for?
The ABB ACS510-01-038A-4 is an industrial frequency converter designed for controlling AC motor speed and improving energy efficiency.
What is the rated motor power?
This model is suitable for approximately 18.5 kW motor applications with a 38 A output current rating.
What are the dimensions and weight?
The dimensions are 675 × 284 × 384 mm, and the weight is 19.2 kg.
What voltage does this frequency converter support?
It supports three-phase 380–480 V AC power systems.
Which applications are suitable for this model?
It is commonly used in pumps, fans, HVAC systems, conveyors, water treatment equipment, and industrial automation systems.
Conclusion
The ABB ACS510-01-038A-4 (3ABD00015750-D) Frequency Converter is a reliable industrial AC drive designed for efficient motor speed control, energy optimization, and automation system integration.
With its 18.5 kW motor capacity, 38 A output current, industrial wall-mounted structure, and flexible control capability, it provides an effective solution for demanding variable speed applications.
The frequency converter is widely used in pump systems, fan applications, conveyor equipment, HVAC systems, and industrial production processes.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS510-01-038A-4 provides a dependable solution for improving motor efficiency, reducing operating costs, and enhancing industrial automation performance.
