Product Overview

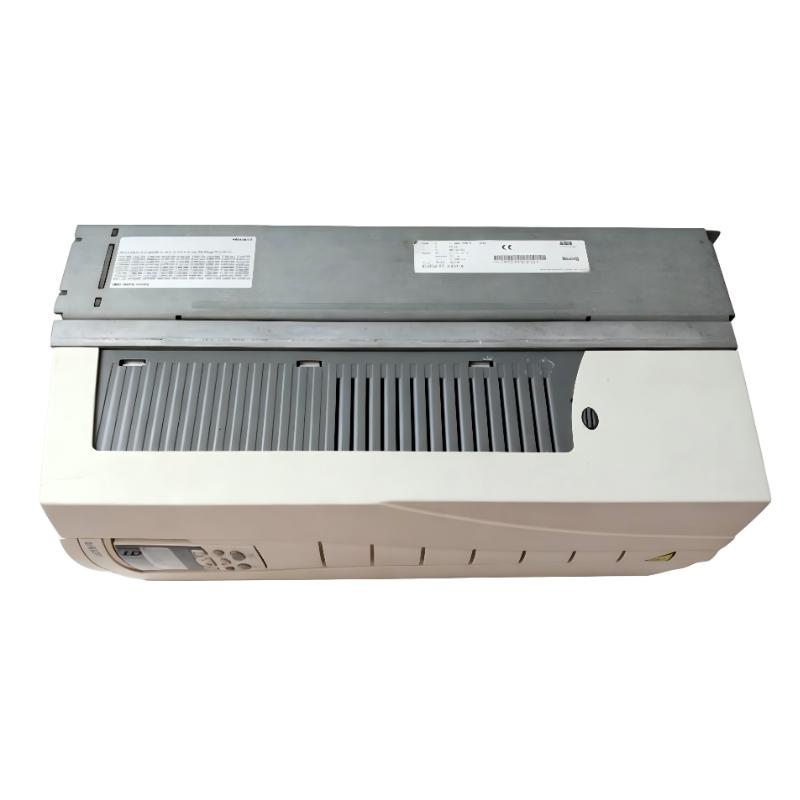

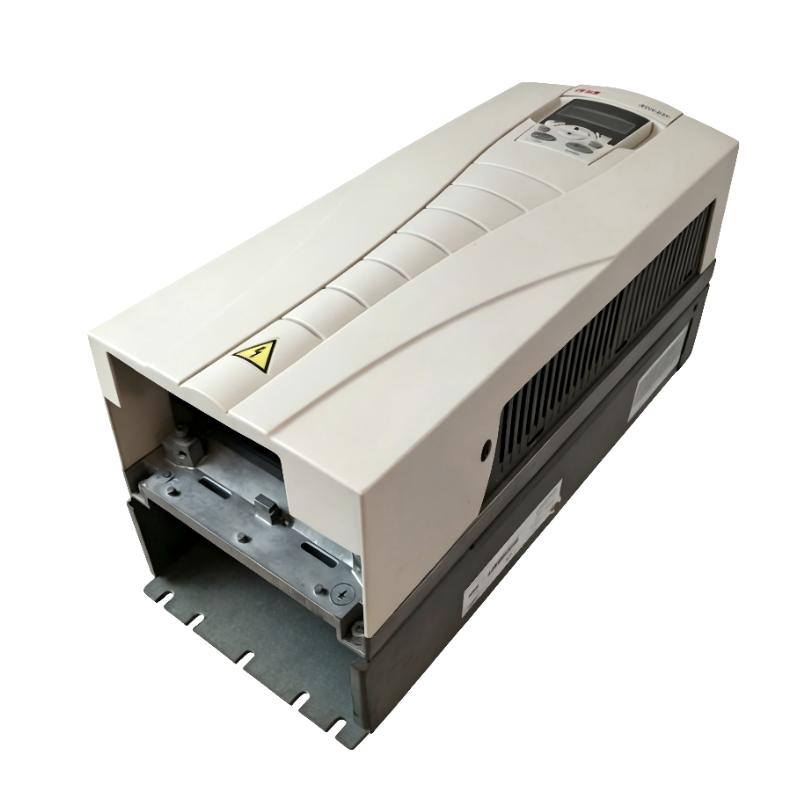

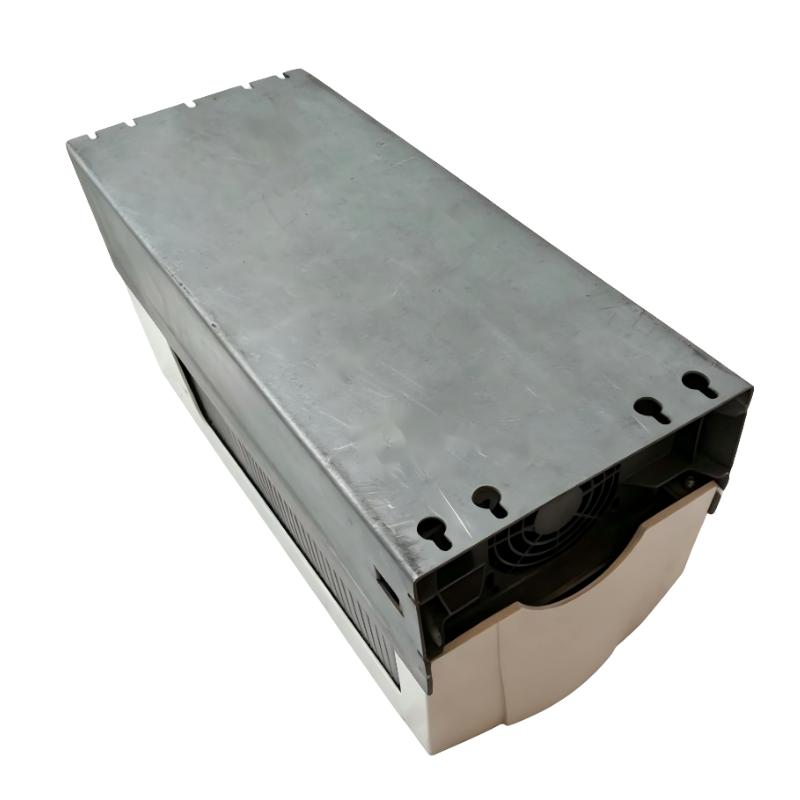

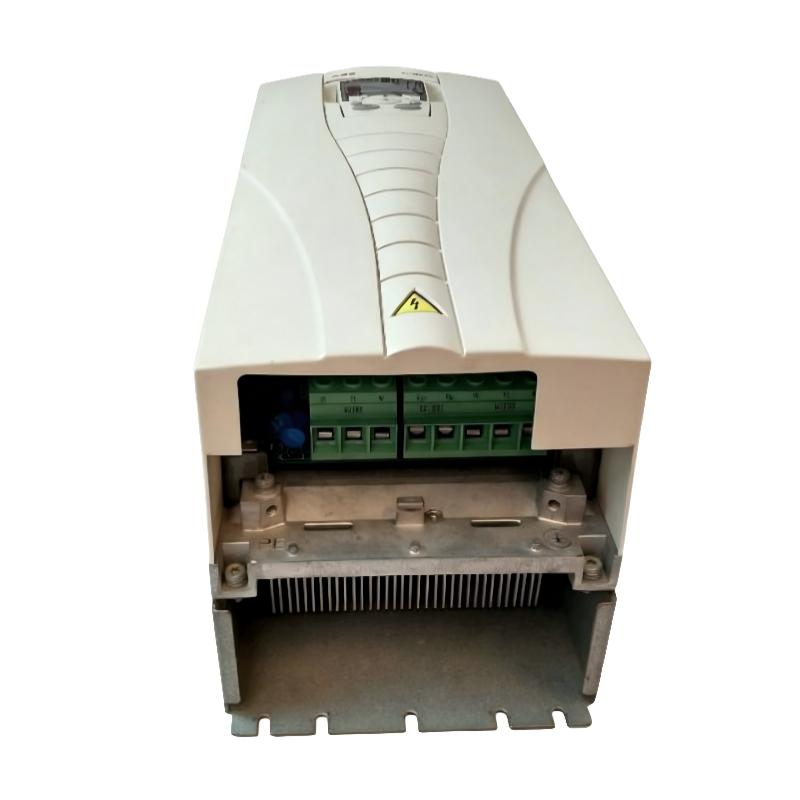

The ABB ACS510-01-031A-4 (3ABD00015749-S) Frequency Converter is an industrial variable frequency drive designed for efficient motor control, energy optimization, and reliable operation in automation systems.
As a member of the ABB ACS510 frequency converter family, this model is widely used in industrial applications where stable motor speed regulation and long-term reliability are required. It is designed for controlling three-phase AC motors in applications such as pumps, fans, HVAC systems, conveyors, and process machinery.
The ACS510-01-031A-4 provides a rated output current of 31 A and is suitable for approximately 15 kW motor applications. With its industrial wall-mounted structure and robust control capability, it provides an effective solution for improving motor performance and reducing unnecessary energy consumption.
By adjusting motor speed according to actual operating conditions, the frequency converter helps optimize production efficiency, reduce mechanical stress, and extend the service life of motors and related equipment.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS510-01-031A-4 |
| Product ID | 3ABD00015749-S |
| Product Type | Frequency Converter / AC Drive |
| Series | ABB ACS510 |
| Rated Motor Power | 15 kW |
| Rated Output Current | 31 A |
| Input Voltage | 380–480 V AC |
| Phase Type | Three-phase |
| Protection Class | IP21 |
| Frame Size | R3 |
| Mounting Type | Wall-mounted |
| Cooling Method | Air cooled |
| Dimensions | 675 × 284 × 384 mm |
| Weight | 19.2 kg |
| Control Mode | Vector control / Scalar control |
| Application Type | Variable speed motor control |
| Suitable Loads | Pumps, fans, conveyors, industrial machinery |
| Installation Environment | Industrial automation systems |
Function and Working Principle
The ABB ACS510-01-031A-4 Frequency Converter controls AC motor operation by converting fixed-frequency electrical power into adjustable-frequency output power.
The drive changes the output frequency and voltage supplied to the motor, allowing precise control of motor speed and torque. This enables industrial equipment to operate according to actual production requirements.
The basic operating process includes:
- Receiving three-phase AC power input
- Converting electrical power through the internal power circuit
- Generating adjustable AC output power
- Controlling motor speed according to system commands
This working principle provides:
- Smooth motor acceleration
- Stable speed regulation
- Reduced energy consumption
- Improved equipment efficiency
- Better process control
Main Functions
Variable Speed Control
The ACS510-01-031A-4 provides accurate motor speed adjustment for industrial applications.
Main advantages include:
- Flexible speed regulation
- Smooth start and stop operation
- Reduced mechanical impact
- Improved production stability
This function is especially useful for applications where motor speed needs to change according to different working conditions.
Energy Optimization
The frequency converter improves energy efficiency by allowing motors to operate according to actual system demand.
Typical energy-saving applications include:
- Water pumps
- Cooling fans
- Ventilation systems
- Industrial circulation systems
Benefits include:
- Reduced power consumption
- Lower operating costs
- Improved system efficiency
- Extended equipment lifetime
Motor Protection Functions
The ACS510-01-031A-4 provides multiple protection functions to improve system reliability.
Protection features include:
- Overcurrent protection
- Overvoltage protection
- Motor overload protection
- Thermal monitoring
- Fault diagnosis
These functions help prevent equipment damage during abnormal operating conditions.
Industrial Automation Integration
The frequency converter can be integrated into modern automation systems.
It works together with:
- PLC controllers
- HMI systems
- Industrial communication networks
- Monitoring systems
This allows engineers to achieve centralized motor management and easier maintenance.
Role in Industrial Control Systems
The ABB ACS510-01-031A-4 acts as an important control component between automation systems and industrial motors.
It receives commands from control devices and converts them into precise motor operation signals.
A typical industrial control structure includes:
| Component | Function |
|---|---|
| PLC Controller | Sends operation commands |
| Frequency Converter | Controls motor speed and torque |
| AC Motor | Provides mechanical power |
| HMI Panel | Operator monitoring and adjustment |
| Sensors | Provides feedback signals |
| Communication Network | Transfers control data |
The frequency converter improves system flexibility and helps maintain stable production processes.
Industrial Applications
Pump Control Systems
The ABB ACS510-01-031A-4 is widely used in industrial pumping applications.
Common applications:
- Water treatment systems
- Industrial water supply
- Cooling circulation equipment
- Process pumping systems
Advantages:
- Stable flow control
- Reduced pump wear
- Improved energy efficiency
Fan and HVAC Systems
The drive provides efficient speed control for fan applications.
Typical uses:
- Factory ventilation
- Air handling systems
- Cooling equipment
- HVAC installations
Benefits:
- Adjustable airflow
- Reduced energy usage
- Improved environmental control
Conveyor Applications
The ACS510-01-031A-4 can control conveyor motors in manufacturing environments.
Applications include:
- Material handling systems
- Production lines
- Packaging equipment
- Industrial transportation systems
Advantages:
- Smooth acceleration
- Stable speed control
- Reduced mechanical stress
Industrial Machinery
The frequency converter is suitable for various automated machines.
Applications include:
- Processing equipment
- Production machinery
- Industrial drive systems
- Automation equipment
Installation and System Integration
Correct installation is important for achieving reliable operation.
Recommended installation procedures:
- Install the drive in a suitable electrical cabinet
- Ensure sufficient ventilation space
- Connect power wiring correctly
- Connect motor cables properly
- Configure motor parameters
- Perform commissioning tests
During commissioning, engineers usually check:
| Configuration Item | Purpose |
|---|---|
| Power Connection | Verify correct electrical supply |
| Motor Parameters | Ensure accurate motor control |
| Control Signals | Confirm command response |
| Protection Settings | Improve system safety |
| Test Operation | Verify normal performance |
Compatible System Components
| Component | Function |
|---|---|
| ABB Control Panel | Local operation and parameter setting |
| PLC System | Automatic control commands |
| HMI Device | Operator interface |
| Communication Module | Network connection |
| Sensors | Process feedback |
| Motor Protection Equipment | Additional system protection |
Related ABB Accessories and Modules
| Model / Component | Type | Function |
|---|---|---|
| ACS-CP-A | Control Panel | Basic operation and setup |
| ACS-CP-C | Advanced Control Panel | Parameter configuration |
| RS485 Communication Module | Communication Module | Industrial communication |
| RFI Filter | EMC Accessory | Reduces electrical interference |
| Braking Resistor | Drive Accessory | Supports braking applications |
Recommended Alternative ABB Frequency Converter Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| ACS510-01-017A-4 | Frequency Converter | 7.5 kW motor control | Medium motor systems |
| ACS510-01-025A-4 | Frequency Converter | 11 kW / 25 A output | Pump and fan applications |
| ACS510-01-031A-4 | Frequency Converter | 15 kW / 31 A output | Industrial motor control |
| ACS510-01-038A-4 | Frequency Converter | Higher output capacity | Large industrial loads |
| ACS580 Series | Advanced AC Drive | Modern automation functions | Advanced industrial systems |
Key Advantages
Reliable Industrial Performance
The ABB ACS510-01-031A-4 provides stable motor control performance for continuous industrial operation.
Efficient Energy Management
The drive optimizes motor operation by adjusting speed according to actual production requirements.
Flexible Application Range
Suitable for pumps, fans, conveyors, HVAC systems, and industrial machinery.
Easy System Integration
Compatible with PLC systems, HMI devices, and industrial automation architectures.
Long-Term Operational Reliability
Designed for industrial environments requiring stable and continuous operation.
Technical FAQs
What is the ABB ACS510-01-031A-4 used for?
The ABB ACS510-01-031A-4 is a frequency converter designed for controlling AC motor speed and improving industrial system efficiency.
What is the rated motor power?
This model is suitable for approximately 15 kW motor applications with a 31 A output current rating.
What are the dimensions and weight?
The dimensions are 675 × 284 × 384 mm, and the weight is 19.2 kg.
What voltage does this frequency converter support?
It supports three-phase 380–480 V AC industrial power systems.
Which applications are suitable for this model?
It is commonly used in pumps, fans, HVAC systems, conveyors, water treatment equipment, and industrial automation systems.
Conclusion
The ABB ACS510-01-031A-4 (3ABD00015749-S) Frequency Converter is a reliable industrial AC drive designed for efficient motor speed control, energy optimization, and automation system integration.
With its 15 kW motor capacity, 31 A output current, industrial design, and flexible control functions, it provides an effective solution for variable speed applications.
The frequency converter is widely used in pump systems, fan applications, conveyor equipment, HVAC systems, and industrial production processes.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS510-01-031A-4 provides a dependable solution for improving motor efficiency, reducing energy consumption, and enhancing industrial automation performance.
