Product Overview

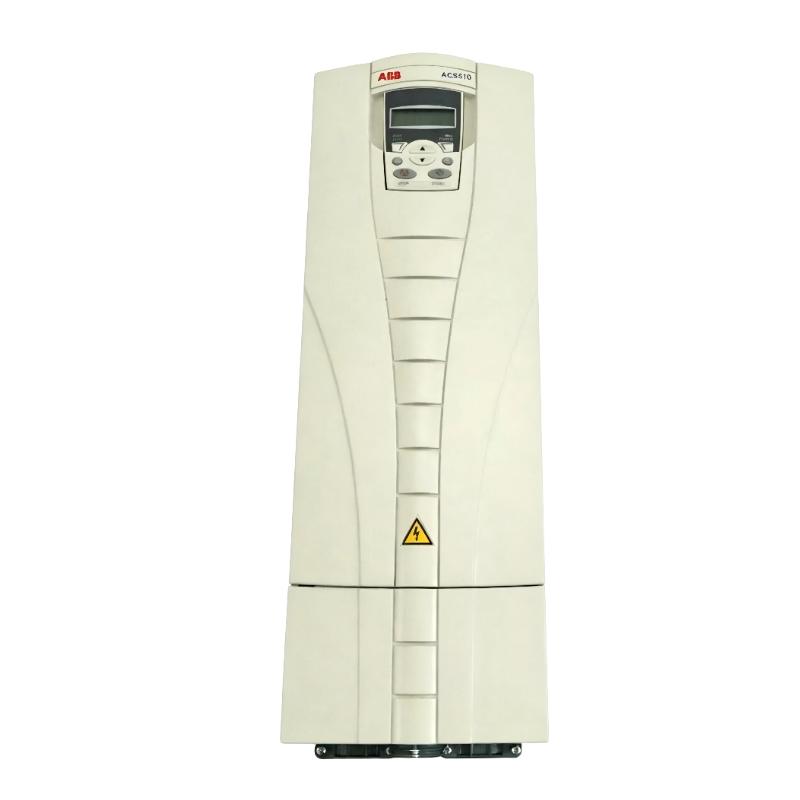

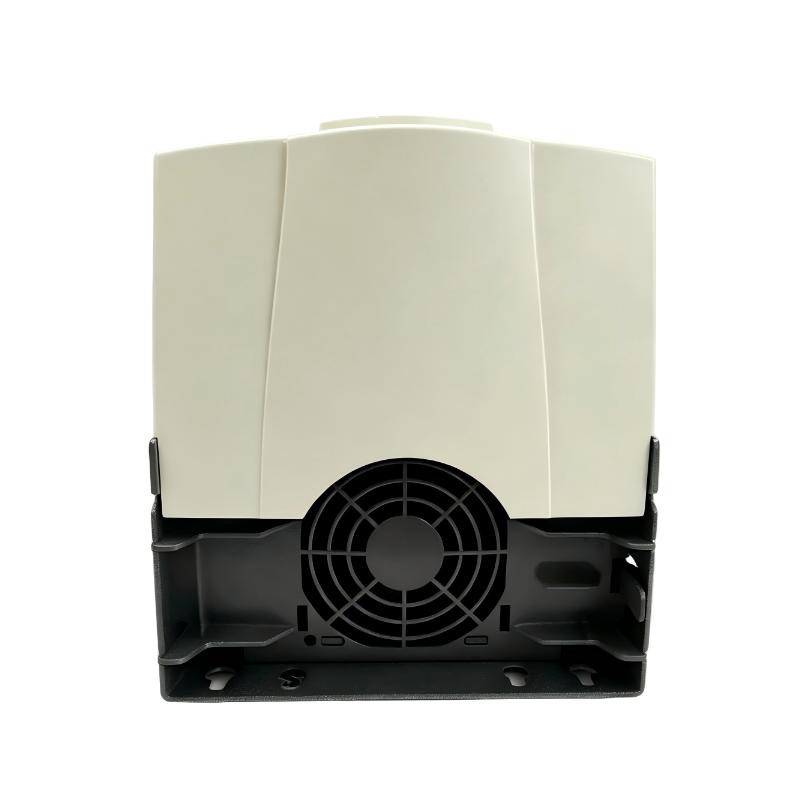

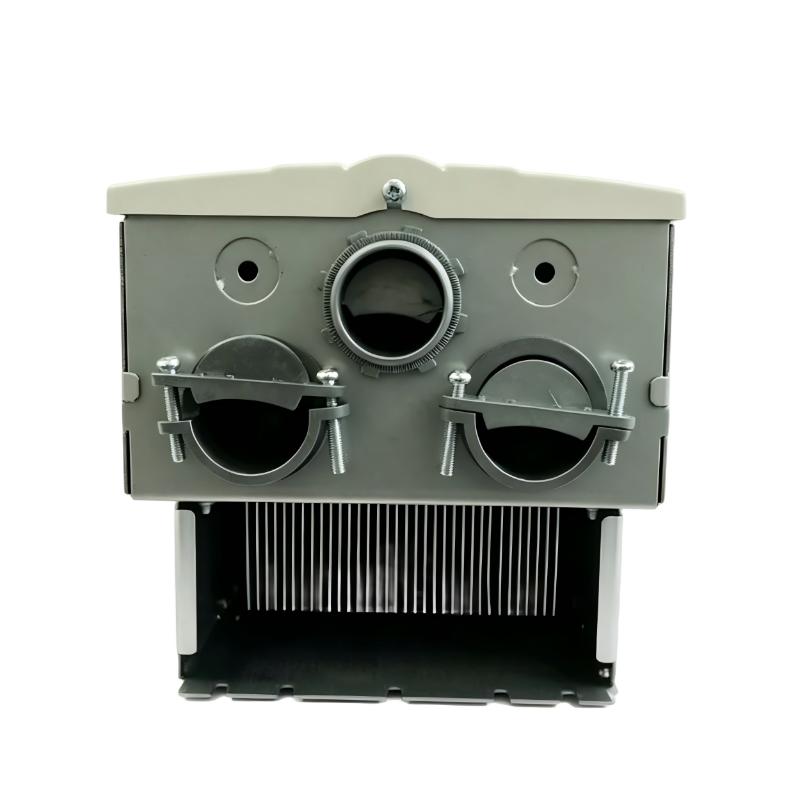

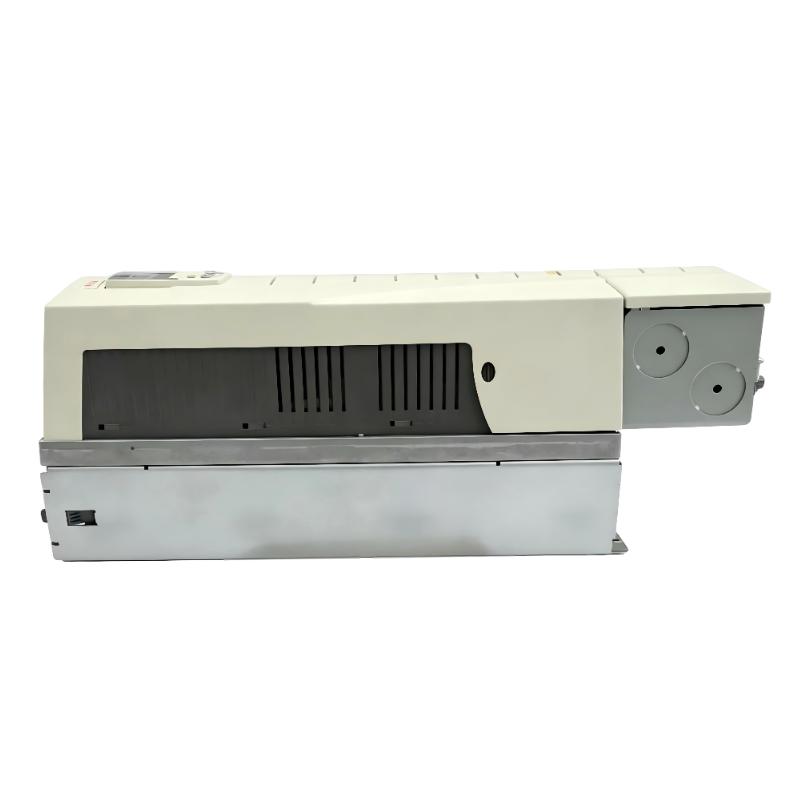

The ABB ACS510-01-031A-4 (3ABD00015749-D) Frequency Converter is a high-performance industrial AC drive designed for reliable motor speed control, energy efficiency improvement, and stable operation in demanding automation environments.
As part of the ABB ACS510 standard frequency converter family, this model is designed for applications requiring accurate motor control, flexible integration, and continuous industrial operation. It is mainly used in variable torque applications such as pumps, fans, HVAC systems, conveyors, and industrial process equipment.
The ACS510-01-031A-4 provides a 31 A output current capacity and is suitable for approximately 15 kW motor applications. It supports three-phase 380–480 V AC power systems and adopts a wall-mounted industrial design, making it suitable for installation in automation control systems and electrical cabinets.
By controlling motor speed according to actual process requirements, this frequency converter helps reduce unnecessary energy consumption, improve equipment efficiency, and minimize mechanical stress on motors and connected machinery.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS510-01-031A-4 |
| Product ID | 3ABD00015749-D |
| Product Type | Frequency Converter / AC Drive |
| Series | ABB ACS510 |
| Rated Motor Power | 15 kW |
| Rated Output Current | 31 A |
| Input Voltage | 380–480 V AC |
| Phase Type | Three-phase |
| Protection Class | IP21 |
| Frame Size | R3 |
| Mounting Type | Wall-mounted |
| Cooling Method | Air cooled |
| Dimensions | 675 × 284 × 384 mm |
| Weight | 19.2 kg |
| Control Method | Vector control / Scalar control |
| Application Type | Variable speed motor control |
| Suitable Loads | Pumps, fans, conveyors, industrial machinery |
| Installation Environment | Industrial automation systems |
Function and Working Principle
The ABB ACS510-01-031A-4 Frequency Converter controls AC motor operation by converting fixed-frequency input power into adjustable-frequency output power.
The frequency converter regulates motor speed and torque by changing the output frequency and voltage supplied to the motor. This allows industrial equipment to operate according to production requirements while improving efficiency and reducing unnecessary power consumption.
The basic operating process includes:
- Receiving three-phase AC power input
- Converting electrical power through the internal converter circuit
- Generating adjustable AC output through inverter technology
- Controlling motor speed and torque according to commands
This operating method provides:
- Smooth motor acceleration
- Stable speed control
- Improved energy efficiency
- Reduced mechanical stress
- Better process performance
Main Functions
Variable Speed Motor Control
The ACS510-01-031A-4 provides flexible speed adjustment for industrial motors.
Main benefits include:
- Accurate motor speed regulation
- Smooth starting and stopping
- Improved production stability
- Reduced mechanical wear
This makes it suitable for applications where motor speed needs to change according to process requirements.
Energy Saving Capability
The frequency converter improves energy efficiency by allowing motors to operate according to actual system demand.
Typical applications include:
- Pump systems
- Fan systems
- Air handling equipment
- Water circulation systems
Energy optimization benefits:
- Reduced electricity consumption
- Lower operating costs
- Improved system efficiency
- Extended equipment lifetime
Motor Protection Functions
The ACS510-01-031A-4 provides protection functions to improve operational reliability.
Protection features include:
- Overcurrent protection
- Overvoltage protection
- Motor overload monitoring
- Thermal protection
- Fault monitoring
These functions help prevent damage caused by abnormal operating conditions.
Industrial Communication Capability
The frequency converter can be integrated into automation systems through communication solutions.
It can exchange information with:
- PLC controllers
- HMI systems
- Industrial networks
- Monitoring systems
This allows centralized control and easier maintenance.
Role in Industrial Automation Systems
The ABB ACS510-01-031A-4 works as a key control component between automation systems and AC motors.
It receives commands from industrial controllers and converts them into precise motor operating actions.
Typical automation system structure:
| Component | Function |
|---|---|
| PLC Controller | Provides automatic control commands |
| Frequency Converter | Controls motor speed and torque |
| AC Motor | Provides mechanical power |
| HMI System | Operator monitoring and adjustment |
| Sensors | Provides feedback signals |
| Communication Network | Transfers control information |
The frequency converter improves system flexibility and allows motors to operate efficiently under different working conditions.
Industrial Applications
Pump Control Applications
The ABB ACS510-01-031A-4 is widely used in industrial pump systems.
Typical applications:
- Water treatment plants
- Industrial water supply
- Cooling circulation systems
- Process pumping equipment
Advantages:
- Stable flow control
- Reduced pump stress
- Improved energy efficiency
Fan and HVAC Systems
The frequency converter provides efficient speed regulation for large fan applications.
Common uses:
- Factory ventilation systems
- HVAC equipment
- Cooling fans
- Air circulation systems
Benefits:
- Adjustable airflow
- Reduced energy consumption
- Improved environmental control
Conveyor Systems
The ACS510-01-031A-4 provides reliable control for conveyor motors.
Applications include:
- Material transportation systems
- Production lines
- Packaging equipment
- Industrial handling systems
Advantages:
- Smooth acceleration
- Stable transportation speed
- Reduced mechanical impact
Manufacturing Equipment
This frequency converter can be applied in different industrial machines.
Examples:
- Processing machinery
- Automated production equipment
- Industrial drive systems
- Manufacturing lines
Installation and System Integration
Correct installation is important to achieve reliable operation.
Recommended installation procedures include:
- Install the drive in a suitable electrical cabinet or mounting location
- Ensure sufficient cooling space
- Connect power wiring correctly
- Connect motor cables properly
- Configure motor parameters
- Complete commissioning tests
During commissioning, engineers usually verify:
| Configuration Item | Purpose |
|---|---|
| Power Supply Connection | Confirms correct electrical input |
| Motor Parameters | Ensures accurate motor control |
| Control Signals | Verifies command operation |
| Protection Settings | Improves system safety |
| Test Running | Confirms normal performance |
Compatible System Components
| Component | Function |
|---|---|
| ABB Control Panel | Local operation and parameter configuration |
| PLC System | Automatic motor control |
| HMI Device | Operator interface |
| Communication Module | Industrial network connection |
| Sensors | Process feedback |
| Motor Protection Equipment | Improves system reliability |
Related ABB Accessories and Modules
| Model / Component | Type | Function |
|---|---|---|
| ACS-CP-A | Control Panel | Basic drive operation |
| ACS-CP-C | Advanced Control Panel | Parameter adjustment |
| RS485 Communication Module | Communication Accessory | Network communication |
| RFI Filter | EMC Accessory | Reduces electrical interference |
| Braking Resistor | Drive Accessory | Supports rapid stopping |
Recommended Alternative ABB Frequency Converter Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| ACS510-01-017A-4 | Frequency Converter | 7.5 kW motor control | Medium applications |
| ACS510-01-025A-4 | Frequency Converter | 11 kW / 25 A output | Pump and fan systems |
| ACS510-01-031A-4 | Frequency Converter | 15 kW / 31 A output | Industrial motor control |
| ACS510-01-038A-4 | Frequency Converter | Higher current capacity | Larger industrial loads |
| ACS580 Series | Advanced AC Drive | Modern automation control | Complex industrial systems |
Key Advantages
High Reliability Industrial Design
The ABB ACS510-01-031A-4 is designed for continuous industrial operation with stable motor control performance.
Efficient Motor Management
The drive helps optimize motor operation by adjusting speed according to actual process requirements.
Wide Application Compatibility
Suitable for pumps, fans, conveyors, HVAC systems, and industrial machinery.
Flexible Automation Integration
The frequency converter can be connected with PLC systems, HMI devices, and industrial communication networks.
Reduced Operating Costs
Energy optimization and improved motor control help reduce long-term operation expenses.
Technical FAQs
What is the ABB ACS510-01-031A-4 used for?
The ABB ACS510-01-031A-4 is an industrial frequency converter used for controlling AC motor speed and improving system efficiency.
What is the motor power rating?
This model is designed for approximately 15 kW motor applications with a 31 A output current rating.
What are the dimensions and weight?
The dimensions are 675 × 284 × 384 mm, and the weight is 19.2 kg.
What voltage does this frequency converter support?
It supports three-phase 380–480 V AC power systems.
Which industries commonly use this model?
It is commonly used in water treatment, HVAC, manufacturing, process automation, pumping systems, and industrial machinery.
Conclusion
The ABB ACS510-01-031A-4 (3ABD00015749-D) Frequency Converter is a reliable industrial AC drive designed for efficient motor speed control, energy optimization, and automation system integration.
With its 15 kW motor capacity, 31 A output current, industrial wall-mounted design, and flexible control capability, it provides an effective solution for demanding variable speed applications.
The frequency converter is widely used in pump systems, fan applications, conveyor equipment, HVAC systems, and industrial production processes.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS510-01-031A-4 provides a dependable solution for improving motor efficiency, reducing energy consumption, and enhancing industrial automation performance.
