Product Overview

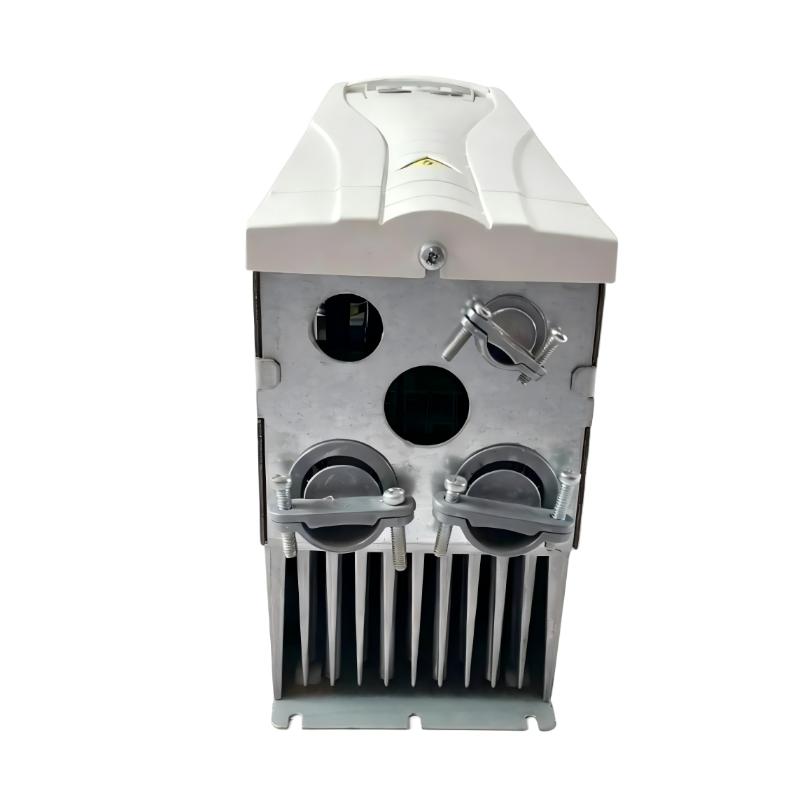

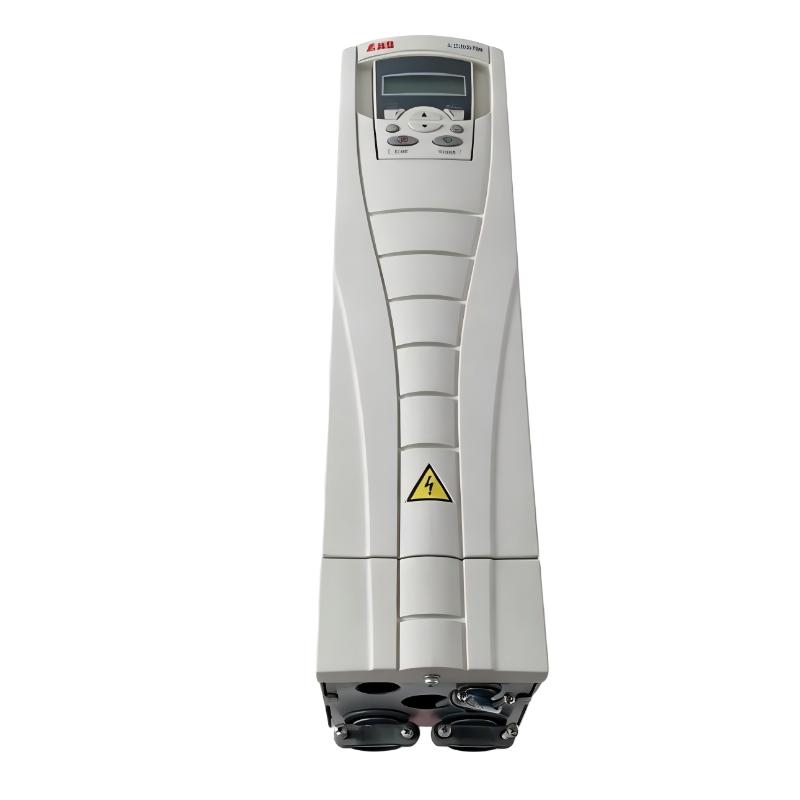

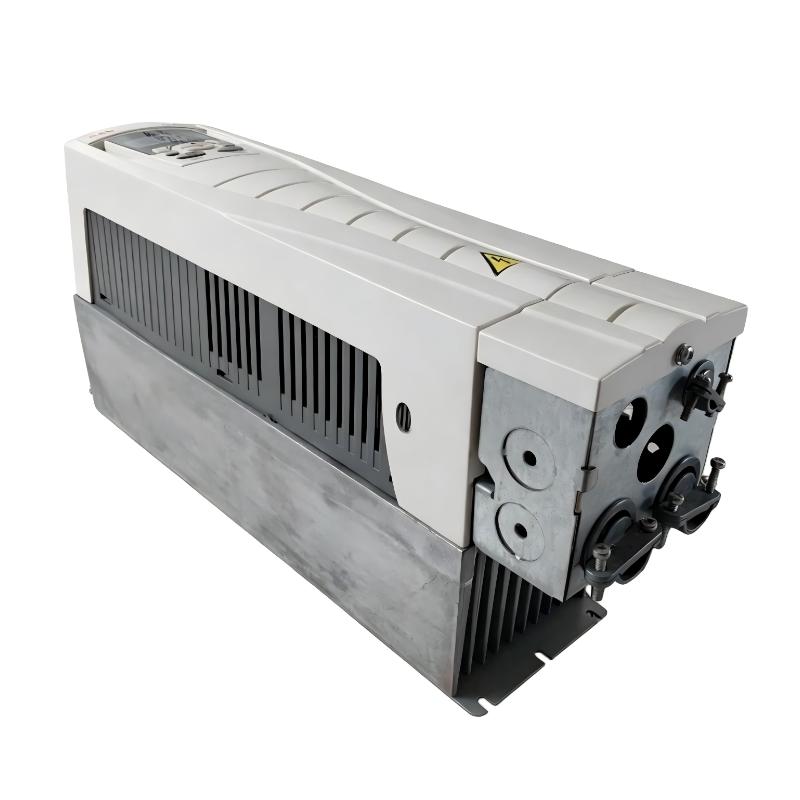

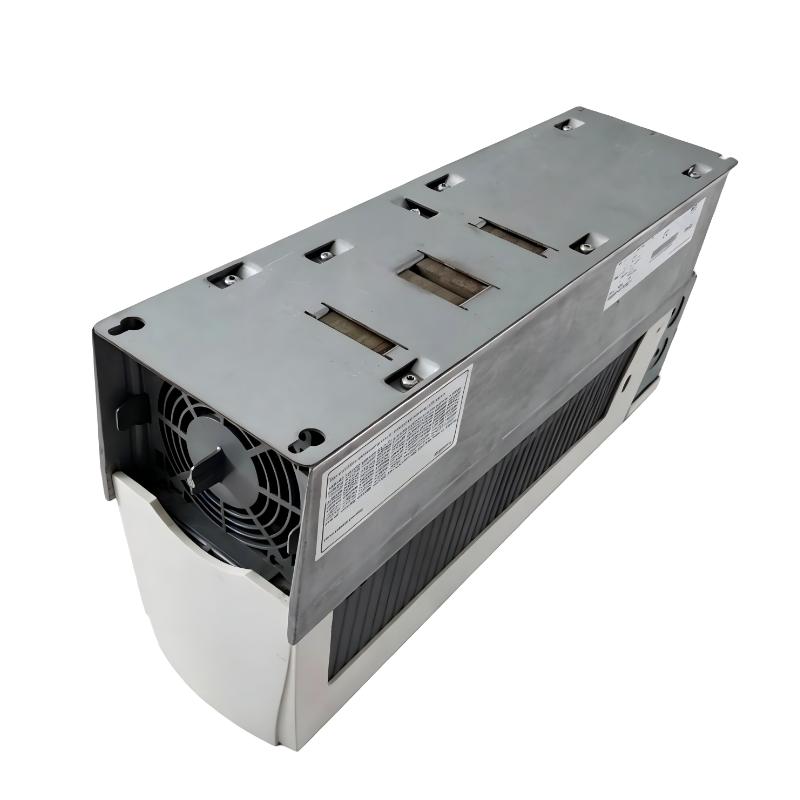

The ABB ACS510-01-025A-4 (3ABD00015748-S) Frequency Converter is an industrial AC drive designed for efficient motor speed control, reliable operation, and energy optimization in automation systems.
As part of the ABB ACS510 frequency converter family, this model is developed for industrial applications that require stable variable speed control, simple system integration, and long-term operational reliability. It is mainly used for controlling AC motors in variable torque applications such as pumps, fans, HVAC systems, conveyors, and process equipment.
The ACS510-01-025A-4 provides a practical solution for improving motor efficiency by adjusting operating speed according to actual load requirements. Instead of running motors continuously at maximum speed, the frequency converter allows equipment to operate more efficiently, reducing energy waste and mechanical stress.
With a rated output current of 25 A, a three-phase 380–480 V AC input design, and an industrial wall-mounted structure, this frequency converter is suitable for a wide range of automation and motor control applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS510-01-025A-4 |
| Product ID | 3ABD00015748-S |
| Product Type | Frequency Converter / AC Drive |
| Series | ABB ACS510 |
| Rated Motor Power | 11 kW |
| Rated Output Current | 25 A |
| Input Voltage | 380–480 V AC |
| Phase Type | Three-phase |
| Protection Class | IP21 |
| Mounting Type | Wall-mounted |
| Cooling Method | Air cooled |
| Dimensions | 565 × 225 × 365 mm |
| Weight | 8.8 kg |
| Control Method | Vector control / Scalar control |
| Application | Industrial motor speed control |
| Installation Environment | Industrial automation systems |
Function and Working Principle
The ABB ACS510-01-025A-4 Frequency Converter controls motor operation by converting fixed-frequency AC power into adjustable-frequency and adjustable-voltage output power.
The drive regulates motor speed by changing the frequency supplied to the motor. This allows connected equipment to operate according to production requirements and improves overall system efficiency.
The working process includes:
- Receiving three-phase AC power input
- Converting electrical energy internally
- Producing adjustable AC output power
- Controlling motor speed and torque according to commands
This operating method helps achieve:
- Smooth motor starting
- Stable speed regulation
- Reduced mechanical impact
- Improved energy efficiency
- Better process control
Main Functions
Variable Speed Control
The ACS510-01-025A-4 provides accurate speed adjustment for industrial motors.
It helps equipment achieve:
- Flexible operating speeds
- Smooth acceleration and deceleration
- Improved production stability
- Reduced mechanical wear
Energy Saving Operation
The frequency converter improves energy efficiency by adjusting motor speed based on actual system demand.
Typical energy-saving applications include:
- Pumps
- Fans
- Ventilation systems
- Water circulation equipment
Benefits include:
- Lower energy consumption
- Reduced operating costs
- Improved equipment efficiency
- Optimized production performance
Motor Protection Functions
The drive provides protection features to improve system reliability.
Protection functions include:
- Overcurrent protection
- Overvoltage protection
- Motor overload protection
- Thermal monitoring
- Fault detection
These functions help protect both the motor and connected equipment during abnormal operating conditions.
Reliable Process Control
The ACS510-01-025A-4 supports stable motor operation in industrial processes where continuous performance is required.
It helps maintain:
- Consistent motor speed
- Stable production processes
- Reliable equipment operation
Role in Industrial Automation Systems
The ABB ACS510-01-025A-4 works as an important control device between automation systems and industrial motors.
It receives control signals from PLC controllers, HMIs, or industrial communication systems and converts them into motor operation commands.
Typical system structure:
| Component | Function |
|---|---|
| PLC Controller | Sends control instructions |
| Frequency Converter | Controls motor speed and torque |
| AC Motor | Provides mechanical movement |
| HMI System | Operator monitoring and control |
| Sensors | Provides feedback signals |
| Communication Network | Transfers control data |
The frequency converter helps create a flexible and efficient industrial automation system.
Industrial Applications
Pump Systems
The ABB ACS510-01-025A-4 is widely used in industrial pump applications.
Typical applications:
- Water supply systems
- Cooling circulation systems
- Industrial process pumps
- Wastewater systems
Advantages:
- Stable flow control
- Reduced pump stress
- Improved energy efficiency
Fan and Ventilation Systems
The frequency converter is suitable for industrial fan applications.
Common uses:
- Factory ventilation
- HVAC equipment
- Cooling systems
- Air handling systems
Benefits:
- Adjustable airflow
- Lower energy consumption
- Improved environmental control
Conveyor Systems
The ACS510-01-025A-4 provides stable motor control for conveyor applications.
Used in:
- Material handling systems
- Packaging equipment
- Production lines
Benefits:
- Smooth starting
- Adjustable transportation speed
- Reduced mechanical shock
Manufacturing Equipment
This frequency converter can be integrated into various industrial machines.
Applications include:
- Processing equipment
- Automated production systems
- Industrial machinery
- Manufacturing lines
Installation and System Integration
Correct installation ensures reliable operation and long service life.
Recommended installation procedures:
- Install the drive in a suitable control cabinet
- Maintain proper ventilation
- Connect power supply correctly
- Connect motor cables properly
- Configure motor parameters
- Complete commissioning tests
During commissioning, engineers normally check:
| Configuration Item | Purpose |
|---|---|
| Power Connection | Verify electrical supply |
| Motor Parameters | Ensure accurate control |
| Control Signals | Confirm command response |
| Protection Settings | Improve safety |
| Test Operation | Verify system performance |
Compatible System Components
| Component | Function |
|---|---|
| ABB Control Panel | Local operation and parameter setting |
| PLC System | Automatic control |
| HMI Device | User interface |
| Communication Module | Network integration |
| Sensors | Process feedback |
| Motor Protection Devices | Improve system reliability |
Related ABB Accessories and Modules
| Model / Component | Type | Function |
|---|---|---|
| ACS-CP-A | Control Panel | Basic drive operation |
| ACS-CP-C | Advanced Control Panel | Parameter configuration |
| RS485 Communication Module | Communication Module | Industrial communication |
| RFI Filter | EMC Accessory | Reduces electrical interference |
| Braking Resistor | Drive Accessory | Supports stopping applications |
Recommended Alternative ABB Frequency Converter Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| ACS510-01-012A-4 | Frequency Converter | 5.5 kW motor control | Small pump and fan systems |
| ACS510-01-017A-4 | Frequency Converter | 7.5 kW output capacity | Medium motor applications |
| ACS510-01-025A-4 | Frequency Converter | 11 kW / 25 A output | Industrial motor control |
| ACS510-01-031A-4 | Frequency Converter | Higher power application | Large motor systems |
| ACS580 Series | Advanced AC Drive | Modern automation control | Complex industrial applications |
Key Advantages
Efficient Motor Control
The ABB ACS510-01-025A-4 provides accurate motor speed regulation for industrial applications.
Energy Optimization
The drive reduces unnecessary energy consumption by matching motor speed with actual process requirements.
Reliable Industrial Operation
Designed for continuous operation in demanding industrial environments.
Flexible Integration
Compatible with PLC systems, HMI devices, and industrial automation architectures.
Wide Application Range
Suitable for pumps, fans, conveyors, HVAC systems, and manufacturing equipment.
Technical FAQs
What is the ABB ACS510-01-025A-4 used for?
The ABB ACS510-01-025A-4 is a frequency converter designed for controlling AC motor speed and improving industrial energy efficiency.
What is the rated motor power?
This model is suitable for approximately 11 kW motor applications.
What are the dimensions and weight?
The dimensions are 565 × 225 × 365 mm, and the weight is 8.8 kg.
What applications use this frequency converter?
It is commonly used in pumps, fans, conveyors, HVAC systems, and industrial automation equipment.
Why use a frequency converter?
A frequency converter allows motors to operate at optimized speeds, improving efficiency, reducing mechanical stress, and increasing system reliability.
Conclusion
The ABB ACS510-01-025A-4 (3ABD00015748-S) Frequency Converter is a reliable industrial AC drive designed for efficient motor control, energy optimization, and stable automation operation.
With its 11 kW motor capacity, 25 A output current, industrial design, and flexible integration capability, it provides an effective solution for variable speed applications.
The frequency converter is widely suitable for pump systems, fan applications, conveyors, HVAC equipment, and industrial production processes.
For automation engineers, system integrators, and maintenance professionals, the ABB ACS510-01-025A-4 provides a dependable solution for improving motor performance, reducing operating costs, and enhancing industrial automation efficiency.
