Product Overview

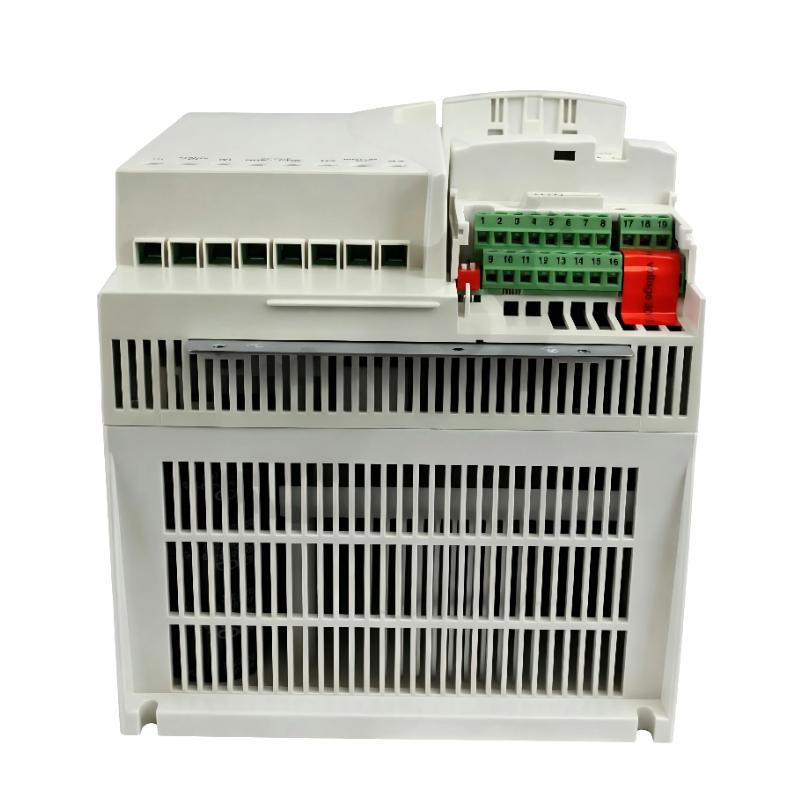

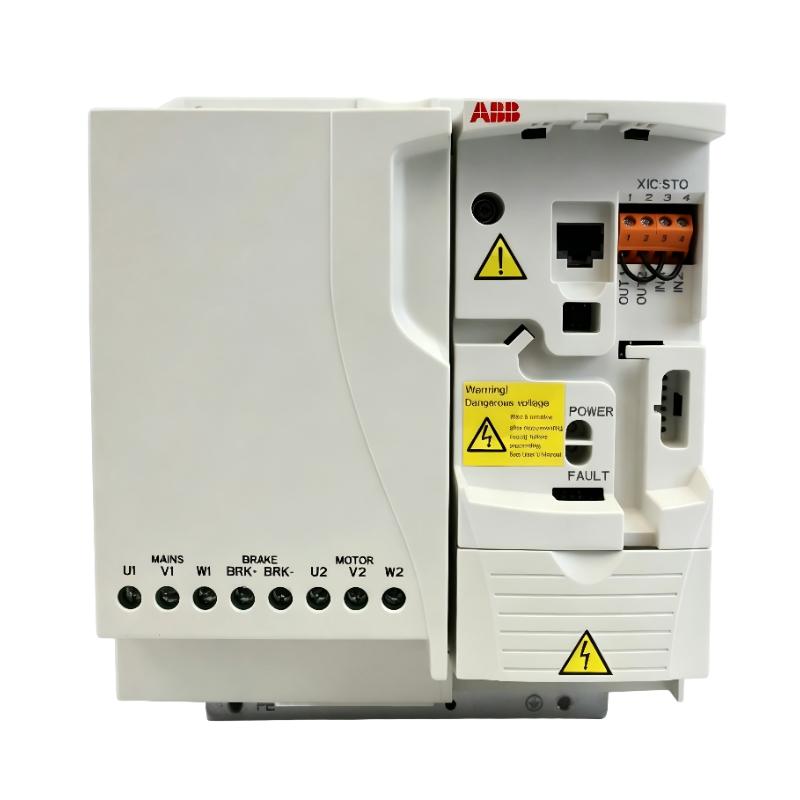

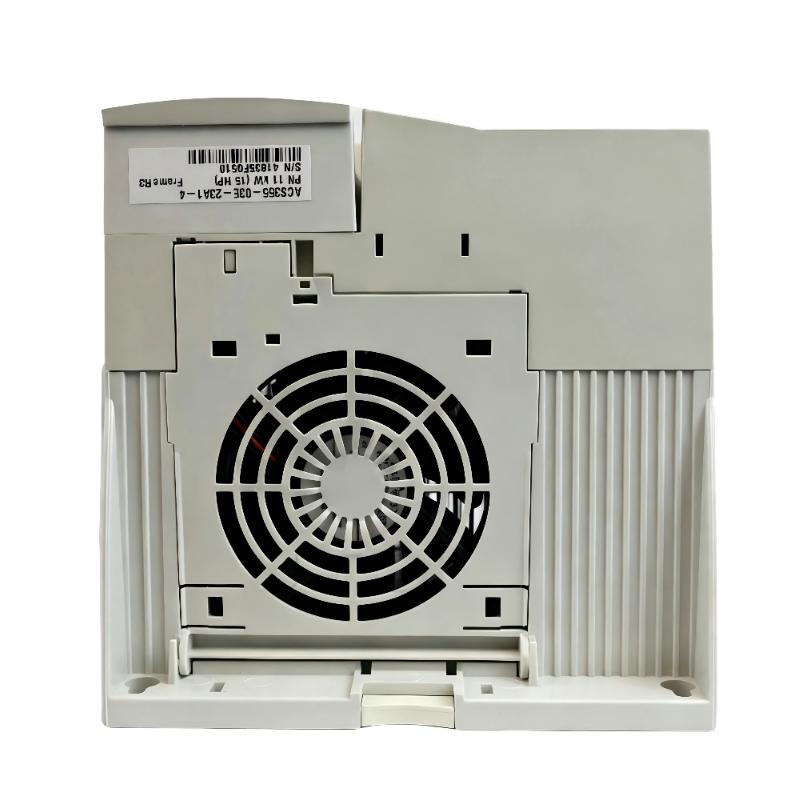

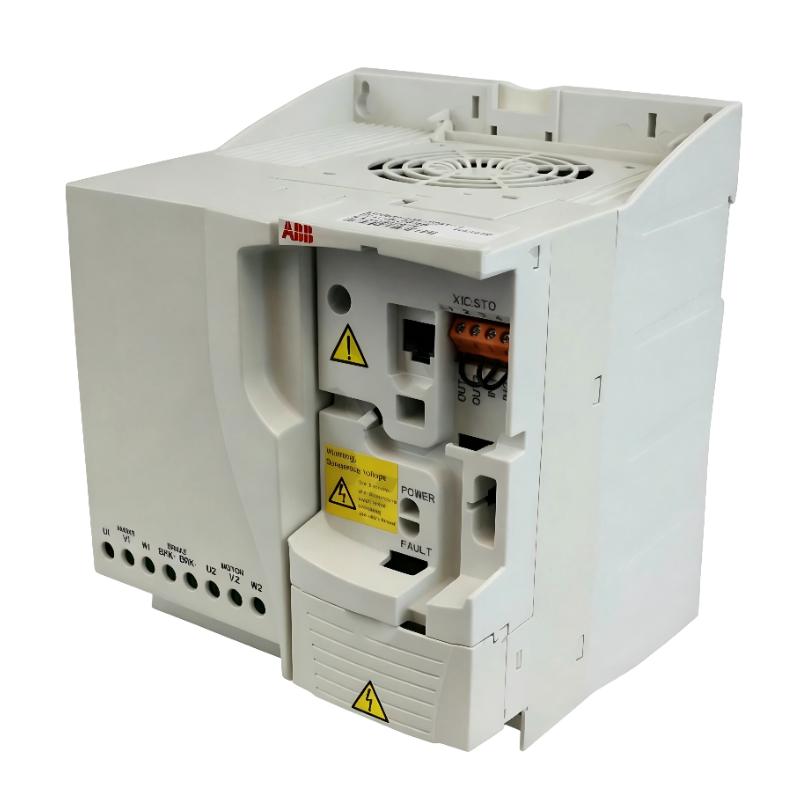

The ABB ACS355-03E-23A1-4 (3AUA0000058192) Frequency Converter is a compact and reliable variable frequency drive designed for industrial automation and motor control applications. It is part of the ABB ACS355 series, which is developed for machinery applications requiring stable speed regulation, accurate torque control, and flexible system integration.
This frequency converter is designed to control three-phase AC motors by adjusting output frequency and voltage. Through precise motor control, it helps improve machine performance, reduce mechanical stress, optimize energy consumption, and maintain stable production processes.
The ABB ACS355-03E-23A1-4 is suitable for medium-power industrial equipment such as conveyors, pumps, fans, processing machines, material handling systems, and automated production lines.
With its compact structure and reliable operation capability, this frequency converter can be easily integrated into industrial control cabinets while providing efficient motor control performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS355-03E-23A1-4 |
| Part Number | 3AUA0000058192 |
| Product Type | Frequency Converter / Variable Frequency Drive |
| Product Series | ABB ACS355 Series |
| Rated Motor Power | 11 kW |
| Rated Output Current | 23.1 A |
| Input Voltage | 380–480 V AC |
| Input Phase | Three-phase |
| Output Phase | Three-phase |
| Motor Control Type | Adjustable speed and torque control |
| Control Method | Scalar control and sensorless vector control |
| Protection Rating | IP20 |
| Installation Type | Cabinet mounting / Wall mounting |
| Cooling Method | Air cooling |
| Dimensions | 236 × 169 × 169 mm |
| Weight | 3.6 kg |
| Mounting Method | Vertical installation |
| Application | Industrial automation and motor control systems |
| Operating Environment | Industrial electrical cabinets |
Function and Working Principle
The ABB ACS355-03E-23A1-4 frequency converter operates by converting fixed-frequency AC power into adjustable frequency and voltage output for motor control.
The drive regulates the power supplied to the motor, allowing precise control of motor speed, torque, and operating performance according to different industrial requirements.
Variable Speed Regulation
The frequency converter adjusts motor speed by changing the output frequency.
This provides:
- Smooth motor startup and stopping
- Accurate speed adjustment
- Reduced mechanical impact
- Improved equipment performance
- Flexible production control
Torque Control Function
The ACS355-03E-23A1-4 provides stable torque control for applications where motor loads change during operation.
This makes it suitable for:
- Conveyor systems
- Production machinery
- Material handling equipment
- Processing systems
Energy Efficiency Improvement
By allowing motors to operate according to actual production requirements, the frequency converter helps optimize energy usage and improves overall system efficiency.
Motor Protection Capability
The drive monitors operating conditions and supports protection functions to improve motor reliability and reduce unexpected system downtime.
Role in Industrial Control Systems
The ABB ACS355-03E-23A1-4 works as an important motor control device between automation controllers and industrial motors.
In a typical industrial automation system, it works together with:
- PLC controllers
- HMI operator panels
- AC motors
- Communication modules
- Industrial sensors
- Machine control systems
The PLC sends commands such as start, stop, and speed references. The frequency converter processes these signals and adjusts motor operation according to configured parameters.
This improves:
- Machine stability
- Production efficiency
- Motor protection
- Automation flexibility
Industrial Applications
Conveyor Systems
The ABB ACS355-03E-23A1-4 provides accurate speed control for conveyor equipment used in manufacturing, logistics, and material transportation applications.
It helps maintain smooth product movement and reduces mechanical stress during startup and operation.
Pump Control Systems
The frequency converter regulates pump motor speed according to process requirements, helping maintain stable flow conditions and improve operational efficiency.
Fan and Ventilation Equipment
The drive controls fan speed according to system requirements, supporting efficient airflow management in industrial environments.
Packaging Machinery
The ACS355-03E-23A1-4 provides reliable motor control for automated packaging equipment requiring stable and continuous operation.
Material Handling Equipment
It supports smooth motor operation for lifting, feeding, and transportation systems.
Industrial Processing Machines
The frequency converter is suitable for processing equipment that requires continuous motor operation and accurate speed control.
Installation and System Integration
Correct installation and commissioning are essential to ensure reliable operation.
Recommended installation procedures include:
- Install the frequency converter inside a suitable electrical cabinet
- Maintain sufficient ventilation space
- Connect the correct three-phase power supply
- Configure motor parameters before operation
- Check control wiring connections
- Set communication parameters according to system requirements
During commissioning, engineers normally configure:
| Configuration Item | Purpose |
|---|---|
| Motor Rated Parameters | Ensures accurate motor control |
| Acceleration Time | Controls startup performance |
| Deceleration Time | Controls stopping process |
| Speed Limits | Defines operating range |
| Control Mode | Selects suitable motor control method |
| Protection Parameters | Improves system reliability |
Compatible System Components
The ABB ACS355-03E-23A1-4 can be integrated with various industrial automation components.
| Component | Function |
|---|---|
| ABB PLC Controllers | Provides automatic control commands |
| ABB HMI Panels | Enables operation monitoring and parameter adjustment |
| AC Motors | Converts electrical energy into mechanical movement |
| Communication Adapter Modules | Enables industrial network communication |
| Braking Resistors | Supports rapid stopping applications |
| EMC Filters | Reduces electromagnetic interference |
| Sensors and Feedback Devices | Provides process monitoring information |
Related ABB Accessories and Modules
| Model | Type | Function |
|---|---|---|
| ABB ACS-CP-A | Control Panel | Local operation and parameter setting |
| ABB ACS-CP-C | Advanced Control Panel | Configuration and monitoring |
| ABB FENA Series | Ethernet Adapter Module | Industrial Ethernet communication |
| ABB FPBA Series | PROFIBUS Adapter Module | PROFIBUS network connection |
| ABB FCAN Series | CANopen Adapter Module | CANopen communication support |
| ABB FMBA Series | Modbus Adapter Module | Modbus RTU communication integration |
Recommended Alternative ABB Frequency Converter Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| ABB ACS355-03E-15A6-4 | Frequency Converter | 7.5 kW motor control capability | Medium-load machinery |
| ABB ACS355-03E-23A1-4 | Frequency Converter | 11 kW motor control capability | Industrial equipment |
| ABB ACS355-03E-31A0-4 | Frequency Converter | Higher current capacity | Large automation systems |
| ABB ACS355-03E-38A0-4 | Frequency Converter | Increased motor capacity | Heavy industrial applications |
| ABB ACS355 Series | Variable Frequency Drive Family | Flexible automation platform | OEM and industrial applications |
Key Advantages
Compact Industrial Design
The ACS355-03E-23A1-4 combines strong motor control performance with a compact structure suitable for industrial cabinet installation.
Reliable Motor Performance
It provides stable speed and torque control under different operating conditions.
Flexible Automation Integration
The drive can be integrated with PLC systems and industrial communication networks for centralized automation control.
Improved Energy Efficiency
Variable speed operation helps optimize motor performance and reduce unnecessary energy consumption.
Easy Commissioning
The ACS355 series provides convenient parameter configuration and maintenance procedures.
Reliable Industrial Operation
Designed for continuous operation in demanding industrial automation environments.
Technical FAQs
What is the ABB ACS355-03E-23A1-4 used for?
The ABB ACS355-03E-23A1-4 is a frequency converter designed for controlling three-phase AC motors in industrial automation systems.
What is the motor power rating of this model?
This frequency converter is designed for 11 kW motor applications with a rated output current of 23.1 A.
Where is this frequency converter commonly installed?
It is commonly installed inside industrial control cabinets for conveyors, pumps, fans, processing machines, and production systems.
Can the ACS355-03E-23A1-4 connect with PLC systems?
Yes. It can be integrated into PLC-based automation systems through suitable communication modules and control interfaces.
Why choose ABB ACS355 frequency converters?
The ACS355 series provides compact design, reliable motor control, flexible integration, and simple commissioning for industrial applications.
Conclusion
The ABB ACS355-03E-23A1-4 (3AUA0000058192) Frequency Converter is a reliable variable frequency drive designed for industrial automation and motor control applications.
With its 11 kW motor control capability, 23.1 A output current, compact structure, and flexible integration features, it provides an effective solution for modern industrial machinery.
From conveyor systems and pumps to processing equipment and OEM automation solutions, the ACS355 frequency converter helps improve operational efficiency, enhance motor performance, and maintain stable production processes.
For automation engineers, system integrators, and maintenance teams, the ABB ACS355-03E-23A1-4 is a dependable solution for industrial motor control requirements.
