Product Overview

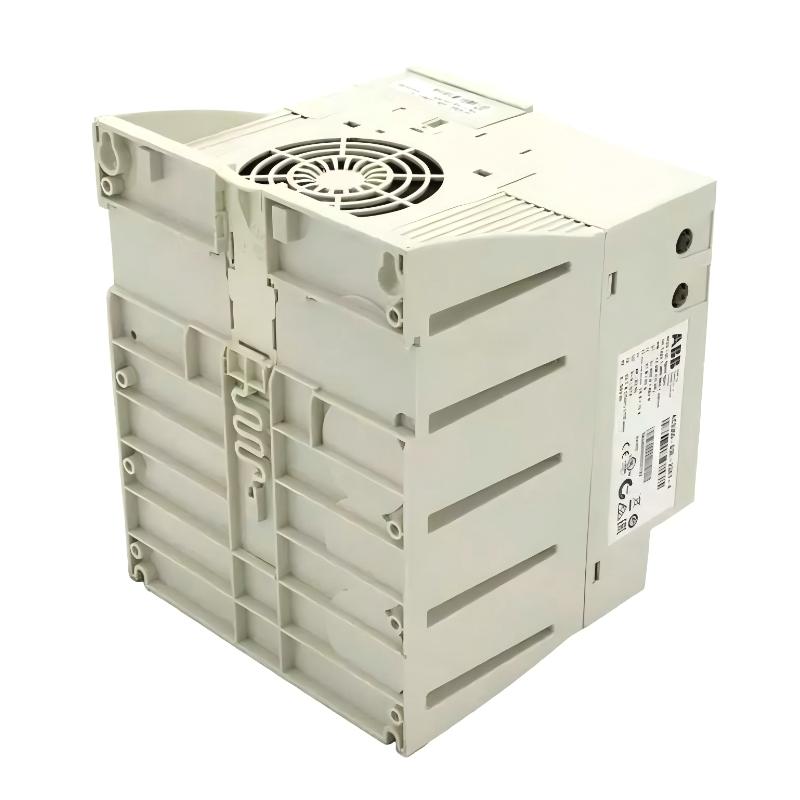

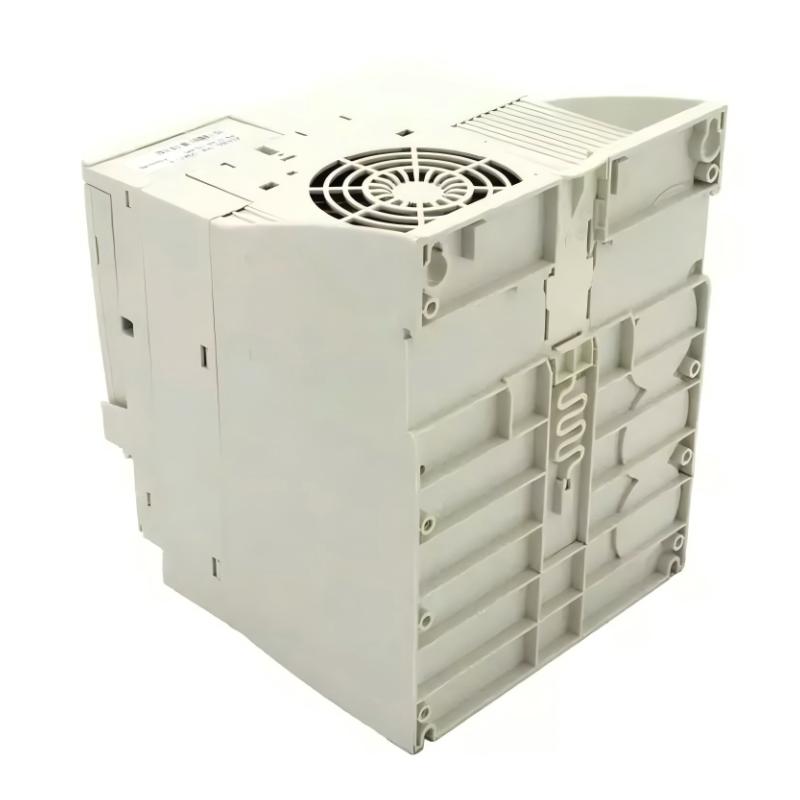

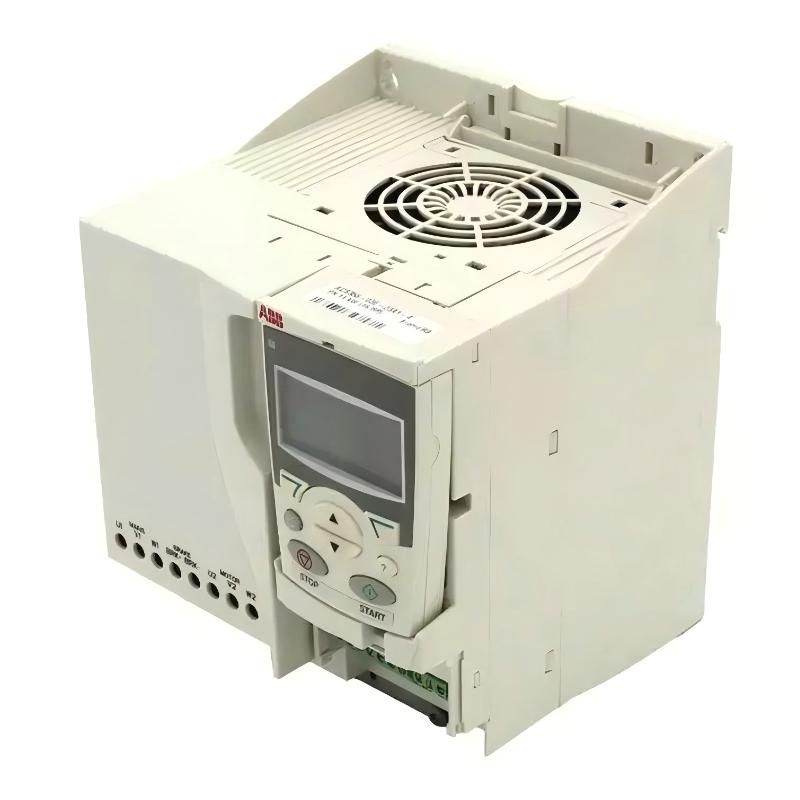

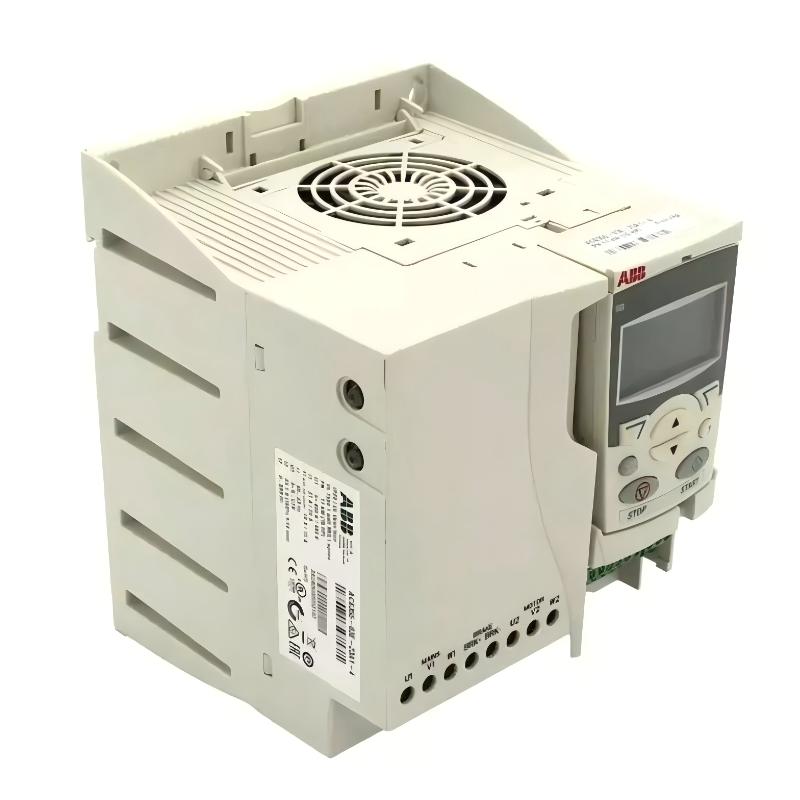

The ABB ACS355-03E-23A1-4 (3ABD0000058252) Frequency Converter is a high-performance variable frequency drive designed for industrial motor control applications that require reliable operation, accurate speed regulation, and stable torque performance.
As part of the ABB ACS355 series, this frequency converter is developed for machinery automation systems where efficient motor control, compact installation, and flexible integration are required. It controls three-phase AC motors by adjusting output frequency and voltage, allowing machines to achieve smoother operation and improved production efficiency.
With a higher current capacity compared with smaller ACS355 models, the ACS355-03E-23A1-4 is suitable for medium and higher-load industrial equipment such as conveyors, pumps, fans, processing machines, and automated production systems.
Its compact design makes it suitable for installation inside electrical cabinets while providing reliable performance for continuous industrial operation.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS355-03E-23A1-4 |
| Part Number | 3ABD0000058252 |
| Product Type | Frequency Converter / Variable Frequency Drive |
| Product Series | ABB ACS355 Series |
| Rated Motor Power | 11 kW |
| Rated Output Current | 23.1 A |
| Input Voltage | 380–480 V AC |
| Input Phase | Three-phase |
| Output Phase | Three-phase |
| Motor Control Type | Adjustable speed and torque control |
| Control Method | Scalar control and sensorless vector control |
| Protection Rating | IP20 |
| Installation Type | Cabinet mounting / Wall mounting |
| Cooling Method | Air cooling |
| Dimensions | 169 × 169 × 169 mm |
| Weight | 2.93 kg |
| Mounting Method | Vertical installation |
| Application | Industrial automation and motor control systems |
| Operating Environment | Industrial electrical cabinets |
Function and Working Principle
The ABB ACS355-03E-23A1-4 frequency converter operates by converting fixed-frequency AC input power into adjustable frequency and voltage output for motor control.
The drive regulates the electrical power supplied to the motor, allowing precise control of motor speed, torque, and operating performance.
Variable Speed Control
The frequency converter adjusts motor speed by changing the output frequency.
This provides:
- Smooth startup and stopping
- Accurate speed regulation
- Reduced mechanical stress
- Improved machine performance
- Flexible production control
Torque Control Capability
The ACS355-03E-23A1-4 maintains stable torque output under changing load conditions.
This makes it suitable for applications including:
- Conveyor systems
- Industrial processing equipment
- Material transportation systems
- Production machinery
Energy Efficiency Improvement
By adjusting motor operation according to actual process requirements, the frequency converter helps reduce unnecessary energy consumption and improves overall system efficiency.
Motor Protection Functions
The drive continuously monitors operating conditions and supports protective functions to improve motor reliability and reduce equipment downtime.
Role in Industrial Control Systems
The ABB ACS355-03E-23A1-4 works as an important motor control component within industrial automation architectures.
It is commonly integrated with:
- PLC controllers
- HMI operator panels
- AC motors
- Communication modules
- Industrial sensors
- Machine control systems
The PLC sends commands such as start, stop, and speed references to the frequency converter. The drive processes these signals and controls motor operation according to configured parameters.
This improves:
- Machine stability
- Production efficiency
- Motor performance
- Automation flexibility
Industrial Applications
The ABB ACS355-03E-23A1-4 is widely used in industrial environments requiring dependable motor control.
Conveyor Automation Systems
The frequency converter provides precise speed adjustment for conveyor belts used in manufacturing, logistics, and material handling.
Pump Control Systems
It regulates pump motor speed according to process requirements, helping maintain stable flow and efficient operation.
Fan and Ventilation Systems
The drive controls fan speed to optimize airflow management and reduce unnecessary energy consumption.
Packaging Machinery
The ACS355-03E-23A1-4 provides reliable motor control for automated packaging equipment requiring stable operation.
Material Processing Equipment
It supports motors used in industrial processing, feeding, and transportation applications.
OEM Automation Machines
Machine builders use this type of frequency converter for integrated solutions requiring compact size and dependable performance.
Installation and System Integration
Proper installation and commissioning are essential for achieving stable operation.
Recommended installation procedures include:
- Install the frequency converter inside a suitable electrical cabinet
- Ensure sufficient cooling and ventilation space
- Connect the correct three-phase power supply
- Configure motor parameters before operation
- Check control wiring connections
- Set communication parameters when required
During commissioning, engineers normally configure:
| Configuration Item | Purpose |
|---|---|
| Motor Rated Data | Ensures accurate motor control |
| Acceleration Settings | Controls startup performance |
| Deceleration Settings | Controls stopping operation |
| Speed Limits | Defines operating range |
| Control Mode | Selects suitable motor control method |
| Protection Parameters | Improves system reliability |
Compatible System Components
The ABB ACS355-03E-23A1-4 can work together with various industrial automation components.
| Component | Function |
|---|---|
| ABB PLC Controllers | Provides automatic control commands |
| ABB HMI Panels | Enables operation monitoring and adjustment |
| AC Motors | Converts electrical power into mechanical movement |
| Communication Adapter Modules | Enables industrial network connection |
| Braking Resistors | Supports rapid stopping applications |
| EMC Filters | Reduces electromagnetic interference |
| Sensors and Feedback Devices | Provides process monitoring signals |
Related ABB Accessories and Modules
| Model | Type | Function |
|---|---|---|
| ABB ACS-CP-A | Control Panel | Local operation and parameter adjustment |
| ABB ACS-CP-C | Advanced Control Panel | Configuration and monitoring |
| ABB FENA Series | Ethernet Adapter Module | Industrial Ethernet communication |
| ABB FPBA Series | PROFIBUS Adapter Module | PROFIBUS network integration |
| ABB FCAN Series | CANopen Adapter Module | CANopen communication support |
| ABB FMBA Series | Modbus Adapter Module | Modbus RTU communication |
Recommended Alternative ABB Frequency Converter Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| ABB ACS355-03E-15A6-4 | Frequency Converter | 7.5 kW motor control capability | Medium-load machinery |
| ABB ACS355-03E-23A1-4 | Frequency Converter | 11 kW motor control capability | Higher-load industrial equipment |
| ABB ACS355-03E-31A0-4 | Frequency Converter | Increased current capacity | Large automation systems |
| ABB ACS355-03E-38A0-4 | Frequency Converter | Higher motor capacity | Heavy industrial applications |
| ABB ACS355 Series | Variable Frequency Drive Family | Flexible automation platform | OEM and industrial applications |
Key Advantages
Compact Industrial Design
The ACS355-03E-23A1-4 provides powerful motor control capability while maintaining a compact structure for industrial cabinet installation.
Reliable Motor Performance
It delivers stable speed and torque control for demanding industrial applications.
Flexible Automation Integration
The drive can be integrated with PLC systems and industrial communication networks for centralized automation control.
Improved Energy Management
Variable speed control helps optimize motor operation and reduce unnecessary energy consumption.
Easy Commissioning
The ACS355 series provides simple parameter configuration and convenient maintenance procedures.
Continuous Industrial Reliability
Designed for stable operation in demanding automation environments.
Technical FAQs
What is the ABB ACS355-03E-23A1-4 used for?
The ABB ACS355-03E-23A1-4 is a frequency converter designed for controlling three-phase AC motors in industrial automation applications.
What is the motor power rating of this model?
This frequency converter is designed for approximately 11 kW motor applications with a rated output current of 23.1 A.
Where is this frequency converter commonly installed?
It is typically installed inside industrial control cabinets for conveyors, pumps, fans, processing machines, and production systems.
Can the ACS355-03E-23A1-4 connect with PLC systems?
Yes. It can be integrated into PLC-based automation systems through suitable communication modules and control interfaces.
Why choose ABB ACS355 frequency converters?
The ACS355 series provides compact design, reliable motor control, flexible integration, and simple commissioning for industrial applications.
Conclusion
The ABB ACS355-03E-23A1-4 (3ABD0000058252) Frequency Converter is a reliable variable frequency drive designed for industrial automation and motor control applications.
With its 11 kW motor control capability, 23.1 A output current, compact structure, and flexible integration features, it provides an effective solution for modern industrial machinery.
From conveyor systems and pumps to processing equipment and OEM automation solutions, the ACS355 frequency converter helps improve operational efficiency, enhance motor performance, and maintain stable industrial production.
For automation engineers, system integrators, and maintenance teams, the ABB ACS355-03E-23A1-4 is a dependable solution for industrial motor control requirements.
