Product Overview

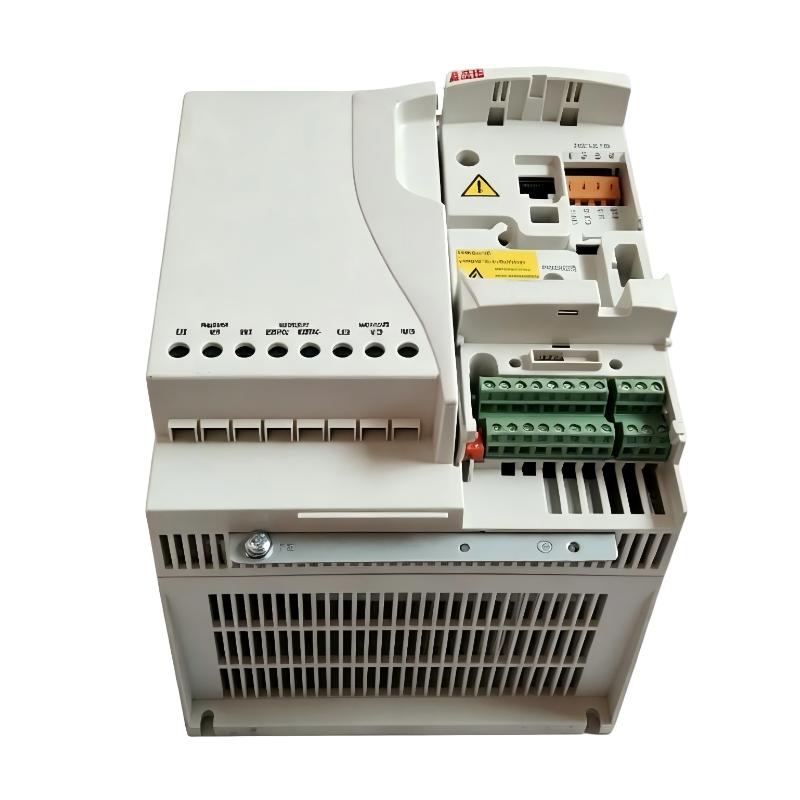

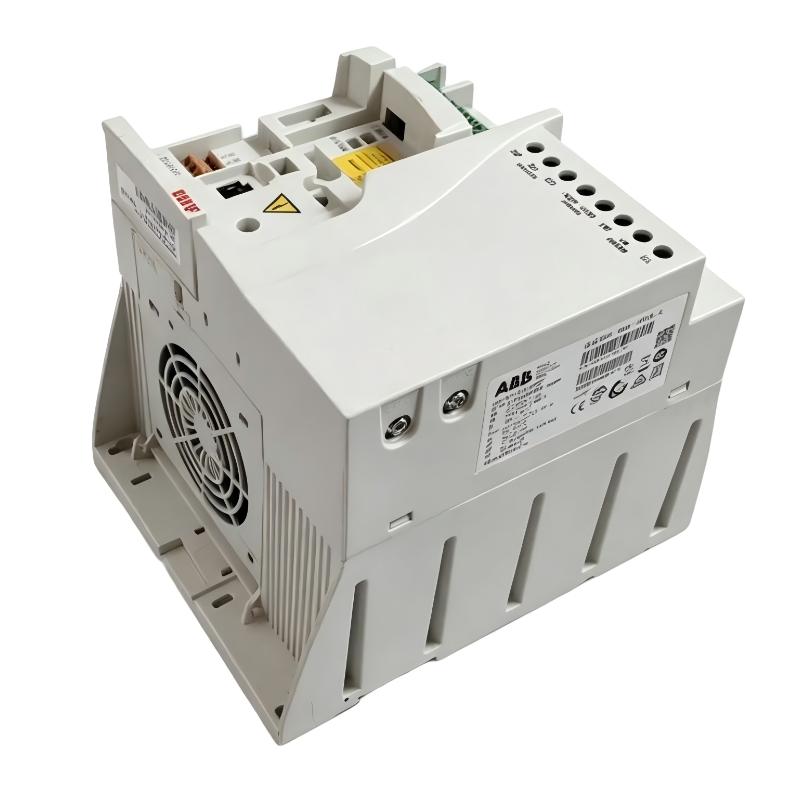

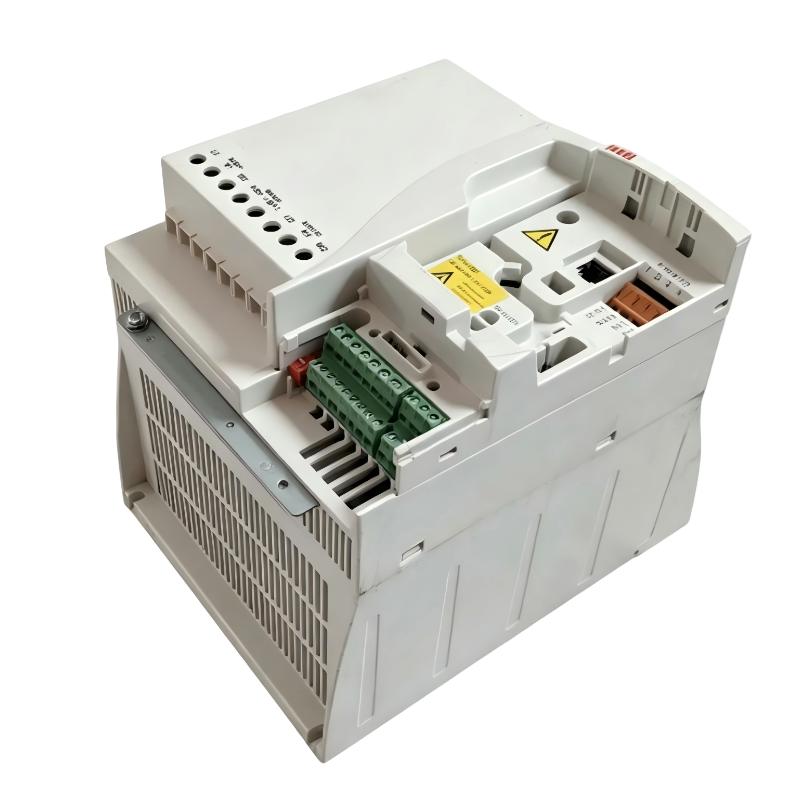

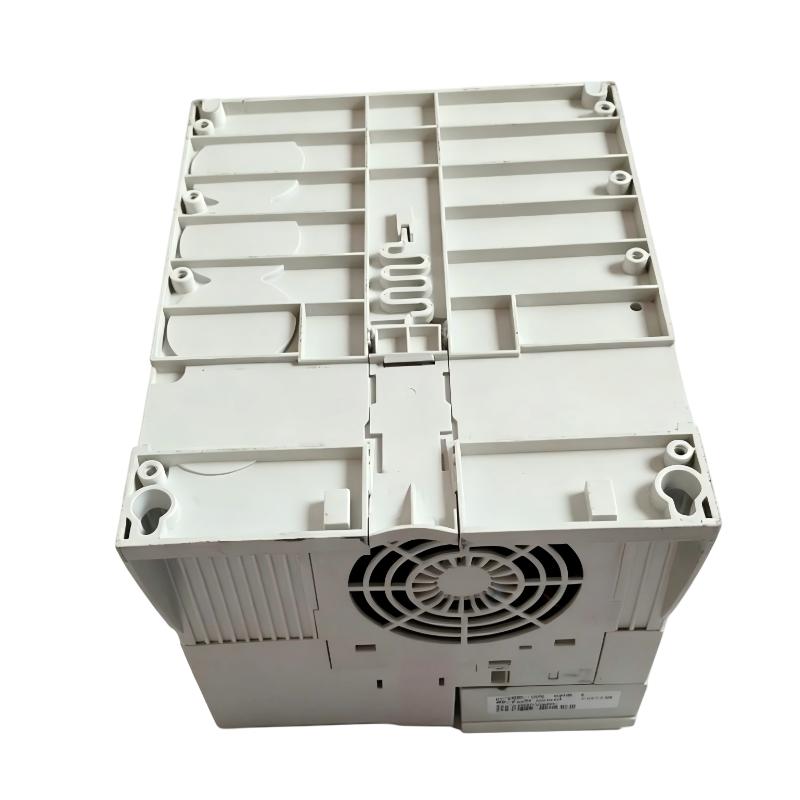

The ABB ACS355-03E-15A6-4 (3ABD0000058251) Frequency Converter is a high-performance variable frequency drive designed for industrial motor control applications. It belongs to the ABB ACS355 series and is developed for machinery applications that require reliable speed regulation, accurate torque control, and flexible automation integration.
The frequency converter controls three-phase AC motors by adjusting output frequency and voltage, allowing industrial equipment to achieve smooth operation, improved efficiency, and better process control.
With its compact design and powerful motor control capability, the ABB ACS355-03E-15A6-4 is widely used in industrial machinery, conveyors, pumps, fans, lifting equipment, packaging systems, and OEM automation solutions.
This model is suitable for applications requiring higher motor capacity while maintaining a compact installation structure inside industrial control cabinets.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS355-03E-15A6-4 |
| Part Number | 3ABD0000058251 |
| Product Type | Frequency Converter / Variable Frequency Drive |
| Product Series | ABB ACS355 Series |
| Rated Motor Power | 7.5 kW |
| Rated Output Current | 15.6 A |
| Input Voltage | 380–480 V AC |
| Input Phase | Three-phase |
| Output Phase | Three-phase |
| Motor Control Type | Adjustable speed and torque control |
| Control Method | Scalar control and sensorless vector control |
| Protection Rating | IP20 |
| Installation Type | Cabinet mounting / Wall mounting |
| Cooling Method | Air cooling |
| Dimensions | 169 × 169 × 169 mm |
| Weight | 3 kg |
| Mounting Method | Vertical installation |
| Application | Industrial automation and motor control systems |
| Operating Environment | Industrial electrical cabinets |
Function and Working Principle
The ABB ACS355-03E-15A6-4 frequency converter converts fixed-frequency AC input power into adjustable frequency and voltage output for controlling motor operation.
By adjusting the electrical output supplied to the motor, the drive can regulate speed, torque, and operating performance according to different industrial requirements.
Variable Speed Control
The frequency converter changes motor speed by adjusting the output frequency.
Main benefits include:
- Smooth acceleration and stopping
- Precise speed adjustment
- Reduced mechanical stress
- Improved machine performance
Torque Management
The ACS355-03E-15A6-4 provides stable torque control for applications where motor loads vary during operation.
This helps maintain reliable performance in:
- Conveyor systems
- Material handling equipment
- Processing machines
- Automated production lines
Energy Optimization
By allowing motors to operate according to actual production requirements, the frequency converter helps improve energy efficiency and reduce unnecessary power consumption.
Motor Protection
The drive monitors motor operating conditions and provides protection functions to improve equipment safety and reliability.
Role in Industrial Control Systems
The ABB ACS355-03E-15A6-4 serves as a key motor control device between automation controllers and industrial motors.
In a complete automation system, it commonly works with:
- PLC controllers
- HMI operator interfaces
- AC motors
- Communication modules
- Industrial sensors
- Machine control systems
The PLC provides control commands, while the frequency converter processes these signals and adjusts motor operation based on configured parameters.
This helps improve:
- Equipment stability
- Production efficiency
- Motor protection
- Automation flexibility
Industrial Applications
The ABB ACS355-03E-15A6-4 is designed for a wide range of industrial applications requiring reliable motor control.
Conveyor Systems
The frequency converter provides accurate speed adjustment for conveyor equipment used in manufacturing, logistics, and material transportation.
Pump Applications
It controls pump motor speed according to process requirements, helping maintain stable flow and improve system efficiency.
Fan and Ventilation Systems
The drive adjusts fan speed to optimize airflow control in industrial environments.
Packaging Machinery
The compact design and advanced control functions make it suitable for automated packaging equipment.
Lifting and Material Handling Equipment
The frequency converter provides smooth motor control for lifting, feeding, and transportation applications.
Industrial Processing Equipment
It supports reliable motor operation in production systems requiring continuous operation.
Installation and System Integration
Correct installation and commissioning are essential for ensuring stable operation.
Recommended installation procedures include:
- Install the frequency converter inside a suitable electrical cabinet
- Maintain proper ventilation clearance
- Connect correct three-phase power supply
- Configure motor parameters before startup
- Check control wiring connections
- Set communication parameters according to system requirements
During commissioning, engineers normally configure:
| Configuration Item | Purpose |
|---|---|
| Motor Rated Parameters | Ensures accurate motor operation |
| Acceleration Settings | Controls startup process |
| Deceleration Settings | Controls stopping performance |
| Speed Limits | Defines operating range |
| Control Mode | Selects suitable motor control method |
| Protection Parameters | Improves system reliability |
Compatible System Components
The ABB ACS355-03E-15A6-4 can be integrated with various industrial automation components.
| Component | Function |
|---|---|
| ABB PLC Controllers | Provides automatic control commands |
| ABB HMI Panels | Enables operation monitoring and adjustment |
| AC Motors | Converts electrical power into mechanical motion |
| Communication Adapter Modules | Enables industrial network connection |
| Braking Resistors | Supports rapid stopping requirements |
| EMC Filters | Reduces electromagnetic interference |
| Sensors and Feedback Devices | Provides operating status information |
Related ABB Accessories and Modules
| Model | Type | Function |
|---|---|---|
| ABB ACS-CP-A | Control Panel | Local operation and parameter setting |
| ABB ACS-CP-C | Advanced Control Panel | Enhanced configuration and monitoring |
| ABB FENA Series | Ethernet Adapter Module | Industrial Ethernet communication |
| ABB FPBA Series | PROFIBUS Adapter Module | PROFIBUS network integration |
| ABB FCAN Series | CANopen Adapter Module | CANopen communication support |
| ABB FMBA Series | Modbus Adapter Module | Modbus RTU communication |
Recommended Alternative ABB Frequency Converter Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| ABB ACS355-03E-12A5-4 | Frequency Converter | 5.5 kW motor control capability | Medium-load machinery |
| ABB ACS355-03E-15A6-4 | Frequency Converter | 7.5 kW motor control capability | Higher-load industrial equipment |
| ABB ACS355-03E-23A1-4 | Frequency Converter | Increased current capacity | Heavy-duty applications |
| ABB ACS355-03E-31A0-4 | Frequency Converter | Large motor control capacity | Industrial production systems |
| ABB ACS355 Series | Variable Frequency Drive Family | Flexible automation platform | OEM and industrial applications |
Key Advantages
Compact Industrial Design
The ACS355-03E-15A6-4 provides strong motor control performance while maintaining a compact structure suitable for industrial cabinets.
Reliable Speed and Torque Control
It delivers stable motor operation under different load conditions.
Flexible Automation Integration
The drive can be integrated with PLC systems and industrial communication networks.
Improved Energy Efficiency
Variable speed operation helps optimize motor performance and reduce energy consumption.
Easy Commissioning
The ACS355 series provides convenient configuration and maintenance procedures.
Industrial Reliability
Designed for continuous operation in demanding automation environments.
Technical FAQs
What is the ABB ACS355-03E-15A6-4 used for?
The ABB ACS355-03E-15A6-4 is a frequency converter designed for controlling three-phase AC motors in industrial automation systems.
What is the motor power rating of this model?
This frequency converter is designed for approximately 7.5 kW motor applications with a rated output current of 15.6 A.
Where is this frequency converter commonly installed?
It is commonly installed inside industrial control cabinets for conveyors, pumps, fans, lifting systems, and production machinery.
Can the ACS355-03E-15A6-4 connect with PLC systems?
Yes. It can be integrated into PLC-based automation systems through suitable control interfaces and communication modules.
Why choose the ABB ACS355 series?
The ACS355 series provides compact design, reliable motor control, flexible integration, and simple commissioning for industrial applications.
Conclusion
The ABB ACS355-03E-15A6-4 (3ABD0000058251) Frequency Converter is a reliable variable frequency drive designed for industrial automation and motor control applications.
With its 7.5 kW motor control capability, 15.6 A output current, stable speed regulation, and flexible integration features, it provides an effective solution for modern industrial machinery.
From conveyor systems and pumps to packaging equipment and OEM automation solutions, the ACS355 frequency converter helps improve operational efficiency, enhance motor performance, and maintain stable production processes.
For automation engineers, system integrators, and maintenance teams, the ABB ACS355-03E-15A6-4 is a dependable choice for industrial motor control applications.
