Product Overview

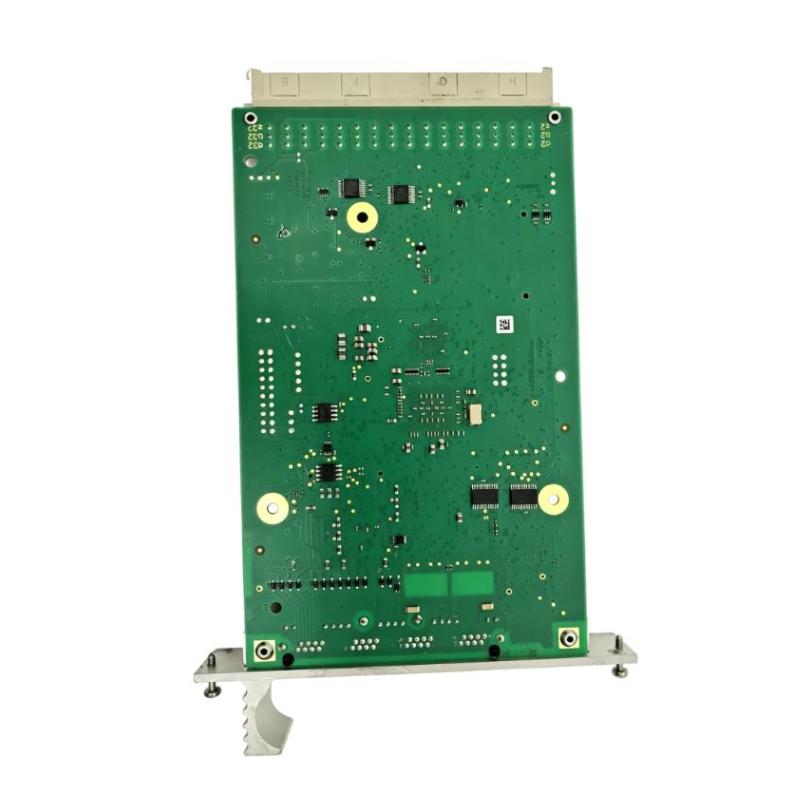

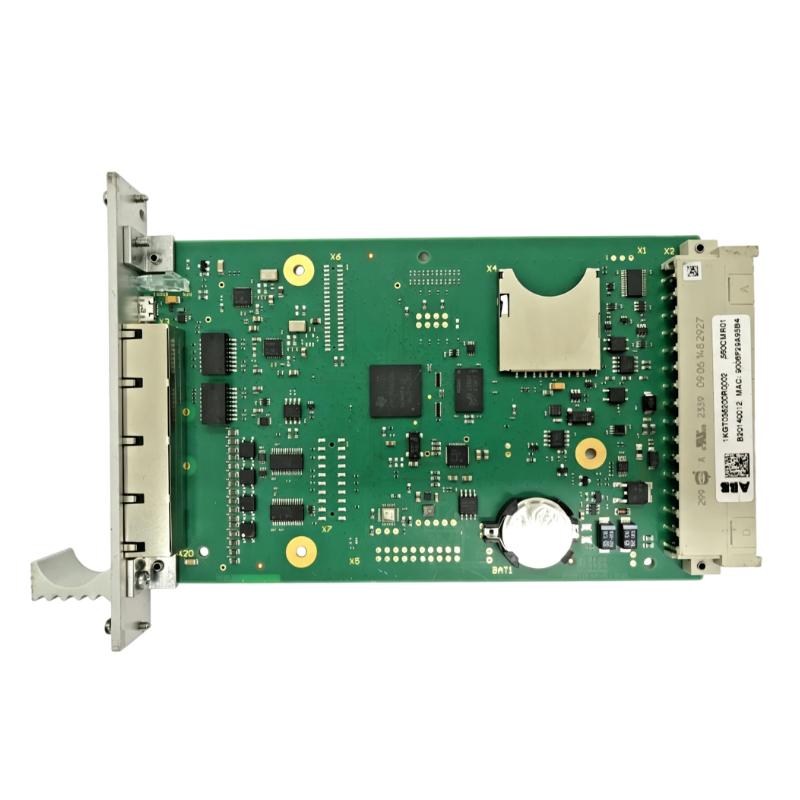

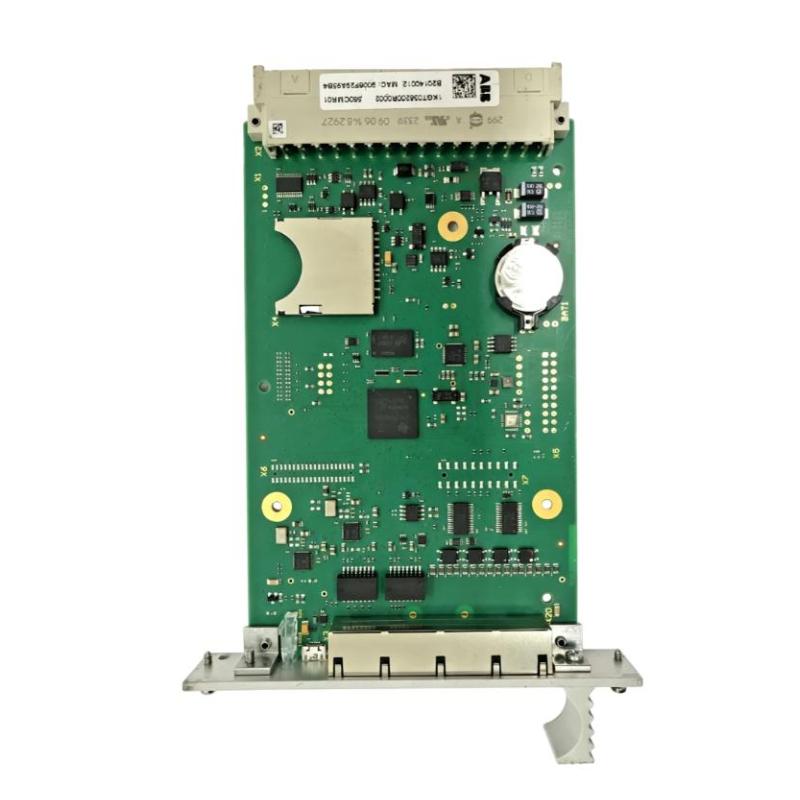

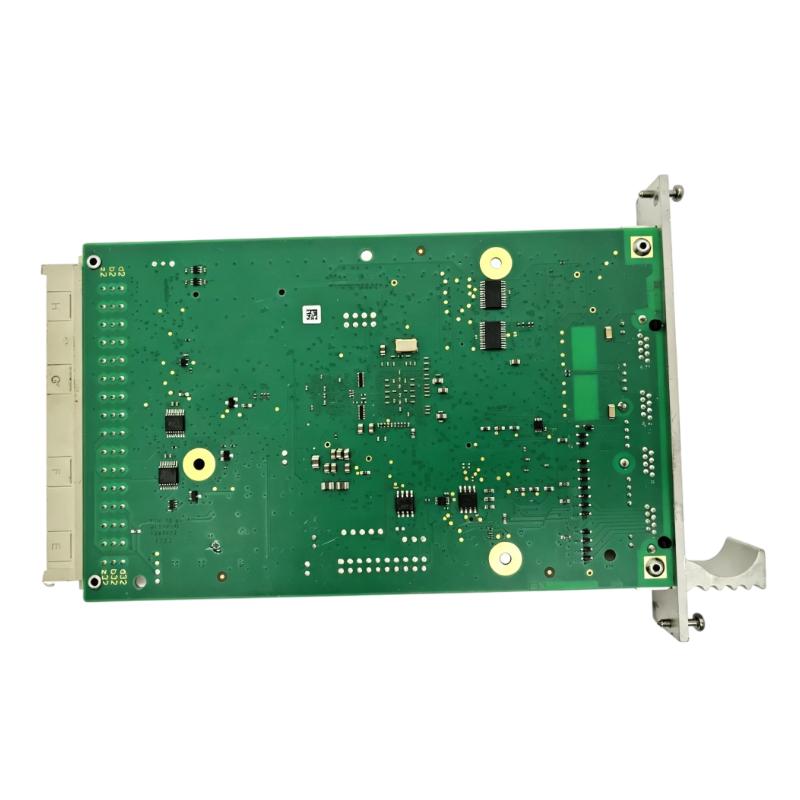

The ABB 560CMR01 R0001 1KGT036200R0001 RTU560 Communication Unit is a communication interface component used within ABB RTU560 remote terminal unit systems. It supports the exchange of information between the RTU platform and connected communication networks, making it suitable for installations where remote data acquisition and supervisory communication are required.
In a typical substation or remote automation installation, the communication unit works alongside RTU560 processing, I/O, and communication components. Field measurements and equipment status are collected by the RTU system, processed by the control architecture, and transferred through the communication interface to an upper-level control or supervisory system.
The unit is suited to applications where remote equipment must exchange operational information with a control center. Typical environments include electrical substations, utility networks, power distribution facilities, and geographically distributed automation systems. Communication architecture and interface configuration should be checked according to the particular RTU560 system before commissioning.
For maintenance or replacement, engineers should verify the complete part number, RTU560 system configuration, communication interface requirements, connected network equipment, and existing parameter settings. Checking the communication path as a whole is useful when diagnosing loss of remote data or intermittent communication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 560CMR01 R0001 |
| Part Number | 1KGT036200R0001 |
| Product Family | ABB RTU560 |
| Product Type | Communication Unit |
| Primary Function | RTU communication interface |
| System Role | Remote terminal unit communication interface |
| Application | Substation automation, utility automation, and remote monitoring |
| Dimensions | 206 × 40 × 143 mm |
| Weight | 0.158 kg |
Product Features
- ABB RTU560 communication platform component
- Supports communication within remote terminal unit architectures
- Suitable for utility and electrical automation systems
- Interfaces with associated RTU560 system components
- Supports remote data exchange between field systems and supervisory equipment
- Suitable for substation and power distribution applications
- Compact communication interface for RTU installations
- Useful for remote monitoring and control architectures
- Supports centralized troubleshooting of communication paths
- Applicable to distributed electrical automation systems
Working Principle
The 560CMR01 R0001 operates as part of the communication path within an RTU560 system. Data collected from field I/O and connected equipment is handled by the RTU architecture and transferred through the communication subsystem toward the remote control center or supervisory network.
In the opposite direction, commands or control information received from the supervisory side are passed through the RTU communication architecture toward the appropriate control and I/O components.
Field Equipment → RTU560 I/O / Processing → 560CMR01 Communication Unit → Communication Network → Control Center
When communication problems occur, engineers should check the complete path rather than the communication unit alone. RTU configuration, network connections, interface settings, cables, and the receiving system can all affect data exchange.
Role in an ABB RTU560 Communication Architecture
The 560CMR01 is positioned within the communication layer of an RTU560 installation. It works with the RTU processing and I/O architecture to move operational information between remote field equipment and higher-level supervisory systems.
Field Devices → RTU560 I/O → RTU560 Processing → 560CMR01 → Communication Network → SCADA / Control Center
| System Element | Function |
|---|---|
| Field Devices | Provide measurements, status signals, and equipment information |
| RTU560 I/O | Acquires field signals and interfaces with controlled equipment |
| RTU560 Processing Unit | Processes data and executes the configured RTU functions |
| 560CMR01 | Handles the communication interface within the RTU560 architecture |
| Communication Network | Transfers RTU data between the remote site and supervisory system |
| SCADA / Control Center | Receives remote data and sends supervisory commands |
Industrial Applications
| Application | Typical Use |
|---|---|
| Electrical Substations | Remote monitoring and control of substation equipment |
| Power Distribution | Communication between distributed electrical sites and control centers |
| Utility Automation | Remote data acquisition from geographically distributed assets |
| Grid Monitoring | Transmission of equipment status and electrical measurements |
| Substation SCADA | Communication between RTU systems and supervisory platforms |
| Remote Infrastructure | Centralized monitoring of unattended or remote facilities |
| Industrial Power Systems | Integration of electrical equipment into supervisory control systems |
| Energy Management | Transfer of operational information to centralized monitoring systems |
Installation and Maintenance
- Verify the complete 560CMR01 R0001 / 1KGT036200R0001 identification before replacement.
- Check the existing RTU560 hardware configuration before removing the communication unit.
- Record relevant communication parameters and configuration settings.
- Isolate the equipment according to the site’s maintenance and electrical safety procedures.
- Inspect the mounting position and module connections for mechanical damage.
- Check communication cables and connectors for looseness, contamination, or damaged contacts.
- Verify that the connected RTU560 processing and I/O components are correctly installed.
- Confirm that the communication network equipment is operating normally.
- Check the communication path from the RTU560 system to the control center.
- After installation, verify module status and communication diagnostics.
- Confirm that remote measurements, status information, and required control commands are exchanged correctly.
- Record the replacement configuration and communication test results for future maintenance.
Related Components
| Component | Function |
|---|---|
| ABB RTU560 | Remote terminal unit platform |
| RTU560 Processing Unit | Executes RTU processing and data handling |
| RTU560 I/O Modules | Interfaces with field measurements and control signals |
| Communication Network | Transfers data between remote sites and supervisory systems |
| SCADA System | Supervises remote electrical and utility assets |
| Substation Equipment | Provides the field-side electrical data and control points |
| Communication Cables | Connect communication equipment within the system |
| Control Center | Receives remote information and issues supervisory commands |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| 560CMR01 R0001 | RTU560 Communication Unit | RTU communication interface |
| 1KGT036200R0001 | RTU560 Communication Unit Part Number | Communication system replacement |
| ABB RTU560 Series | Remote Terminal Unit | Substation and utility automation |
| RTU560 Communication Units | Communication Components | Remote data communication |
| RTU560 Processing Units | RTU Processing Components | Data processing and control |
| RTU560 I/O Modules | Remote I/O Components | Field signal acquisition and control |
| RTU560 Communication Modules | Communication Components | Network and supervisory communication |
| RTU560 System Components | RTU Hardware | Complete remote automation systems |
Key Advantages
- Integrates communication functions into ABB RTU560 architectures
- Suitable for remote substation and utility automation
- Supports communication between RTU equipment and supervisory systems
- Fits distributed monitoring and control architectures
- Compact module for RTU system installations
- Useful for centralized remote equipment management and diagnostics
Technical FAQs
Where is the 560CMR01 normally used within an RTU560 system?
The 560CMR01 is used in the communication layer of an RTU560 installation. It works with the RTU processing and I/O architecture to exchange operational information with connected communication networks and supervisory systems.
What should be checked if the RTU is collecting field data but the control center receives no information?
Check the 560CMR01 status, communication connections, network equipment, configured communication parameters, RTU processing components, and the receiving SCADA or control-center interface. If local field data is available, the fault can often be narrowed to the communication path between the RTU and supervisory system.
Can intermittent communication be caused by wiring rather than the communication unit?
Yes. Loose connectors, damaged communication cables, poor contacts, incorrect network configuration, or unstable external communication equipment can produce intermittent data loss. Checking the complete communication path is more effective than immediately replacing the communication unit.
What should be verified before replacing a 560CMR01 R0001?
The complete part number, RTU560 hardware configuration, communication parameters, connected network equipment, and existing system configuration should be documented before removal. After installation, communication diagnostics and end-to-end data exchange should be tested before the RTU is returned to normal service.
