Product Overview

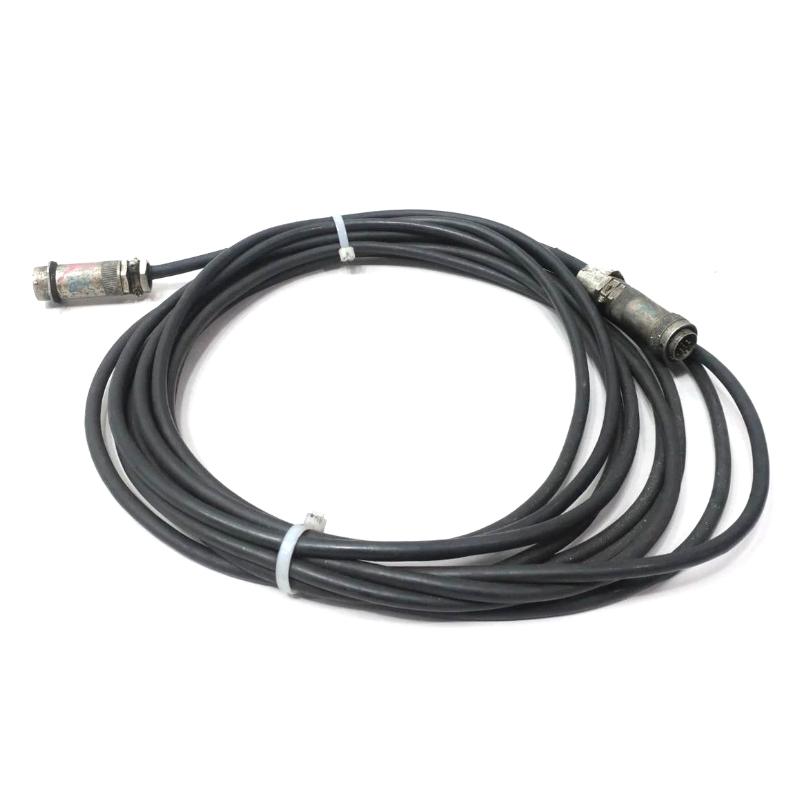

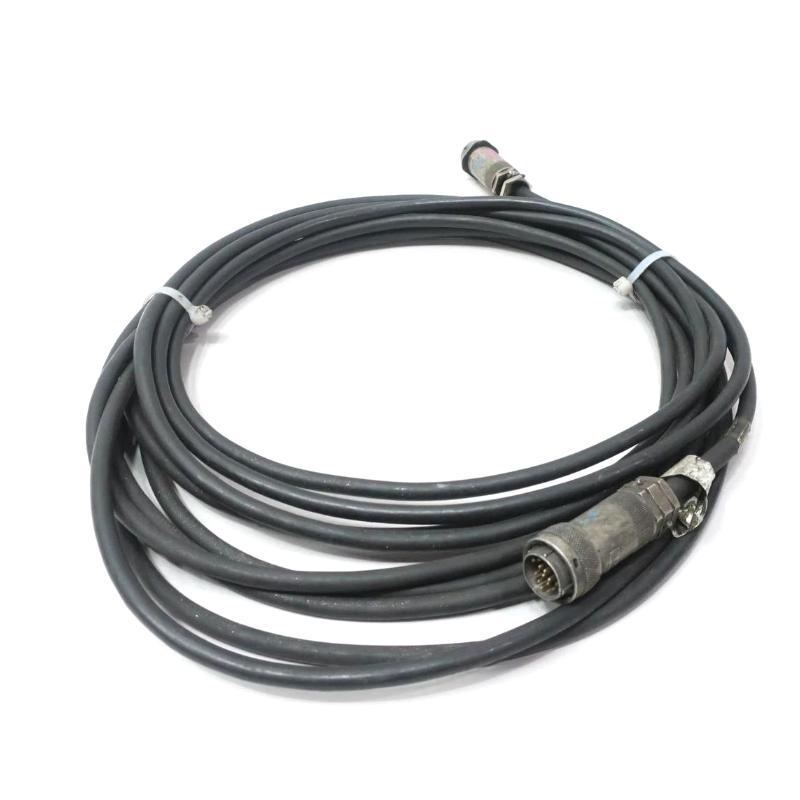

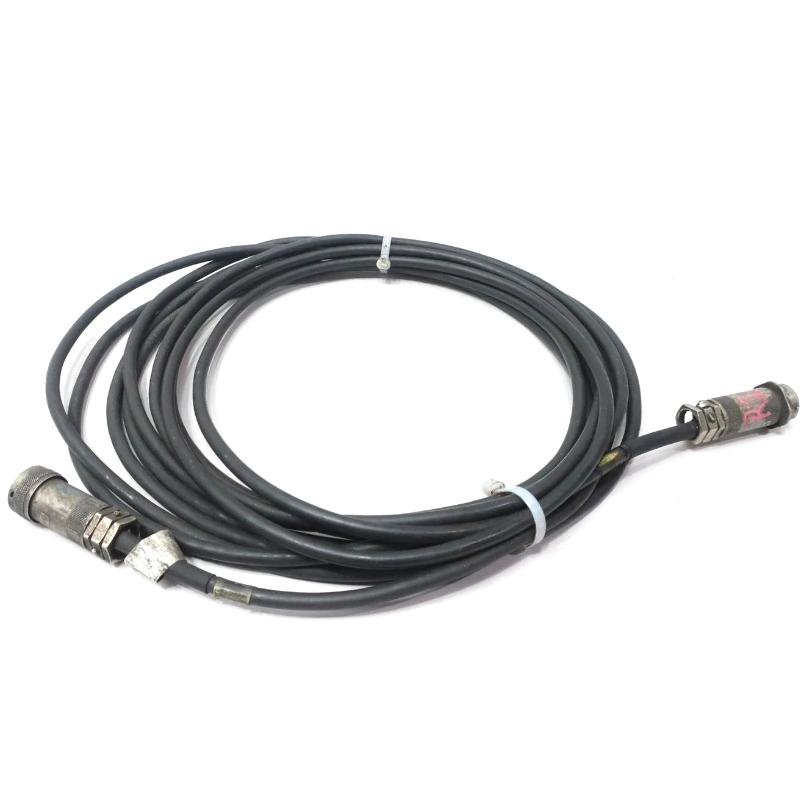

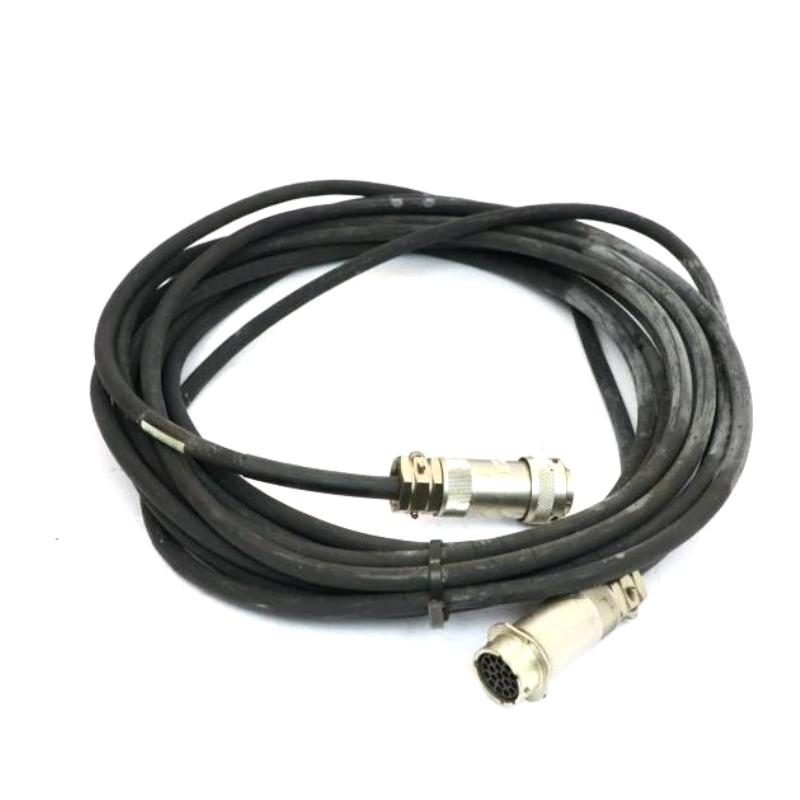

The ABB 3HNE00133-1 is an extension cable for TPU-related connections in ABB S4C and S4C+ robot controller installations. It is used when the physical arrangement of the teach pendant or associated TPU connection requires additional cable reach between the operator interface and the controller-side connection point.
In an ABB robot cell, the TPU provides the local interface used by operators and maintenance personnel for robot operation, programming, jogging, and service functions. An extension cable can accommodate installations where the controller cabinet and operator working position are separated by the physical layout of the cell.
The cable forms part of the connection path rather than performing any active processing. It carries the required electrical signals between compatible TPU-related interfaces while allowing the connected equipment to remain positioned according to the robot-cell layout.
For maintenance work, the cable should be considered together with the TPU, controller connection, connectors, and routing path. A damaged or intermittently connected cable can affect operator-interface communication even when the controller and TPU themselves are functioning correctly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 3HNE00133-1 |
| Product Family | ABB S4C / S4C+ |
| Product Type | Extension Cable for TPU |
| Primary Function | Extension of the TPU connection |
| System Role | Robot operator-interface connection |
| Typical Application | ABB industrial robot controller installations |
| Cable Length | 10 meters |
| Shipping Weight | 3 kg |
Product Features
- Extension cable for compatible ABB S4C and S4C+ TPU connections
- Provides additional cable reach between the TPU and controller-side connection
- Suitable for robot-cell layouts requiring greater separation between operator and controller locations
- Supports the electrical connection required by the associated TPU interface
- Useful for robot installation, commissioning, and maintenance
- Suitable for replacement of compatible existing cable assemblies
- Requires verification of connector arrangement and controller compatibility before installation
Working Principle
The 3HNE00133-1 functions as a passive electrical connection between compatible TPU-related interfaces. Signals generated by the connected teach pendant travel through the extension cable to the corresponding controller-side interface, while signals and communication information from the controller travel in the opposite direction.
TPU → 3HNE00133-1 Extension Cable → S4C / S4C+ Controller Interface
The cable does not execute robot programs or interpret operator commands. The TPU provides the operator interface, while the S4C or S4C+ controller processes the commands and manages the robot application.
Because the cable is part of the complete TPU communication path, connector condition, conductor continuity, cable routing, and mechanical stress can directly affect the operator interface. An intermittent connection may appear as loss of communication, unexpected TPU behavior, or unstable operator interaction.
Role in an ABB S4C / S4C+ Robot Control Architecture
The 3HNE00133-1 occupies the physical connection layer between the TPU and the ABB robot controller.
Operator → TPU → 3HNE00133-1 Extension Cable → S4C / S4C+ Controller → Robot Drive System → Robot
| System Element | Function |
|---|---|
| Operator | Performs robot operation, programming, and service actions |
| TPU | Provides the local robot operator interface |
| 3HNE00133-1 | Extends the TPU electrical connection |
| S4C / S4C+ Controller | Executes robot programs and control functions |
| Robot Drive System | Controls robot-axis motion |
| Robot Manipulator | Performs the programmed physical movement |
| Engineering / Service Tools | Supports configuration, diagnostics, and maintenance |
The extension cable allows the TPU connection to accommodate the physical layout of the robot cell without changing the basic separation between the operator interface and controller functions.
Industrial Applications
| Application | Typical Use |
|---|---|
| Robotic Welding Cells | TPU connection between operator position and controller |
| Material Handling Robots | Extended operator-interface cable routing |
| Assembly Automation | Local robot programming and commissioning |
| Machine Tending | TPU access around separated robot and machine areas |
| Robot Maintenance | Operator and service access during troubleshooting |
| Production Robot Cells | Cable extension around controller cabinet layouts |
| OEM Robot Systems | Integration of TPU connection into customized cell layouts |
Installation and Maintenance
- Verify that the 3HNE00133-1 matches the intended ABB S4C or S4C+ TPU connection arrangement.
- Identify both cable endpoints before disconnecting an existing cable assembly.
- Inspect the connectors for contamination, bent contacts, damage, or abnormal wear.
- Plan the cable route to avoid sharp edges, crushing points, and excessive mechanical stress.
- Avoid unnecessary bending, twisting, or pulling on the cable during installation.
- Secure the cable appropriately so that robot-cell movement does not place continuous load on the connectors.
- Keep the cable away from avoidable sources of heat and mechanical abrasion.
- Verify that the cable is routed without interfering with robot movement or operator access.
- Fully seat and secure both connectors before applying system power.
- Check TPU communication and operator-interface functions after installation.
- If intermittent TPU behavior occurs, inspect the cable route and both connection points before replacing active controller components.
- After replacement, test the TPU, controller interface, and relevant robot operating functions before returning the robot cell to production.
Compatible System Components
| Component | Function |
|---|---|
| ABB S4C Robot Controller | Executes robot control programs and system functions |
| ABB S4C+ Robot Controller | Provides robot control and operator-interface support |
| ABB TPU | Provides local robot operation and programming |
| TPU Connection Interface | Provides the cable connection to the controller |
| Robot Drive System | Controls robot-axis movement |
| Robot Manipulator | Performs programmed robot motion |
| Controller Cabinet | Houses robot control and interface equipment |
| Service / Engineering Tools | Supports robot configuration and diagnostics |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ABB 3HNE00133-1 | S4C/S4C+ Extension Cable for TPU | Extended TPU connection |
| ABB S4C | Robot Controller | Industrial robot control |
| ABB S4C+ | Robot Controller | Industrial robot control and programming |
| ABB S4Cplus M2000 | Robot Controller Platform | ABB robot control architecture |
| ABB S4C+ Panel Unit | Operator / Panel Interface | Local controller operation and service |
| ABB S4C+ Internal Connection Cables | Controller Cable Assembly | Internal controller interconnection |
| ABB TPU | Teach Pendant | Robot programming and operator control |
| ABB S4C+ Service Components | Robot Controller Accessories | Maintenance and controller servicing |
Key Advantages
- Extends the TPU connection for compatible ABB S4C and S4C+ robot controllers.
- Accommodates greater physical separation between the operator position and controller cabinet.
- Supports practical cable routing within industrial robot cells.
- Provides a passive connection path without adding another active communication device.
- Useful for robot commissioning, operation, and maintenance arrangements.
- Suitable for replacement of compatible TPU extension cable assemblies.
Technical FAQs
When is an extension cable useful in an ABB S4C/S4C+ robot cell?
An extension cable is useful when the standard TPU connection does not provide sufficient reach for the physical arrangement of the robot cell. The cable route should still be planned so that the TPU can be used without excessive mechanical stress on the connection.
What symptoms can indicate a problem with the 3HNE00133-1?
Intermittent TPU communication, unexpected loss of operator-interface response, or unstable connection behavior can indicate a cable or connector problem. The cable should be inspected together with the TPU and controller-side interface before diagnosing a controller fault.
Can the 3HNE00133-1 be replaced with any longer TPU cable?
No. A replacement should match the applicable S4C/S4C+ TPU interface and the existing controller connection arrangement. Cable length alone does not establish compatibility.
How should the cable be routed around a moving robot?
The cable should be positioned to avoid interference with robot motion, crushing, abrasion, excessive bending, and repeated mechanical loading. Where movement is unavoidable, the routing arrangement should follow the robot-cell installation requirements for the applicable equipment.
