Product Overview

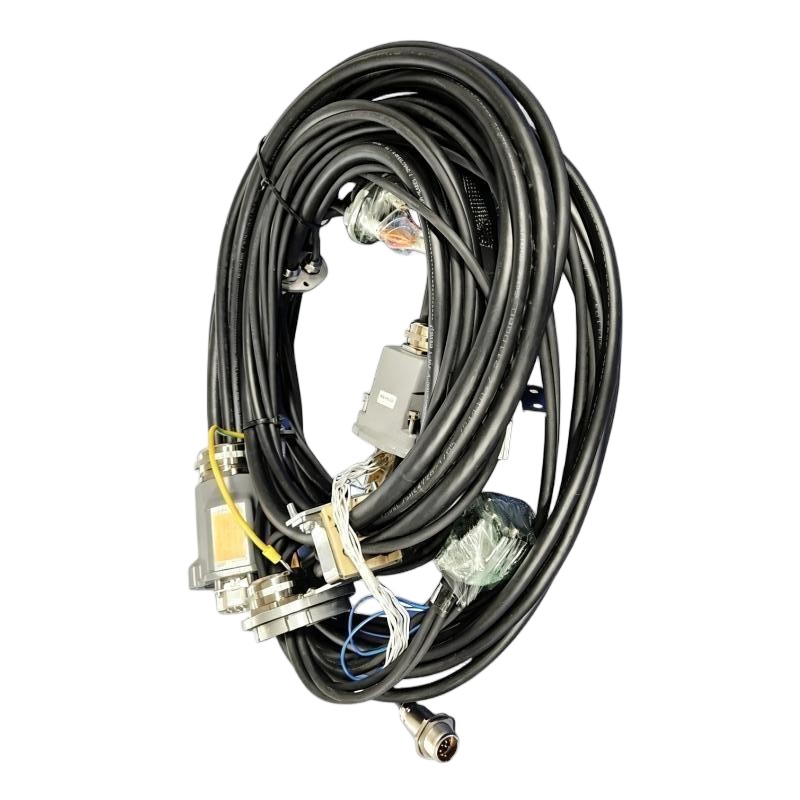

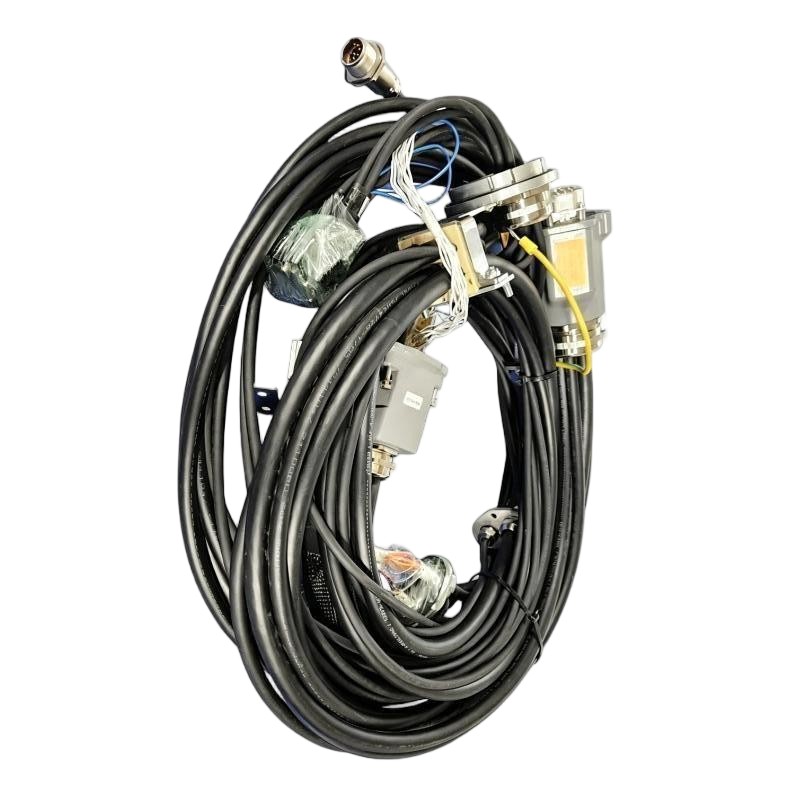

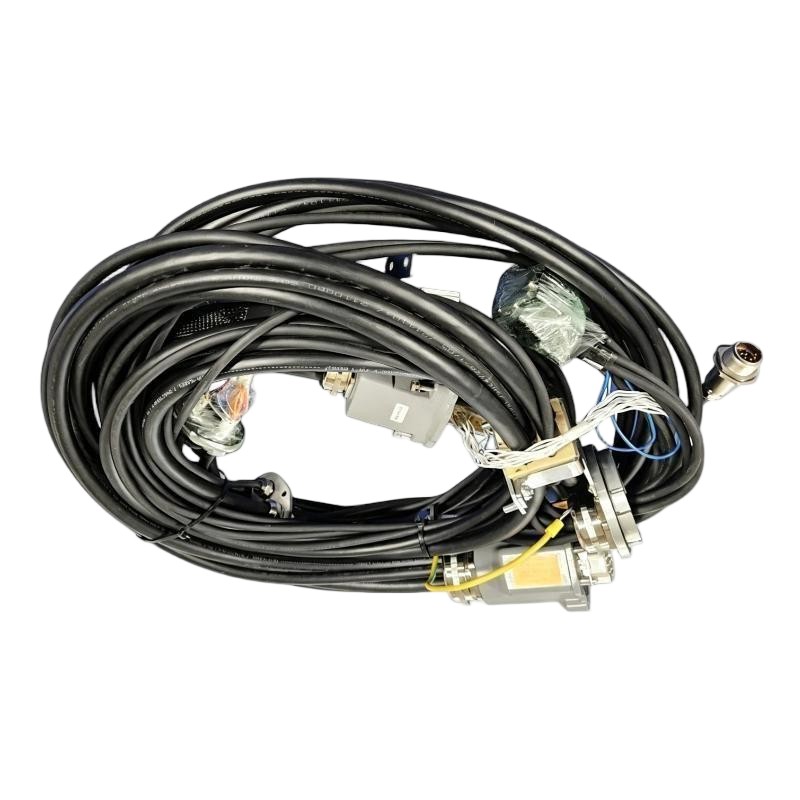

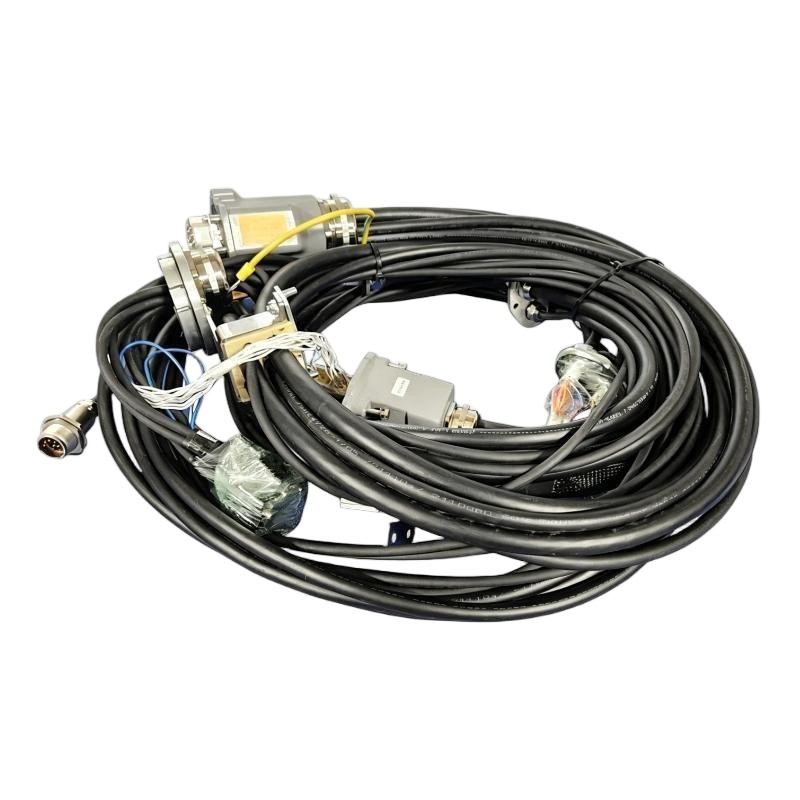

The ABB 3HAC14940-1 Manipulator Harness Axes 1-4 is a robot wiring harness used to route electrical connections between the manipulator components associated with axes 1 through 4 and the corresponding robot control and drive system.

The harness forms part of the internal electrical infrastructure of an ABB industrial robot. It organizes multiple power, control, feedback, and auxiliary connections into a dedicated cable assembly, reducing the need to route individual conductors separately through the robot’s mechanical structure.

Because robot axes continuously move during operation, the harness must accommodate repeated mechanical movement while maintaining electrical continuity. Proper routing and restraint are particularly important around articulated joints, where excessive bending, twisting, or mechanical interference can eventually damage the cable assembly.

During robot maintenance, the harness should be considered together with the axis motors, feedback devices, connectors, and controller-side interfaces. Intermittent axis faults, encoder communication problems, or loss of motor-related signals can sometimes originate from harness damage rather than from the connected electronic equipment.

Technical Specifications

Product Features

• Manipulator harness for ABB robot axes 1 through 4.
• Combines multiple electrical connections within a dedicated robot cable assembly.
• Supports electrical interconnection between axis-side components and the robot control system.
• Accommodates wiring associated with articulated robot movement.
• Suitable for maintenance and replacement of compatible robot harness assemblies.
• Helps organize internal axis wiring within the manipulator.
• Applicable to ABB industrial robot motion systems.
• Cable length configuration can vary according to the applicable installation.

Working Principle

The 3HAC14940-1 acts as the electrical connection path for components associated with robot axes 1-4. Signals and electrical power travel through the harness between the relevant manipulator-side components and their corresponding control or drive interfaces.

Depending on the robot configuration, the harness can carry connections associated with motor power, feedback, control, or auxiliary circuits. The harness itself does not generate motion or process control commands; it maintains the electrical continuity required for those functions.

Robot Controller / Drive System → Manipulator Harness → Axis 1-4 Motors / Feedback / Auxiliary Circuits

As the robot moves, the harness follows the mechanical movement of the manipulator. Its routing and securing arrangement must therefore prevent excessive tension, sharp bending, crushing, or interference with moving mechanical parts.

An electrical interruption within the harness can affect one or more axis functions. For this reason, intermittent faults should be investigated by checking the harness, connectors, axis-side devices, and controller diagnostics as one electrical path.

Role in an ABB Robot Manipulator Control Architecture

The 3HAC14940-1 occupies the wiring and interconnection layer between the ABB robot control system and the electrical components associated with axes 1-4.

Robot Controller → Drive System → Manipulator Harness → Axis Motors / Feedback Devices → Robot Mechanical Axes

The harness provides the physical electrical path needed for communication and power exchange between the controller-side equipment and the moving manipulator assembly.

Industrial Applications

Installation and Maintenance

1. Verify the complete 3HAC14940-1 part number and intended ABB robot application before installation.
2. Confirm that the harness configuration corresponds to the manipulator and axes 1-4 wiring arrangement.
3. Isolate robot power and secure the manipulator against unintended movement before replacing the harness.
4. Document connector positions and cable routing before disconnecting the existing harness.
5. Inspect connectors, terminals, and cable entry points for damage or contamination.
6. Route the replacement harness according to the original mechanical path and approved robot maintenance procedure.
7. Avoid excessive tension, twisting, sharp bending, crushing, or contact with moving mechanical components.
8. Secure the harness at the designated mounting and restraint points.
9. Verify that connectors are fully seated and correctly assigned before energizing the robot.
10. Check motor, feedback, and auxiliary circuits for continuity or connection faults where required.
11. Perform controlled robot-axis movement and monitor for intermittent electrical or feedback-related faults.
12. After replacement, complete the applicable robot calibration, axis verification, and functional testing before returning the manipulator to production.

Compatible System Components

Recommended Related Models

Key Advantages

• Consolidates electrical connections for ABB manipulator axes 1-4.
• Supports organized internal wiring within articulated robot structures.
• Carries the electrical paths required by associated axis components.
• Suitable for robot maintenance and replacement of compatible harness assemblies.
• Helps maintain electrical continuity during repeated manipulator movement.
• Supports troubleshooting of axis-related wiring and connection faults.

Technical FAQs

Why can an axis fault be caused by the manipulator harness?

The harness carries electrical connections between the robot control or drive system and axis-side equipment. Repeated movement can subject the wiring to mechanical stress, so an intermittent conductor or connector problem can appear as a motor, feedback, or communication fault.

How should the optional cable length be handled when ordering a replacement?

The required harness configuration should be matched to the existing robot installation and routing arrangement. Cable length should be confirmed against the robot model, manipulator configuration, and original harness specification rather than selected only by approximate physical reach.

What signs suggest that the harness should be inspected?

Intermittent axis faults, unexpected feedback loss, connector errors, or faults that appear only during particular manipulator positions can justify inspection of the harness routing and connections. Areas around articulated joints deserve particular attention.

Does replacing the harness require robot calibration?

Harness replacement itself does not inherently change the robot’s mechanical calibration, but the applicable ABB maintenance procedure should be followed. After replacement, electrical checks, controlled axis movement, and any required calibration or verification should be completed before production resumes.
