Product Overview

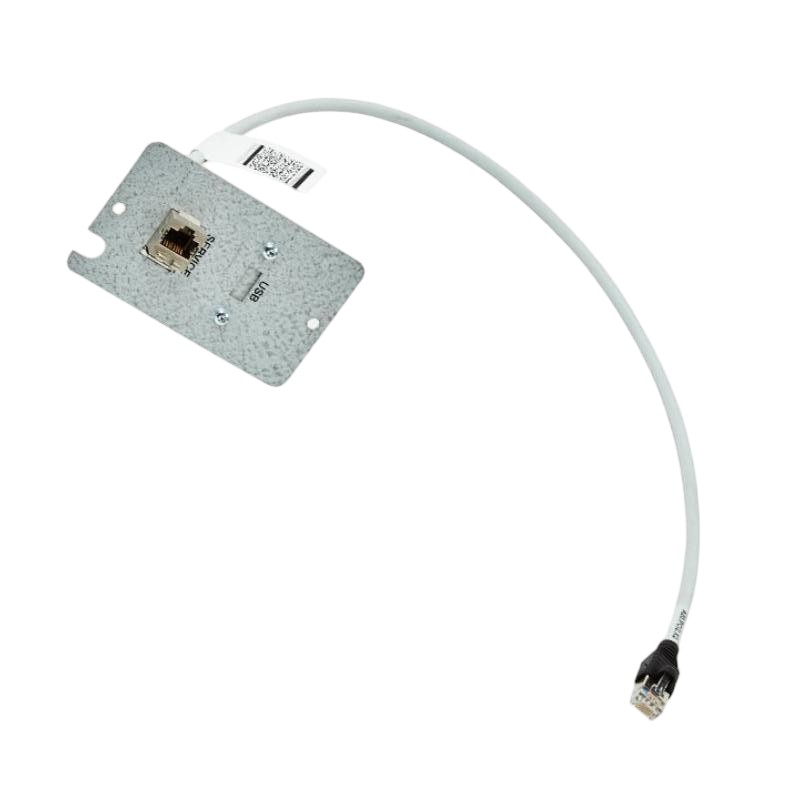

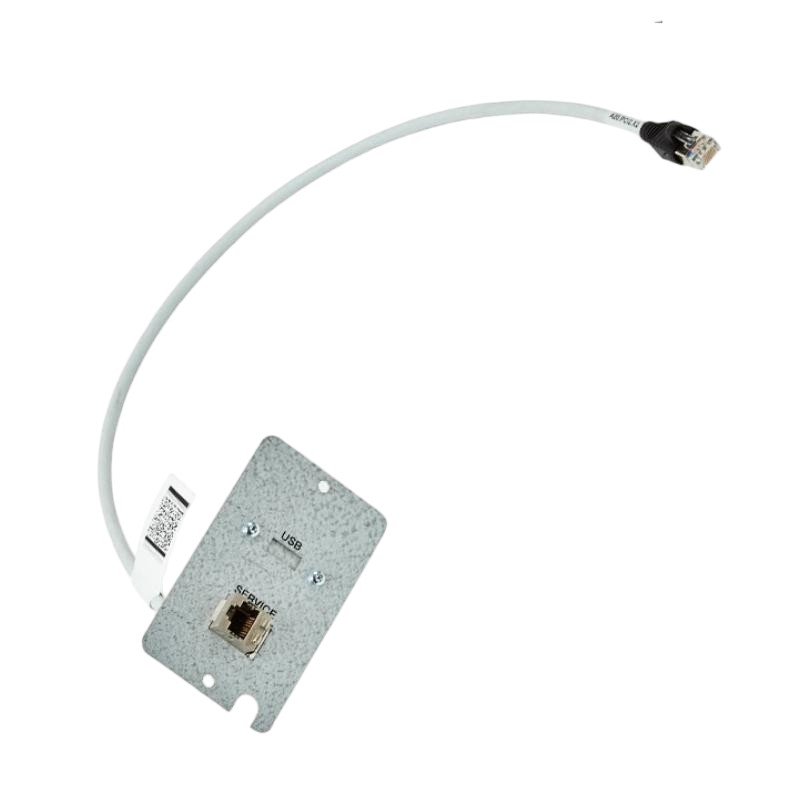

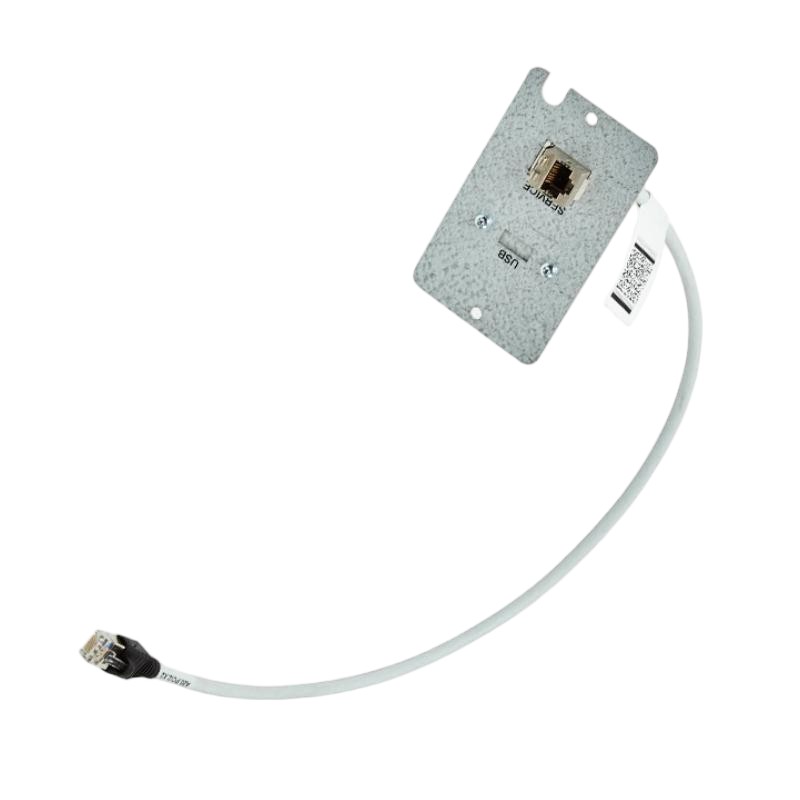

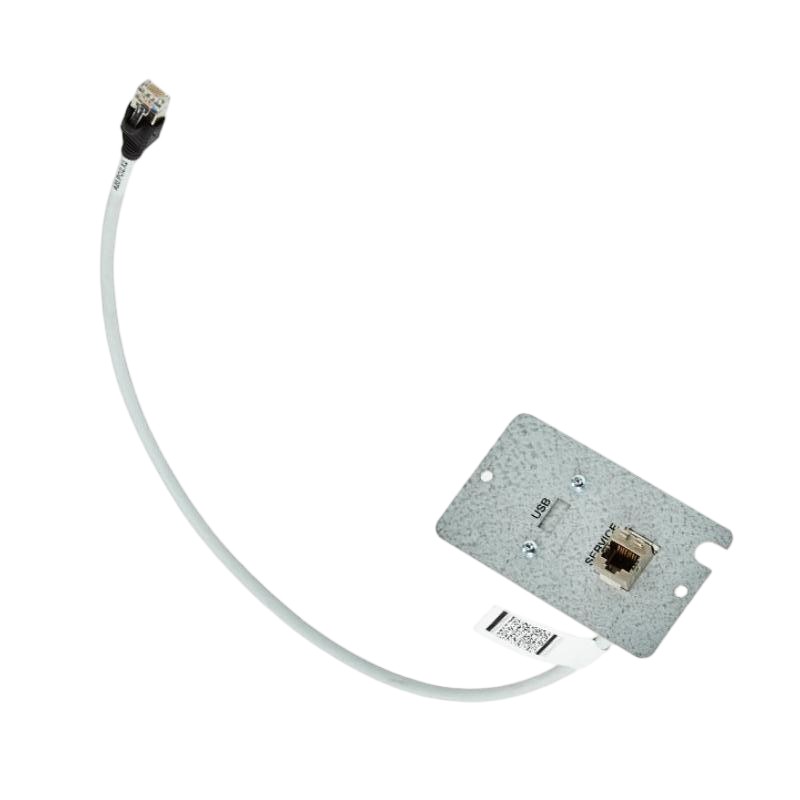

The ABB 3HAC022296-001 is an S4Cplus M2000 computer outlet preparation used to support USB connectivity within an ABB robot controller installation. It belongs to the controller-side accessory and connection infrastructure rather than the main computing or motion-control electronics.
In an S4Cplus M2000 cabinet, computer-related connections may need to be routed between the internal controller hardware and an accessible service or connection point. This outlet preparation provides part of that physical interface, allowing a compatible USB connection arrangement to be incorporated into the controller installation.
The component is particularly relevant during controller servicing, configuration, data transfer, and maintenance activities where access to a USB interface is required without disturbing the main controller wiring. Its function is centered on connection access and cable routing rather than USB data processing itself.
The 3HAC022296-001 should be considered together with the installed S4Cplus M2000 computer hardware and the associated USB cable arrangement. The exact cable configuration should be verified before replacement or installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 3HAC022296-001 |
| Product Family | S4Cplus M2000 |
| Product Type | Computer Outlet Preparation for USB |
| Primary Function | USB connection outlet preparation |
| System Role | Controller computer connection interface |
| Application | ABB S4Cplus M2000 robot controller |
| Cable Length | Optional |
| Weight | 0.14 kg |
Product Features
- S4Cplus M2000 computer outlet preparation for USB connectivity
- Provides a physical interface for USB-related controller connections
- Intended for integration with ABB robot controller computer infrastructure
- Supports convenient access to a compatible USB connection point
- Suitable for controller service and maintenance arrangements
- Can be used as part of an existing S4Cplus M2000 installation
- Cable configuration can be adapted according to the installed arrangement
- Useful for replacement of controller-side USB connection hardware
Working Principle
The 3HAC022296-001 functions as a connection-access component rather than an active computer or communication processor. It provides the physical preparation needed to bring a compatible USB connection to an accessible point within the S4Cplus M2000 installation.
S4Cplus M2000 Computer → USB Connection Arrangement → 3HAC022296-001 → External USB Device
When a compatible USB device is connected through the prepared outlet, USB data and power are carried through the associated connection path to the controller computer interface. The outlet preparation itself does not execute software or process the USB data; those functions remain with the connected computer hardware and controller system.
The cable arrangement is part of the overall connection path. A loose connection, damaged cable, or incorrectly assembled outlet can prevent the external USB device from being recognized even when the controller computer itself is operating normally.
Role in an ABB S4Cplus M2000 Controller Architecture
The 3HAC022296-001 occupies the local computer connectivity layer of the S4Cplus M2000 controller. It provides a physical access point between the controller’s computer infrastructure and an external USB device.
S4Cplus M2000 Computer → USB Interface → 3HAC022296-001 → External USB Device
| System Element | Function |
|---|---|
| S4Cplus M2000 Computer | Provides controller computing and system functions |
| USB Interface | Handles USB communication with connected devices |
| 3HAC022296-001 | Provides the prepared USB outlet connection |
| USB Cable | Carries the USB connection between interface points |
| External USB Device | Provides service, data-transfer, or maintenance access |
| Robot Controller Software | Uses the connected device according to system functions |
The component therefore supports the service and connectivity infrastructure surrounding the robot controller without replacing the controller computer or robot-control electronics.
Industrial Applications
| Application | Typical Use |
|---|---|
| Robot Controller Maintenance | Accessible USB connection for service activities |
| Controller Configuration | Connection to compatible external USB devices |
| Program / Data Transfer | USB-based transfer where supported by the system |
| Robot Cell Servicing | Local connection access during maintenance |
| Controller Retrofit | Adding or restoring a compatible USB connection |
| S4Cplus M2000 Service Work | Computer-side USB access within the controller |
Installation and Maintenance
- Confirm that the 3HAC022296-001 matches the installed S4Cplus M2000 controller configuration.
- Isolate the controller according to the applicable electrical and robot safety procedures before servicing internal connections.
- Identify the existing USB connection path before removing the original component.
- Inspect the outlet preparation and associated cable for physical damage.
- Check the cable routing for excessive bending, pulling, or mechanical stress.
- Verify that the USB connection interfaces are correctly oriented and seated.
- Secure the outlet and associated hardware according to the controller installation arrangement.
- Keep the USB connection path clear of avoidable mechanical interference inside the controller cabinet.
- Verify the associated computer interface before connecting an external USB device.
- Test USB device recognition after installation using an approved controller service procedure.
- If the USB connection is intermittent, inspect the outlet, cable, connector interfaces, and computer-side port separately.
- After replacement, confirm normal controller operation and verify that the intended USB service or data-transfer function is available.
Compatible System Components
| Component | Function |
|---|---|
| ABB S4Cplus M2000 Computer Unit | Provides controller computer functions |
| ABB S4Cplus M2000 Controller | Coordinates robot control and system operation |
| USB Cable | Provides the physical USB connection |
| USB Connector / Outlet | Provides external connection access |
| Controller Service Equipment | Supports configuration and maintenance activities |
| Robot Controller Software | Manages supported controller-side functions |
| S4Cplus M2000 Internal Wiring | Connects computer and controller-side interfaces |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ABB 3HAC022296-001 | USB Computer Outlet Preparation | S4Cplus M2000 computer connectivity |
| ABB S4Cplus M2000 | Robot Controller Platform | Industrial robot control |
| ABB S4Cplus M2000 Computer Unit | Controller Computer Unit | Controller computing and service functions |
| ABB S4Cplus M2000 Panel Unit | Panel Unit | Local controller operation and service |
| ABB S4C+ Base Connection Unit | Base Connection Unit | Internal controller module interconnection |
| ABB S4Cplus M2000 Flash Disk | Flash Storage Device | Controller data storage |
| ABB S4Cplus M2000 Internal Fan Assembly | Cooling Component | Controller thermal management |
Key Advantages
- Provides a dedicated physical outlet arrangement for USB connectivity.
- Supports convenient computer-side access within an S4Cplus M2000 controller installation.
- Useful for controller servicing, configuration, and supported data-transfer tasks.
- Separates the physical USB connection point from the main controller computing hardware.
- Can simplify access to USB connectivity during robot controller maintenance.
- Suitable for replacement of compatible S4Cplus M2000 connection hardware.
Technical FAQs
What is the difference between the 3HAC022296-001 and a USB cable?
The 3HAC022296-001 is an outlet-preparation component associated with the controller installation, while the USB cable provides the actual connection path between compatible USB interfaces. The two components can form part of the same controller-side USB connection arrangement.
Can the 3HAC022296-001 be treated as an active USB communication module?
No. Its primary role is physical connection and outlet preparation. USB data processing remains the responsibility of the connected computer and USB interface electronics.
Why might a connected USB device not be recognized after installing the outlet preparation?
Check the complete connection path, including the outlet, cable, connector seating, and computer-side USB interface. The controller software and the connected USB device should also be checked if the physical connection is intact.
What should be verified when replacing this S4Cplus M2000 component?
Confirm the exact part number and controller configuration, document the original connection arrangement, and verify the associated cable routing. After installation, test the USB connection and confirm normal S4Cplus M2000 controller operation.
