Product Overview

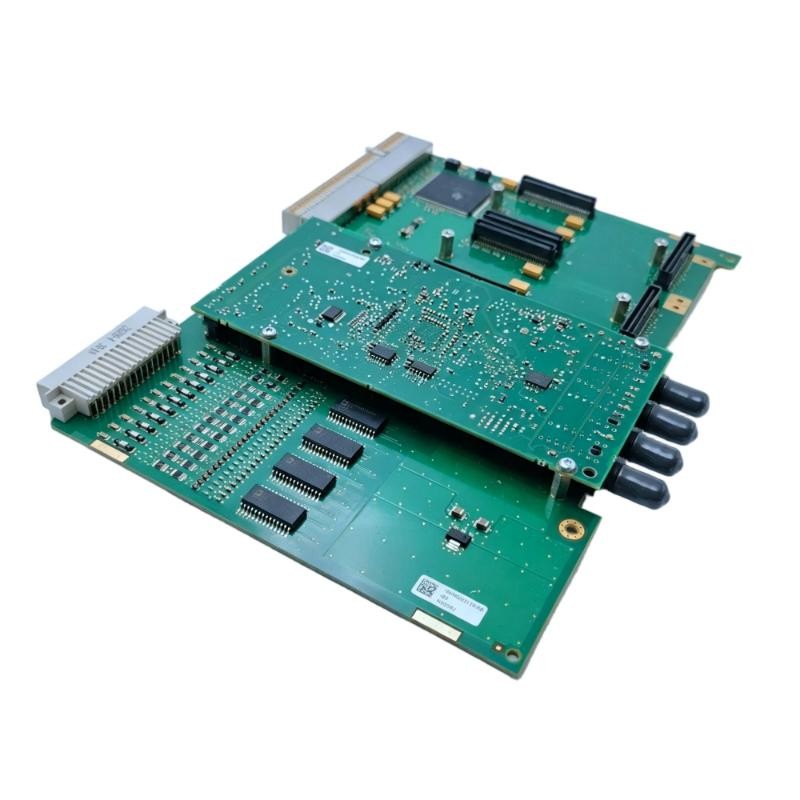

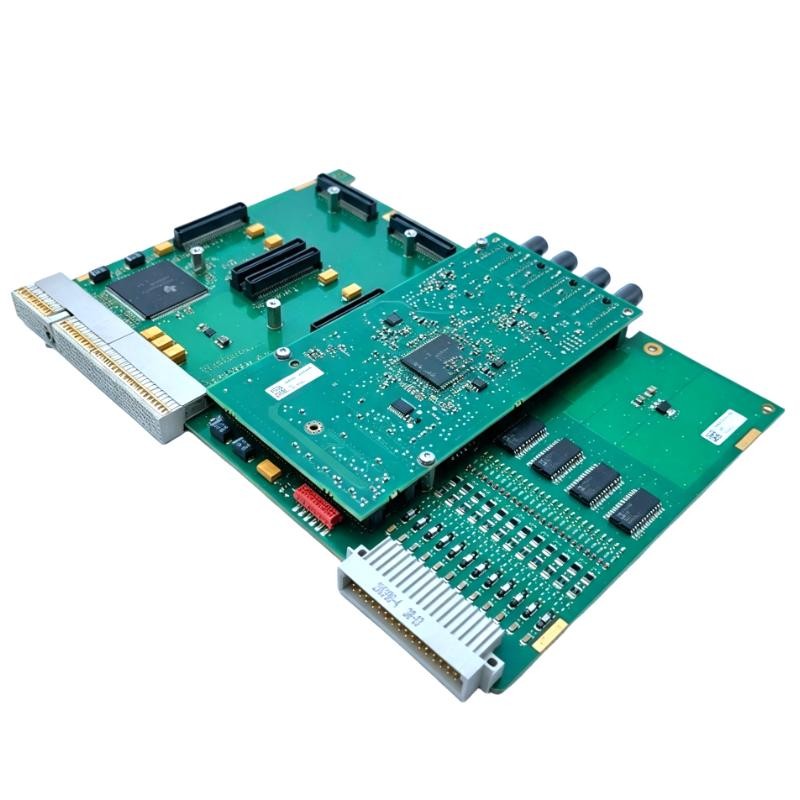

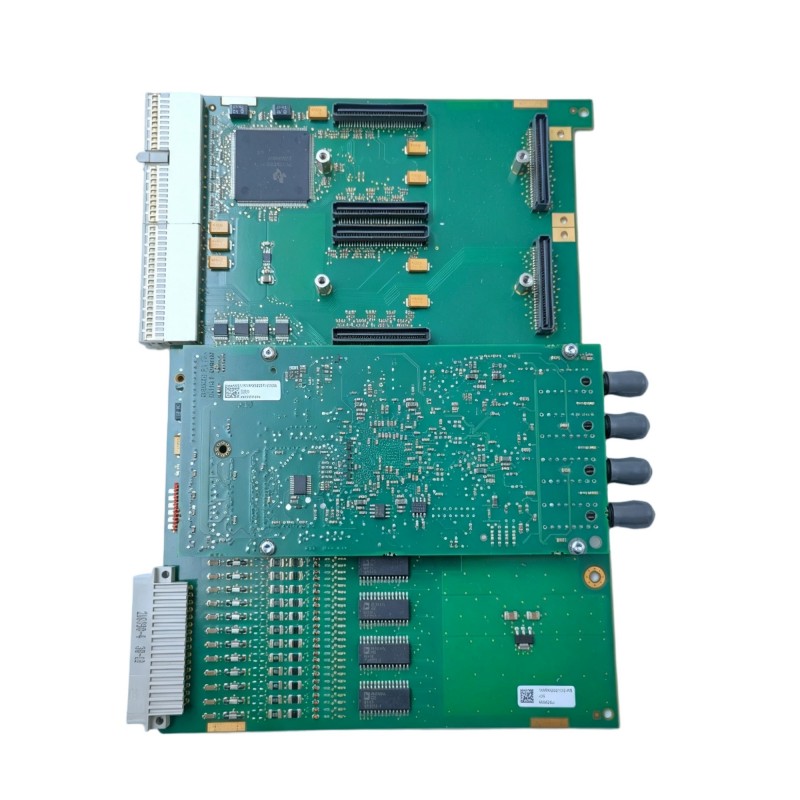

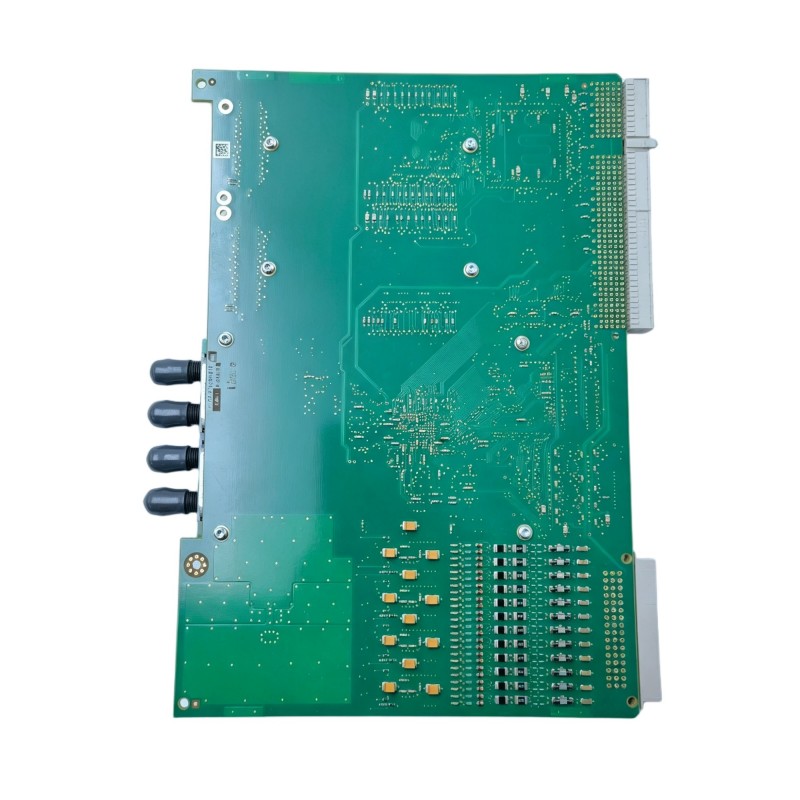

The ABB 1MRK002133-ACr04 Analog Digital Conversion Module is a signal conversion component designed for use within industrial protection, measurement, and control systems. Its primary function is to handle the conversion of electrical signals between analog and digital forms so that measurement information can be processed by digital system electronics.

Modern protection and automation equipment relies heavily on digital processing, while many electrical measurement sources produce analog signals. A conversion stage is therefore needed to transform continuously varying electrical values into digital information that a processor can analyze.

The 1MRK002133-ACr04 is used as part of this signal-processing chain. It is not intended to replace the main controller or protection processor. Instead, it provides the interface between measurement signals and the digital processing section of the system.

Reliable conversion is important when measurement data is used for monitoring, control, or protection functions. Errors introduced during signal acquisition or conversion can affect the quality of the information available to downstream processing equipment.

With dimensions of 120 × 80 × 40 mm and a weight of 0.5 kg, the ABB 1MRK002133-ACr04 offers a compact design suitable for integration into industrial protection and control equipment.

Technical Specifications

Product Features

The ABB 1MRK002133-ACr04 is intended for applications where analog measurement information must be processed within a digital control or protection architecture.

Key features include:

• Analog and digital signal conversion capability
• Suitable for industrial measurement systems
• Provides an interface between measurement sources and digital electronics
• Supports signal processing within protection architectures
• Compact module construction
• Suitable for integration with compatible ABB equipment
• Supports digital handling of measurement information
• Designed for industrial control and monitoring applications

The conversion module can be particularly useful in systems where electrical measurements must be acquired and made available to digital processing functions.

Working Principle

The module operates as part of the signal acquisition and processing path.

An analog measurement signal enters the conversion stage and is prepared for digital processing. The analog waveform is sampled, and the resulting values are represented as digital data that can be handled by the connected processing equipment.

The general process includes:

• Receiving the incoming measurement signal
• Conditioning the signal for conversion
• Sampling the analog signal
• Converting the sampled information into digital values
• Transferring the converted data to the processing system
• Allowing the digital system to evaluate the measurement

For systems requiring a reverse conversion path, digital information can be transformed into a corresponding analog representation for compatible external equipment.

The final measurement accuracy depends on the entire signal chain, including the source, wiring, grounding, signal conditioning, conversion stage, and downstream processing.

Role in Industrial Control Systems

The 1MRK002133-ACr04 provides an important interface between analog measurement sources and digital control electronics.

The module itself is primarily concerned with signal conversion. Application logic, protection algorithms, and higher-level control functions are normally handled by associated processing equipment.

Industrial Applications

Analog-to-digital conversion is widely used in industrial systems where physical measurements must be processed by digital electronics.

In electrical protection applications, converted measurement data may be used by higher-level functions to monitor system conditions and support control decisions.

Installation and System Integration

Proper integration of the ABB 1MRK002133-ACr04 requires attention to both the module and the surrounding measurement circuit.

Recommended installation steps include:

• Verify the complete module part number.
• Confirm compatibility with the host ABB equipment.
• Install the module in the designated location.
• Check the signal interface and connector arrangement.
• Verify the characteristics of the connected measurement source.
• Use appropriate signal wiring and grounding.
• Check the converted values during commissioning.
• Compare readings with an appropriate reference before normal operation.

Signal quality should be checked during commissioning. Electrical interference, grounding problems, poor connections, or unsuitable input levels can affect the resulting measurement data.

Compatible System Components

The ABB 1MRK002133-ACr04 can operate as part of a broader measurement, protection, and control architecture.

The exact system configuration depends on the host ABB platform and the application in which the conversion module is installed.

Recommended Alternative Models

When selecting an alternative, the signal characteristics, conversion requirements, electrical interface, connector configuration, host system, and application software should be verified. A module with a similar physical size does not necessarily provide the same conversion function.

Key Advantages

• Supports analog and digital signal conversion
• Suitable for industrial measurement applications
• Provides an interface between measurement signals and digital electronics
• Supports protection and monitoring architectures
• Compact physical design
• Suitable for integration into ABB control systems
• Helps make measurement information available for digital processing
• Useful in electrical and industrial automation environments

Technical FAQs

How does conversion resolution affect measurement quality?

Conversion resolution determines how finely an analog input can be represented as a digital value. Higher resolution allows smaller changes in the input signal to be represented more precisely, which can be important when the converted data is used for detailed measurement or protection functions.

What can cause errors in an analog-to-digital measurement chain?

Errors can originate from several points, including the measurement source, wiring, grounding, electrical noise, signal conditioning, conversion characteristics, and downstream processing. Troubleshooting should therefore consider the complete signal path rather than the conversion module alone.

Why is synchronization important when converted measurements are used for protection functions?

Protection systems may need measurements from multiple channels or locations to be compared within a defined time relationship. Poor synchronization can introduce timing differences between measurement values and may affect functions that depend on accurate phase or event relationships.

How should a replacement for the 1MRK002133-ACr04 be selected?

The replacement should be matched according to the required conversion function, signal type, electrical interface, connector arrangement, host ABB equipment, system configuration, and application requirements. Physical dimensions and general module type alone are not sufficient to establish compatibility.
