Product Overview

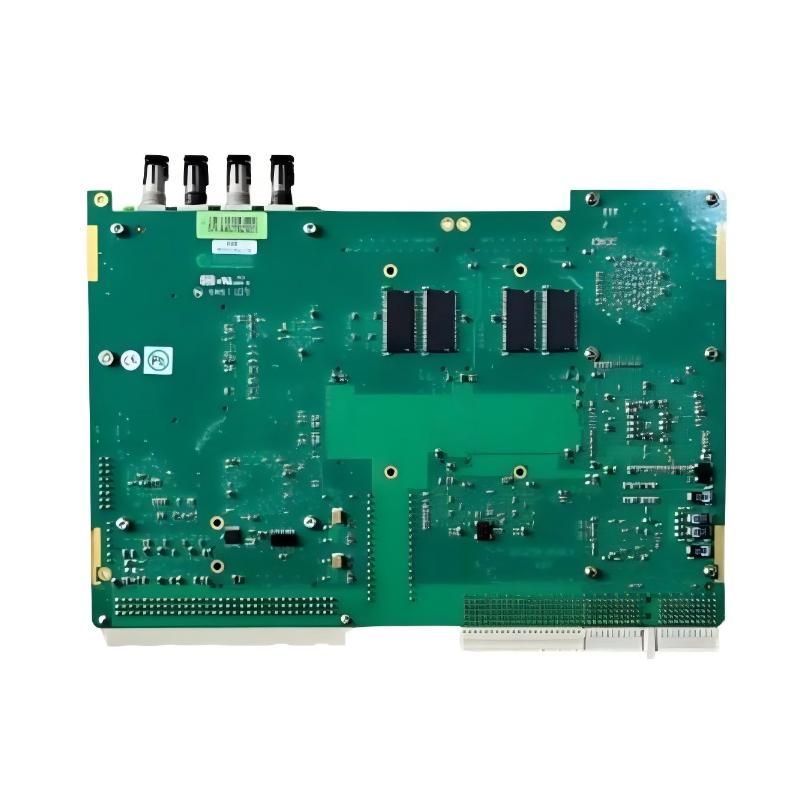

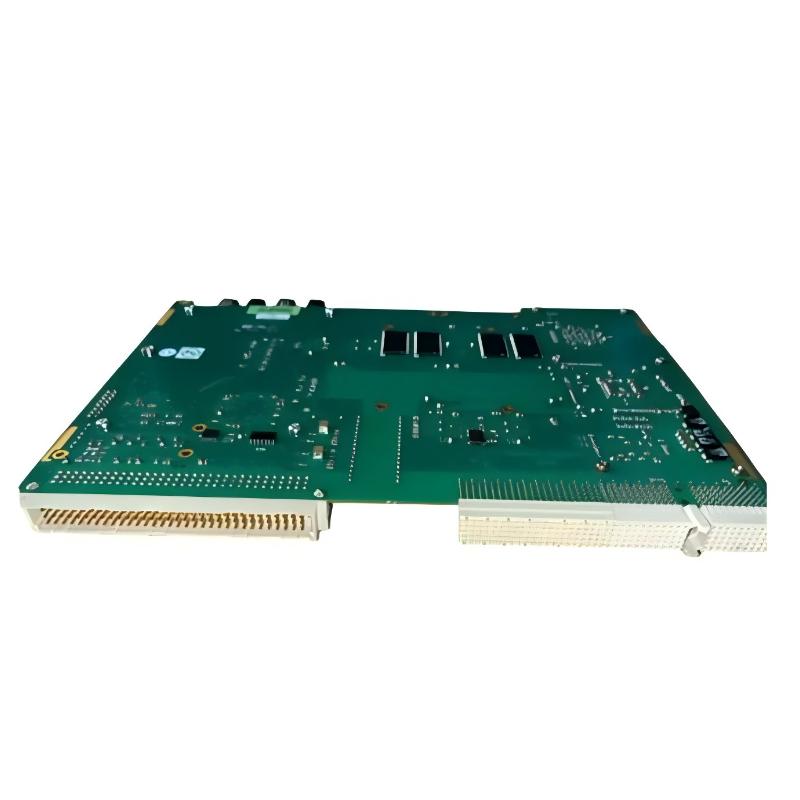

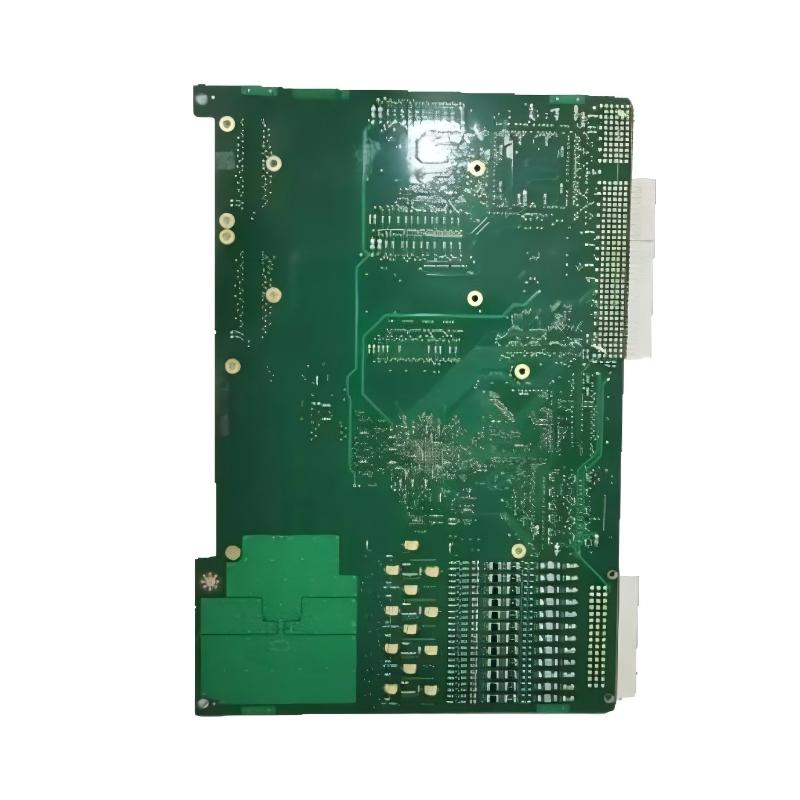

The ABB 1MRK002133-ABr01 Analog Digital Conversion Module is a signal conversion component used in industrial protection, monitoring, and control systems. Its main role is to handle the conversion of electrical measurement signals between analog and digital forms so that system electronics can process and use the information.

In a protection or automation system, field measurements are not always available in the same signal format required by the processing electronics. An analog signal may need to be converted into digital data before it can be evaluated by a controller, protection function, or monitoring system. The conversion module provides the interface needed between these two stages.

The 1MRK002133-ABr01 is therefore part of the signal-processing chain rather than a standalone controller. It can work alongside processing units, protection functions, communication interfaces, and other I/O hardware within a larger ABB system.

Accurate signal conversion is particularly important in electrical applications because measurement information may be used for monitoring operating conditions, detecting abnormal values, or supporting protection decisions. The quality of the conversion stage directly affects the usefulness of the data available to the control system.

With dimensions of 120 × 85 × 55 mm and a weight of 0.35 kg, the ABB 1MRK002133-ABr01 provides a compact form factor for integration into industrial protection and control equipment.

Technical Specifications

Product Features

The ABB 1MRK002133-ABr01 is intended for systems where measurement signals need to be prepared for digital processing.

Key features include:

• Supports analog and digital signal conversion
• Suitable for industrial measurement applications
• Provides an interface between measurement signals and processing electronics
• Useful in protection and control architectures
• Compact module construction
• Suitable for integration with compatible ABB equipment
• Supports digital processing of measurement information
• Can be used as part of a larger signal acquisition chain

The module is especially relevant in systems where the controller or protection logic needs reliable digital information derived from electrical measurements.

Working Principle

The conversion process starts with an analog electrical signal generated by a measurement source or connected sensing circuit. The module receives this signal and prepares it for processing by the digital control system.

During analog-to-digital conversion, the continuously varying input signal is sampled at defined intervals. Each sample is then represented as a digital value that can be processed by the system electronics.

A simplified operating sequence is:

• Receiving an analog measurement signal
• Conditioning the incoming signal for conversion
• Sampling the analog signal
• Converting sampled values into digital information
• Passing the converted data to the processing system
• Allowing the control or protection logic to use the resulting measurement data

Where a system requires the opposite signal direction, digital information can also be converted into an analog representation for compatible external equipment.

The accuracy and usefulness of the converted signal depend not only on the module itself, but also on the quality of the input signal, wiring, measurement device, and configuration of the overall system.

Role in Industrial Control Systems

The 1MRK002133-ABr01 forms part of the measurement interface between field signals and digital processing equipment.

The module does not normally replace the main controller or protection processor. Its role is focused on signal conversion and measurement interfacing.

Industrial Applications

Analog and digital conversion modules are used in systems where electrical measurements need to be processed by digital control or protection equipment.

In protection applications, converted measurement data may become part of the information used by higher-level control or protection functions.

Installation and System Integration

The ABB 1MRK002133-ABr01 should be installed as part of a properly configured measurement and control system.

Recommended installation checks include:

• Verify the complete module part number.
• Confirm compatibility with the host ABB equipment.
• Install the module in the designated position.
• Check the signal input and output arrangement.
• Confirm the characteristics of the connected measurement source.
• Use suitable wiring and grounding practices.
• Verify the converted signal during commissioning.
• Compare measured values with known reference values before normal operation.

Signal wiring deserves particular attention. Electrical noise, incorrect grounding, poor connections, or unsuitable signal sources can introduce errors that may be incorrectly attributed to the conversion module.

Compatible System Components

The 1MRK002133-ABr01 can form part of a larger measurement and protection architecture.

The exact combination depends on the host ABB equipment and the measurement architecture of the installation.

Recommended Alternative Models

When selecting an alternative, the signal type, conversion requirements, electrical characteristics, host system, connector arrangement, and software configuration should all be checked. A module with a similar size or general function may still have a different interface or operating specification.

Key Advantages

• Provides analog and digital signal conversion
• Suitable for measurement and protection systems
• Supports digital processing of analog information
• Provides an interface between field signals and control electronics
• Compact design for industrial equipment
• Suitable for ABB protection and automation architectures
• Useful for electrical measurement applications
• Helps integrate measurement signals into digital control systems

Technical FAQs

How does signal sampling affect the accuracy of an analog-to-digital conversion module?

The sampling process determines how frequently the analog input is measured. If the sampling characteristics are not suitable for the signal being monitored, important changes in the waveform may not be represented accurately in the digital data. The required sampling performance therefore depends on the measurement and protection application.

Why is signal conditioning important before analog-to-digital conversion?

Signal conditioning helps ensure that the incoming electrical signal is within the appropriate range and is suitable for the conversion stage. Noise, excessive signal levels, grounding problems, or an unsuitable input source can introduce errors before the actual conversion takes place.

What is the difference between an analog measurement signal and its digital representation?

An analog signal varies continuously within its operating range, while a digital representation expresses the measured value as discrete numerical data. The digital form can then be processed by protection algorithms, monitoring functions, or control software.

What should be considered when replacing the 1MRK002133-ABr01?

The conversion function alone is not enough to determine compatibility. The input signal characteristics, conversion requirements, electrical interface, connector configuration, host ABB system, and application software should be checked before selecting a replacement.
