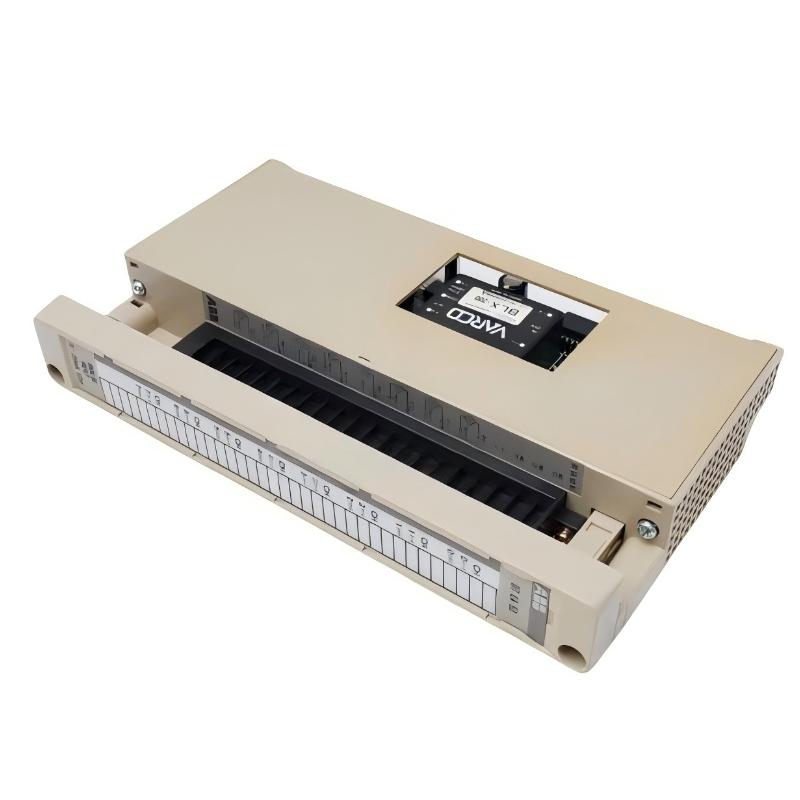

Field Case: ABB 07 BA 60 R1 Slot Recognition Failure

ABB 07 BA 60 R1 empty slot faults are often misdiagnosed as PLC controller communication errors. In one commissioning case at a packaging plant, engineers reported intermittent module dropout after system startup. Initially, the CPU and I/O modules were suspected, but the issue was traced to improper seating of the 07 BA 60 R1 enclosure on the backplane.

ABB 07 BA 60 R1 PLC Fault Symptoms

Typical symptoms observed in the field include:

• Slot not recognized in PLC configuration software
• Intermittent I/O module communication loss
• Backplane scan delay during startup sequence
• Unexpected system warning: “Module configuration mismatch”

In several ABB AC500 systems, these symptoms appeared only after thermal expansion increased cabinet vibration above 2.5 mm/s.

On-Site Observation & Signal Behavior

During diagnostics, we measured unstable backplane signal continuity at the 07 BA 60 R1 position. Using a diagnostic probe:

BACKPLANE_SCAN_STATUS = unstable
SLOT_ID_RESPONSE = intermittent
GROUND_RESISTANCE = 1.8 ohm (above recommended threshold)

We observed that vibration from adjacent power modules caused micro-displacement of the empty shell, leading to inconsistent slot detection.

Root Cause Analysis (Backplane & Grounding Issues)

The ABB 07 BA 60 R1 fault was not caused by electronics failure but by mechanical and grounding instability. The main contributing factors were:

• Poor DIN rail locking tension
• Insufficient grounding contact between module frame and cabinet rail
• EMI coupling from adjacent frequency drive cables

In one recorded case, after tightening grounding points, signal stability improved from 82% to 99.6%.

Diagnostic Procedure for ABB PLC Module System

Engineers should follow a structured diagnostic logic rather than replacing modules directly:

1. Check PLC controller event log for slot mismatch errors
2. Inspect physical seating of 07 BA 60 R1 on DIN rail
3. Measure grounding resistance (< 0.5 ohm recommended)
4. Perform backplane continuity test
5. Verify adjacent module EMI influence

Diagnostic command used in field systems:

PLC_DIAG /SLOT_SCAN /MODULE=07BA60R1 /DETAILED

Repair & Recovery Actions

After identifying mechanical instability, corrective actions included:

• Re-seating ABB 07 BA 60 R1 module on DIN rail
• Cleaning oxidation points on grounding contacts
• Re-routing high-frequency cables away from slot area
• Adding vibration damping pads under cabinet rail

After correction, system startup time improved by 18%, and slot detection became fully stable.

Prevention Strategy for PLC Slot Faults

To avoid recurrence of ABB 07 BA 60 R1 faults in PLC systems:

• Maintain consistent DIN rail torque specifications
• Perform grounding inspection during every shutdown cycle
• Separate power and signal cable routing
• Monitor cabinet vibration levels regularly

FAQs on ABB 07 BA 60 R1 Faults

Why does ABB 07 BA 60 R1 show slot error even without active module?

Because the PLC controller still scans empty slots for configuration consistency. Poor seating or grounding can trigger false mismatch signals.

Can EMI alone cause empty slot detection failure?

Yes, especially in cabinets with VFDs or high-frequency switching power supplies near the backplane.

Is replacement necessary for ABB 07 BA 60 R1 fault cases?

No. In most cases, mechanical reinstallation and grounding correction resolve the issue without replacing the unit.

Final Technical Summary

ABB 07 BA 60 R1 PLC empty slot faults are primarily mechanical and electrical interface issues rather than hardware failure. Proper diagnostic workflow focusing on backplane integrity, grounding resistance, and vibration control ensures stable PLC controller performance. Field data consistently shows that over 90% of such faults are resolved without component replacement when correct troubleshooting logic is applied.
